High performance portable ultrasonic flow meter used for water have a good price made in china
- Category: >>>
- Supplier: Toye,Measurement,&,Control,Equipment,Co.,Ltd.
Share on:
Product Overview
Description
High performance portable ultrasonic flow meter fuel tank truck flow
Our Services
fuel tank truck flow flow meter
1. ISO1991-2001
2. OEM service
3. 18 months quality guarantee.
4. Support the heat measurement
Product Description

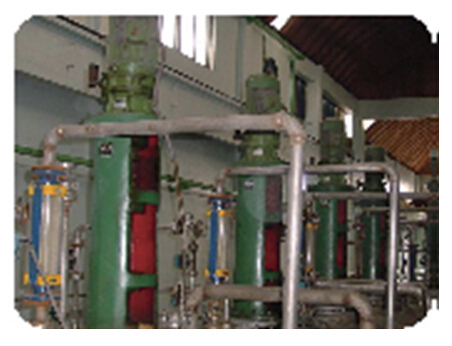

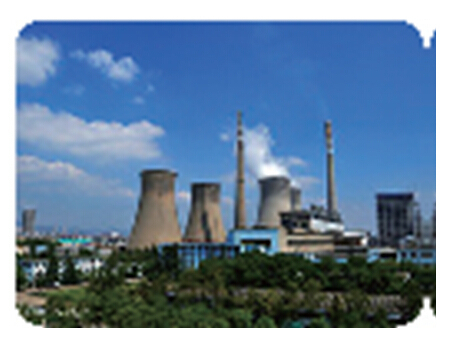

Portable Ultrasonic Flowmeterrealizes the non-contact measurement of liquid flow. The host and sensor were installed in its pipe. Using with the temperature sensor. It is also used in tap water, heating, water conservancy, metallurgy, chemical industry, machinery, energy, etc. this series is the most important flow measuring instrument in the process of production as it can be used for production of wate, balance debugging, debugging, network monitoring, energy saving monitoring.
1.The features
high accuracy: accuracy can reached to 1 %.
Wide measuring range: Several types transducer for selection, pipe size from DN15mm to DN6000mm
Large capacity battery:Built-in rechargeable Ni-MH battery, provide over 12 hours of continuous operation
Built-in printer: can not only realize real-time screen printing, can also be timed print set in advance as much as more than 2 0 of the measured results.
Built-in data logger:Can be set up to more than 20 items of measurement results in advance within the storage to the SD card, convenient for data analysis and statistics.
RS485 communication interface: Can upload the first measurement results and setting the parameters of the machine.
Multiple input and output signals: output signal: 4-20mA, The pulse signal, signal relay; Input signal: 3 road 4-20 ma
2. Measurement of figure

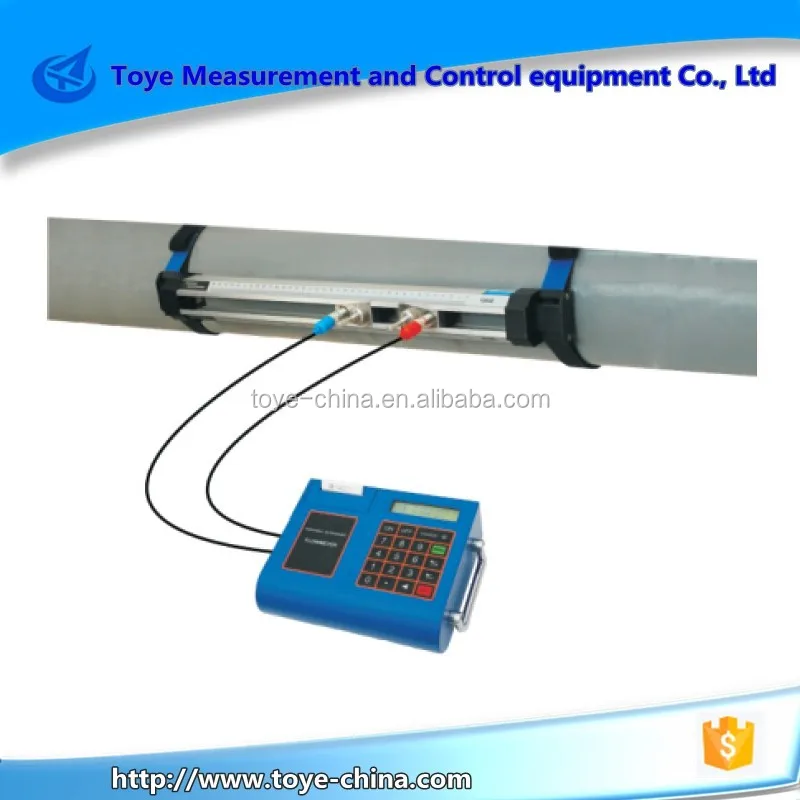

Clip mounted | scaffolding |
|
|
Easy to install, without broken tube, no pressure loss | To simplify the installation process, shorten the installation time, improve the installation precision. Easy to install, without broken tube, no pressure loss. |
The heat measurement of figure
Clip mounted | scaffolding |
|
|
The portable ultrasonic Flowmeter with clamp type temperature sensor, which can realize the heat measurement. | |
3. Optional temperature sensor
Pictures | Category | Model | Measurement range | Temperature range | Installation requirements | Accuracy |
| Three wire system PT100 Clip temperature sensor | CT- 1 | ≥DN50 | -40-160°C | Without broken tube | 100°C±0. 8°C The temperature difference after exact match is ≤0. 1°C |
NOTE: the more detailed parameters, please reference (Ultrasonic Flowmeter sensors).
4. The basic technical parameters
Category | Performance and parameters | |
Host | Principle time | Time different principle, 4 bytes IEEE754 floating point arithmetic |
Accuracy | Flow: be superior to ±1% | |
Display | Connection with the LCD of 2×10 Backlight type Chinese characters or 2×20 Character type es. It supported Chinese, English, Italian in three languages. | |
Signal output | 1 way output 4 ~20mA, impedance 0~1K, accuracy 0.1% | |
1 way OCT pulse output(pulse width is 6~1000ms,the default is 200ms) | ||
1 way relay output | ||
Signal input | 3 way input 4~20mA, accuracy is 0.1%, can be collected, such as the temperature ,pressure, liquid level signal. | |
It can connect with 3-wire system PT100, to measure the heat quantity | ||
Data interface | Isolation of RS485 serial interface, can through the PC to upgrade Flowmeter. Supported MODBUS. | |
Data recording | Thermal printer, external SD card, capacity of 2G | |
Situation of the pipeline | Pipe material | Steel, aluminum, stainless steel, cast iron, copper, PVC, FRP etc. All quality of pipeline,allows for the lining. |
Internal diameter | 15~6000mm | |
Straight pipe | To meet the sensor installation point, 10 D, downstream 5 D, 30 D to the pump discharge for pipe diameter (D) | |
Measurement media
| Items | Water, sea water, industrial wastewater, acid alkali, alcohol, beer, various oil etc all kinds can conduction a homogeneous liquid of ultrasonic. |
Temperature | Temperature :-30~160°C | |
Turbidity | 10000ppm And the bubble content is small | |
Flow rate | 0~±10m/s | |
Work environment | Temperature | Host :-20~60°C;flow sensor:-30~160°C |
Humidity | Host :85% RH;sensor protection grade is IP67 | |
Power supply | 8 built-in 1.2 V capacity is 2000 mah rechargeable Ni MH battery, can continuous work more than 20 hours after fully charged every time. used AC90~260V power adapter, which can realize continuous measurement. | |
Power consumption | 1.5W | |
Packaging & Shipping
Packng: carton packing or as customers' need
Delivery time: we will delivery the goods in one week when we received your deposit
Shipping
- EMS
- EXPRESS: around 5-7 working days to arrive
- INTERNATIONAL AIR MAIL: around 2-4 weeks to arrive
- Sea shipping
Our Services
A. Alibaba golden supplier.
B. Lower price-Not cheapest but the same quality.
C. good service-Satisfactory service before and after sale.
D. Delivery time-30 to 45 days for mass production.
E. 7/24 service for you, all the question will be dealed within 24 hours.
How to order our product
1.Customers offer detailed parameters and model of the product.
2.We will quote once the information and requiremets of you.
Company Information
Toye Measurement and Control equipment Co., Ltd is located on No.5 South Taibai Road, Yanta District, Xi'an, which is a high-tech enterprise that integrate of development, design, production, sales agents and system integration. Products involve in biological, chemical, military industry, manufacturing, scientific research institutions, environmental monitoring, chemical industry, pharmacy, agriculture and other fields. We company committed to be the introduction of international famous brand for high quality industrial automation instruments and advanced technology, as well as relying on its powerful resources that provide clients with comprehensive products, and satisfy the customer to test, maintenance, the demand of the engineering technology reform and other spare parts in the field of automation.The main products including many different brands pressure transmitter,flow meter,valve positioner,etc
We have a most professional team. We promise to provide customers with optimal solutions and business services, pay attention to the every requirement of customers, give full consideration to every detail. So we have won a good reputation in the industry through the unremitting efforts and development for many years. We look forward to establish long-term, stable relations of cooperation with you.
welcome to contact us !
Contact person: Bella Zhou
Tel: 0086 02989286267
Skype: cherise1196
Toye Measurement and Control equipment Co., Ltd
No.5 South Taibai Road, Yanta District, Xi'an,Shaanxi,China. 710065
