Handle concealed special 3 pin socket ethernet ports combined tabletop socket

Product Overview

Description

Handle concealed special design 3 pin socket ethernet ports combined tabletop socket



3 pin socket ethernet ports combined description

1, BW-T61 table top socket is an innovative equipment which used together with furniture.

2, It provides electrical and AV access. Integrate the electronics technology and automation into the model furniture.

3, Cable management--All cable connect at the bottom of the socket. Make the table tidy.

4, Cable connection--Need to be weld when you use it.

5, Adopted the mechanism design of pneumatic and machinery fastener. Skillfully satisfied with the rise and lock.

6,Mainly used for advanced office, modern hotel, meeting room, training room, shool etc.



3 pin socket ethernet ports combined specification

Product name	Table top socets
Item No.	BW-T61
Module qty/pc	6 modules position
Panel shape	rectangle, round/straght corner
Material	zinc alloy+plastic
Color	silver/black
N.W	1.8kg/pc
Product size	266*130*67mm
Package size	287*145*85mm/pc
Voltage	110-220V/50HZ
Working environment	at -10 °C or above
Certificate	CE approved
Available modules	power(Universal,UK, USA,EU,AU),data(cat5/cat6),tel,vga,audio,vedio, hdmi,usb,MIC
Remark:1.Universal/UK/EU/AU power take 2 modules position 2.Above size information is just for your reference. Exact size please refer to the actural goods.





3 pin socket ethernet ports combined interface



Power	110V-240 VAC 50/60Hz 13A(with power-off indicator)
computer	15-Pin HD VGA female
audio	3.5mm stereo female jack/RCA female
video	RCA female
LAN	RJ-45(CAT.5E) network/cat6/data/connector
Telephone	RJ-11 voice(CAT3)
USB	USB2.0 female
HDMI	HDMI1.3 female
MIC	6.35mm stereo female jack
shift	press switch

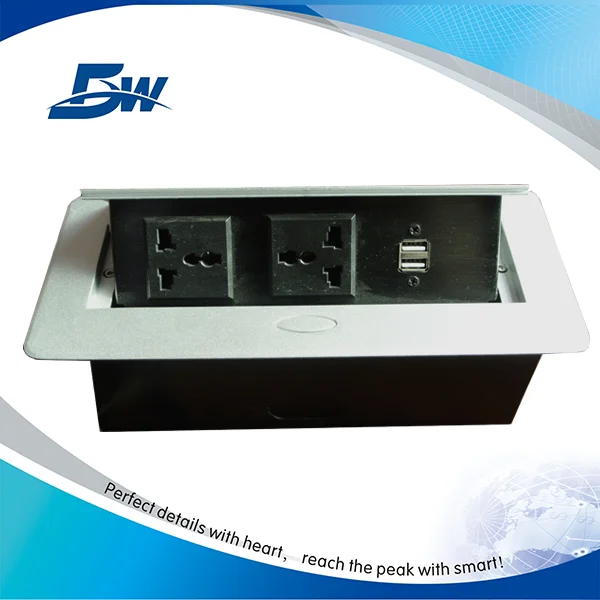

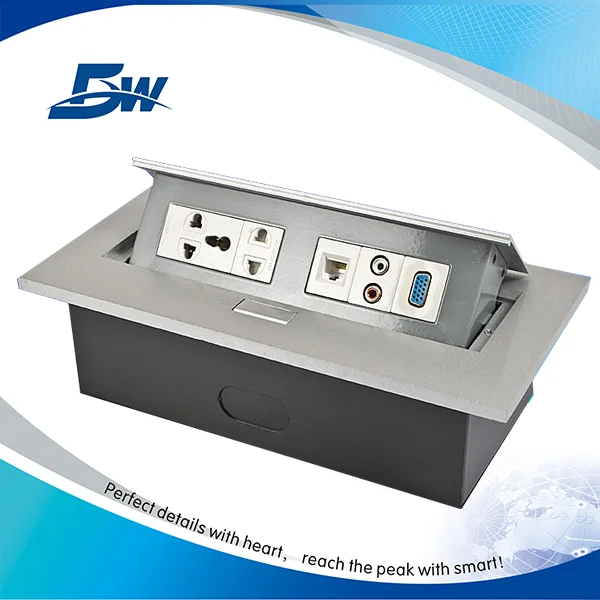

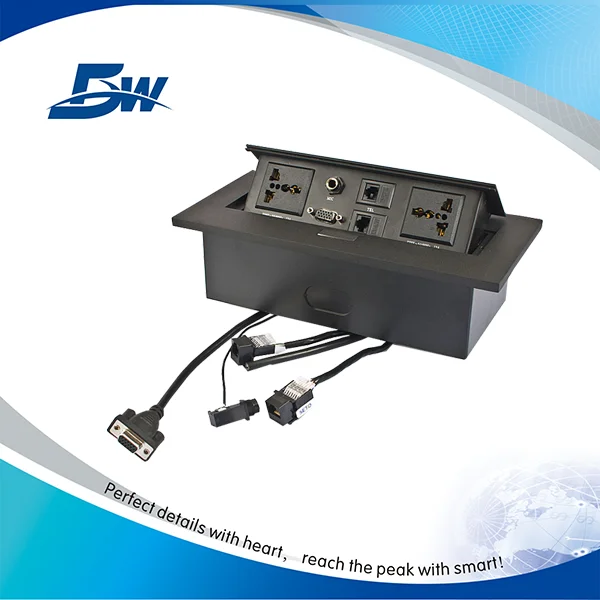

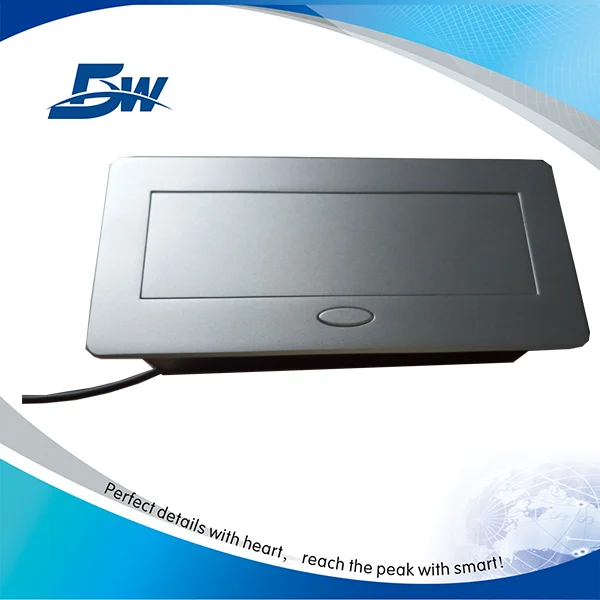

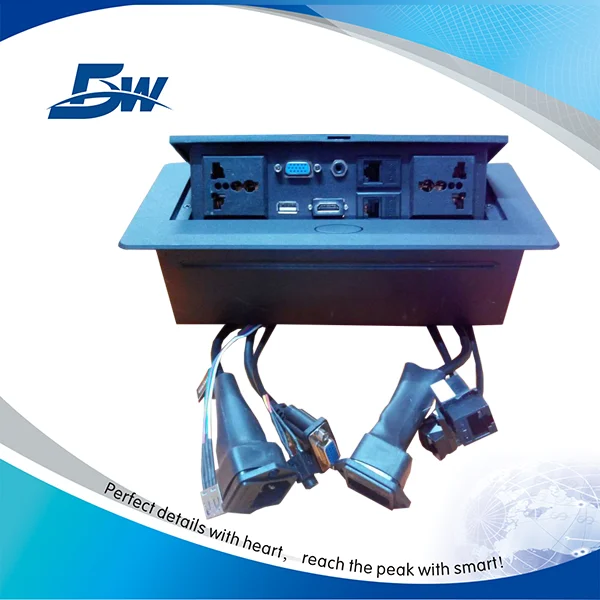

3 pin socket ethernet ports combined images





Related products show



3 pin socket ethernet ports combined operation process

1, Press the button on the panel. Socket will be fliped up. Connectors are ready.

2, After finishing the use of socket, press top panel. Socket will be locked by machinary lock. Connectors concealed.



3 pin socket ethernet ports combined package

3 pin socket ethernet ports combined certificate

3 pin socket ethernet ports combined after-sale service

1, Shipment tracking. B/L(other document) or tracking number will be gave at the first time.

2, Any problem will be solved in 24 hours.

3, Technical support always on line.

4, Regular follow-up service.
