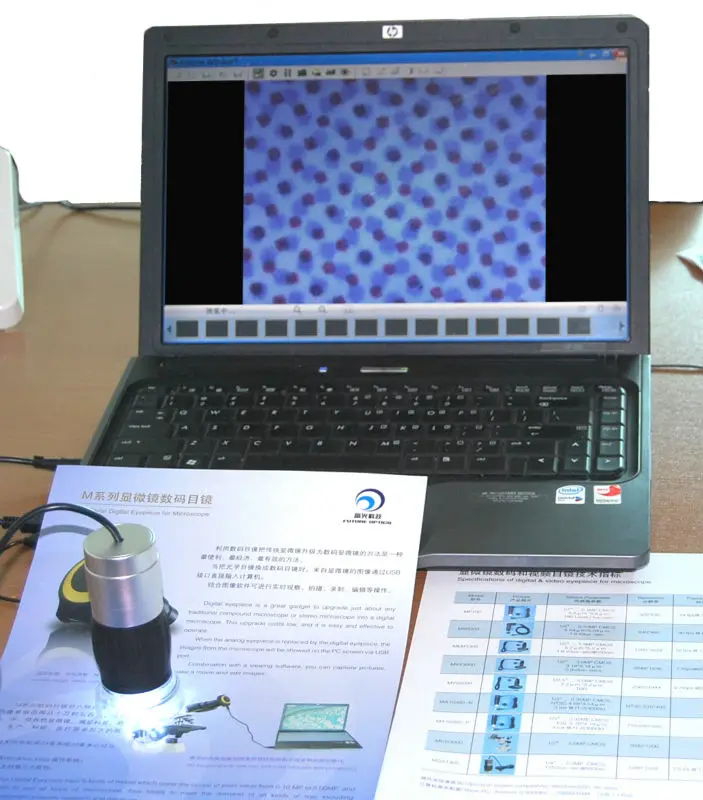

High resolution table standing digital measurement microscope for plate making and presswork quality inspection
- Category: >>>
- Supplier: Hangzhou Future Optics Sci & Tech Co. Ltd.
Share on (1936400530):
Product Overview
Description
Products description
Introduce:

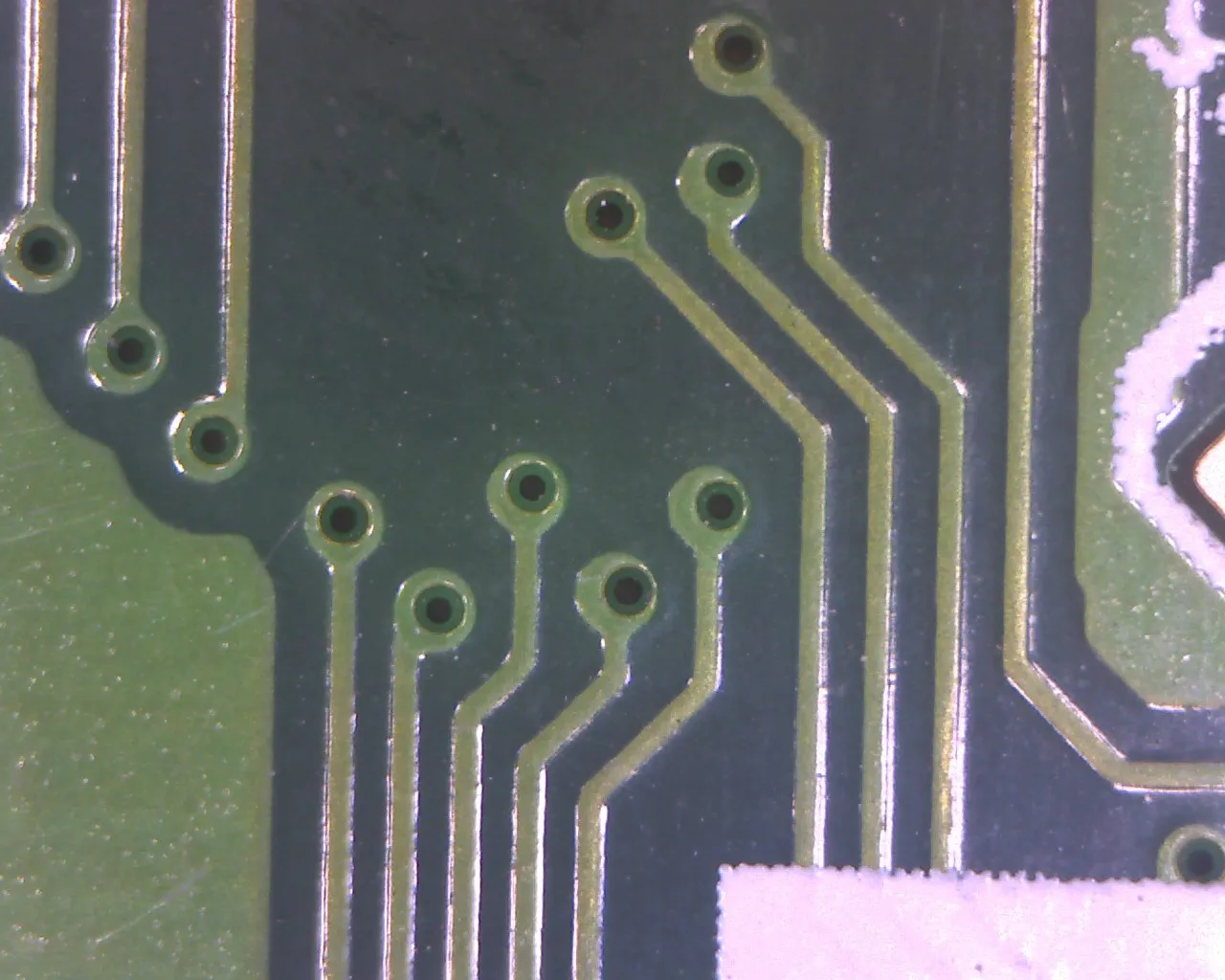

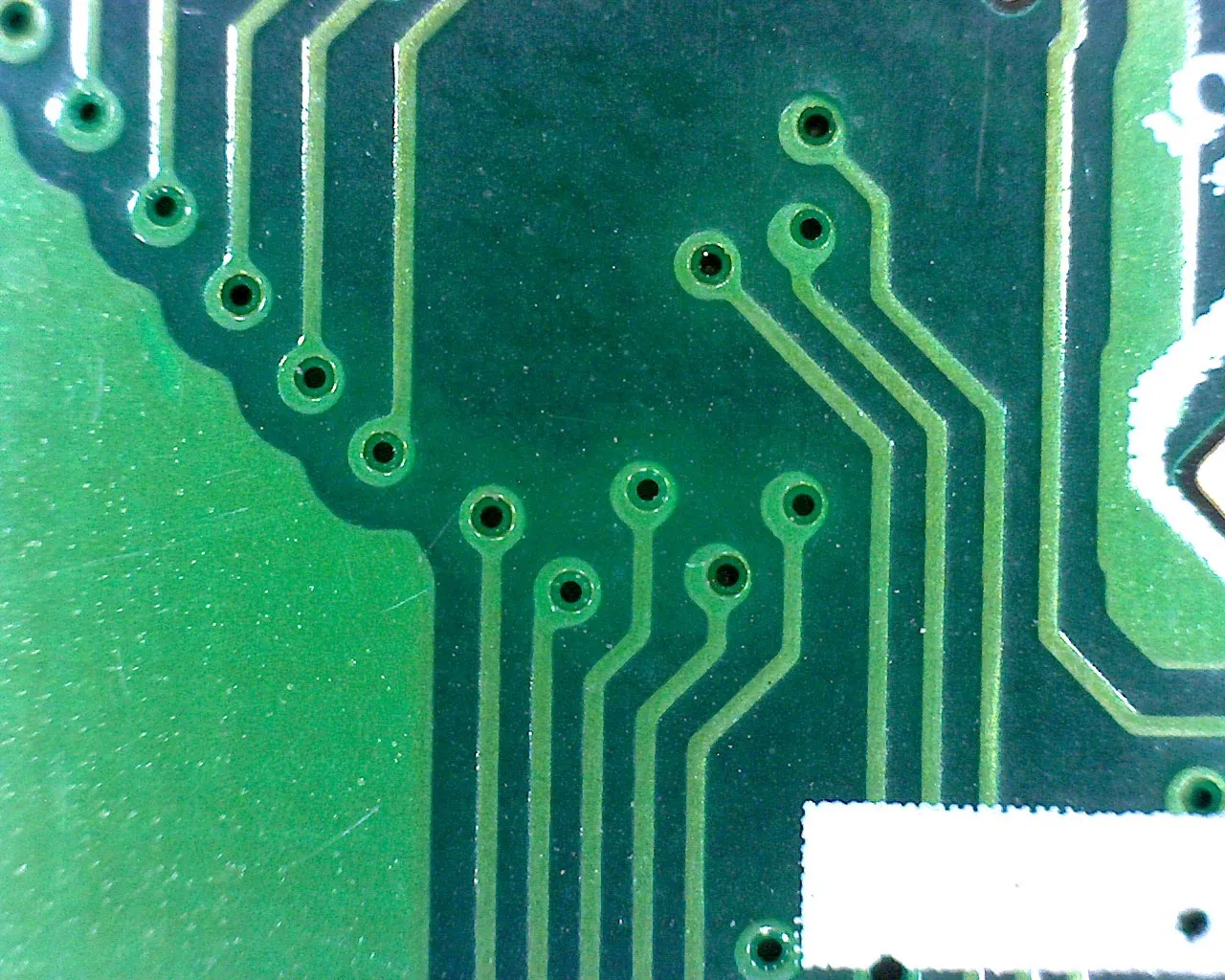

Future Optics’ MAD2000R portable zoom USB digital microscope is the perfect combination of high-performance digital imaging module with innovating optics & mechanism design and powerful software, it provides a large breakthrough in digital microscope design, based on the patent design it has widely applications in industry, education, science, medicine and daily life to view, acting as a powerful digital gadget to check and to record detailed message of the micro world.
Product composition
1. Digital imaging module:2.0MP high performance CMOS imaging module.
2. Imaging software: Future Win Joe image & movie capturing and processing program.
3. Optical conjugation imaging module: One set of lenses offers 2 optical magnifications: 2.5X and 0.4X.
4. Focus mechanism: Big focus wheel and double helix rail design offers smooth and fine adjustment of focus.
5. Uniform illumination part: Falling–in ring–lighting panel with 8 LED lamp.
Specifications:
Capture Mode | Picture and Video |
Sensor Parameter | 1/2” 2.0MP |
Max. Resolution | 1600*1200 |
Pixel Size | 4.2 µm x 4.2 µm |
Sensitivity | 1.0 V/Lux-sec |
Dynamic Range | 60 dB |
S/N Ratio | 54 dB |
Working Distance | 5.0MM ---∞ |
Magnification | 40X, 240X |
Spectral Range | 400-650nm (with IR-filter) |
Frame Rate | 10fps@1600*1200 |
Preview Model | 640x480, 320x240 |
Exposure | ERS or Manual |
Power Consumption. | 170mw |
White Balance | Auto and Manual |
Device Weight | 0.12kg |
Device Size | Φ45mm*95mm |
Applications in printing line
Calibration and measurement
With a 10mm/ 0.1mm glass micro ruler (Figure 1), to calibrate the movable reticle of the software (Figure 2).

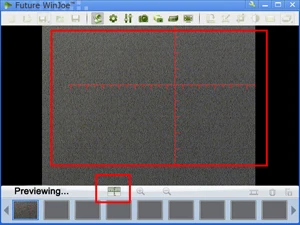

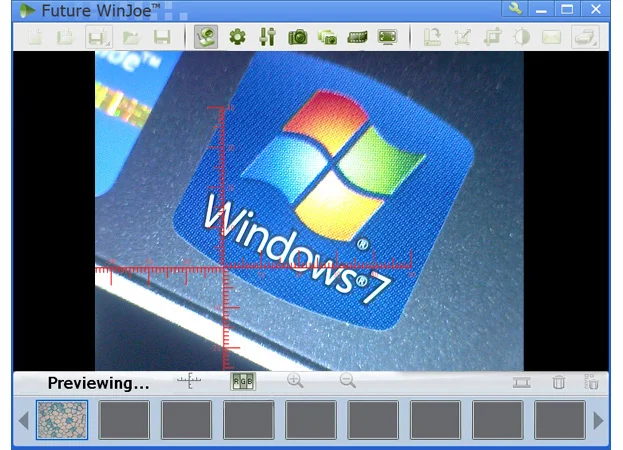

Figure 1 A 10mm / 0.1mm ruler Figure 2 A movable reticle of Future Win Joe

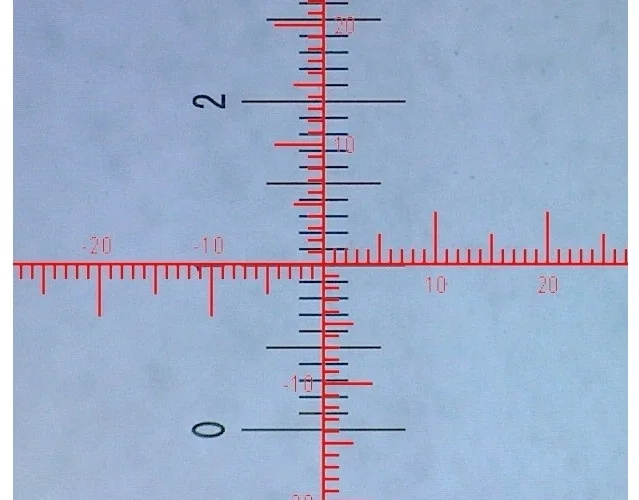

At 40X, the 1mm length of ruler is covered by 13.75 units of reticle, so the division value of reticle is: 1 / 13.75 =0.072mm (Figure3).
At 240X, the 1mm length of ruler is covered by 52.0 units of reticle, so the division value of reticle is: 1 / 52.0 =0.019mm (Figure 4).
Figure 3 Calibration of vertical line at 40X Figure 4 Calibration of vertical line at 240X

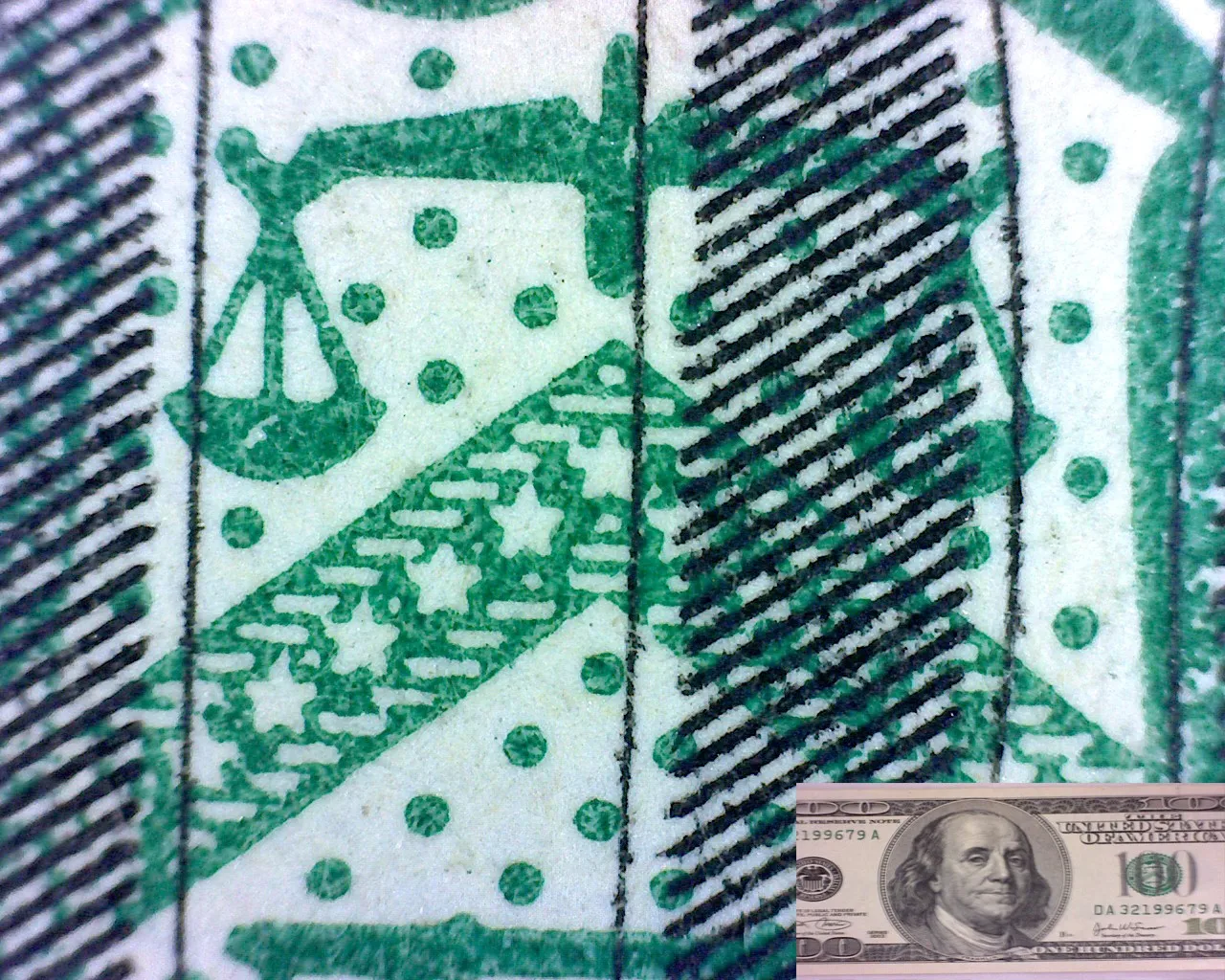

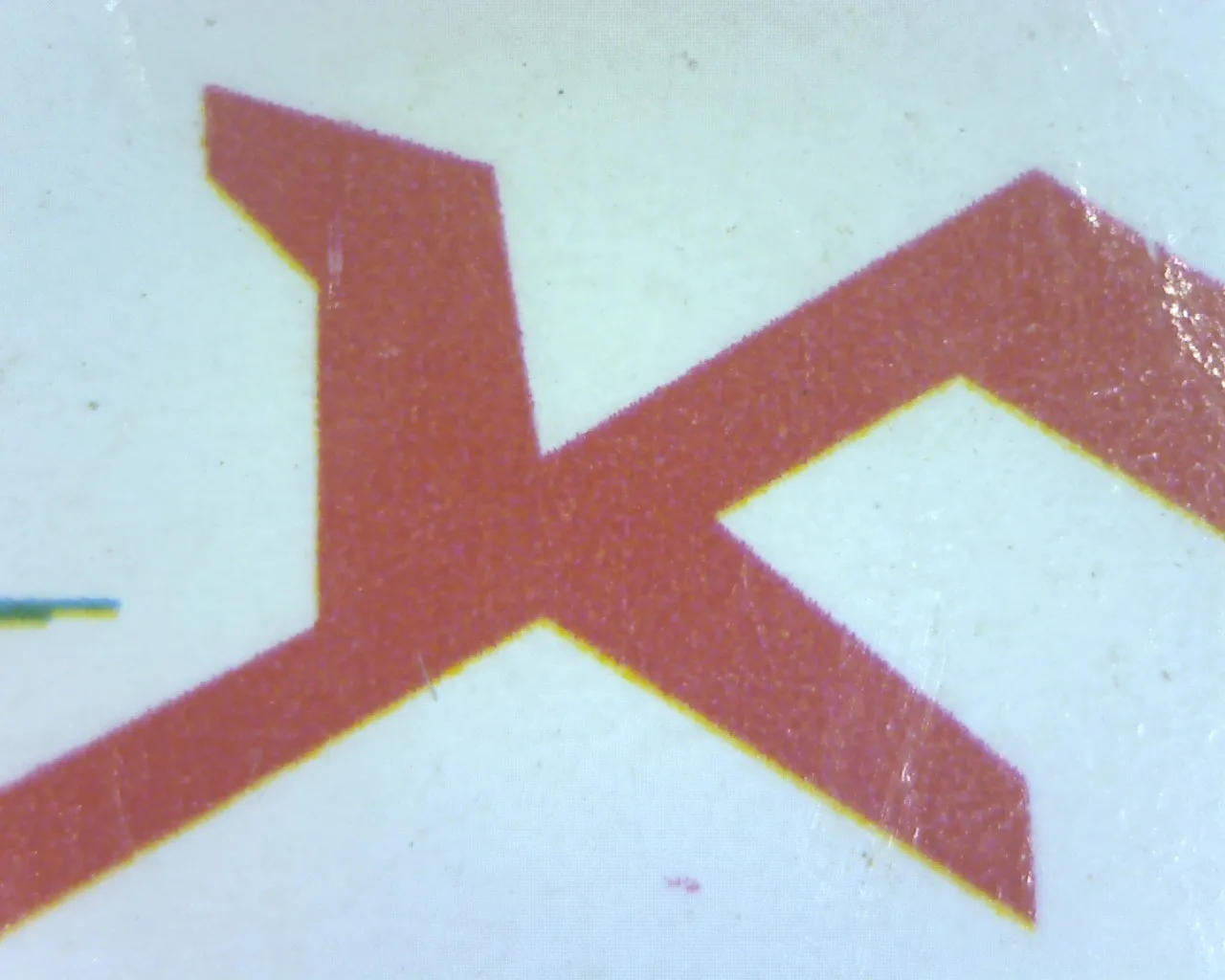

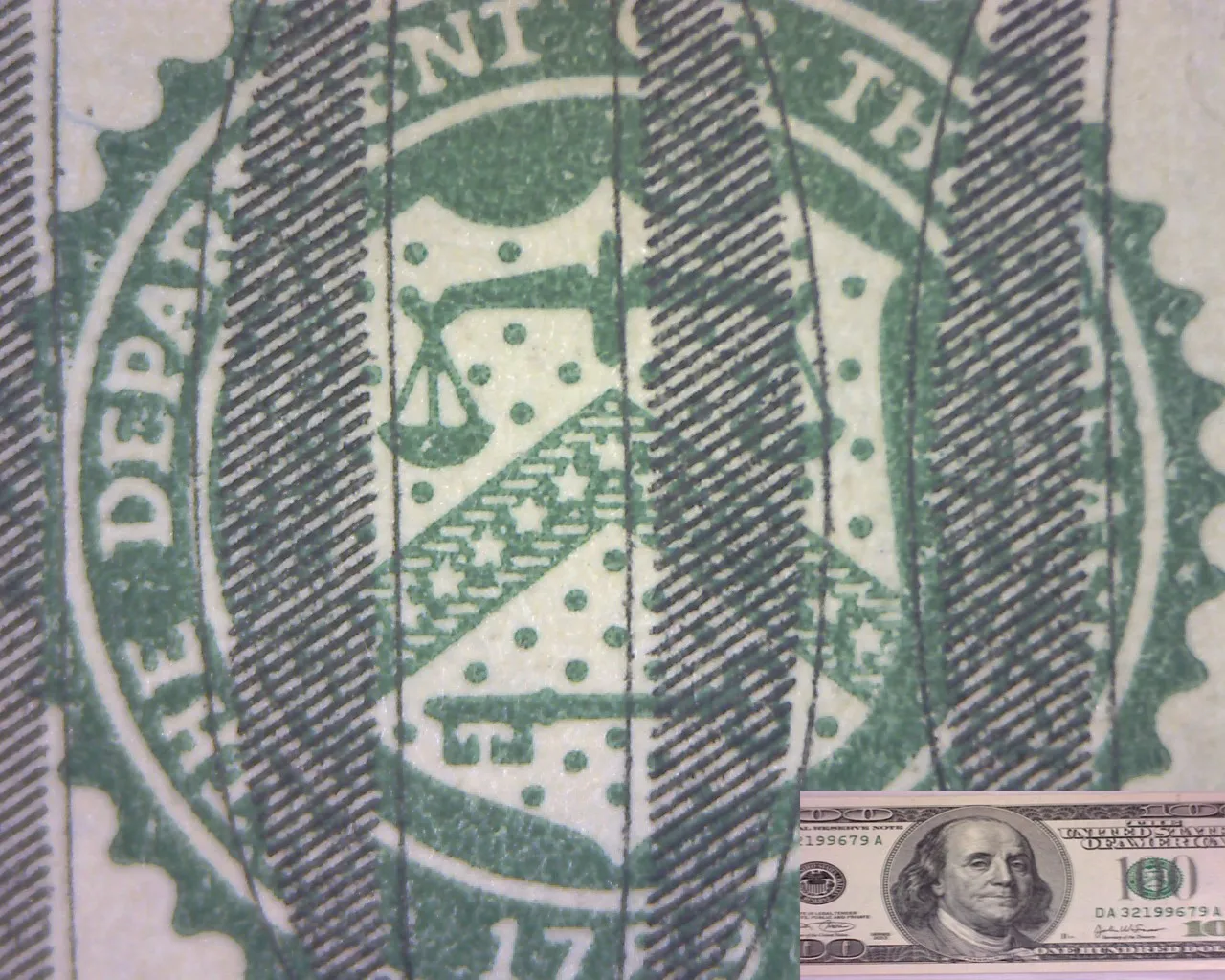

Printing Inspection

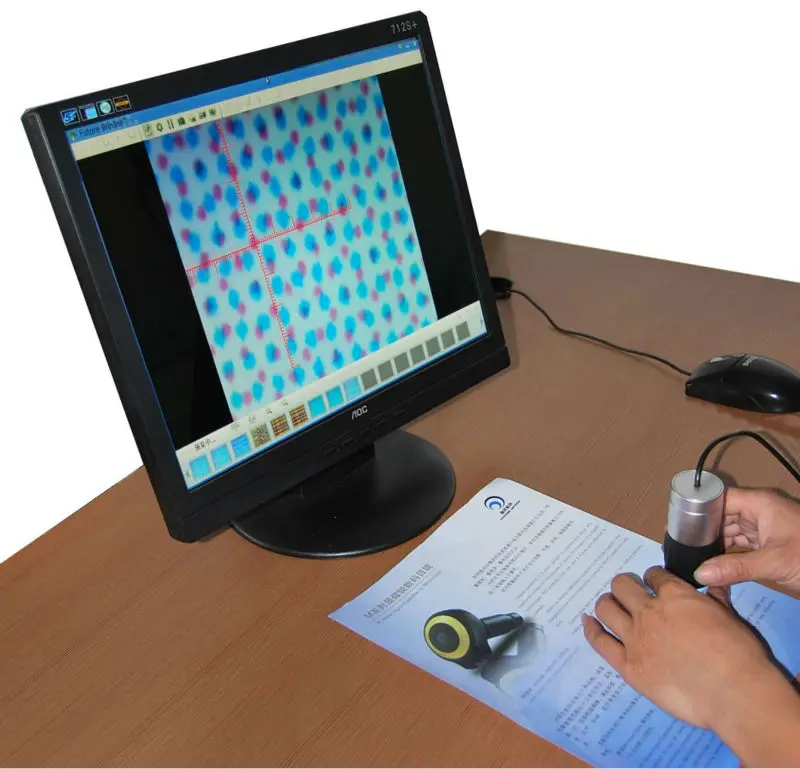

The most important factor related with printing quality is the "line frequency" or "screen ruling" of the halftone screen. It is measured in lines per inch (lpi), that determines the size and spacing of the cells in the halftone grid. For a higher quality print, the halftone spots are small and close together so less discernible to the eye, so a high power microscope must be necessary. For example, higher quality print would use 133 or 150 lpi.

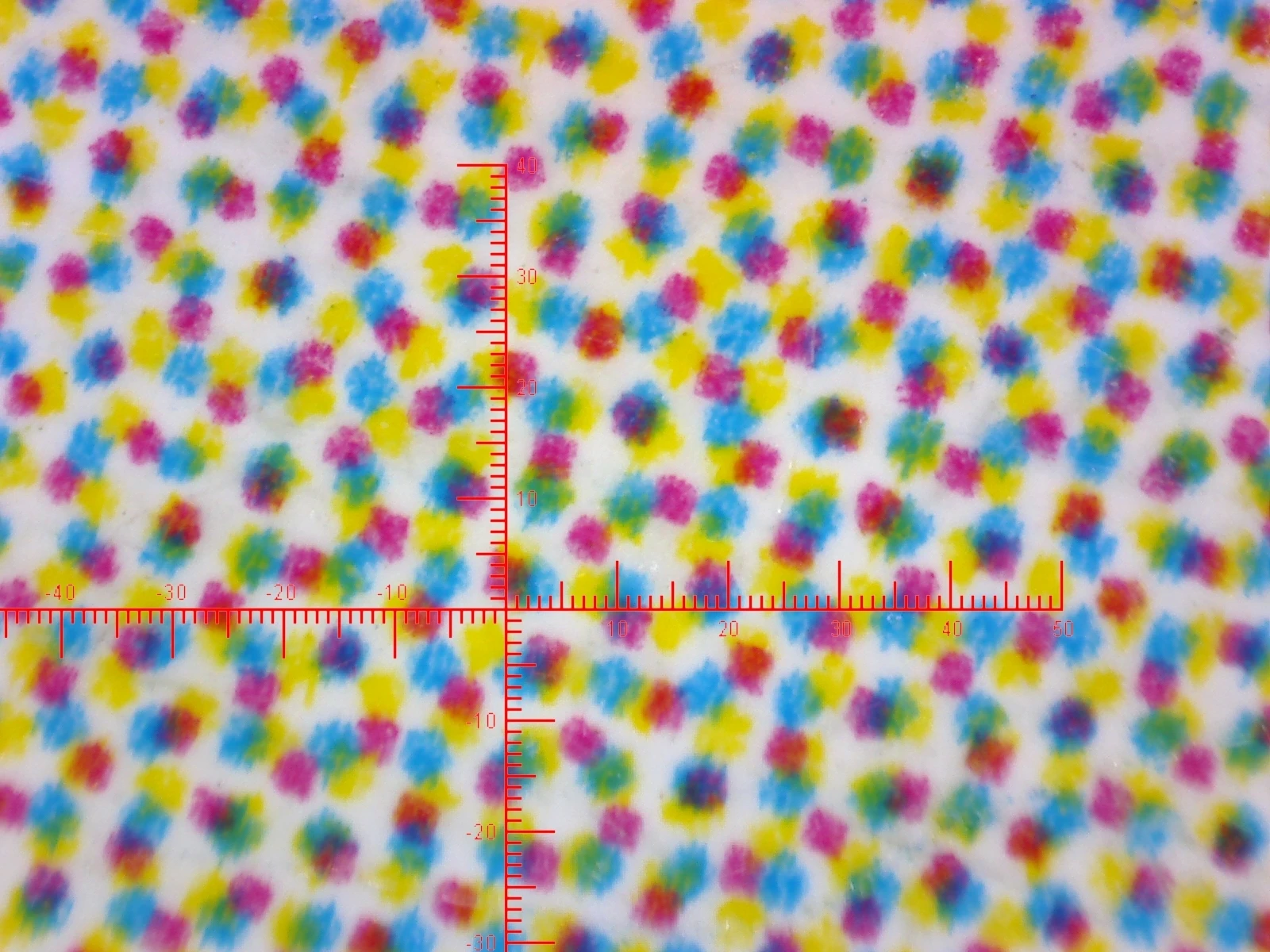

Figure 5: The halftone dots in the halftone grid show on screen at 240X.

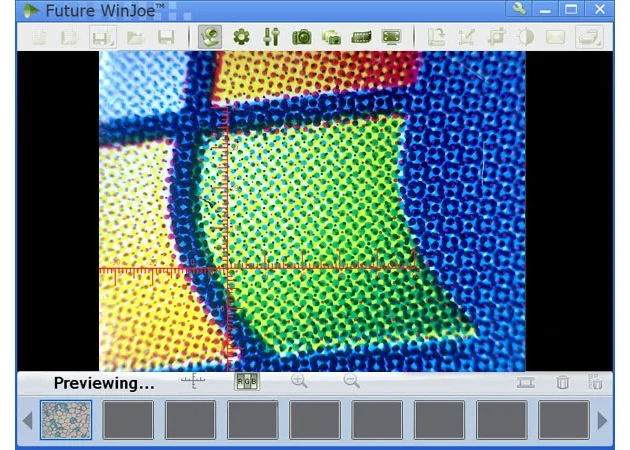

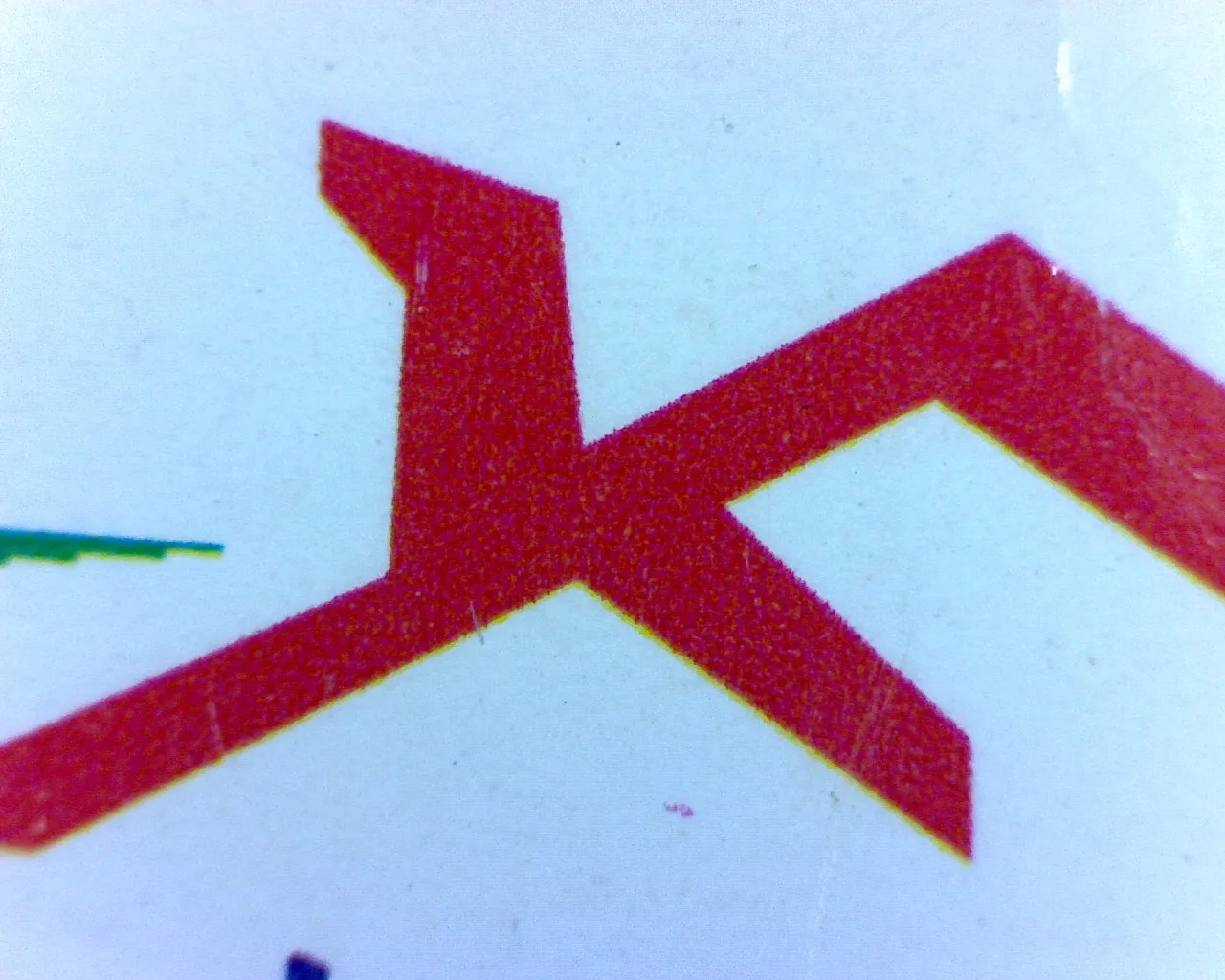

Figure 6: Microsoft logo at 5X Figure 7: Microsoft logo at 40X

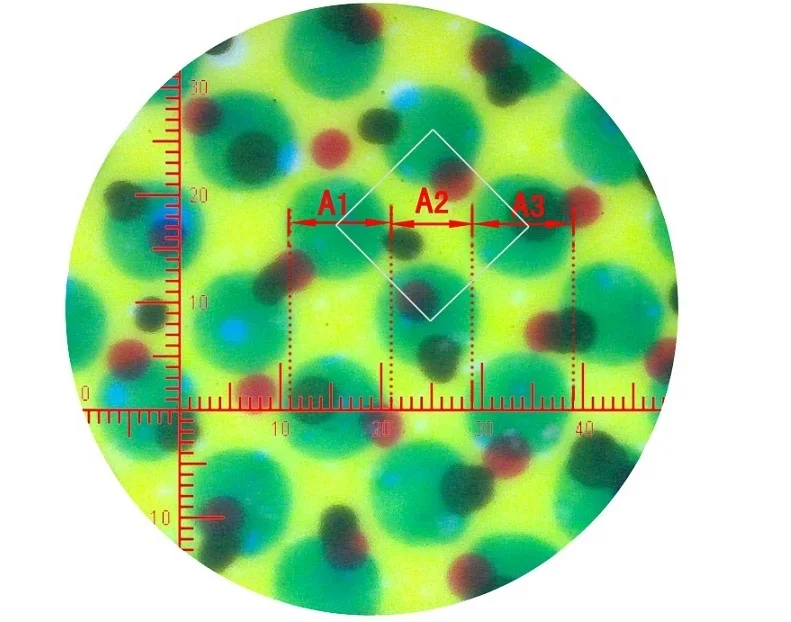

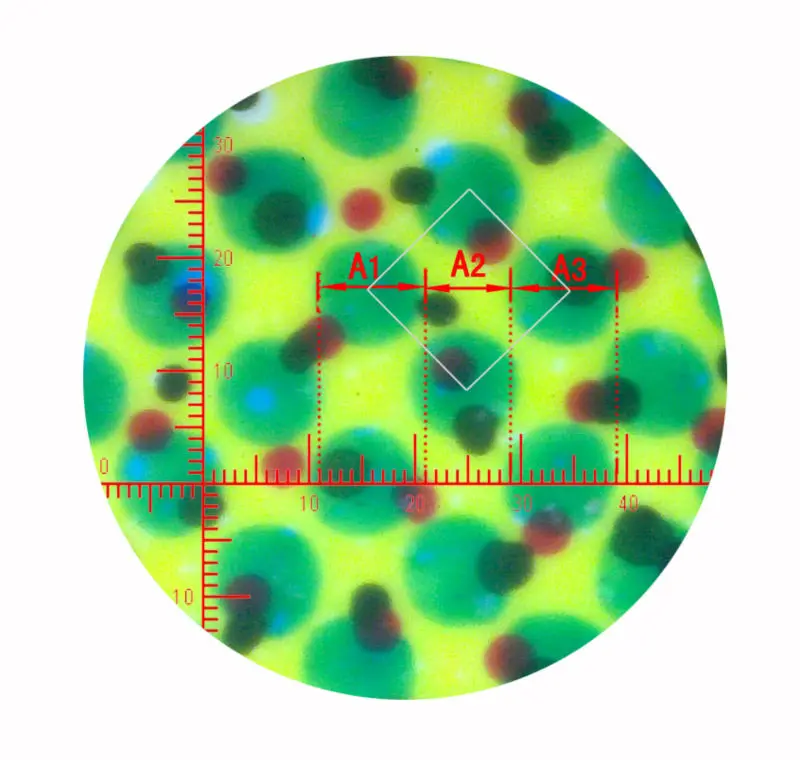

Figure 8: The size & spacing of the dots in the halftone grid of Microsoft logo at 240X
From Figure 8, you can determine the size and spacing of dots easily. Dot size A1 (A3): 10*0.019=0.19mm; Spacing( A2): 0.019*8=0.15mm
Special design
Special Design---Patent design
The difference between Future Optics’ portable USB microscope and the other’s
Items | Future Optics’ portable USB microscope | The other’s | Notice |

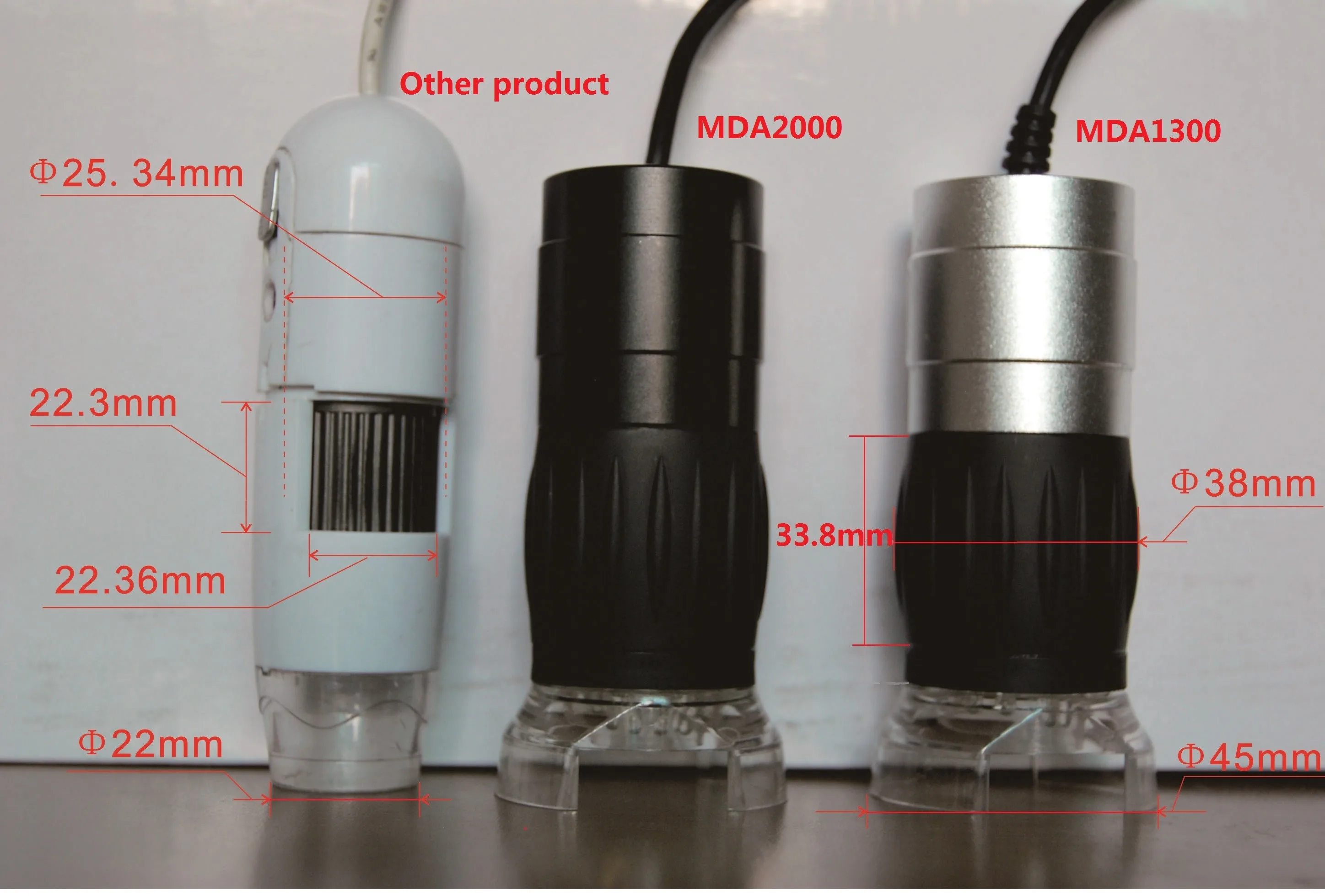

Housing | Metal | Plastic | Figure1 |
Base | Big base to stand without holding | Need to be held | |

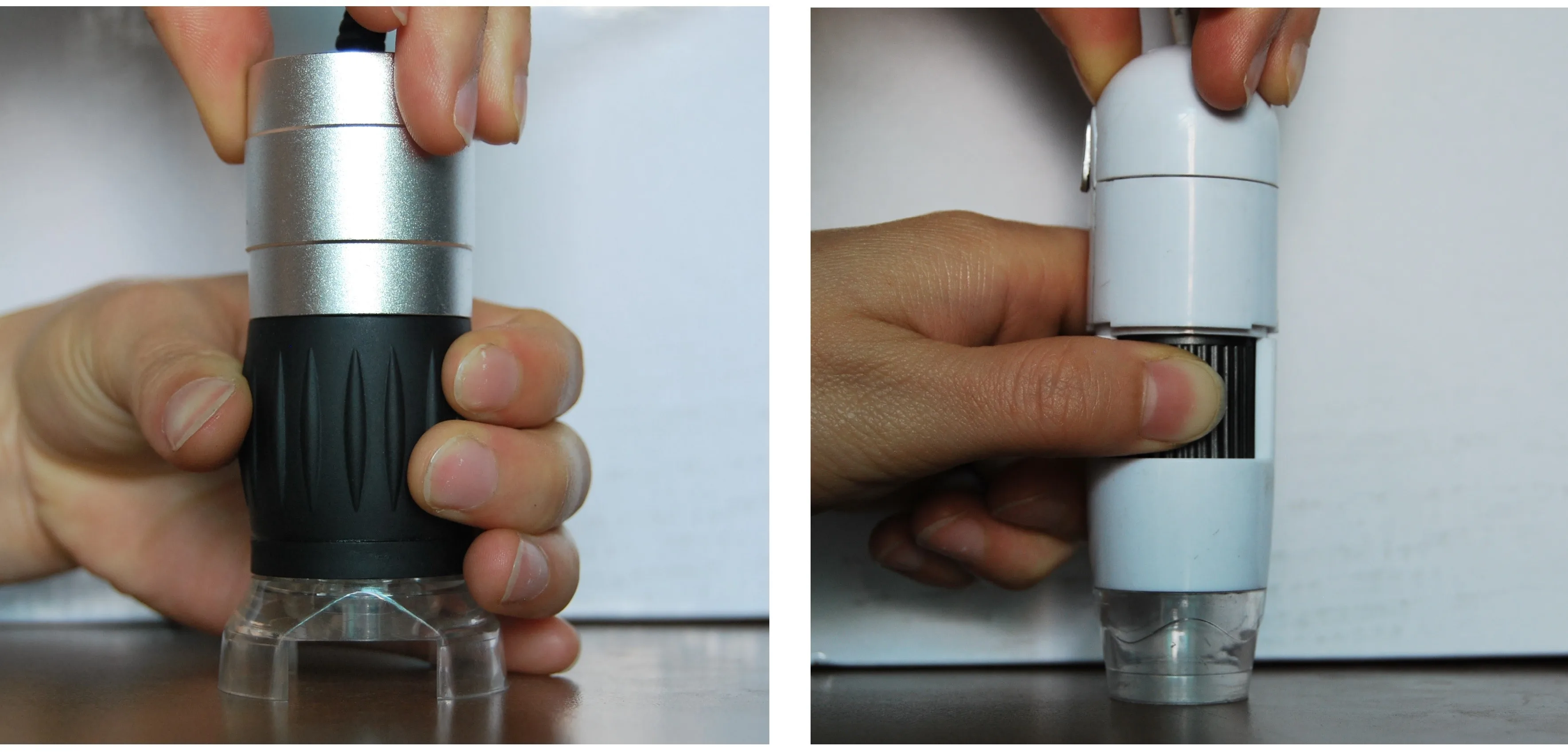

Focusing wheel | Big rubber wheel, easy for turning | a window for one finger to run, it is hard to operate | Figure2 |

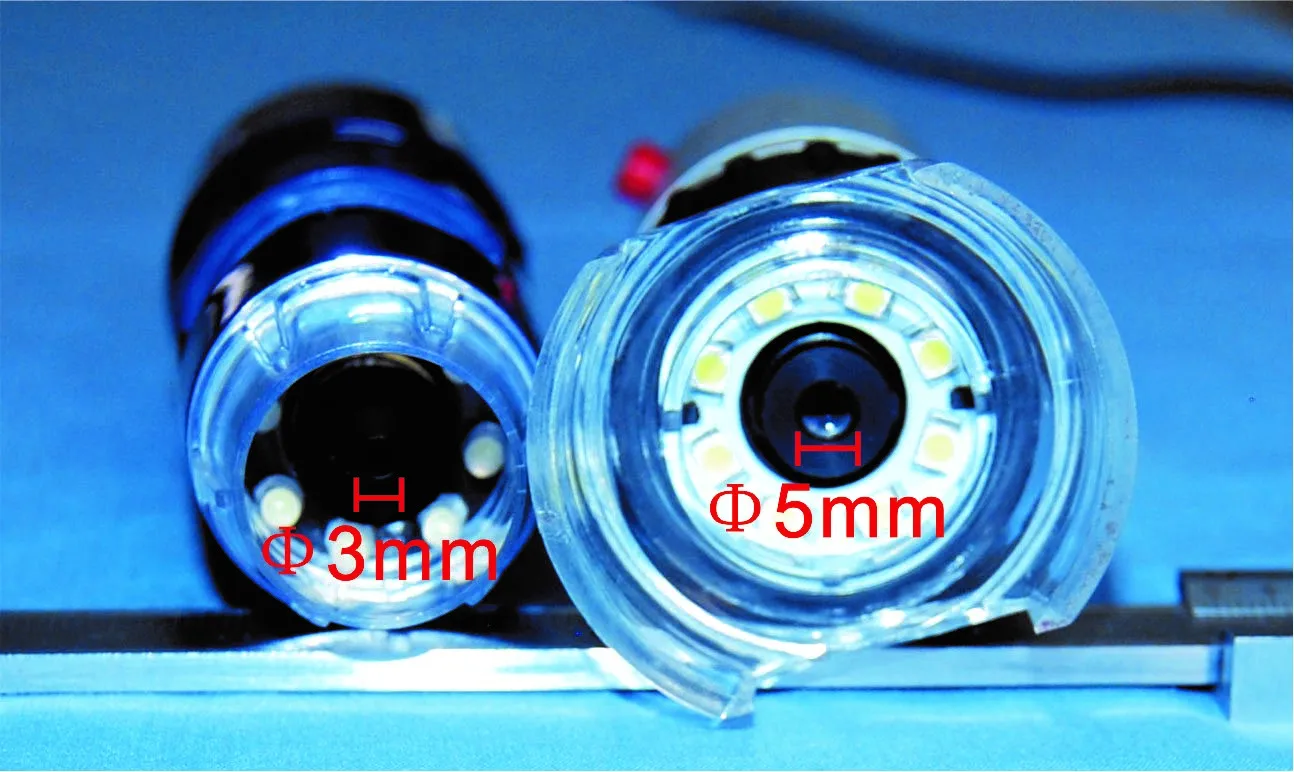

Lens | Optical glass lens | Plastic lens | Figure3 |

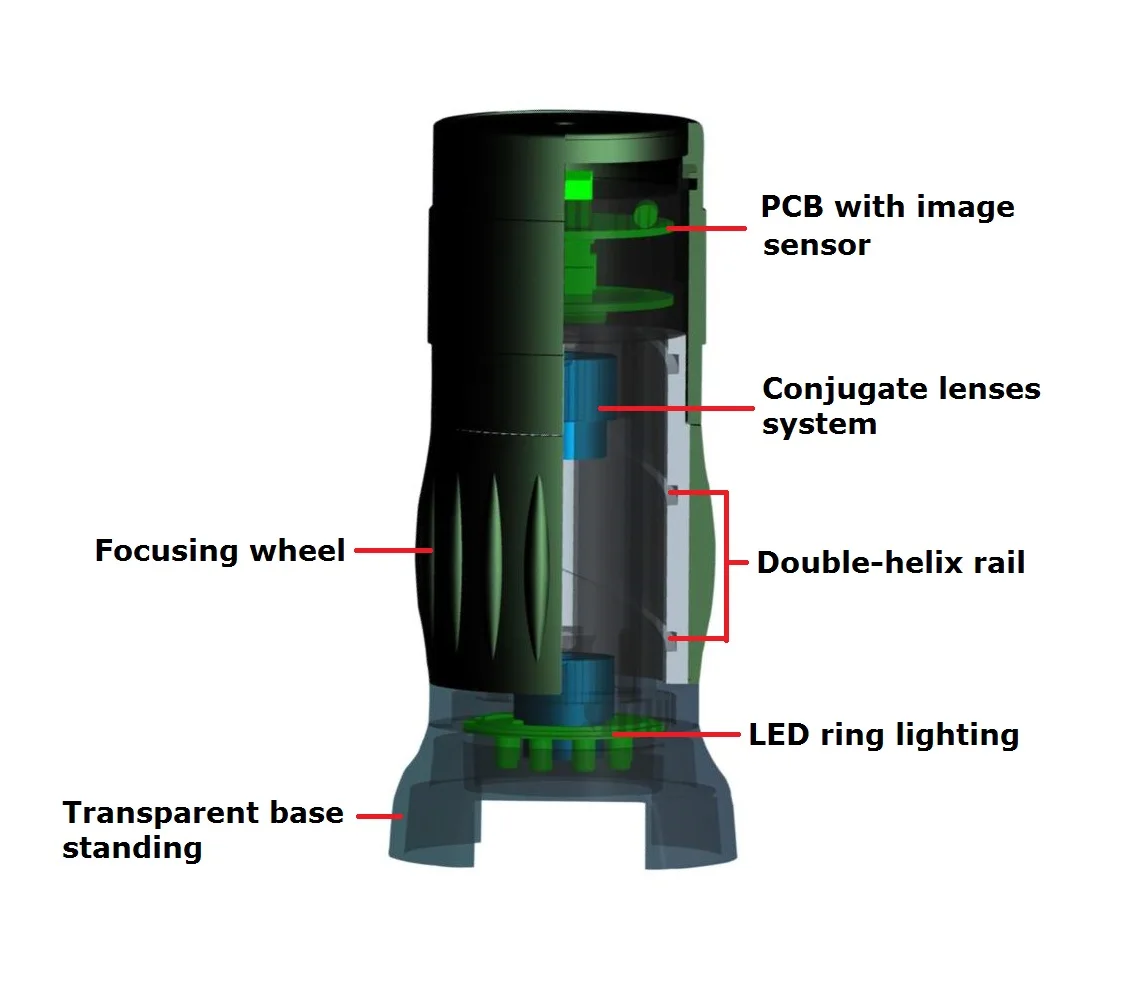

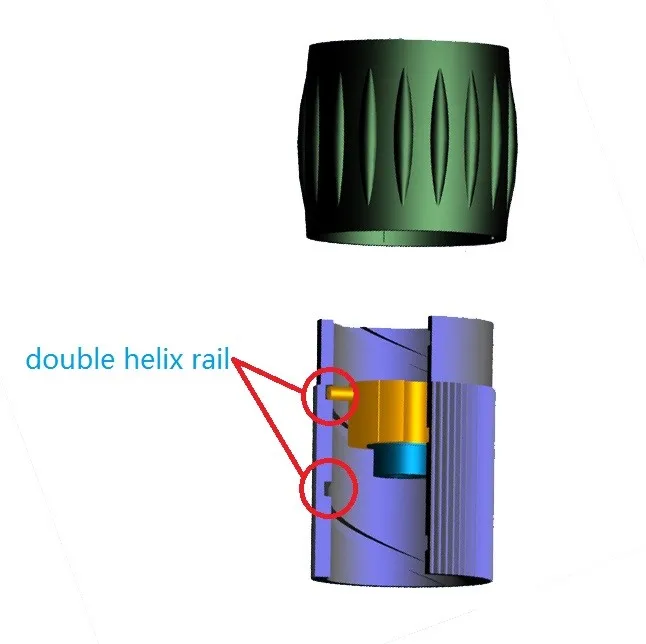

Model of focus | The lens base move along doublehelix rail smoothly—patent design by us | The lens base move along double metal poles, not be smooth | Figure4 |
Figure1
Figure2
Figure3
Fugure4
Advantages
|
|
|
|
|
|
|
|
Certifications
ISO 9001 2015
CE, RoHS
Recently authorized invention patent:
Free-space WDM invention patent Transceiver assembly invention patent
FAQ
Questions & Answers
Q1: Are you a manufacturer or a trader company?
A1: We are a manufacturer focusing on production of optical transmission products and machine vision instrument products. We accept on-site audit of production line by customer or the third party
Q2: What are your main products?
A2: Micro WDM products with full intellectual property rights: Z-block for TOSA\\ ROSA of transceivers, UC-CWDM\\UC-DWDM\\UC-LWDM based on free space technology; Digital microscope\\telescope\\spottingscope; Laser distance finder, OCT engine, Open field laser transmitting and receiving instruments.
Q3: What is your warranty policy?
A3: We offer a 2-year free warranty covering all of our products, and it starts from the delivery date of the original order, by providing free repair or replacement.
Q4: What is your OEM terms?
A4: We are providing not only labeling and packaging service, but also customized services, including free design of optical structure, mechanical structure, PCB and software functions.
Q5: How about your support and service?
Q5: We provide online free & tailored support and services for your businesses pre-sales and after-sales, providing intermediate test data if necessary.
