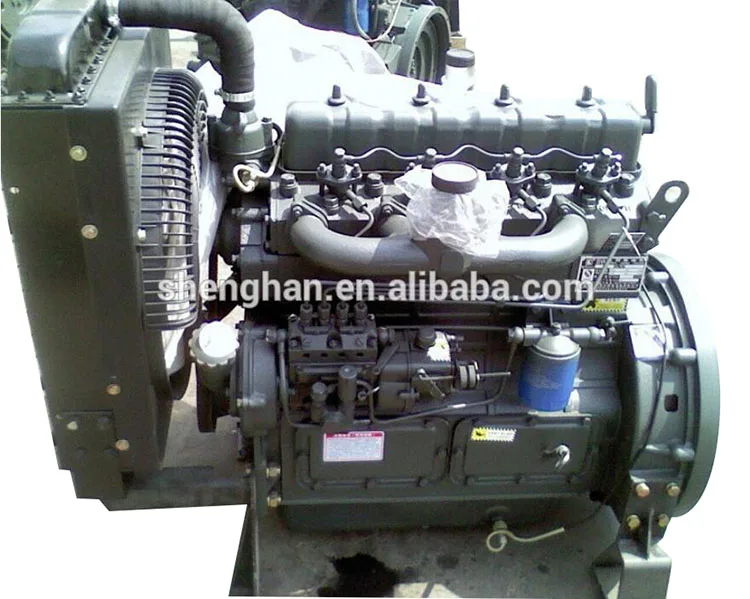

4 cylinder diesel engine with radiator EXW price

TECHNICAL DATA

Diesel engine model

K4100D

Type

water-cooled,  inline, 4-stroke, swirl combustion chamber

Constant Output (kW/kVa)

30/37.5

Speed (r/min)

1500

Cylinder No.-Bore*Stroke(mm)

4-100-115

Total Displacement of Piston(L)

3.76

Pressure Ratio

19

Air Intake Type

Turbo charged

Fuel Consumption(g/kw/.h)

256

Oil Consumption(g/kw.h)

1.63

Exhaust Temperature(°C)

470

Crankshaft Ratating

Inverse Hour (Facing the power output end)

Cooling Type

Forced Water Cooling

Lubricating Type

Compound type with pressure and splash

Starting Type

Electric Start
