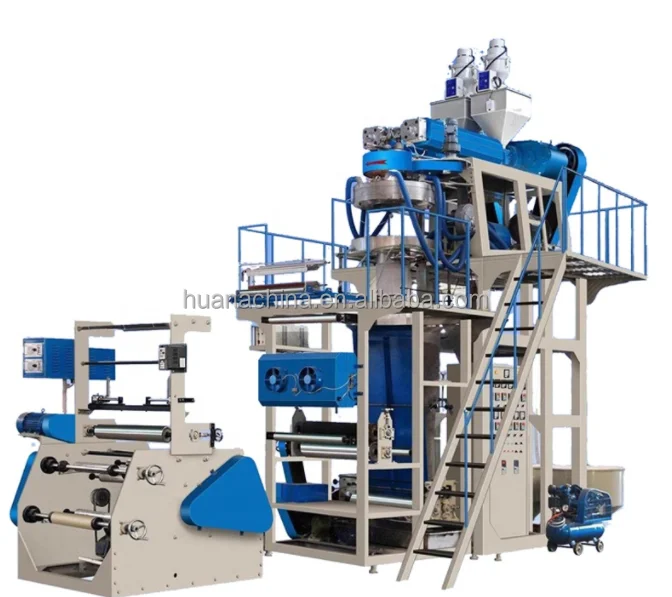

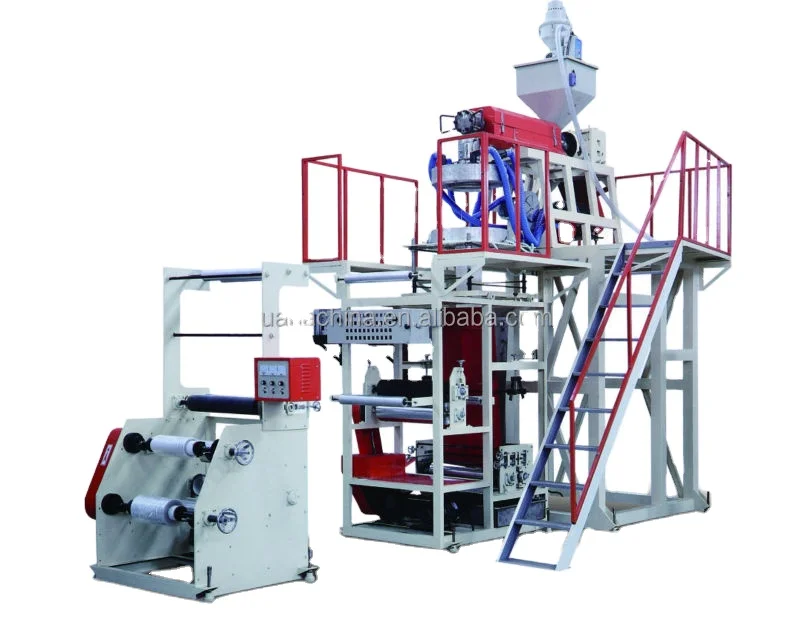

single layer double layer water cooling pp film blowing machine pp film extruder
- Category: >>>
- Supplier: Ruian Huana Machinery Co. Ltd.
Share on (1937741855):
Product Overview
Description
Feature:
1.This screw material cylinder is elaborately made of 38CRMOALA alloy steel after nitrogen treatment and has best rigidity and corrosion resistance.

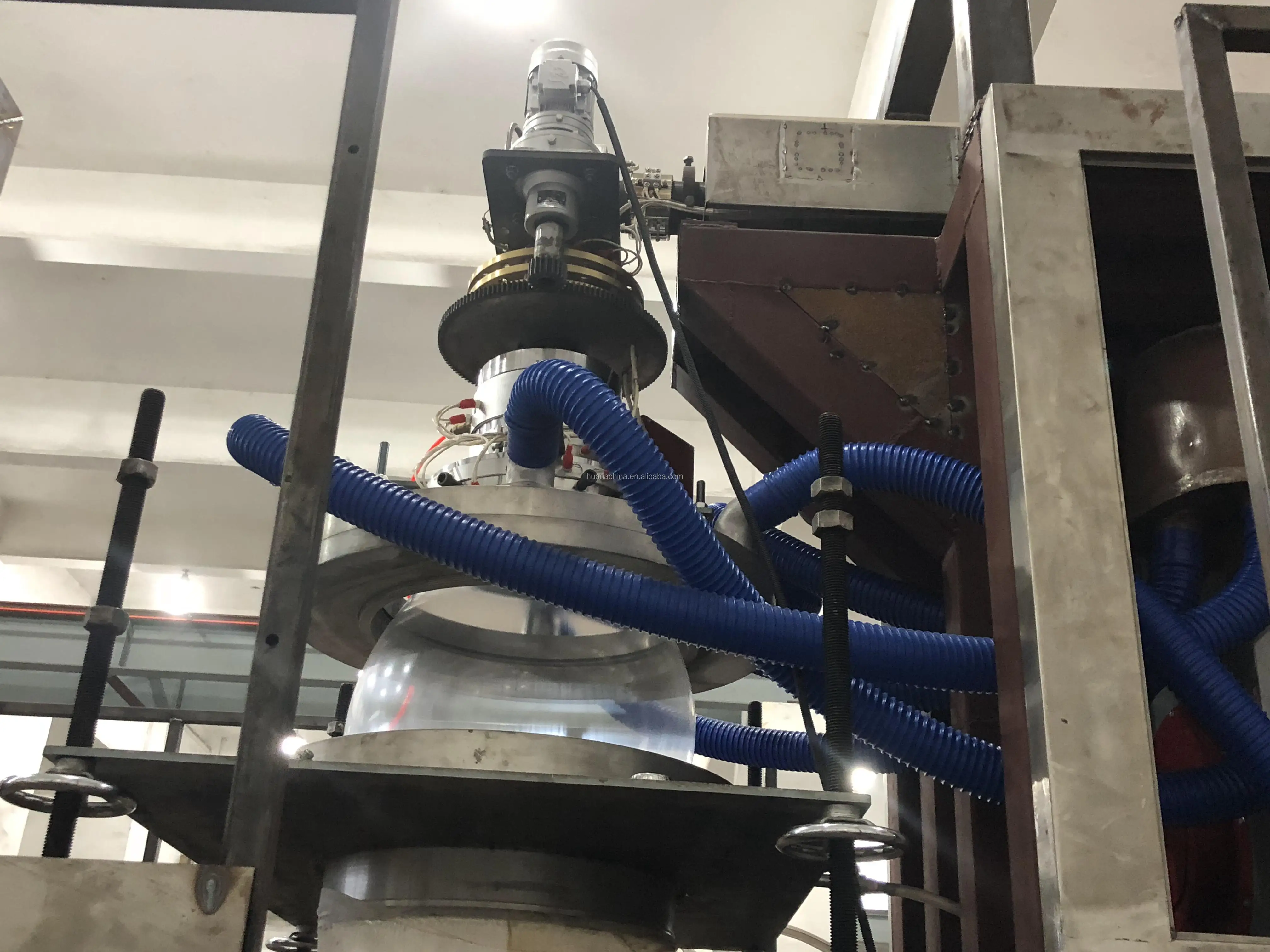

2.The mould head is plated with hard chromium and had screw mandrel structure with uniform and smooth material discharging.And the air cooled device has labyrinth type structure with characteristic as uniform air-jut quantity,automatic temperature control and automatic heating.
Main Technical Variables
Model | SJ-PP50 | SJ-PP55 | SJ-PP65 |
Suitable Material | PP | ||
Film Width | 100-500mm | 150-600mm | 200-800mm |
Film Thickness | 0.01-0.10mm | 0.01-0.10mm | 0.03-0.11mm |
Max Extrusion Output | 35kg/hr | 45kg/hr | 60kg/hr |
Screw diameter | Φ50 | Φ55 | Φ60 |
Screw L/D Length | 30:1 | 30:1 | 30:1 |
Barrel Cooling | 120w×1 | 120w×2 | 370w×3 |
Main Motor | 15kw | 18.5kw | 22kw |
Die Size | Φ200 | Φ220 | Φ250 |
Air Blower | 1.5kw | 1.5kw | 2.2kw |
Roller Width | 600mm | 700mm | 800mm |
Take-up speed | 5-60m/min | 5-60m/min | 5-60m/min |
Take-up motor | 0.75kw | 0.75kw | 1.5kw |
Winding motor | 10N.m×2 5N.m×1 | 10N.m×2 5N.m×1 | 16N.m×2 10N.m×1 |
Winding speed | 5-60m/min | 5-60m/min | 5-60m/min |
Voltage | 380V,50HZ,3PHASE | ||
Overall dimension(L×W×H) | 3.2m×2m×3.5m | 4.2m×2.5m×4m | 4.6m×2.8m×4.5m |
