cold pad batch dyeing machine
- Category: >>>
- Supplier: Wuxi Kangda Printing&dyeing Equipment Co. Ltd. [Jiangsu China]Wuxi
Share on (1937794418):
Product Overview
Description
KD180-360 type cold-pad-batch dyeing machine

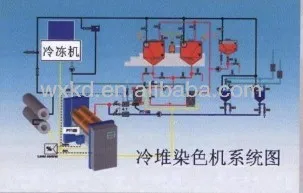

1. Principle:
This is a standard cold batch dyeing machine.Basic technological process is feed in—cooling roller—eveness squeezer—package
Basic principle of cold batch dyeing is reactive dyes under normal temperature alkali fixing color ,according to this principle,the main notice points is:cooling roller feed in,small liquor ratio dye vat,low tension winding .
Big rolling dia. low tension is special important for the center winding device,top grade of frequency converter with lower price.
2.Technical Parameter:
| model | technical data | |||
| power | machine speed | Working width | Direction | |
| KW | m/min | mm | left or right | |
| KD180-360 | 12 | 1-30 | 2400 | customer selfcare |
3.Composition
Feeding frame: 1 pcs
Suction edge device:1 pcs
Two cold water rollers as one group
Eveness padder + charging basket 2 pcs + one group of cooling device
Centre winding
Electrical apparatus control system one group
A-type rolling frame(buy in adition)
The competitive advantage of product line:
Our products mainly sold to Southeast Asia. OEM and ODM are welcome
The competitive advantage of product line:
1, low water consumption
2, save steam consumption, reduce heat consumption
3, save power consumption
4, save dyes and additives
5, wide range of application, meet the requirements for different weight and width of fabric dyeing through adjustable nozzle,
6, dyeing equilibrium
7, reduce production costs
please press "contract supplier" or ATM to contact me directly!
