fish farm drum filter, drum filter for the recirculating aquaculture system,drum filter for koi pond

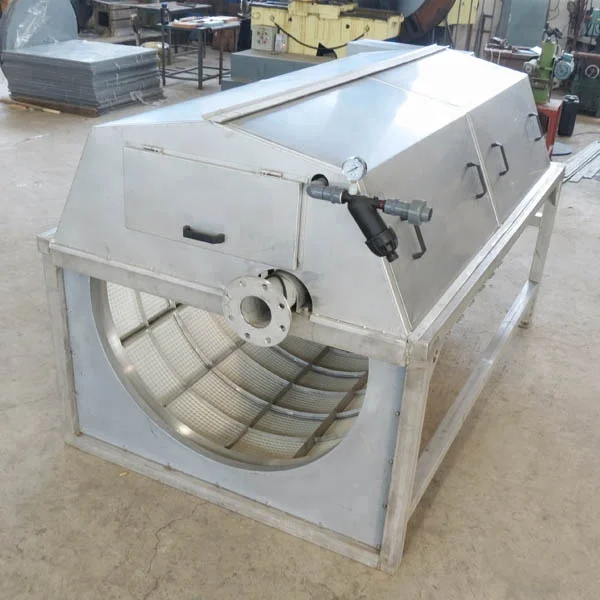

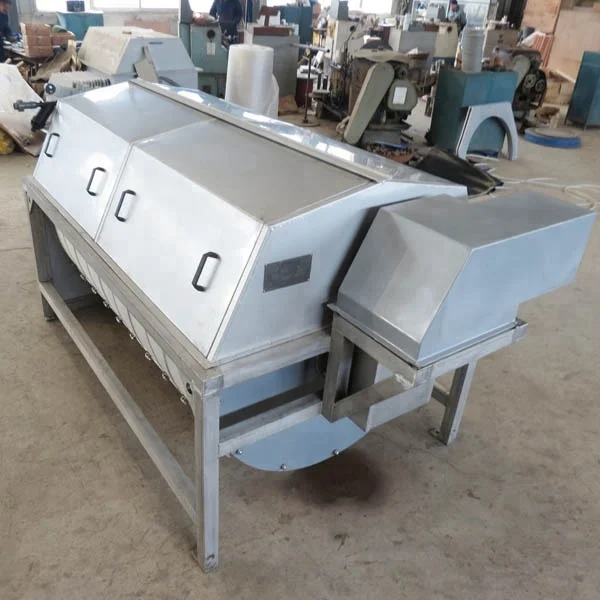

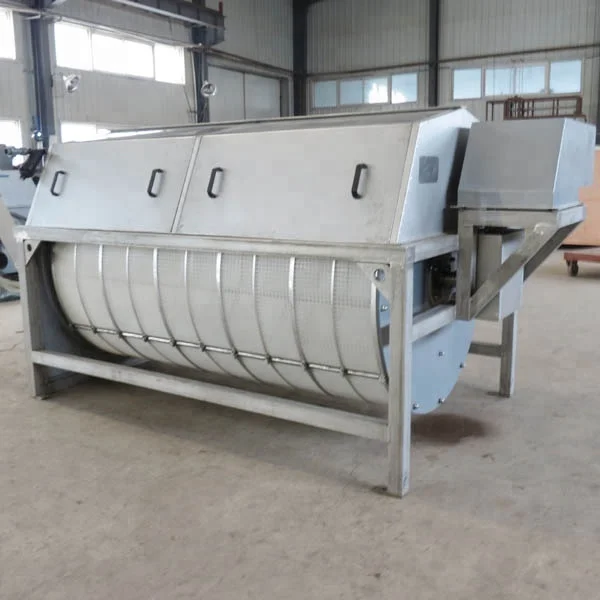

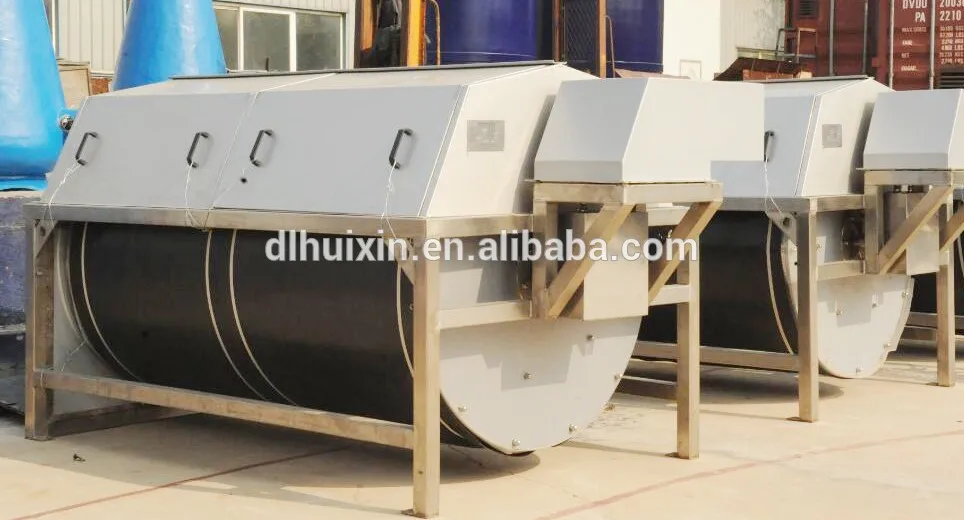

Drum filters with frame series has been development independently with proprietary intellectual property by DHTED. The main part of this machine is made of 304 or 316L Stainless steel and it is suitable for freshwater or seawater.The drum filters with frame are mechanical filters with max. filter particles filter openings more than the filter cloth(for fish excreta, feeds residue and organic detritus.) It can be used in aquaculture industry RAS, culture plant drainage and industrial sewage treatment.

1).Flow rate is around 150l/s at 90 micron max.25mg/l SS.
2).On frame, it is made to be installed directly in a basin or a canal made of concrete.
3).Made of SS304 or SS316L, it is unsensitive to the corrosion
4).0.75kw motor drive
5).Drum operate at 8.4rpm
6).A rising system optimized so as to make water saving
7).A machine with a simple design and robust construction
8).Free maintenance solution
