Product Overview

Description

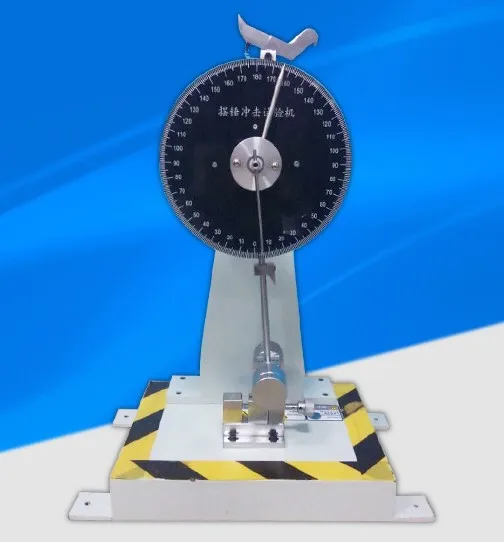

Product:    IZOD Impact Tester,Izod Impact Testing Machine,Cantilever impact test machine



Model:  SUNY-XJU-5.5





Introduction:



SUNY-XJU-5.5  Impact Testing Machine for IZOD Test into use for determining the rigid plastics, strengthen the impact toughness of nonmetallic materials such as nylon, glass fiber reinforced plastic, pottery, cast stone, plastic electric apparatus, insulating material.

The impact testing machine can be operated easily and without power supply. They are essential testing instruments for quality testing section, university and college, research institution and industrial and mining enterprise.

This impact testing machine can do the test according to the test method of the standard: ISO180, ASTM D256 etc





Features:



Multi Pendulums (big and small) and Multi scale reading for each testing machine which enlarge the test range of energy.

Calibrated and verified according to ISO 3802

Sample and support are easy centering.

SUNY-XJU series Pendulum impact is realized easily by hand push pin.

SIUNY-XJU series power supply free.





Main technical indexes:





Model/Spec	SUNY-XJU-5.5
Impact speed	3.5 m/s
Charpy energy	1J      2.75J      5.5J
Hit center distance	322mm
Pendulum bob rise angle	160°
Scale division	0.01 J    0.025 J    0.5J





Sample type table:





Sample type	Length L(mm)	Width b(mm)	Thickness h(mm)
1	80±2	10.0±0.2	4
2	63.5±2	12.7±0.2	12.7±0.2
3	63.5±2	12.7±2	6.4±2
4	63.5±2	12.7±2	3.2±2





Sample gap:



A type gap 45°±1°  gap bottom radius R=0.25±0.05mm



B type gap 45°±1°  gap bottom radius R=1±0.05mm
