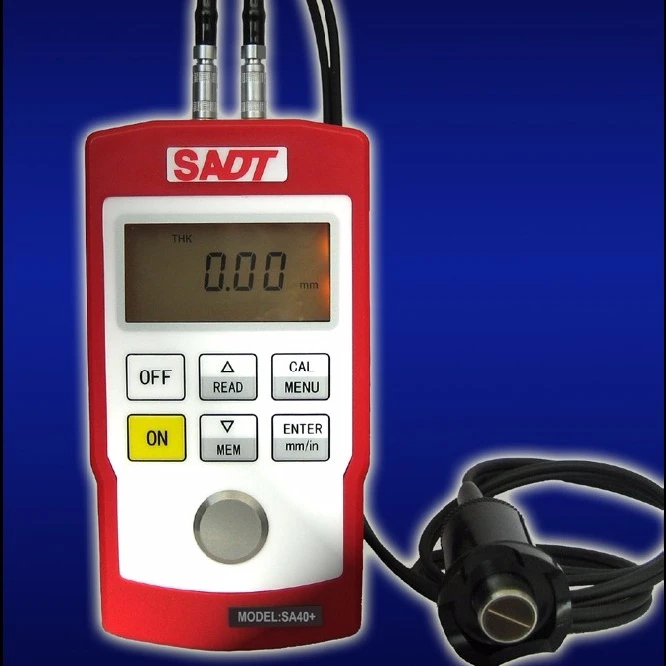

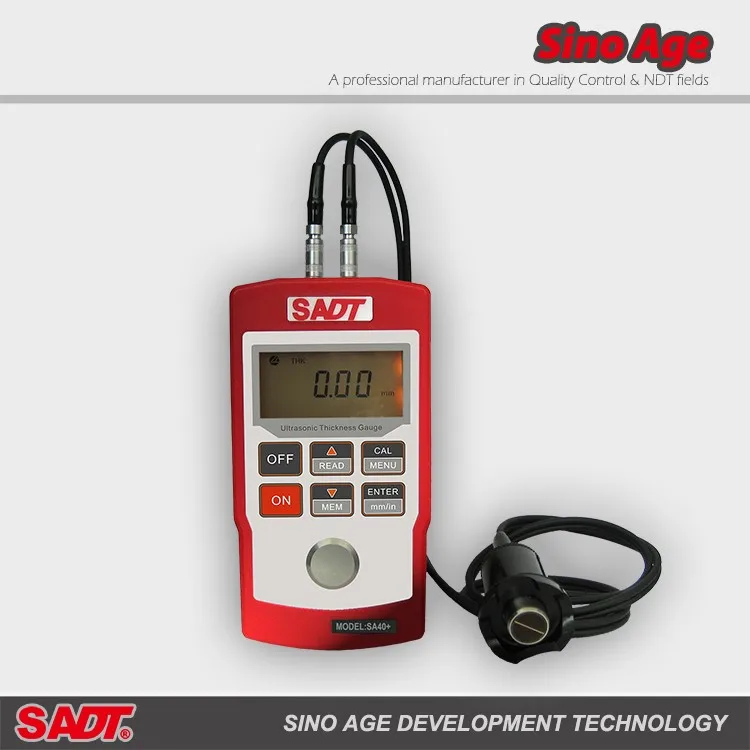

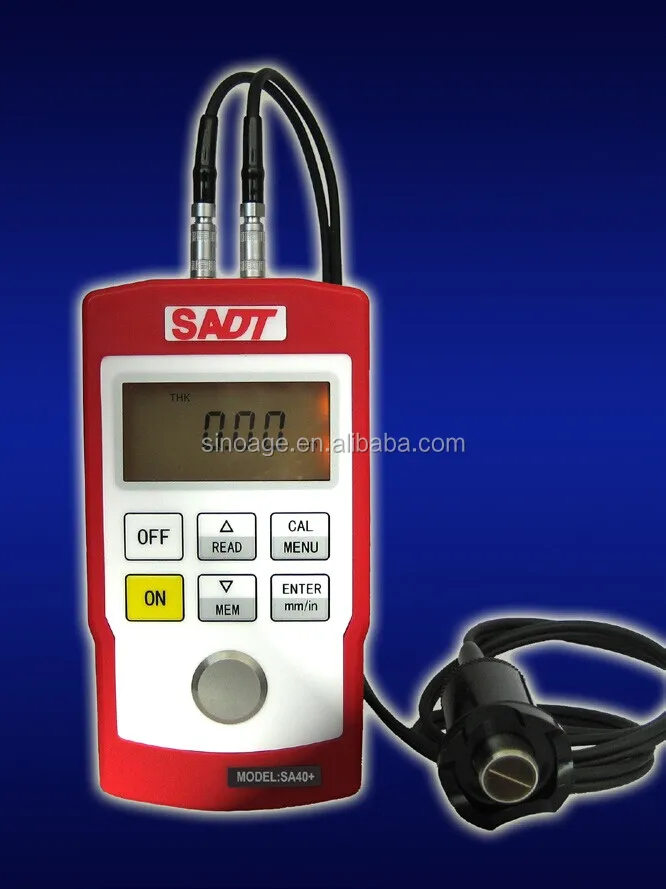

Портативный цифровой ультразвуковой измеритель толщины SA40

Product Overview

Description

Metal Thickness Gauge SA40+ with coating function/ Digital Ultrasonic Thickness Gauge SA40+





Introduction:



SA40+ Ultrasonic Thickness Gauge can measure the thickness of normal metal materials and metal materials and plastic covered with coating. Coating’s thickness should be less than 1.2 millimetre while the thickness range of the metal that under the coating should be between 3mm to 20 mm.



Specifications:

1)        Technique: pulse echo with dual probe

2)        Display: 4 digits LCD with backlight

3)        Measuring range: 0.8 to 300.0mm

4)        Resolution : 0.01mm 0.8-99.99mm, 0.1mm 100.0-300.0mm

5)        Velocity range: 500-9999m/sec.

6)        Display circle: 1 sec.

7)        Coupling indication

8)        Memory: 400 data can be stored and re-readable

9)        Units: mm or inch

10)    Low battery indicator on LCD

11)    Auto shut-off: after 5 min. of non-use

12)    Power: 2 ea. 1.5V AA alkaline cells

13)    Operating temperature: 0-40°C

14)    Operating humidity: 20-90%RH

15)    Size: 124x67x30mm

16)    Weight: 240g



Detail information:



Model	SA40+
Display	4 digits LCD
Backlight	Yes
Measuring range	0.7.00~300.0mm in steel with standard probe (Normal mode) 3.00~20.00mm in steel Thickness for coating: <1.2mm (Coating mode)
Resolution	1.00~9.99mm ±0.05 10.00~99.99mm ±(0.5% H+0.01) 100.0~225.0 ±(1% H+0.1)
Unit	mm/inch
Velocity	1000~9999m/s
Coupling indicator	Yes
Calibration	Auto
Memory	40 data
Low battery indicator	Yes
Working environment	0~40oC, 20~90%RH
Power off	Auto
Power supply	AA battery x 2
Net weight (g)	245
Dimension (mm)	124x67x30
Standard probe	PT-5
Optional probes	XT-5 / GT-5 / CT2.5
