LS Single Hook Debeader
- Category: >>>
- Supplier: Jiangyin Xinda Medicine And Chemical Machinery Co. Ltd.
Share on (1938904110):
Product Overview
Description
2021 China Manufacturer Single Hook Tire Debeader
Introduction

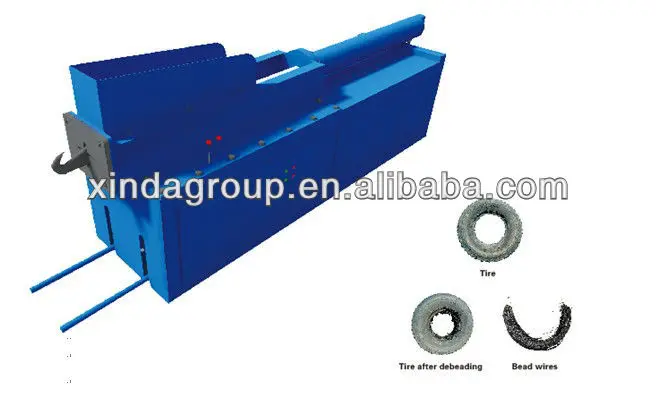

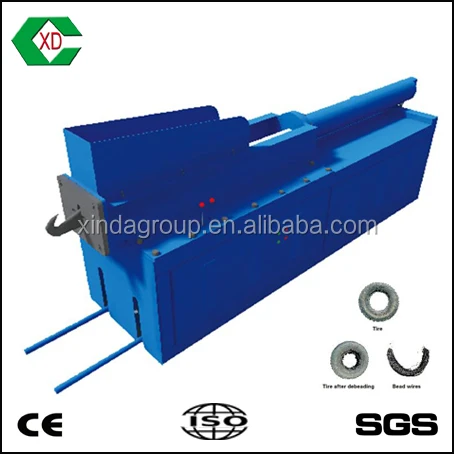

LS Single Hook Debeader is used to pull out the bead wires inside tires?sidewalls completely before the cutting and shredding processes. It mainly consists of motor, hook, cross-hole plate, body frame, cylinder, hydraulic station, operation lever, directing wheel.
Structure and Principle
1,Hook, cross-hole plate are made of materials after special treatment, wear-proof, heavy-duty and long life;
2,With lifting device, the tire can be loaded for processing at ease to increase handling speed and save labor;
3,The lifting and pulling processes are controlled with hand lever manually to ensure process accuracy;
4,The hydraulic system adopts international advanced plunger pump technology, low noise, and high pressure and improved the stability and life of the machine.
Technical Data
| Model | 900 |
| Capacity(Pcs/H) | 20-40 |
| Handling tire(mm) | 900 |
| Motor power(Kw) | 5.5 |
| Working presure(MPa) | 10 |
| Weight(T) | 1.0 |
