Product Overview

Description





 Product Description




Module

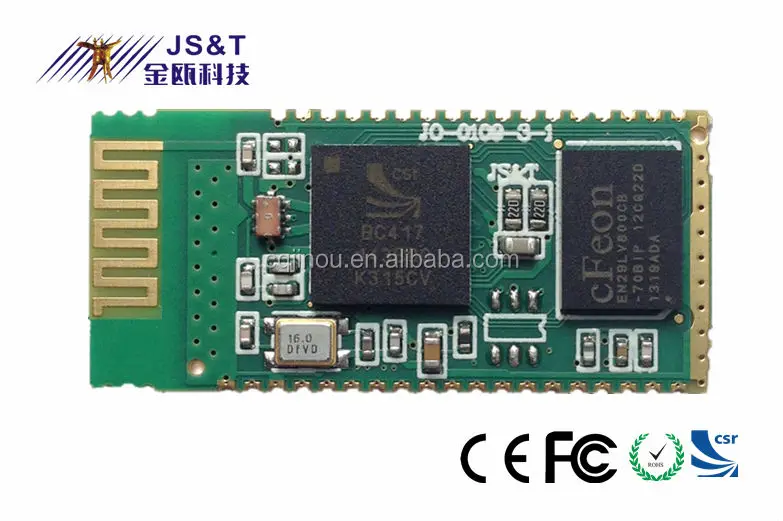

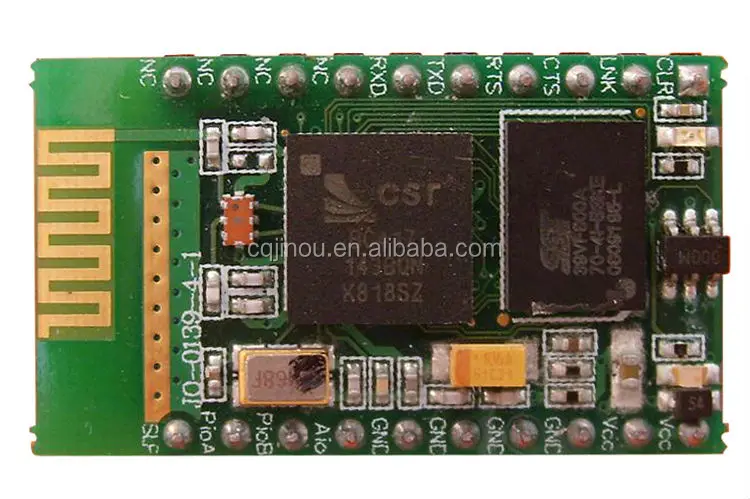

The BC04 Bluetooth Module is a Class 2 Bluetooth module using BlueCore4-External chipset from leading Bluetooth chipset supplier, Cambridge Silicon Radio(CSR chip). It provides a fully compliant Bluetooth system for data and audio communications. Interfaces with a host via USB or UART and support full data rate up to 3Mbps modulation modes. Audio interface supported PCM protocol. The module and device firmware is fully compliant with the Bluetooth specification 3.0.






















































Operating Frequency Band


2.40 GHz~2.48GHz unlicensed ISM Band


Surface-mount Size


27.0 x 14.5 x 1.8 mm (without antenna)


Size


31.8*14.5*1.8mm


Baud Rate


9600bps (default), or 2.4k~115.2kbps


Theoretical Operating Temperature


-40℃~ +85℃


Measured Operating Temperature


-20℃~ +75℃


Voltage Range


2.7V to 3.6V


Normal Supply Voltage


3.3V


Effective Distance


10m~30m


Bluetooth Specification


Bluetooth v2.1+EDR /2.1/2.0/1.0/ v3.0


Host Interfaces


USB UART






Application





Health care product (heart rate, pulse, etc.)


Motion wireless sensor (passometer, etc)


Digital product


Mobile phone wireless accessory


Wireless sensor.


Wireless-Control-Port device (Bluetooth keyboard, mouse, controller, etc.)


Wireless Alerter (Bluetooth anti-lost)









Our Test







Company Profile









Chongqing Jinou Science & Technology Development CO., Ltd is established in September 2000. We focus on Bluetooth Technology as a leader in China for 15 years. Jinou Bluetooth Technology Research Institute shoulders R & D task for our customers and help them keep top position in their field needless to mention some of them even went IPO.

Our engineers has published more than 10 works in Bluetooth technology , such as Bluetooth Technology, Bluetooth Protocol and Source Code Analysis, Wireless Local Area Network, Wireless Network Security, IPTV and Its Solution, Zigbee Technology and Cases Analyses, ULP Bluetooth Technology Specification Analyses, etc.. In addition, they also present more than 80 Disquisitions and more than 60 patents.

In recent years, Jinou has partnerships with Mediacom, Gamestop, Microsoft, ARM, Invengo, HUAWEI,POTEVIO, Southsurvey, Chongqing CHANGAN, Hanwei, SNBC, Newland Group, Hi Target, CMCC, China UNICOM, CQTV, IT University of Copenhagen, Peking University, Tsinghua University, Chongqing University, Chongqing University of Posts and Telecommunication etc..

Some of our products like Smart Socket[Bluetooth/ WiFi/ infrared], Bluetooth headphones, Bluetooth Smart Controller, Fly Mouse, Bluetooth Locks, Bluetooth Medical Module, Wearable Bluetooth Module, Beacon etc., are welcomed by all people around the world except the residents from North pole and South pole.

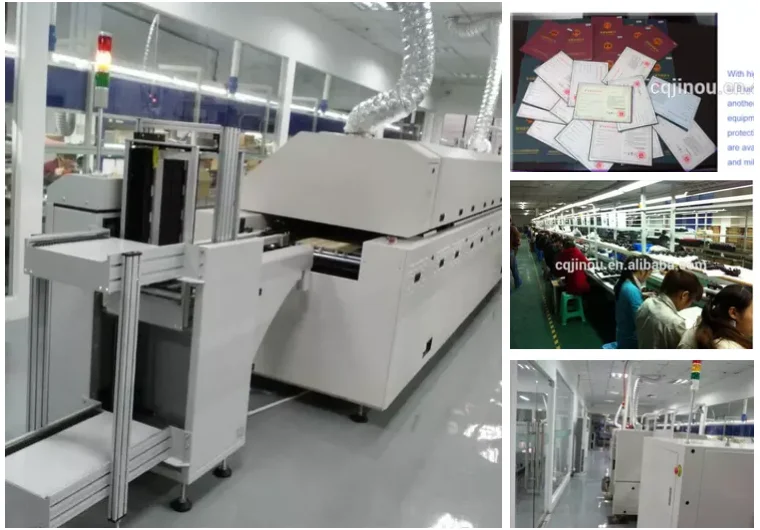

Exhibition
