Factory price canned tomato paste machine/ tomato paste production line

Product Overview

Description



Industrial ketchup processing machine

Hot CE  tomato ketchup making machine / tomato paste making machine best manufacturer  tomato paste processing machine



Advantages



1 Spiral juice extractor material can be all kinds of vegetable and fruits
2 Stainless Steel material of fruit touching part
3 Extracted juices Automatically separated from waste





Application:



 The fruit and vegetable pulping machine is an ideal machine for making jam, fruit juice,

vegetable juice, suitable for a variety of fresh fruit and vegetables in pulping separation.

such as: orange flesh, grapes, kiwi, mulberry, waxberry, peach (to nuclear) and so on,

it can change them into jam juice, it can also pulping green vegetables , tomatoes, peppers,

celery. the vegetables bar isolated, is an important equipment for food processing .



The machine can separate fruit juice and tomato skin and seed.





Product data



Model	Size (mm)	Power (kw)	Screw diameter(mm)	Capacity(t/h)
SLSG-5	1000*320*980	0.55	135	0.1-0.5
SLSG-15	1560*450*1340	4	175	0.3-1.5
SLSG-25	2200*600*1560	11	215	0.6-2.5



Remarks



I. Delivery time: 3-5 days after receive clients' payment.

II. Payment term: T/T,Western union, L/C

III. Valid time: This quotation is valid for one month.

IV .Quality Guarantee Terms: Quality guarantee term is for one year. Malfunctions which are caused by machine-self and quality will be responsible for our manufacturer. Other malfunctions which are caused by operation mistakes, man-made problems, etc will be responsible for clients-self.

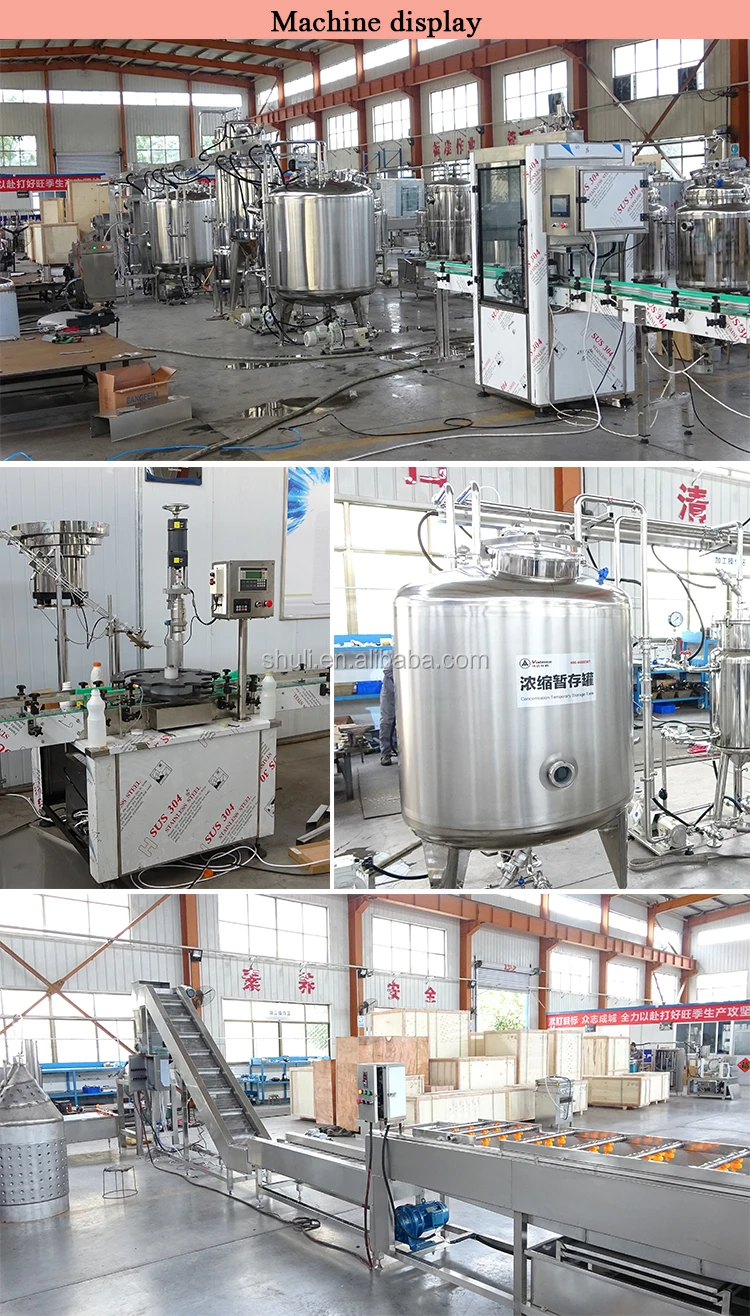

Our worksite and factory

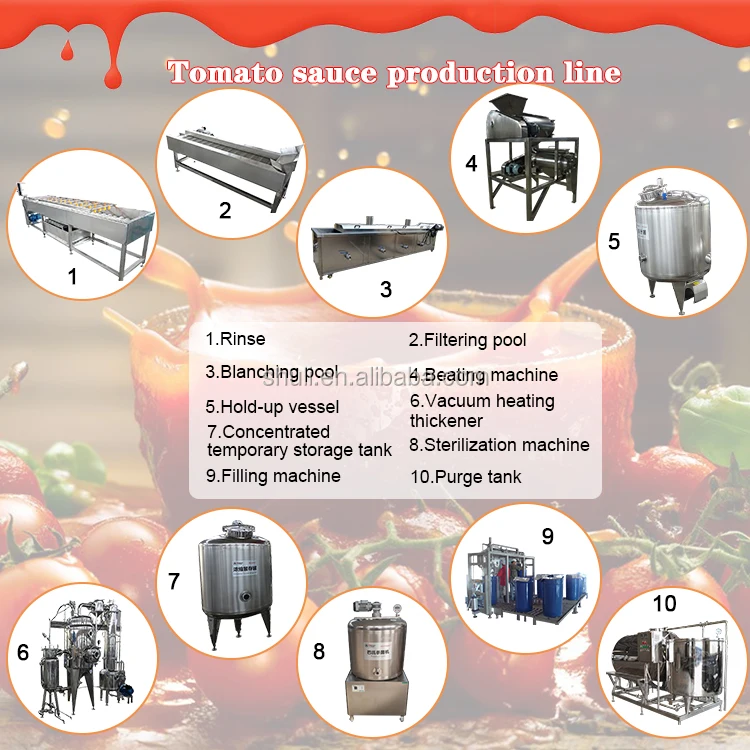

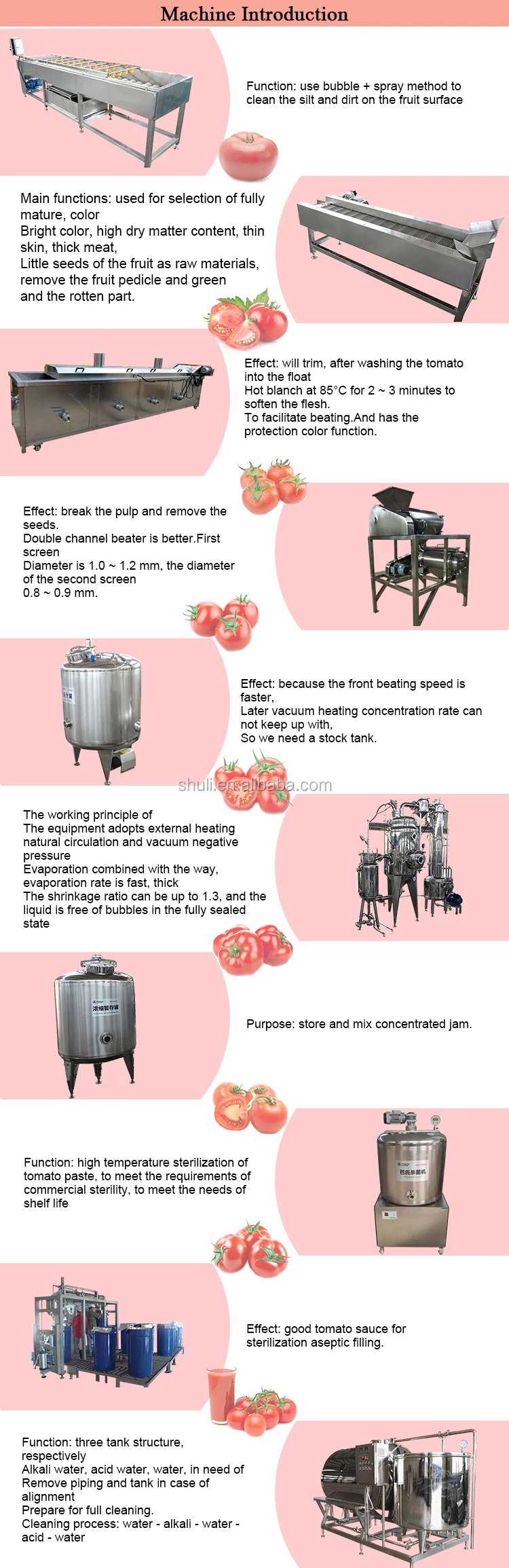

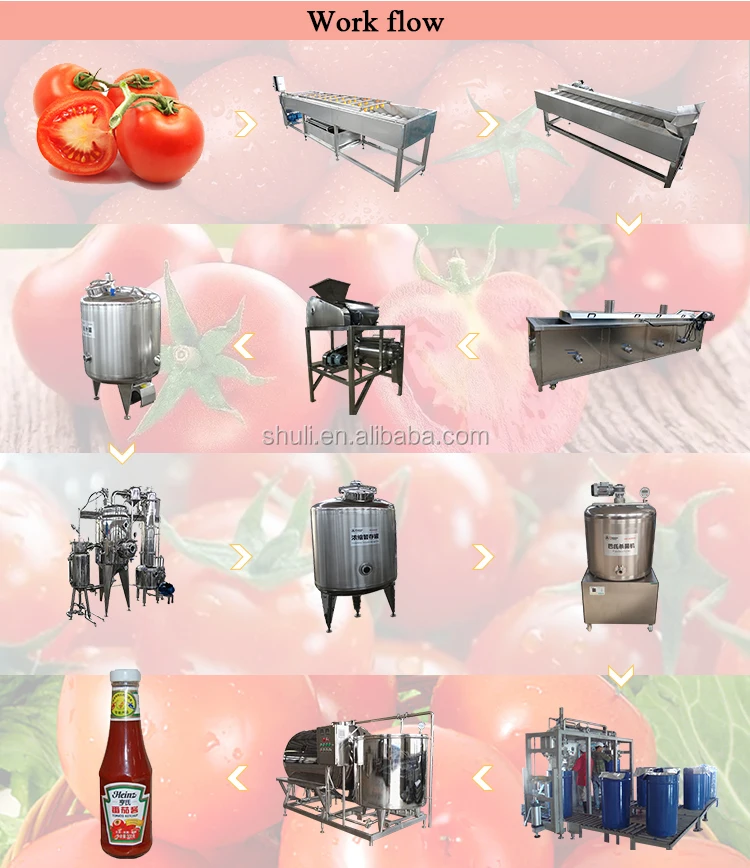

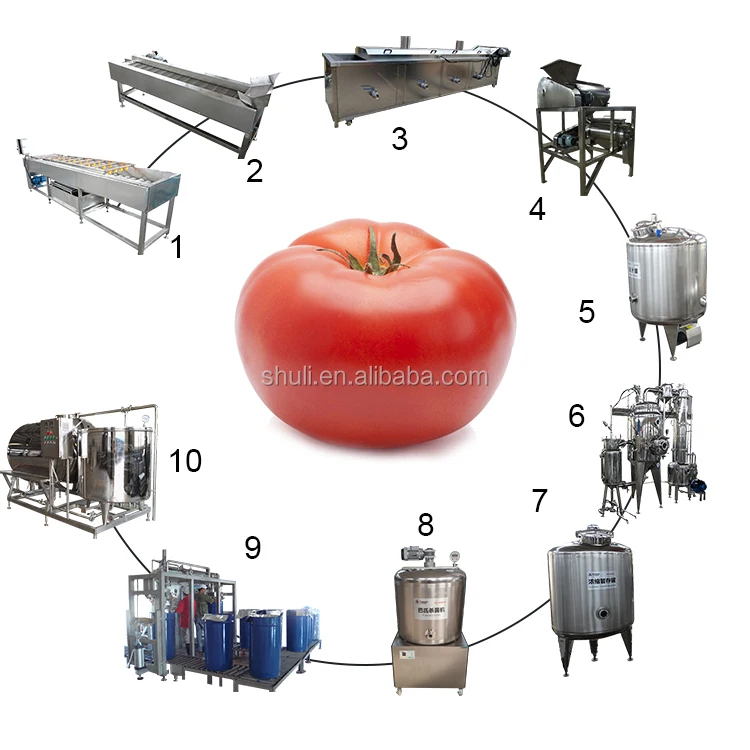

small capacity tomato paste producting line







product	specification	quanitity	Technicl requirments
Washing machine	SLSG-2000	1	Capacity:500-1500kg/h     Power: 2.9kw Water need: 2-3ton/h
broken- juice extractor	SLSG-15	1	Specification: 0.3-1.5t/H Capacity:  0.3-1.5 Power:4kw+1.1kw
Pump	SLSG-1	1	Specification:3T/H Material :SUS304 Power: 7.5kw
Machinery pasteursation	SLSG-1	1	Capacity: 1ton/h Power: as your needed. Steam pressure:0.08-0.096Mps
Linear canning machine	SLSG-1	1	Capacity:600b/h Power:as your needed
capping machine	SLSG-1	1	Capacity:2000b/h Power:0.62kw Material:SUS304
Automatic stiker labeling machine	SLSG-1	1	Capacity:2000b/h Power:700w Material:SUS304
Heat Shrink Packaging Machine	SLSG-1	1	Power:20kw Packing: 3*4
conveyor	SLSG-1	1	the longth of conveyor according to space of your









The packing and delivery







If you want know more, pls contact nancy
