Product Overview
Description
Copper&Aluminum Breakdown Machine
The power consumption of the break down machine is very important for the user. We have good design of the transmission system. The machining and the assembling of this system are also critical for the whole machine. Minimum electric consumption and reliable running condition is our target of innovation.
Main technical data:
| Model | DL 400-9 Copper | DL 400-13 Copper | DLV400-9 Aluminum | DLV400-13 Aluminum |
| Inlet diameter(mm) | 8 | 8 | 9.5 | 9.5 |
| Outlet diameter (mm) | 2.00-3.50 | 1.20-3.50 | 2.40-4.50 | 1.60-4.50 |
| Number of dies | 9 | 13 | 9 | 13 |
| Max. speed (m/min) | 1200 | 1500 | 1200 | 1500 |
| Main motor power (kw) | 185 D.C. | 280 D.C. | 185 D.C./200 A.C. | 280 D.C./200 A.C. |
| Annealing current (A) | Max. 4300 AC | |||
| Annealing volt (V) | Max. 55 AC | |||
| Annealing capacity (KW) | 283 | |||
Doule-wire Copper&Aluminum Breakdown Machine
| Description | Cooper | Aluminum |
| Inlet diameter(mm) | 2× 8.00 1× 10.00 | 2× 9.50 1×12.00 |
| Outlet diameter(mm) | 2×(1.20~3.50) 1× 4.50 | 2×(1.60~4.50) 1× 5.00 |
| Max. Speed(m/min) | 1500 | 1500 |
| Number of dies | 13 | 13 |
| Main Motor Power | DC 510 | DC 510 |

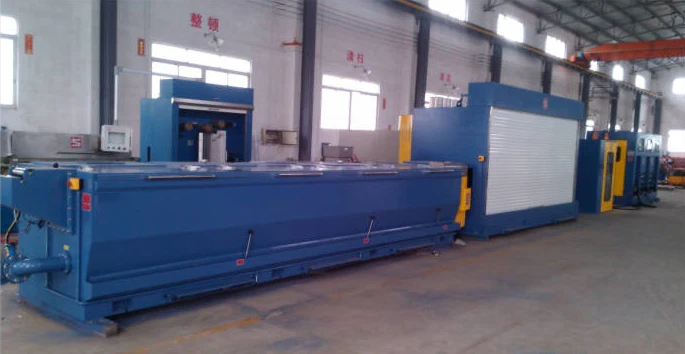

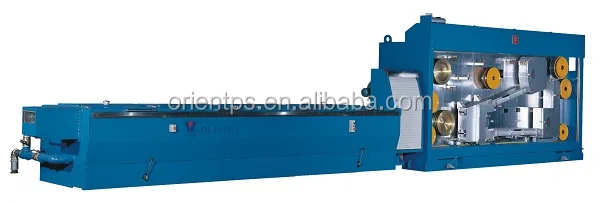

Main Pictures of Machine:
Copper&Aluminum Breakdown Machine
We are looking forward to have opportunity to cooperate with you!
