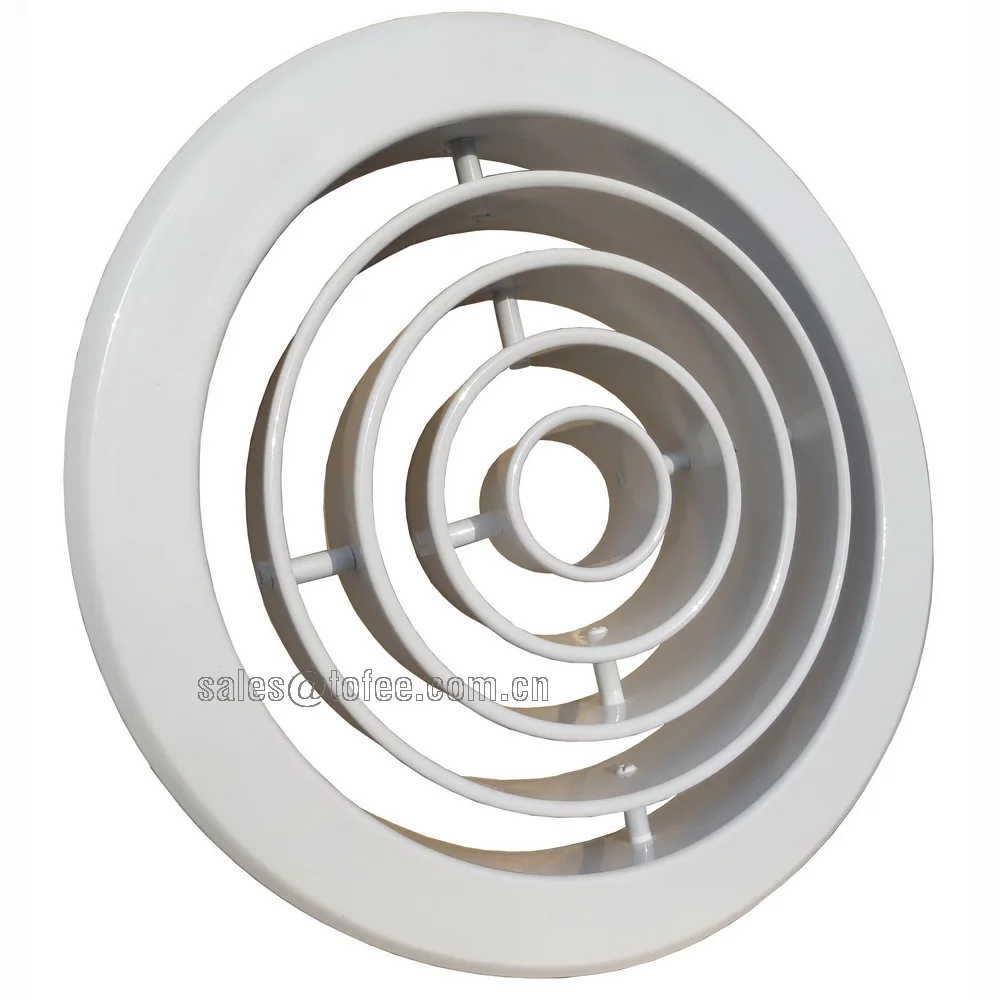

Direction Adjustable Multi Ring Air Jet Round Diffuser
- Category: >>>
- Supplier: Guangzhou Tofee Electro Mechanical Equipment Co. Ltd.
Share on (1940109374):
Product Overview
Description
Product Description
Construction:
Frame & Core: : High quality extruded aluminum alloy(A6063) sheet.
Description:
The frame & core are high quality extruded aluminum
sheet construction with advantages of corrosion resistance and rigidity.
This type of multi-ring air diffuser is specially designed to use in the application where the high airflow capacity and long throw supply system is required.
The inner core can be adjustable in 45 degree to control the air.
Ring jet diffuser can be connect with duct or flexible aluminum duct directly for convient installing.
SurfaceFinish:
Powder coated color finish as per RAL color
standard color: RAL9016,
Material thickness:
1.3mm
Size:
ItemCode | Neck ΦB(mm) | Face ΦA(mm) | H |
JD-R-150 | 148 | 210 | 100 |
JD-R-200 | 198 | 260 | 100 |
JD-R-250 | 248 | 310 | 100 |
JD-R-300 | 298 | 360 | 100 |
JD-R-350 | 348 | 410 | 100 |
JD-R-400 | 398 | 460 | 100 |

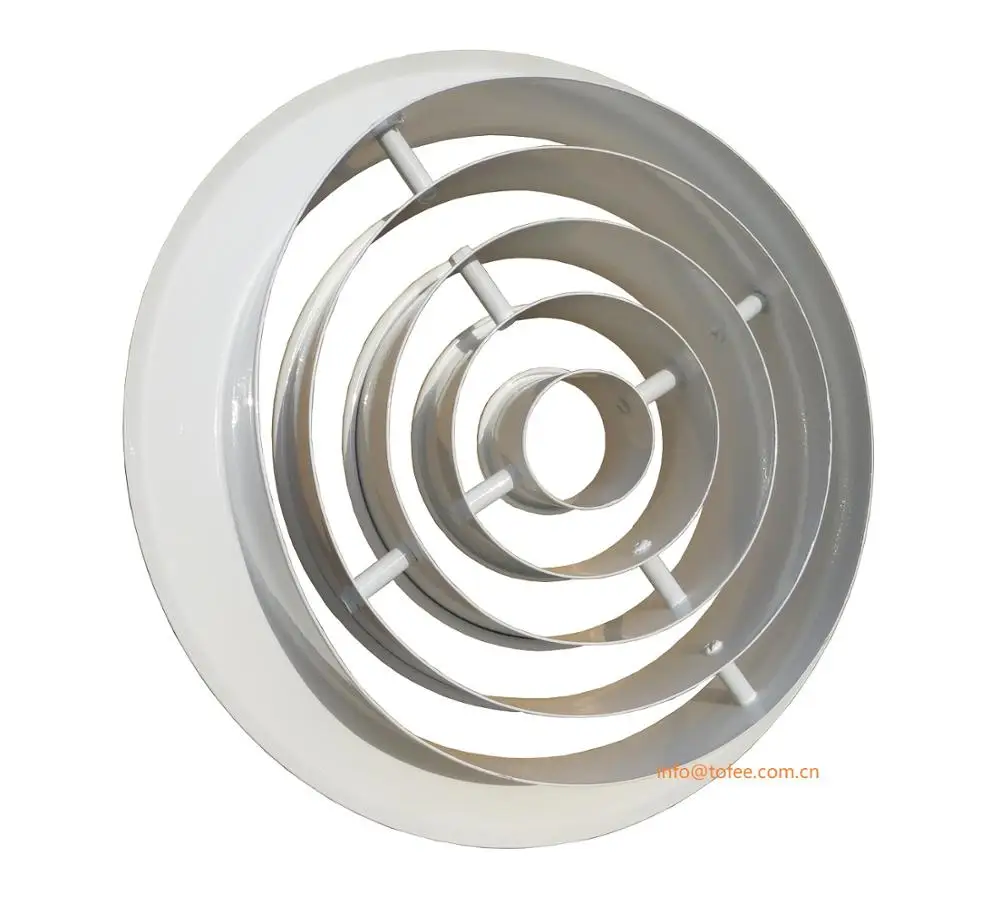

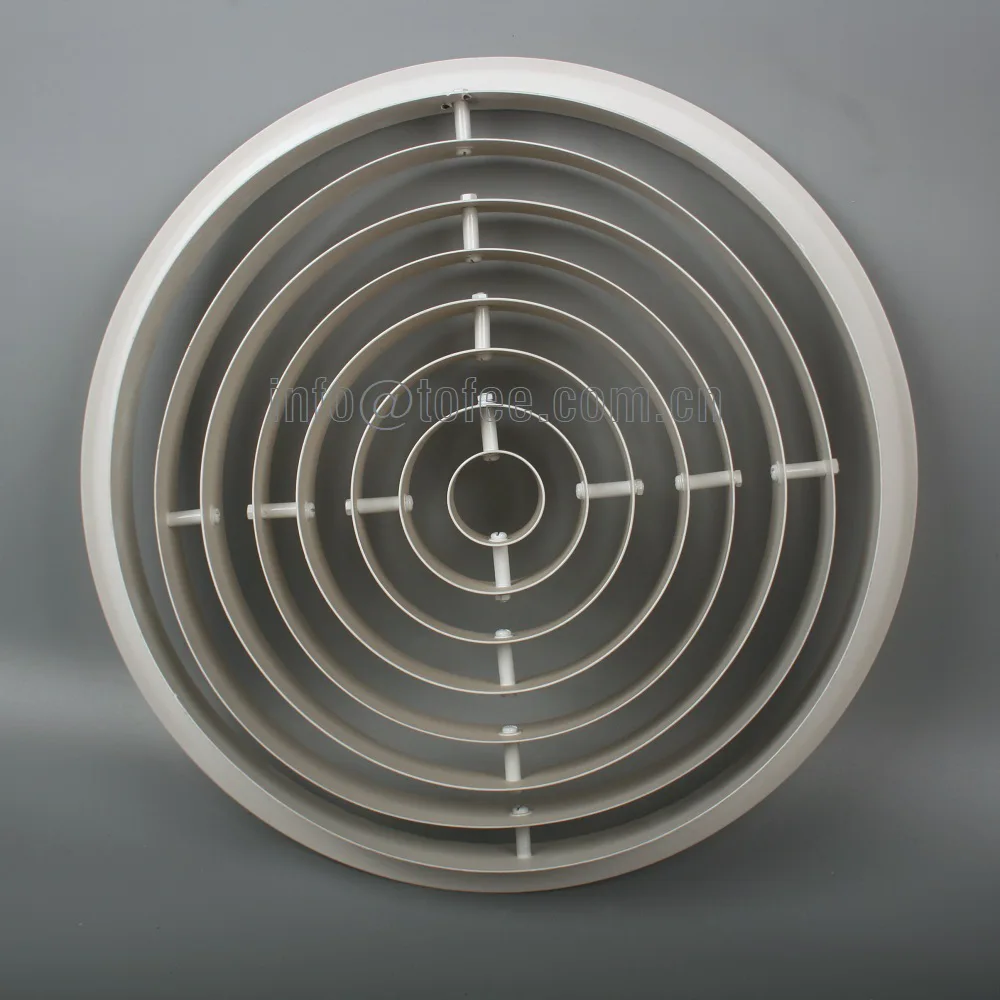

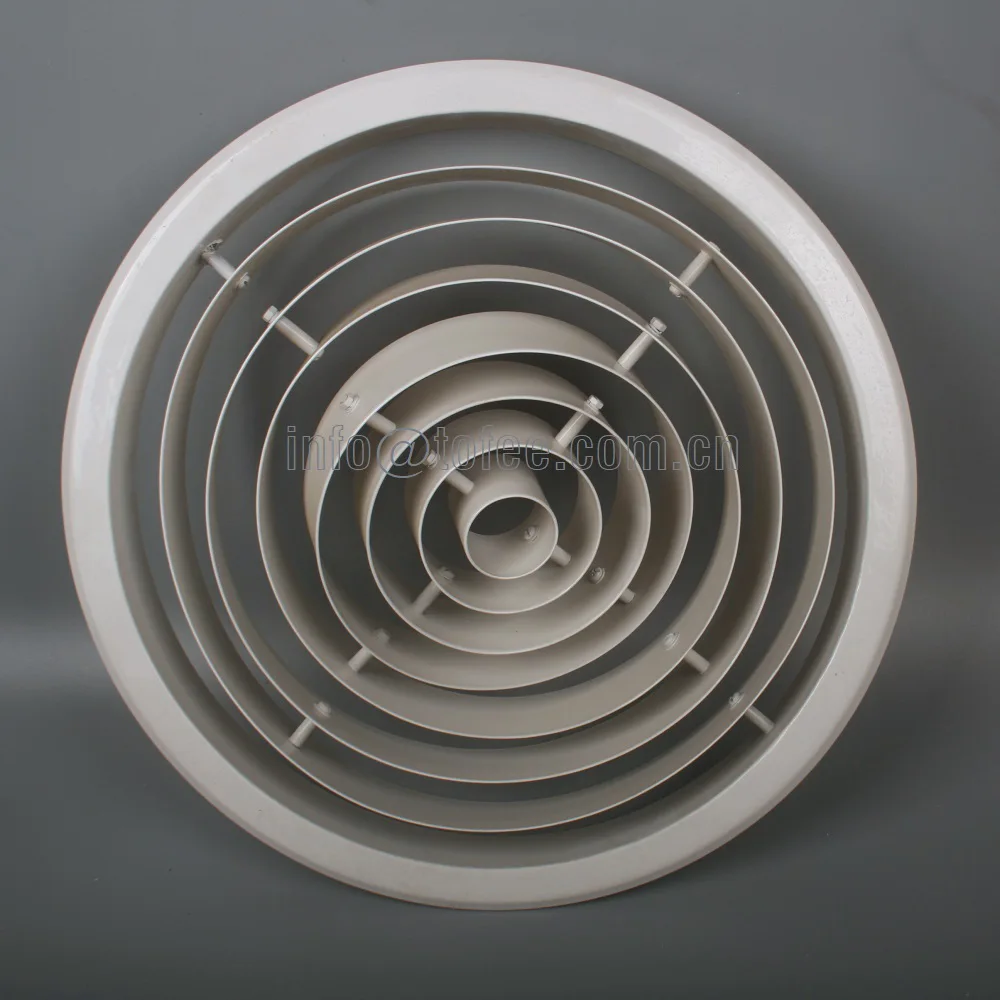

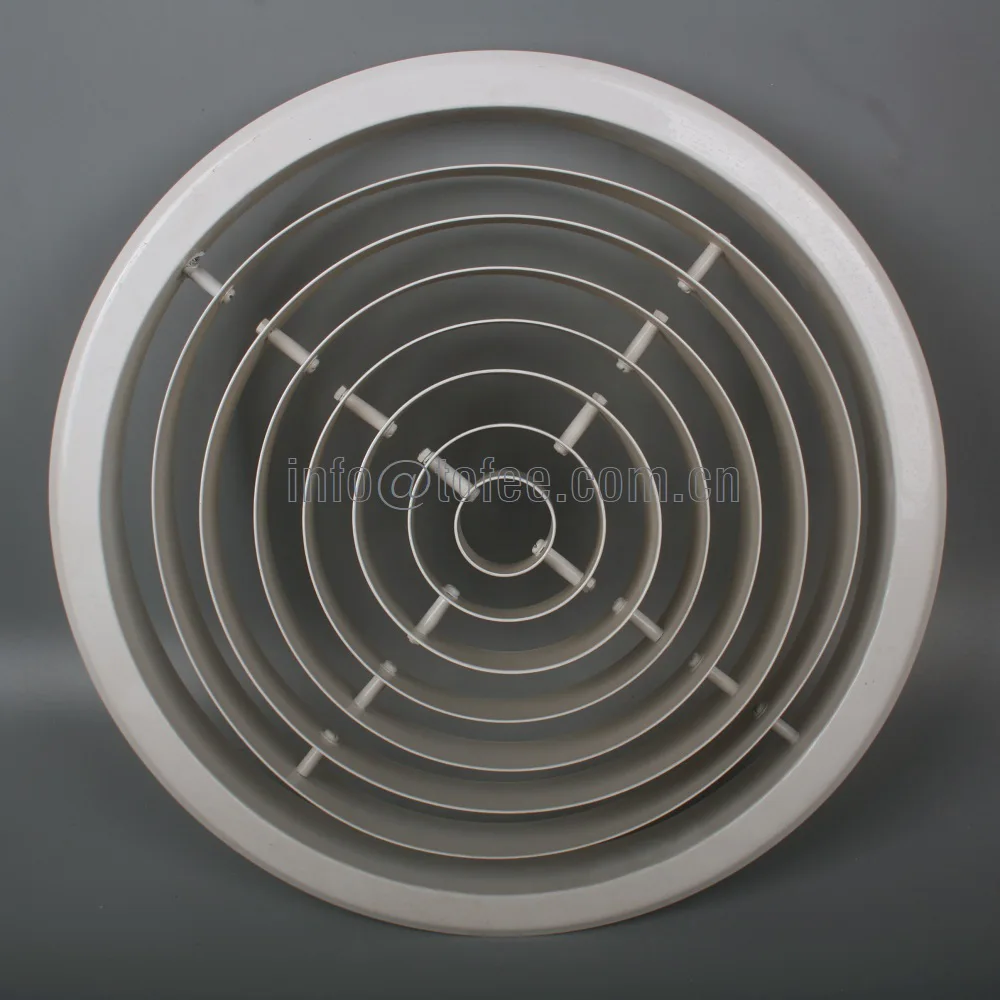

Detailed Images
Price Information
Price is indicative based on EXW term.
Price is affected by Quantity, Exchange rate, Delivery location, Detailed model/specification, etc.
Please always send the detailed information to get accurate price. Email: sales(a)tofee.com.cn
