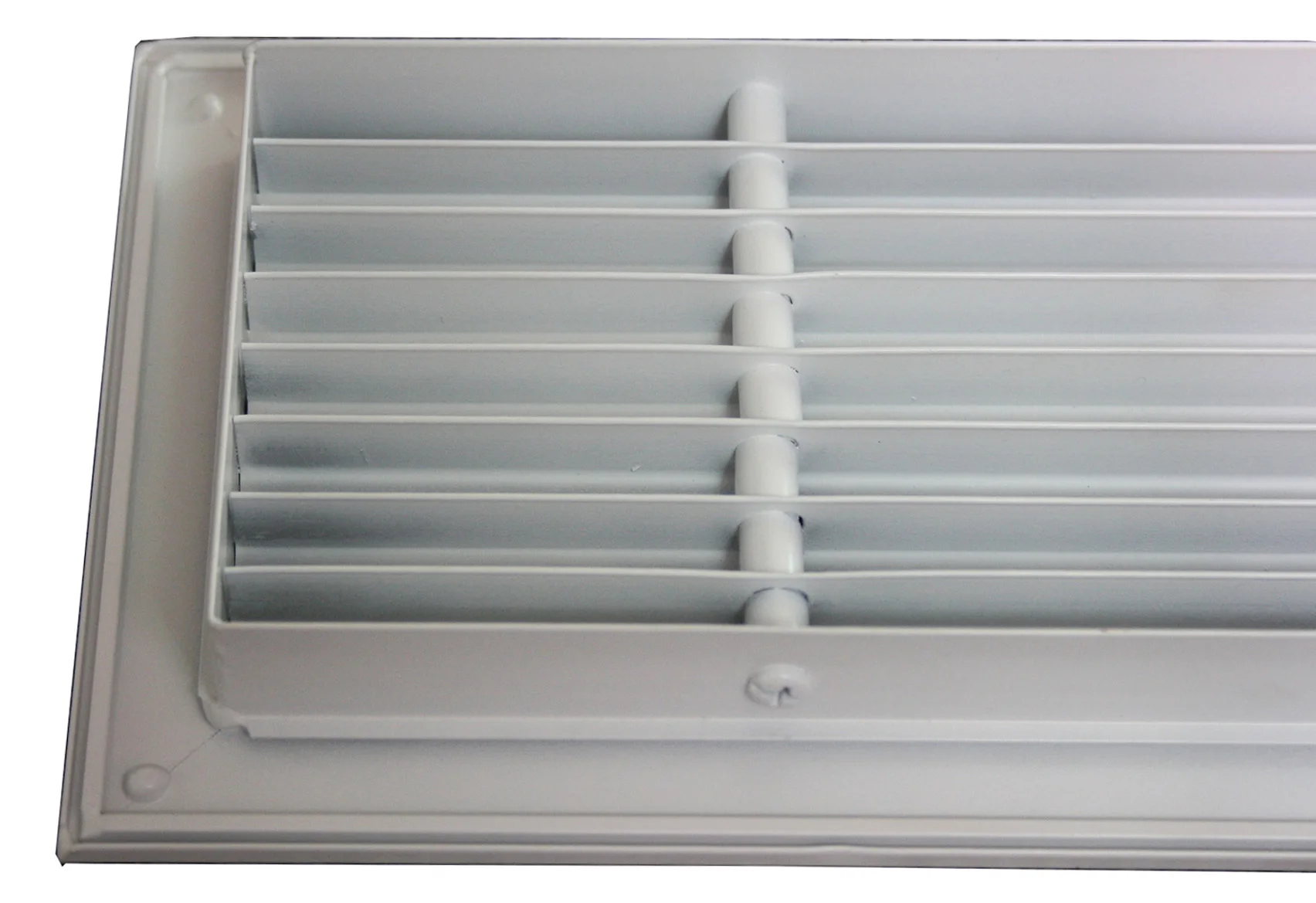

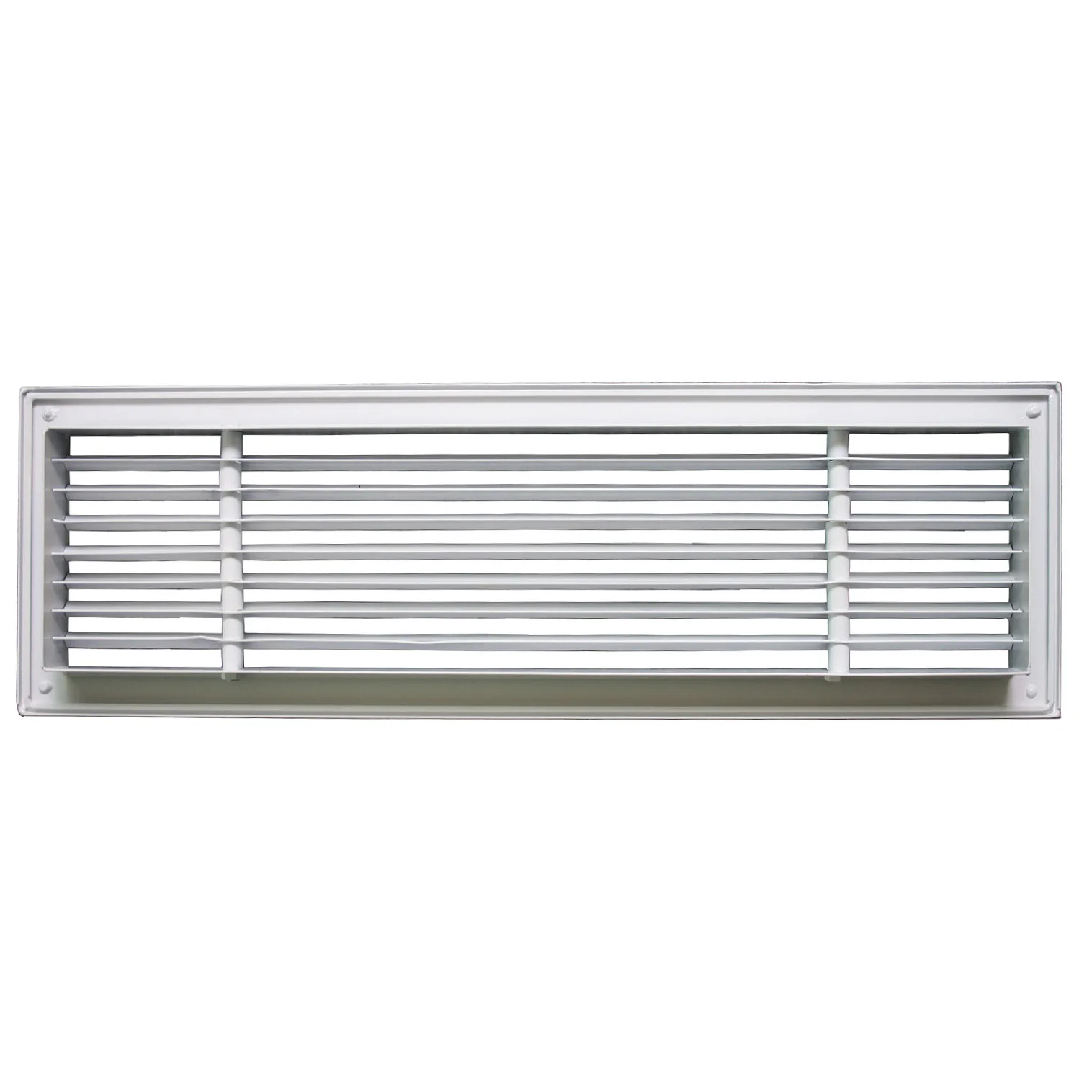

Degree Linear Bar Air Grille

Frame : High quality extruded aluminum  alloy(A6063) profile with 30mm flange as standard, 20,25mm for option Face Bar : high quality of aluminum  profile of 30° 1-way Bar spacing: 10mm as standard

Support pipe: 8mm diameter aluminum  pipe

The frame & blades are high quality extruded aluminum profiled construction with advantages of corrosion resistance and rigidity.

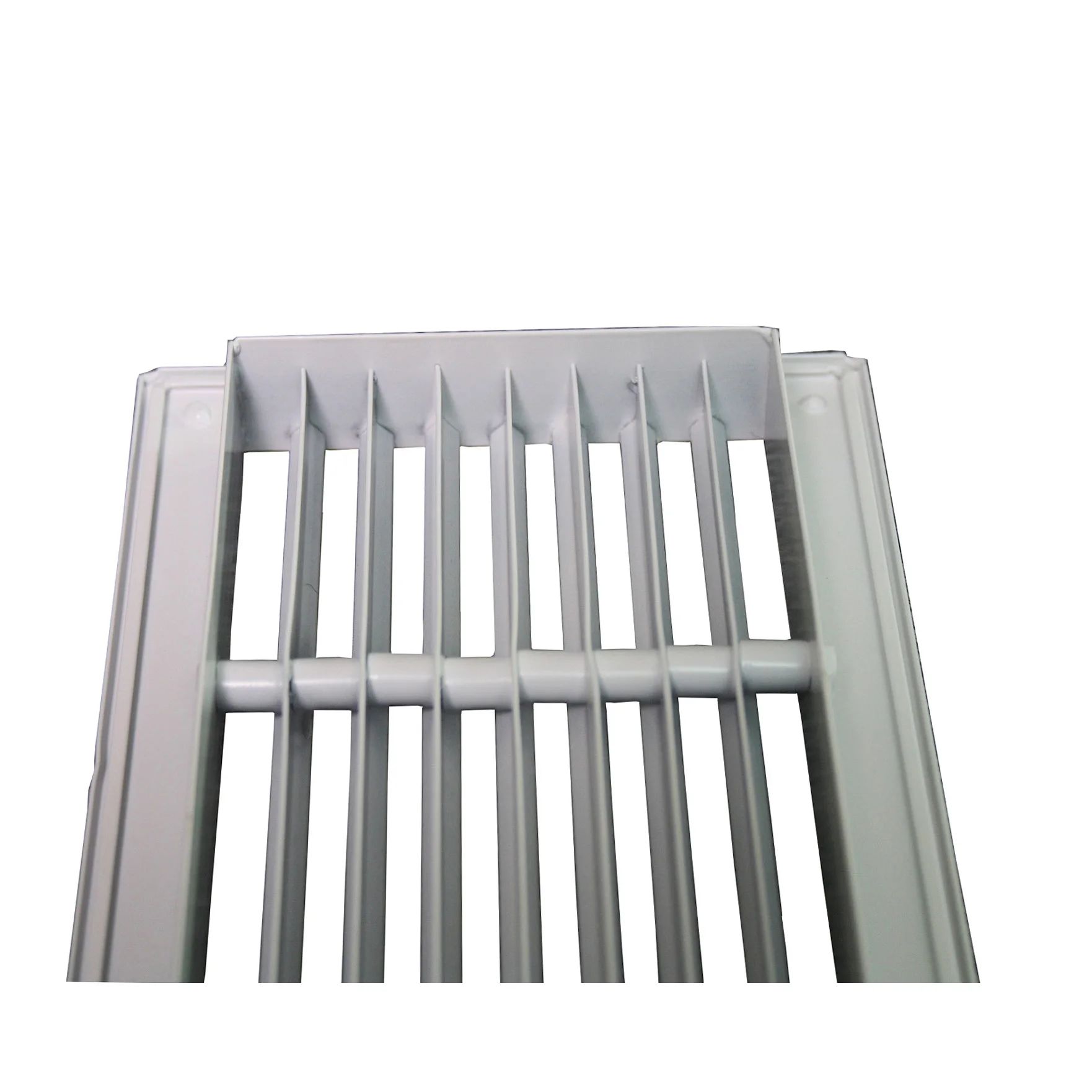

The Horizontal face bars  with 0° 1 way throw are rigidly fixed to the frame with 8mm pipes

Total structure is manufactured by mechanical assembly assuring rigidity and to maintain  straight  line appearance.

Powder coated-standard color: RAL9016

standard color: RAL9016, 9010

Naturalanodizedaluminum finish

0.8mm, 1.0mm, 1.2mm foroption

Any size available

Overall face size = Neck size + 55mm

Standard size(Neck size=A)



OBD (Opposed Blade Damper)
