Rotary/semi rotary Label sticker varnishing lamination cold stamping Die cutting Machine with slitter and sheeting functions

Product Overview

Description

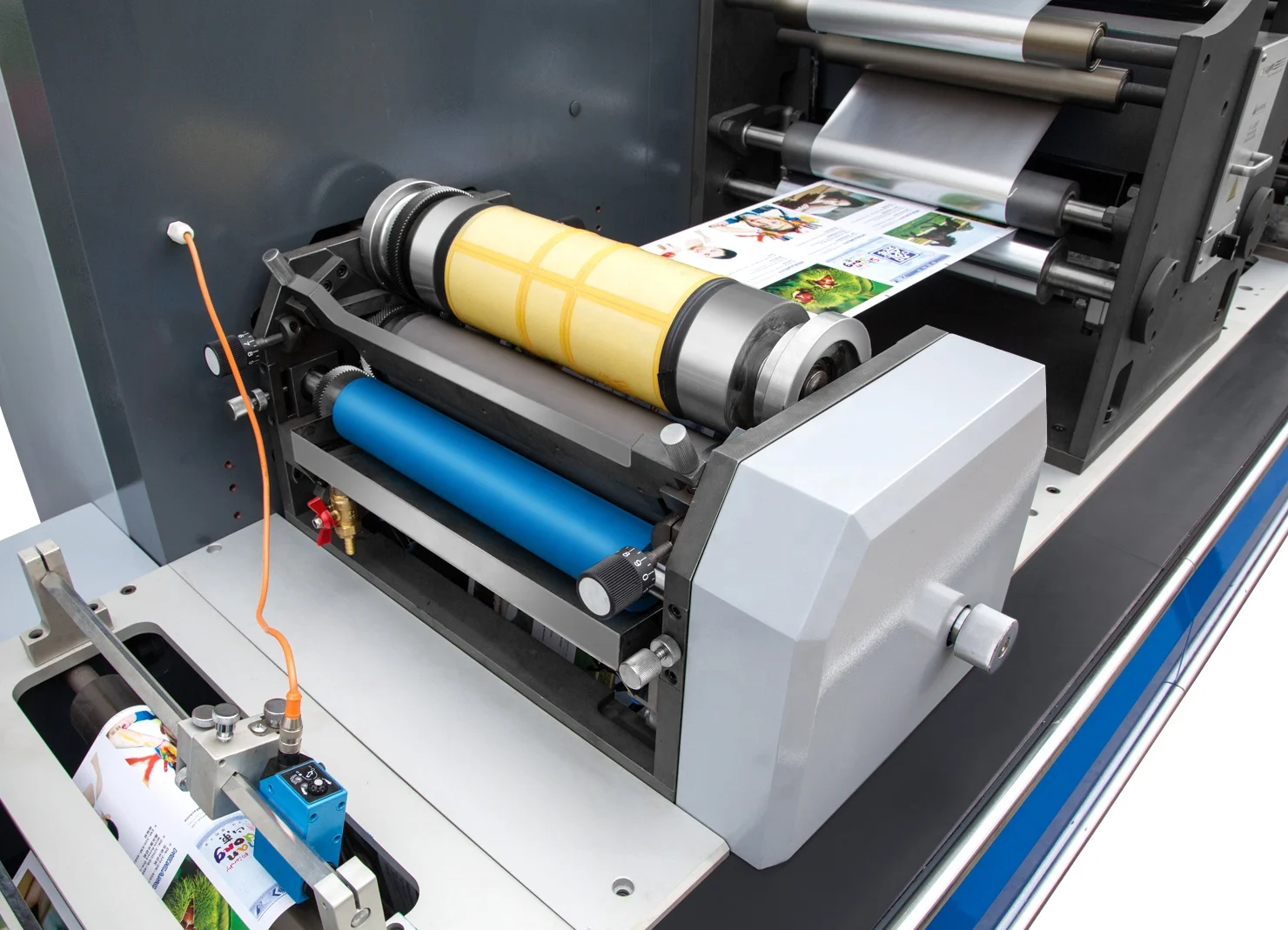

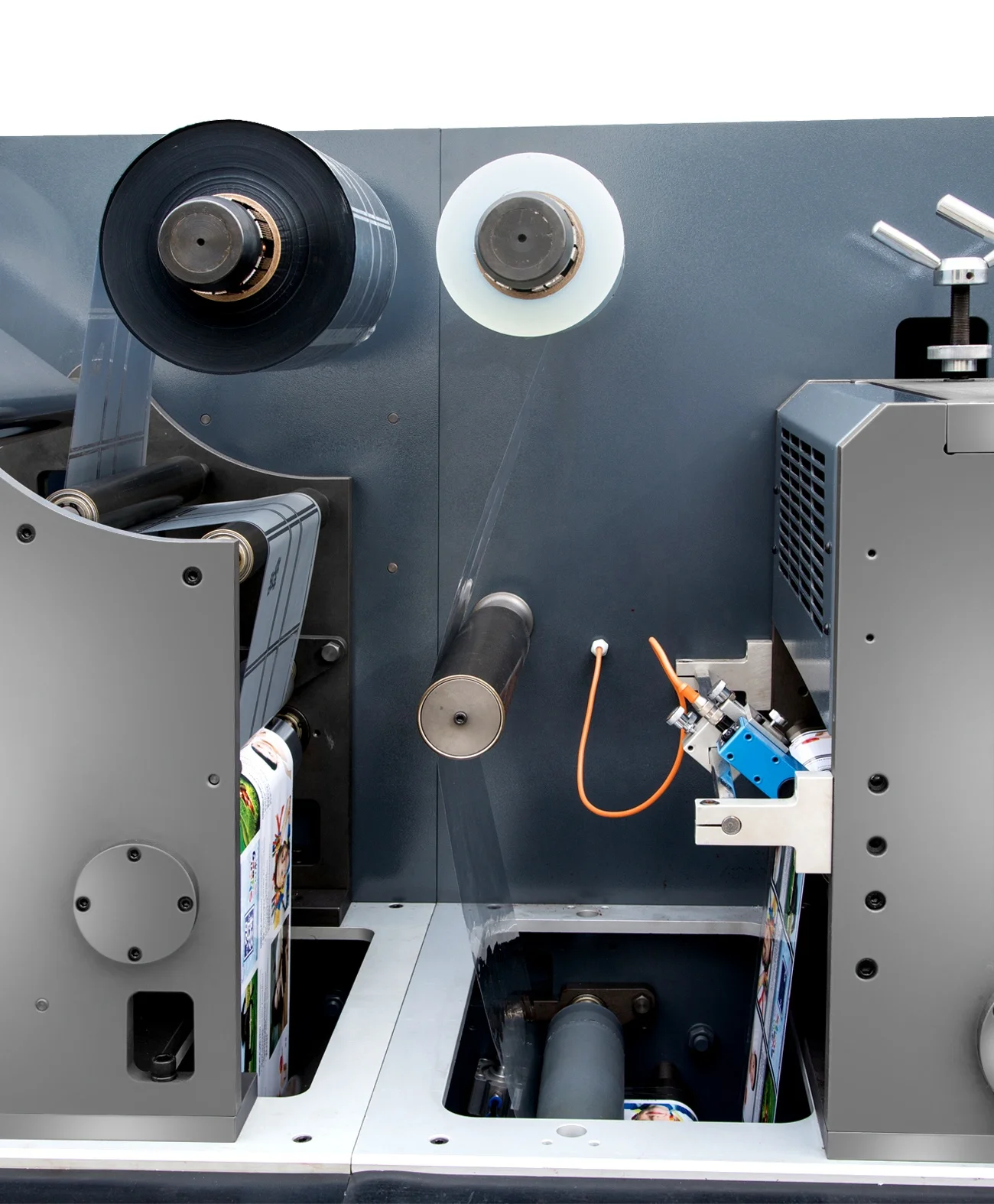

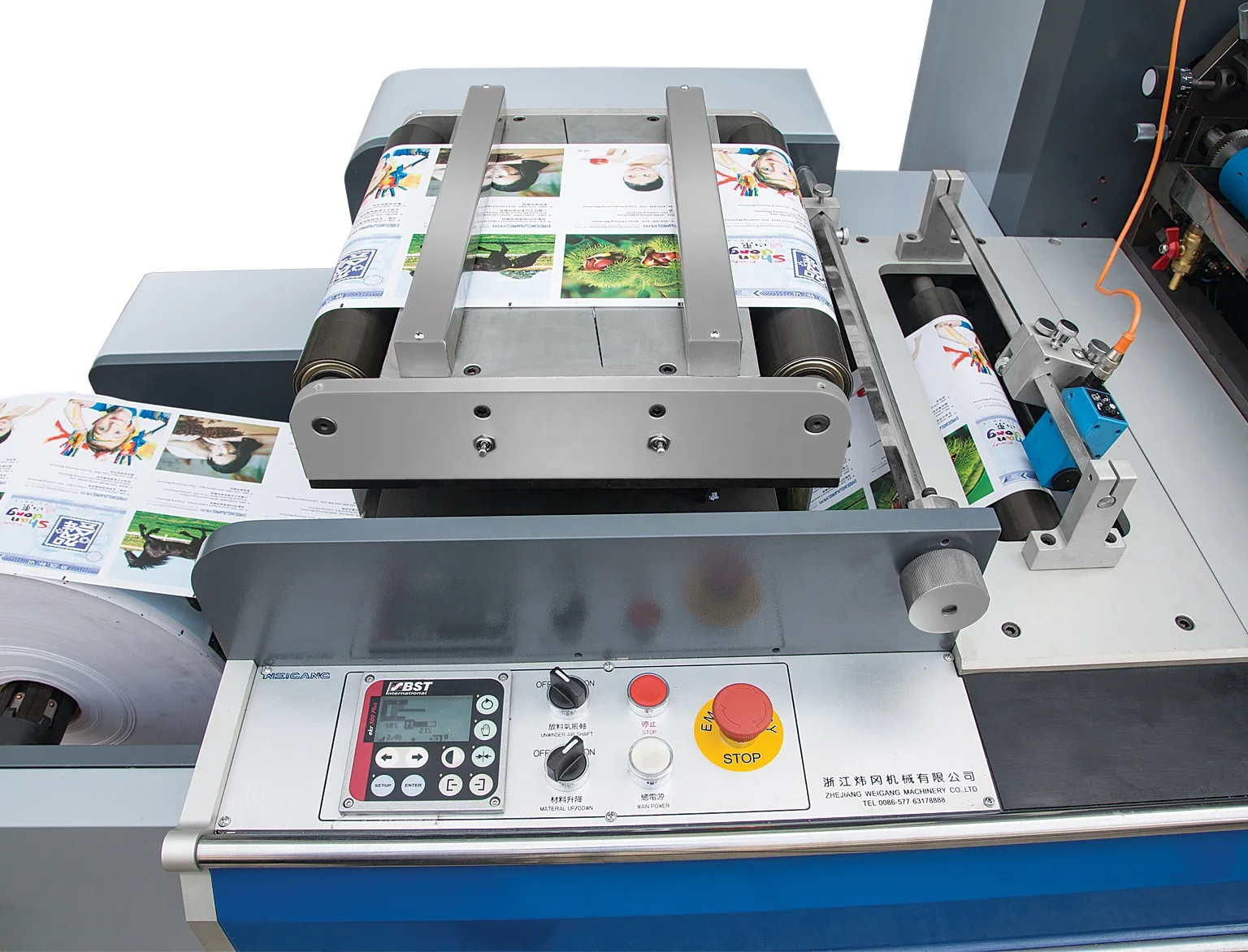

ZM-320 die-cutting machine is new developed converting machine. This machine adopts latest Rexroth-Bosch (Germany) servo and control system. Include: unwinder, web-guider, lamination, register die-cutter, slitter and rewinder. Customers could add many options on this machine as flexo UV varnishing, cold foiling, two die-cutting stations, sheeter conveyer, slitting with two rewinder etc.



The register die-cutting system is our patent product; it can be full rotary or semi-rotary die-cutter

according to the production requirement. When semi-rotary die-cutter, the tension among unwinder,

Web-guider and rewinder will be the same (different from traditional intermittent type), the material

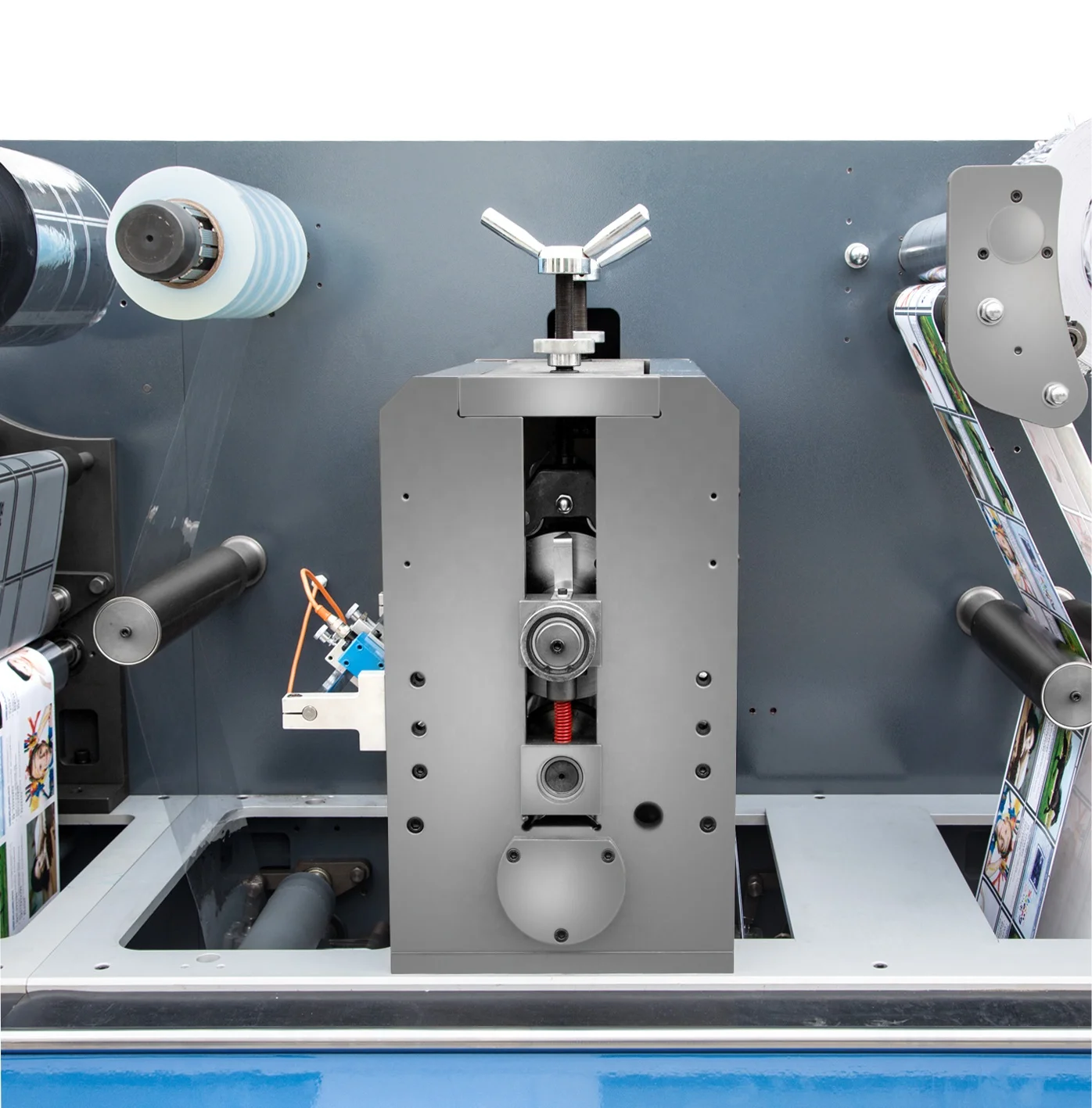

will not run away during the die-cut. Semi-rotary die-cutting unit adopts one big magnetic cylinder,

if you have different applications, the only job is to change the flexible die.



It has the characteristic of fast speed, super accurate, easy operation, high efficiency

and less cost. It’s good for all kind of label die-cutting jobs, include short run to long run.

If the job is large quantity, then you can change the magnetic roller accordingly, it will highly

increase the die-cutting quality and output.

 Technical Parameters:

Max die-cutting speed (rotary)	120m/min
Max die-cutting speed (semi-rotary)	65m/min
Max die-cutting length (rotary)	190.5-539.75mm
Max die-cutting length (semi-rotary)	100-350mm
Max die-cutting width	300mm
Max web width	320mm
Max unwinder dia	700mm
Max rewinder dia	600mm
Die-cutting accuracy:	±0.1mm
Slitting width	≥20mm
Power supply	4100w
Main machine dimension:	380V 3P
Over dimension:	3220X1680X1660mm
Machine weight:	About2600kg











1. Q: Are you factory or trading company?
    A: We are a factory in this field nearly 20 years (Formally named Ruian Donghai Printing

        Machinery Co.,Ltd.).



2. Q:How does your factory do regarding quality control?

    A:Quality is priority. We always attach great importance to quality controlling

       from the beginning.

3. Q: why choose Weigang Machinery?

    A: We are one of leader in this field(in China). Our quality products and service have enabled            us to expand our market from china to more than 60 countries.



Welcome to visit us and contact us freely.
