Copper Flat Wire Continuous Extrusion Machine

Product Overview

Description

Continuous Extrusion Machine For Copper Flat Wire



Main characteristics:

It is metal continuous extrusion technology to make copper flat wire and copper bus bar. The feeding copper rod should be clean without any oil or grease. With single size rod feeding, the machine could produce wide range of wires or bus bars by using related dies.
The copper flat wire after this process is soft that do not need annealing and could be used for the production of enameling wire, paper insulation wire or film& fiberglass insulation wire.
Different sizes of bus bar could be made with the machine easily and with long length. The bus bar could be in coil or cut to length on line.
The machine is easily operated without any heavy work or pollution.



Main Technical Data:



1. Continuous Extrusion For Flat Wire

Model	TLJ250	TLJ300
Feeding rod dia. (mm)	8	12.5 or14.4 copper/ 9.5 aluminum
Max. width of product (mm)	14	40 or 50 copper/ 30 aluminum
Max. cross section area (sqmm)	60	200
Main motor (KW)	45	90/110



2. Continuous Extrusion For Bus Bar

Model	TLJ350	TLJ400	TLJ500	TLJ630
Feeding rod dia. (mm)	16	20	25	30
Max. width of product (mm)	80	170	240	320
Max. cross section area (sqmm)	600	2000	3800	6400
Productivity (kg/hour)	860	1300	2000	2800

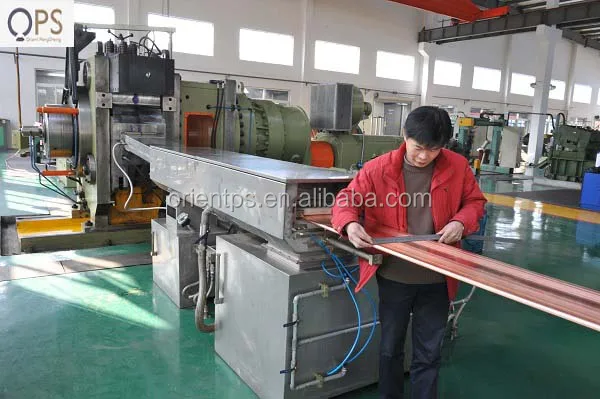

Main Pictures of Continuous Extrusion Machine For Copper Flat Wire:





  Copper Flat Wire Continuous Extrusion Machine
