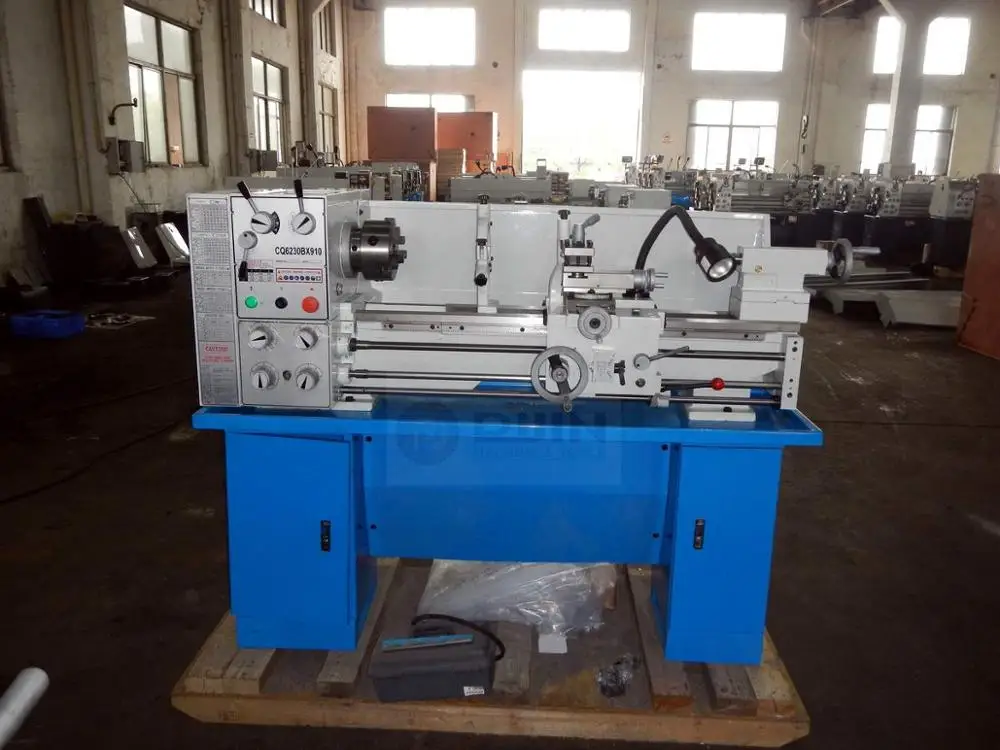

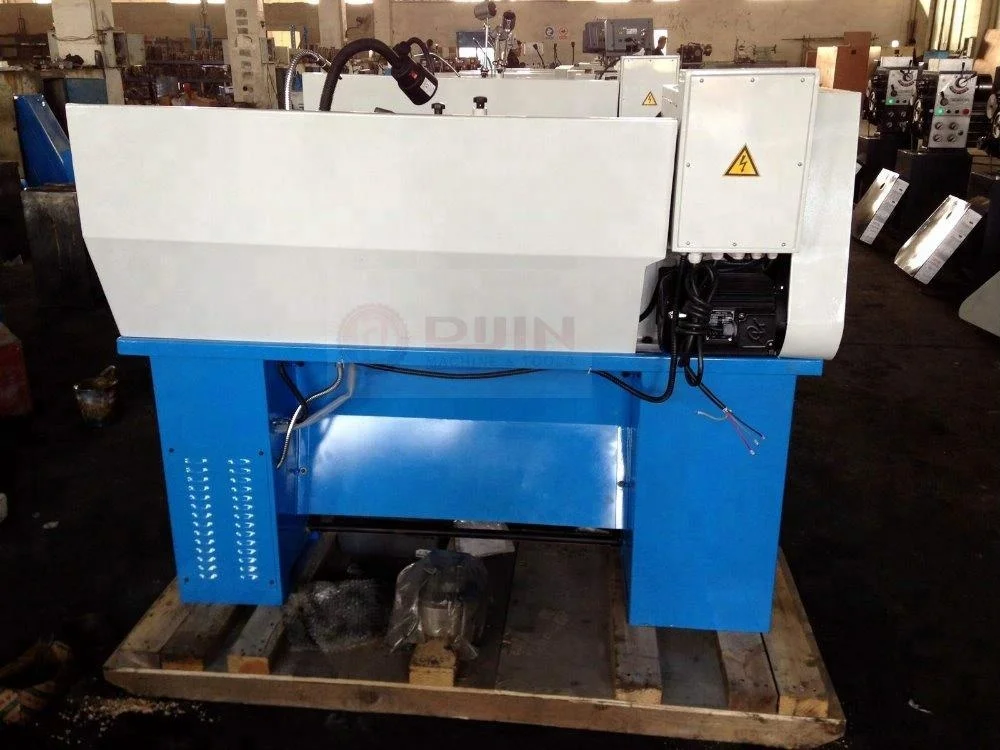

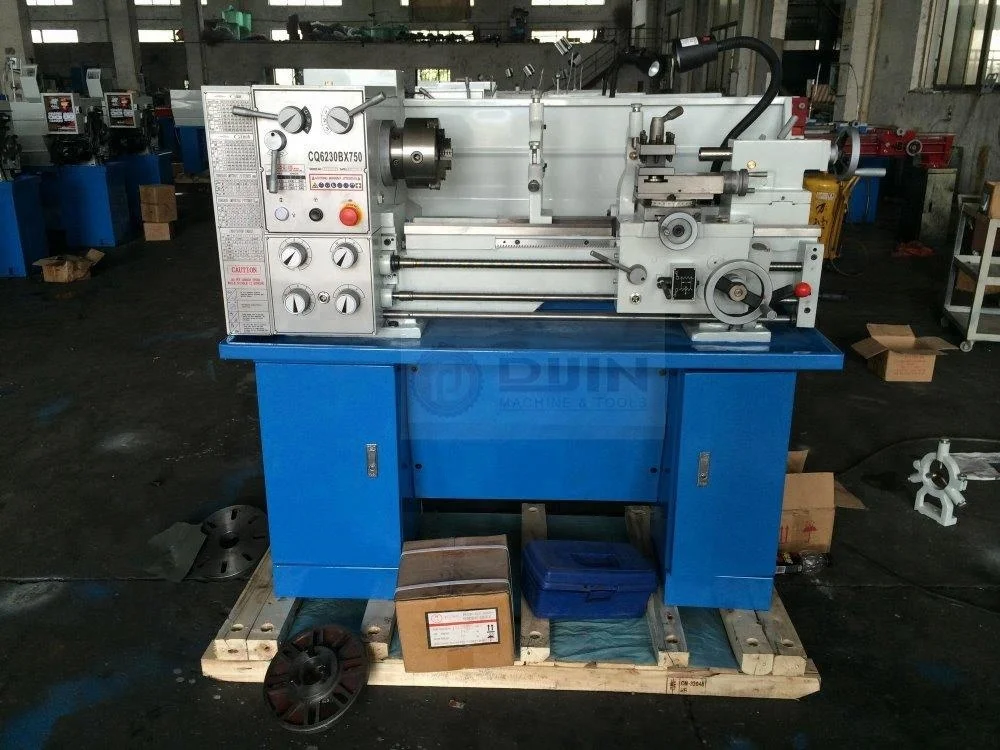

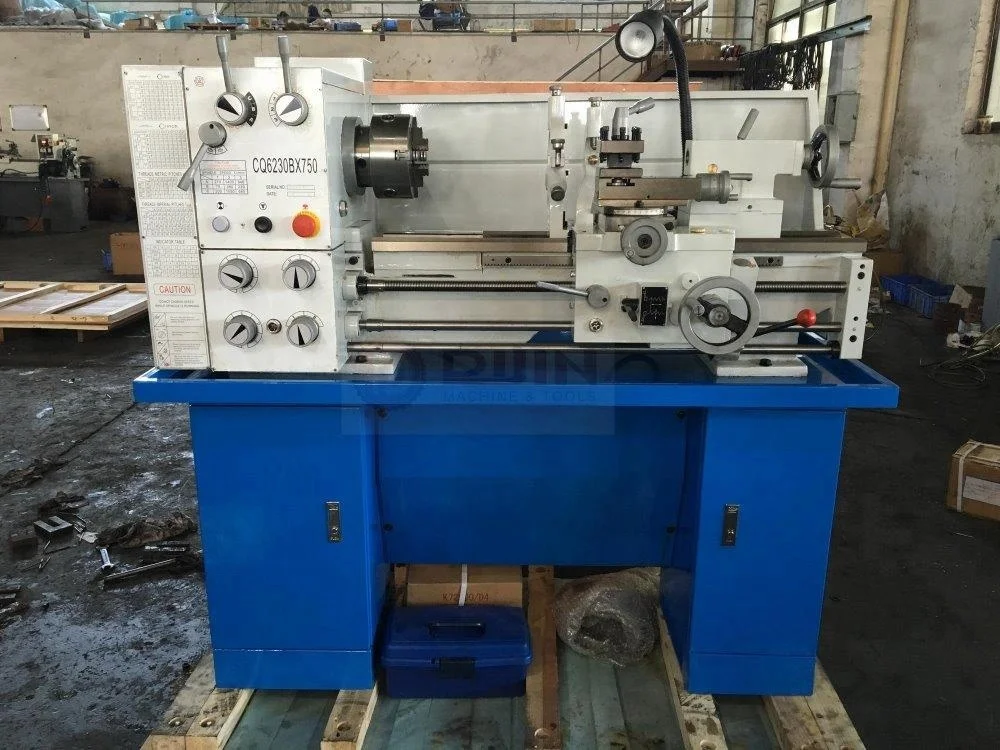

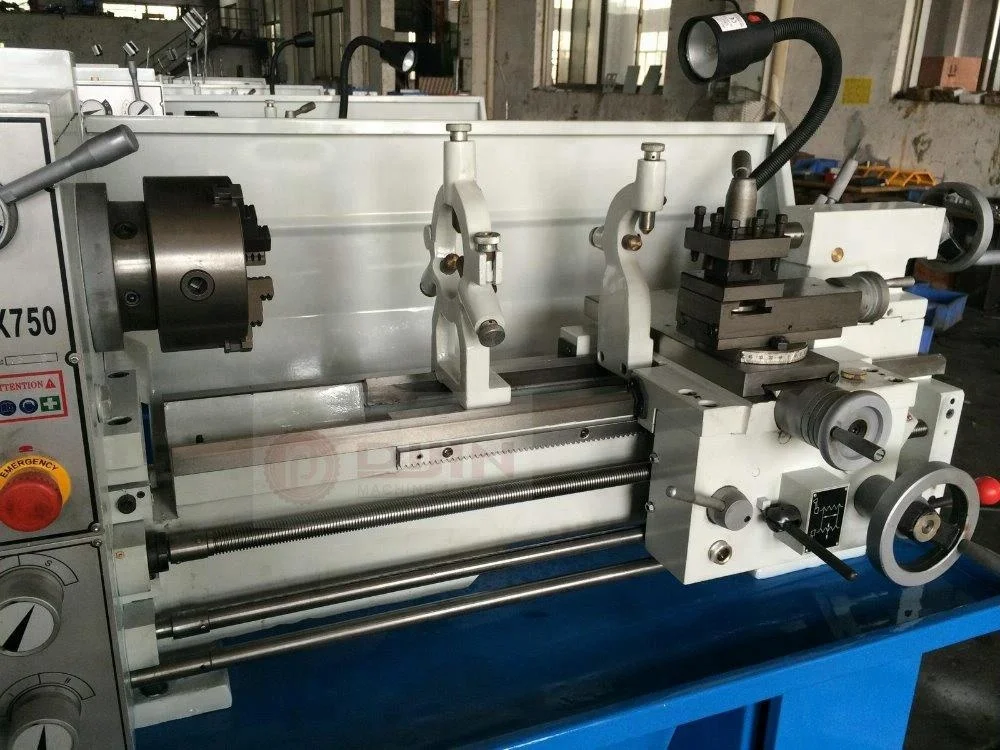

Mini bench metal lathe CQ6230A Conventional Working Metal Bench Engine Lathe Machine made in China
- Category: >>>
- Supplier: Shenzhen Dijin Machine Equipment Co. Ltd.
Share on (1940896483):
Product Overview
Description
Universal lathe gap bed lathe CQ6230A
Feature:
1.Precision ground and supersonic frequency hardened bed ways.
2.The spindle is supported with precision roller bearing.
3.Headstock gears are made of high quality steel, ground and hardened.
4.Removable gap is provided for larger diameter work.

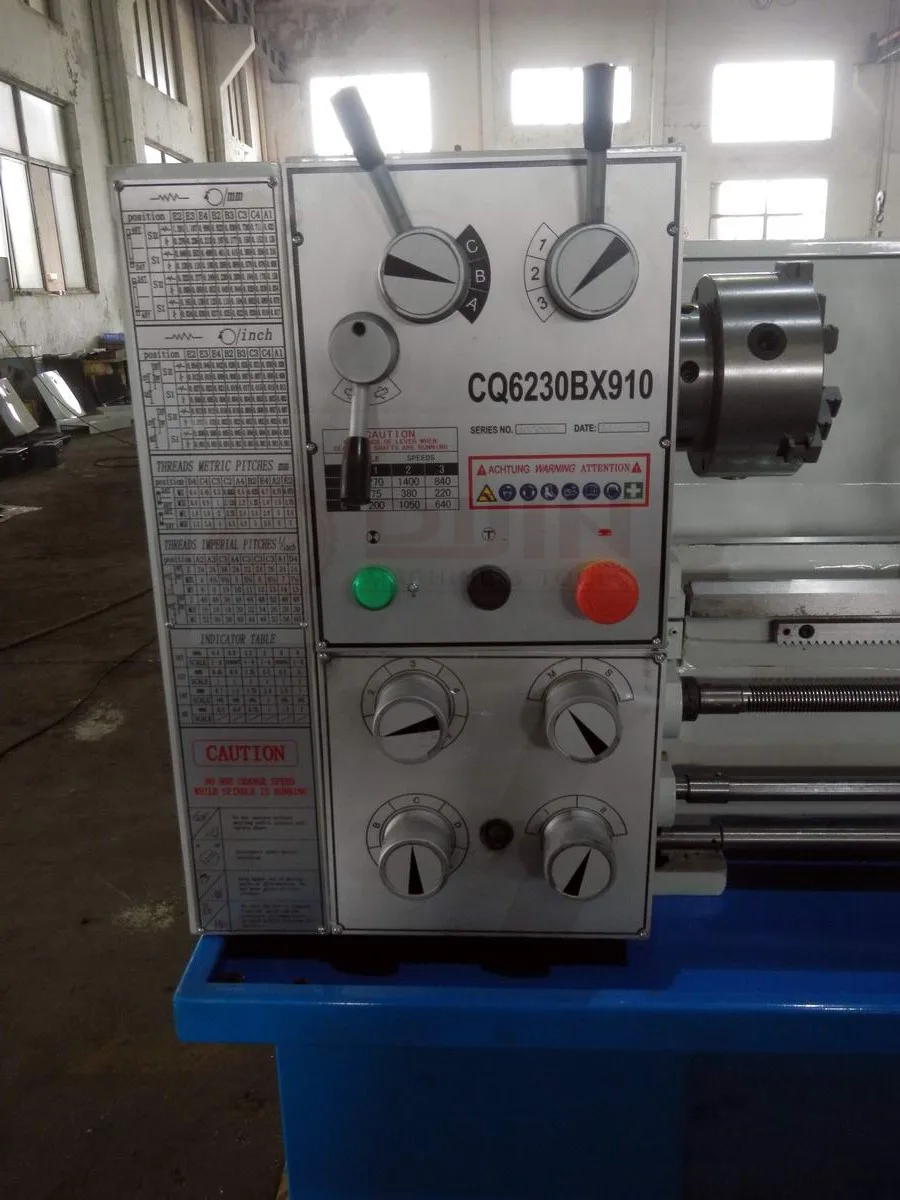

5.Gear box is designed with four independent easy operating drums, and has various feeds and
thread cutting function.
Specification :
Description | CQ6230AX750/910/1000 |
Max.swing over bed | Dia 300mm |
Max.swing over gap | Dia 430mm |
Max.turning dia.over cross slide | Dia 180mm |
Max.length to be turned | 750/910/1000mm |
Speed range | 65~1400rpm |
Spindle bore dia | 38mm |
Taper of spindle bore | MT No.5 |
Longitudinal feeds | 0.079~1.291mm/rev |
Cross feeds | 0.017~0.276mm/rev |
Metric threads | 0.4--7mm |
inch threads | 4--60TPI |
Cross slide travel | 150mm |
Top slide travel | 76mm |
Swiveling angle of turret | ± 45 ° |
Distance from the tool bearing surface to centerline | 14mm |
Movement of tailstock quill | 100mm |
Taper of tailstock quill bore | MT No.3 |
Power of main drive motor | 1.5KW |
Packing size(1 package) | 148/168/194*75*140cm |
Gross weight(kg) | 550/590/670kgs |
