Uphill Tablet De-duster Machine SZS
———Descriptions———

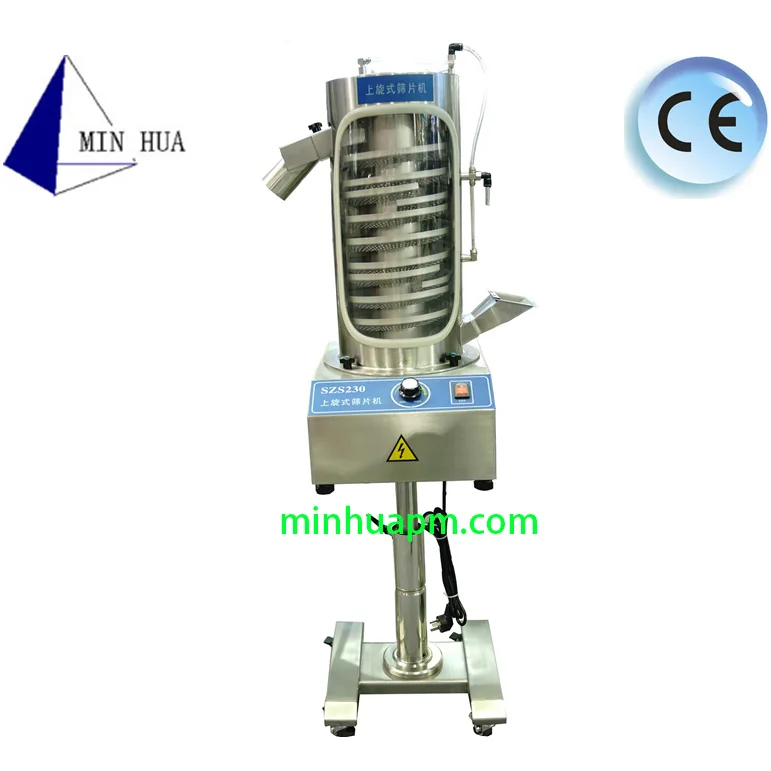

The SZS230 model machine is an economical top rotation type tablet sieving machine. It has three functions such as tablet grinding, dust removing and lifting. The machine inlet can be connected with any model of tablet press and the outlet can be connected with metal detectors. It can realize the linked production mode including tablet grinding, dust removing, lifting and metal foreign matters detection

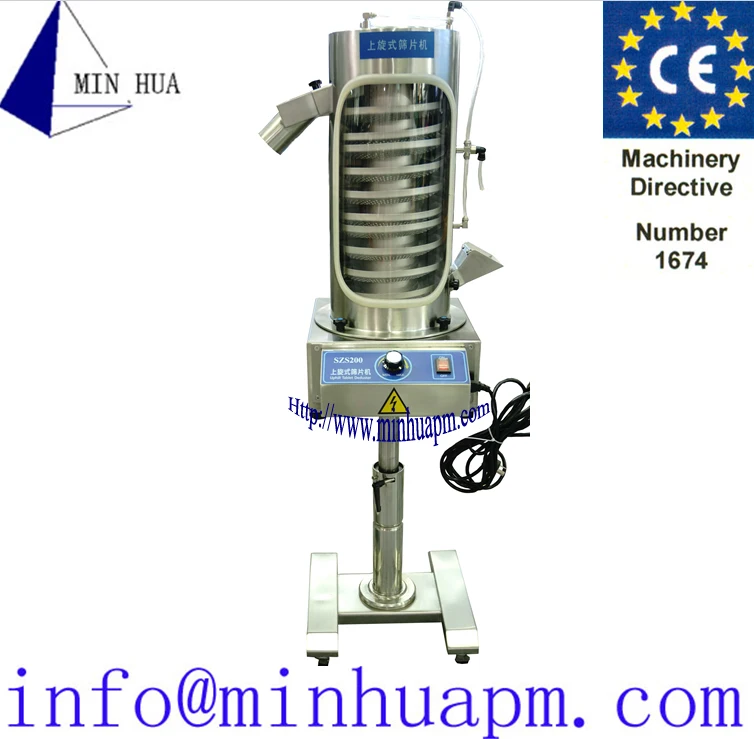

The SZS200F model tablet sieving machine is a brand new machine researched and developed successfully by our company according to China's actual conditions after absorbing and digesting internationally advanced technology. The machine has three functions such as tablet dust removing, lifting and sieving. The machine inlet can be connected with any model of tablet press and the outlet can be connected with metal detectors. After connected with the vacuum cleaner, the tablet sieving machine can realize the linked production mode including tablet dust removing, tablet sieving and metal detection. As an indispensable piece of production equipment, the machine is widely applied for solid preparation production in the pharmaceutical industry. It is also widely used in such industries as chemical industry, food, etc.
Principle:
The machine is composed of chassis, lifting system, vibrating system, sieving system and speed control system. When it works,turn on the power supply to adjust the rotation speed. The tablet sieving cylinder will rotate. The tablets will enter the machine from the equipment in the previous procedure. After tablet sieving, the tablets will flow to the hopper through the discharge outlet.
Feature:
1. Long tablet dust removing path, automatic tablet face turning and grinding, and high tablet sieving efficiency
2. It adopts a quick installed connection structure, making it more convenient to disassemble, install and clean the machine.
3. It adopts modular design and the outlet height is easy to adjust.The feeding inlet and discharge outlet can be subject to 360° adjustment.
4. The production speed adopts stepless adjustment. With stable production efficiency, it is suitable for batch production of tablets of different diameters.
5. The tablet sieving plate is dismountable. Without any dead corner for cleaning, it meets GMP requirements.
———Technical Parameters———
Model | SZS-230 |
Max. Output | 800,000 tablets per hr. |
Rated Power | 110V, 60Hz, 1Ph, 150W (0.2HP) or 220V/50Hz |
Dedusting Distance | 6.0 m (20.3 ft) |
Maximum Tablet Diameter | ø3mm-ø25mm |
Compressed Air | 0.1 m3/min (35CFM)- 0.1MPa (15 psi) |
Max lifting height | 1220mm |
Vacuum | 2.7 m3/min (880CFM) - 0.1MPa (15 psi) |
Noise Level | <75 db |
Dimension(L*W*H) | 500mm x 550mm x 1350mm ~1500mm |
Weight | 70Kg (155 lbs) |
Model | SZS-200F |
Max. Output | 800,000 tablets per hr. (based onφ8mm tablets) |
Rated Power | 110V, 60Hz, 1Ph, 150W (0.2HP) or 220V/50Hz |
Dedusting Distance | 7.5m (24.6 ft) |
Maximum Tablet Diameter | φ3mm--φ25mm |
Compressed Air | 0.1 m3/min (35CFM)- 0.1MPa (15 psi) |
Vacuum | 2.7 m3/min (880CFM) - 0.1MPa (15 psi) |
Noise Level | <75 db |
Dimension(L*W*H) | 550mm * 550mm * 1500mm |
Weight | 80Kg (176 lbs) |

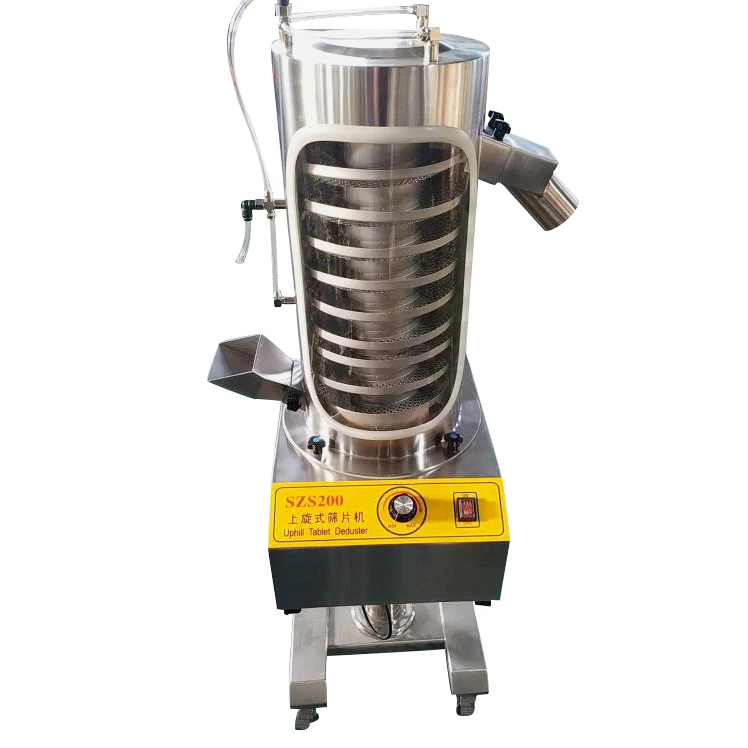

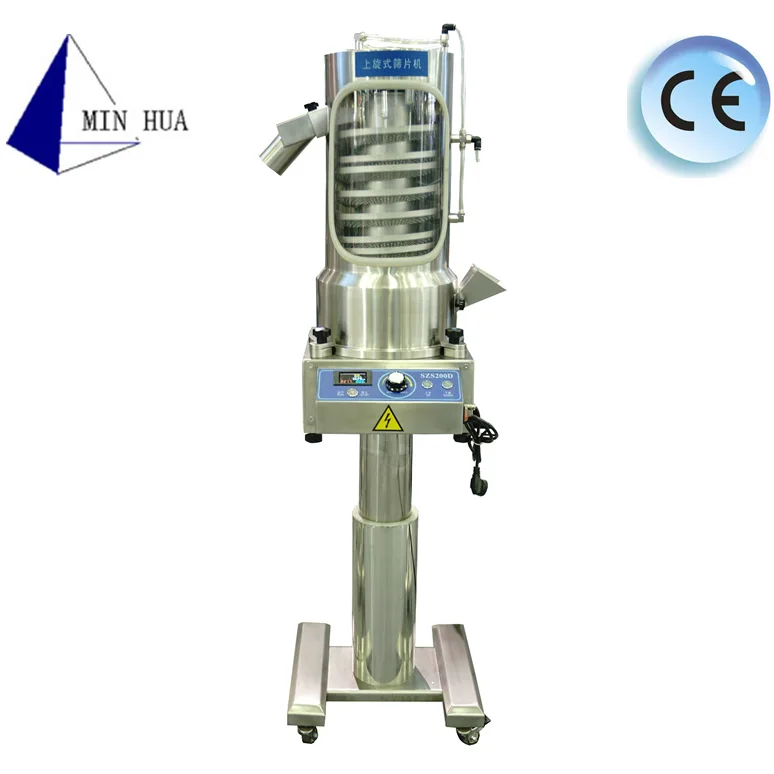

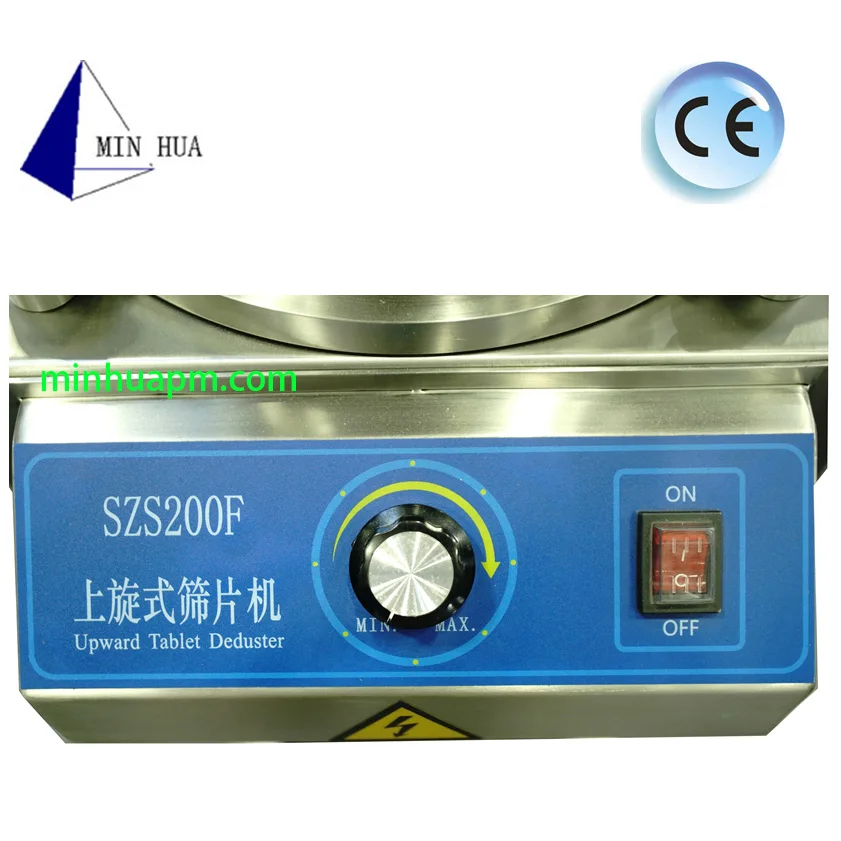

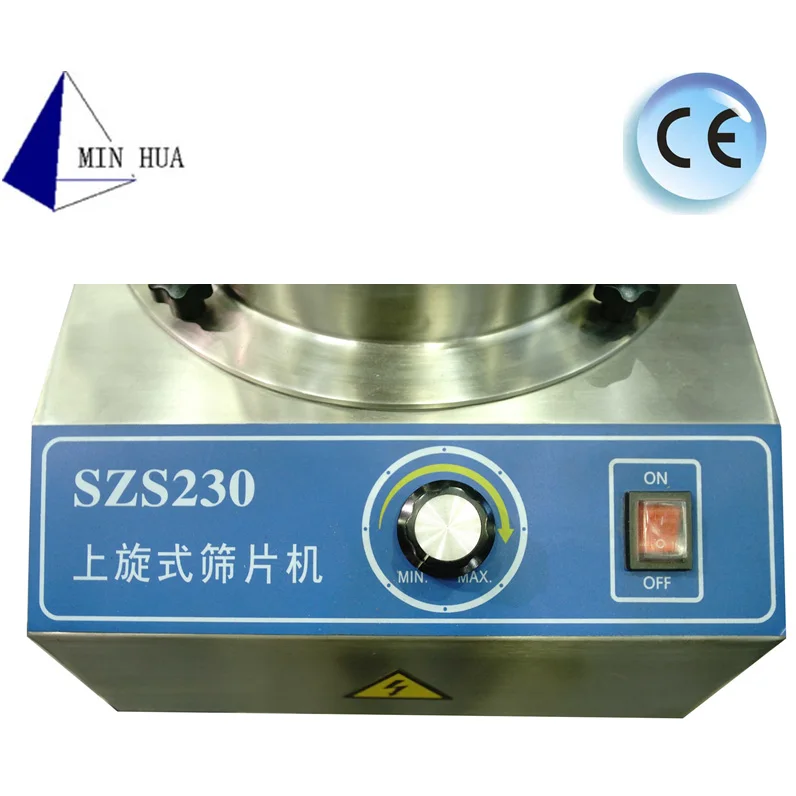

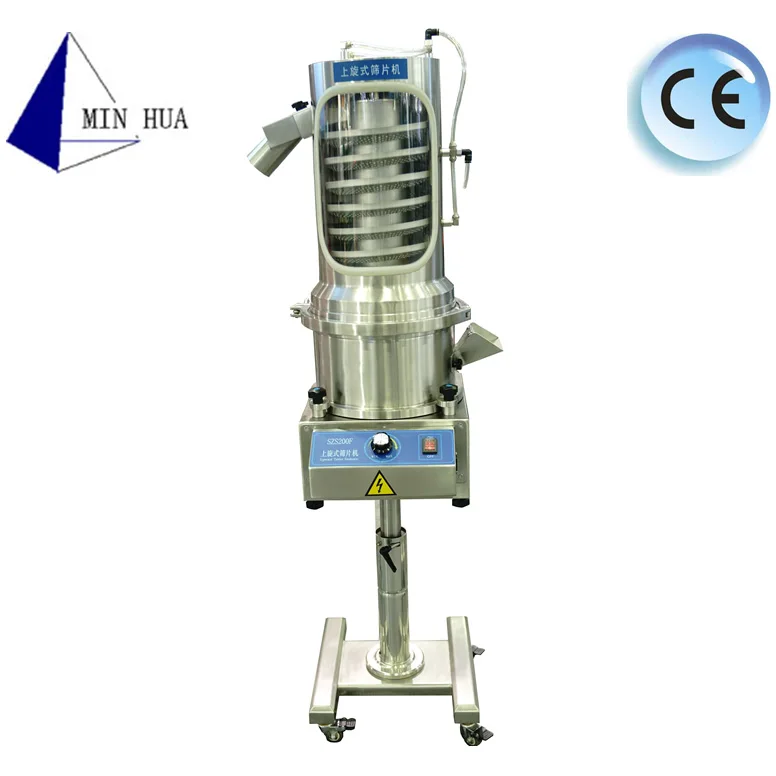

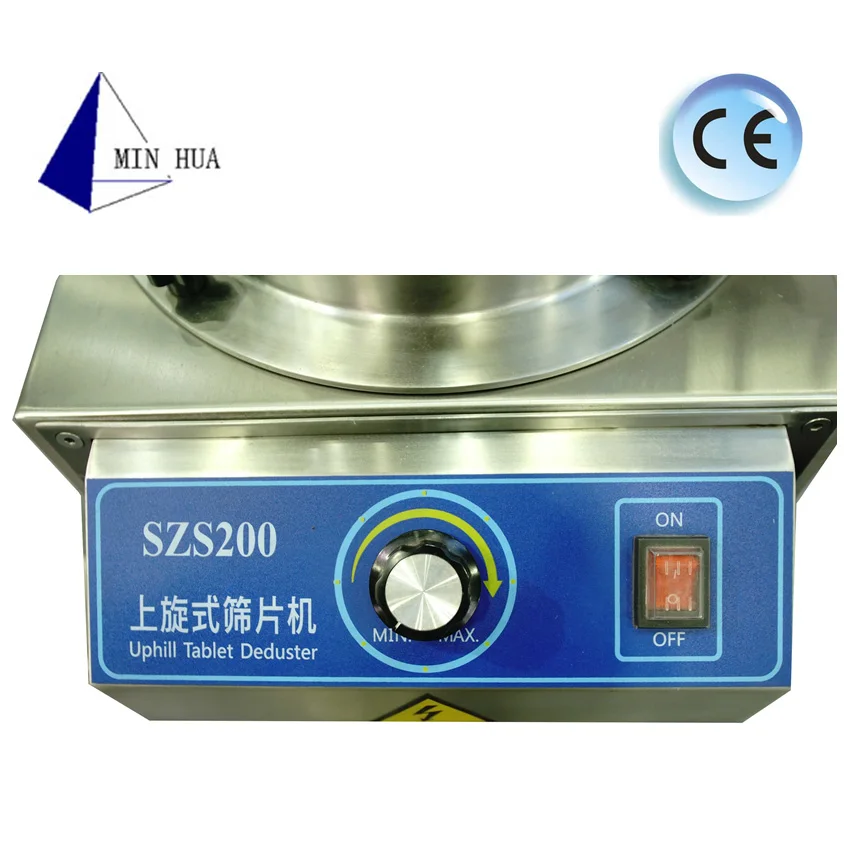

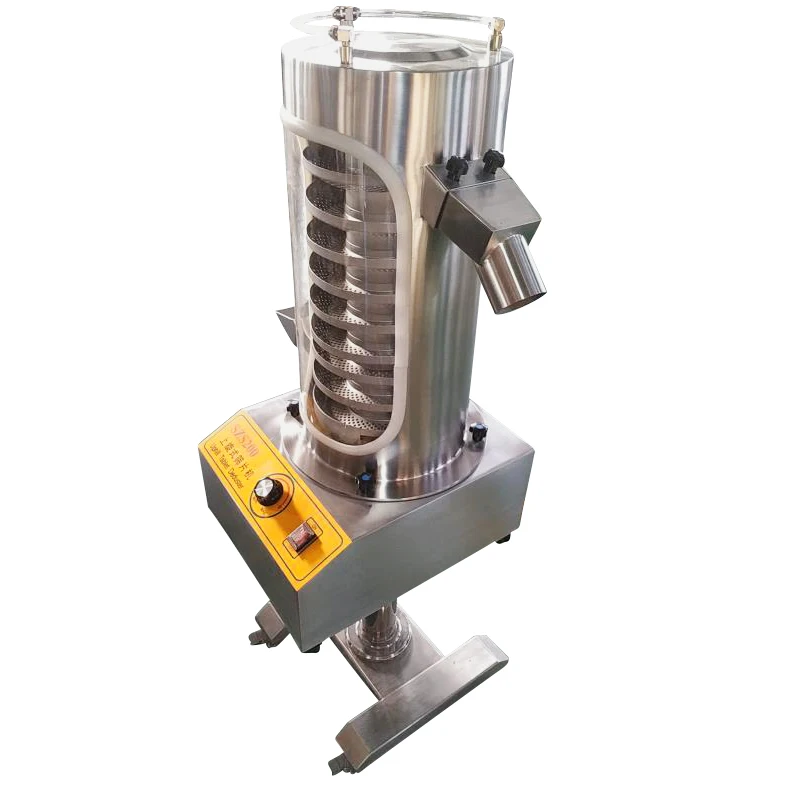

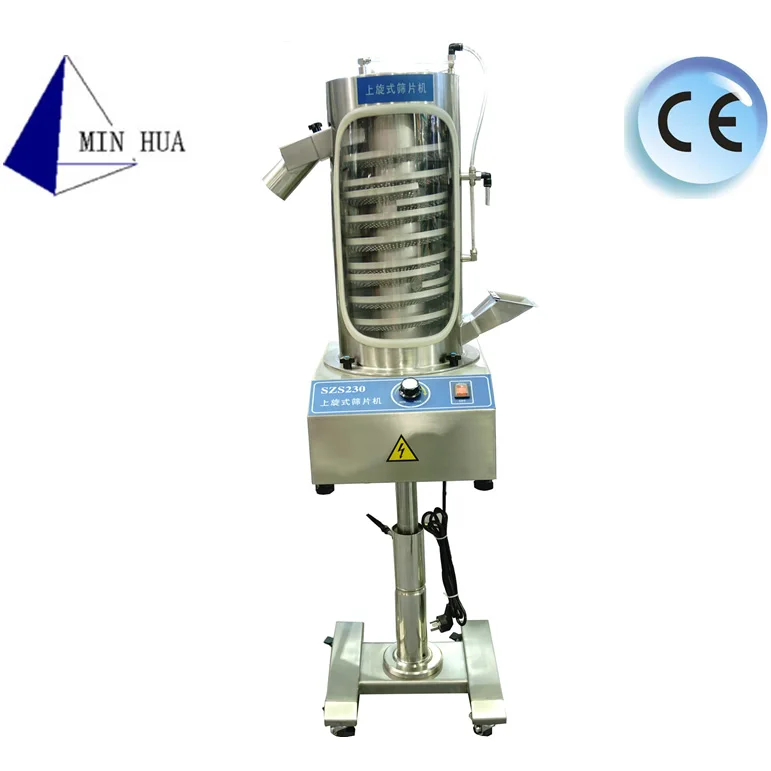

———Product image———
Features
——Features——
This machine has such futures as long tablet dust removing path .Automatic tablet face turning and grinding and good dust removing effect .The parts in the machine that connect the medicine are made of
SUS304/316L meeting GMP inquiry standard .the screen and outer cover of the machine adopt a building block type design .the outlet high is easy to adjust .The machine adopts a quick installed connect structure .make it more convenient to disassemble and install the machine ..There is no dead corner for cleaning . The machine inlet and outlet can be adjust to 360° adjustment to facilitate production and save space .with outstanding production efficiency , it can meet the need for large batch production of various shape tablets of φ3-25mm ,It adopt to a new type driving device design to ensure that the machine runs more stably with low noise .
