1. Engineering Data for Selfbonding Magnet Wire
Test Certificate for Enamelled Wire
Product Name:P155 Self-bonding hot melting wire
Product Type:2LOCKCS0.10(N)
Bare Copper Diameter Nom.Φ: 0.10mm
Enamel Type:mod.Polyurethane/P155
Thermal class :F(155°C)
Item
Tolerance
Test Values
Unit
Min
Max
Min
x
Max
Bare Dia.
mm
0.098
0.102
0.099
0.1
0.101
Thickness of Insulation
mm
0.005
0.012
0.006
0.007
0.007
Overall diameter
mm
0.117
0.123
0.119
0.12
0.121
Surface apperance
ok
ok
Elongation
%
19
23
24.5
26
Tens. Strength
N/mm²
25
59
62
65
1% yield
N/mm²
20
53
57
60
Adh.& flex.
OK
OK
Spooling
OK
OK
D.C. Resistance(20°C)
Ω/m
2.111
2.241
2.14
2.2
2.25
BDV cyl.
V
1300
1600
1725
1850
BDV cyl. V/μm
V/μm
200
270
280
300
Pinholes 3%,12V
Faults/6m
0
8
0
0
0

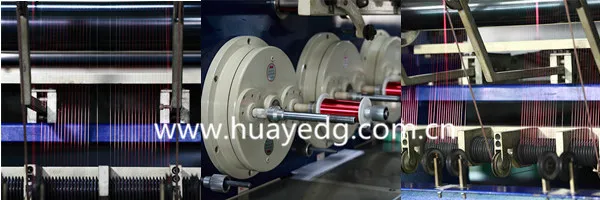

self bonding enameled copper wire Production flow:

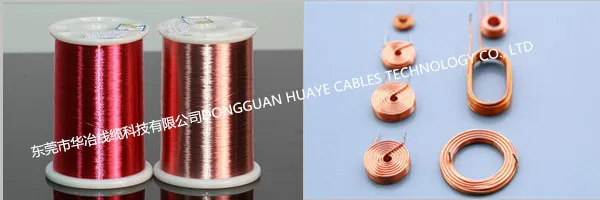

2. self bonding wire Application:
The products widely apply to motor coils such as electric motors, servo motors, submersible pump motors,
draining pump motors, brushless motors.
3. enameled copper wire Properties:
Imported high quality copper and environmental protection enamel are adopted in the series of the products to improve tensile strength and uniformity of the film.
Stable impedance, uniform diameter, good electrical performance are always kept and resistance
to high-temperature, wear and corrosion have further promoted in order to guarantee the wonderful
effect of bonding and range, bright and clean surface.
It fits the harsh environment of special motors and meets the requirements of the times for it has
replaced the varnishing process and improved its environmental protection level.

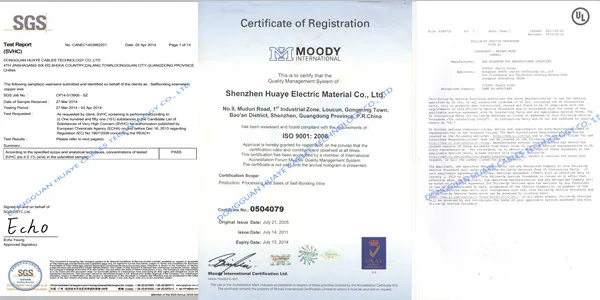

4.certificate:
Packaging & Shipping
Packing: Inner packing: Plastic Spool of PT-15,PT-10.PT-4,PL-2,PC-1 according to wire size
Outer packing: Carton box and styrofoam or as customer required
Shipping: Sample time: Nearby 3-5days, distance 5-7days. Production time: 7-30days
FAQ
1.What's diameters available of the products?
We specialize in fine and ultra fine enamelled copper wire,diameters available of our products is Φ0.018-0.50mm.
2.What's self-bonding enamelled copper wire?
Self-bonding Magnet Wire is a special type of Magnet wire with an additional adhesive enamel overcoat such as thermoplastic resin. The material of insulations is thermoset polyurethane, polyester, etc.
