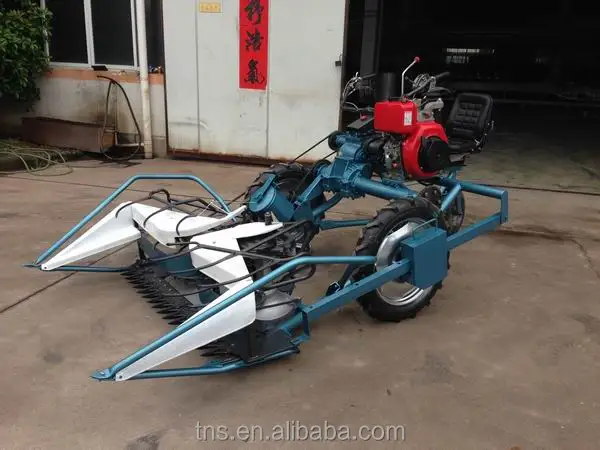

TNS paddy reaper and binder BCS type
- Category: >>>
- Supplier: Zhejiang Ting Neng Sheng Machine Co. Ltd.
Share on (1941241271):
Product Overview
Description
| MODEL | TNS-140 Binder | |||||||||
| Overall dimensions:(L×W×H) | 3600*1850*1200mm | |||||||||
| Cutting width | 140cm | |||||||||
| Weight | 200kg | |||||||||
| Working capacity | 1acre/hr | |||||||||
| Engine type | Single-cylinder,vertical,4-storke,air-cooled,direct-injectiondiesel. | |||||||||
| Displacement | 456cc | |||||||||
| Continuous output:hp(kw) | 10.5(7.7) | |||||||||
| Max. output:hp(kw) | 12(8.8) | |||||||||
| Fule consumption(g/kw.h) | 280 | |||||||||
| Horse Power | 10.2(8.8kw) | |||||||||
| Compression ratio | 22:1 | |||||||||
| Starting system | Recoil or Recoil/Electric | |||||||||
| Fuel tank capacity (L) | 5.5 | |||||||||
| Lub.Oil capacity(L) | 1.65 | |||||||||
| Continuous working time(h) | 2.5 | |||||||||
| Cooling system | Forced air | |||||||||
| N.W | 200KG | |||||||||
| Trade Terms: | ||||||||||
| Terms of payment: | T/T in advance (30% deposit,balance against bill of lading) or L/C at sight. | |||||||||
| Delivery time: | within 25 days after your deposit received | |||||||||
| Warranty: | 1 years for the main parts such as engine, frame, wheel, etc. | |||||||||
| Spare Parts | available | |||||||||
| samples | available | |||||||||
| Mini.Order: | one 20' container(13pcs). | |||||||||
