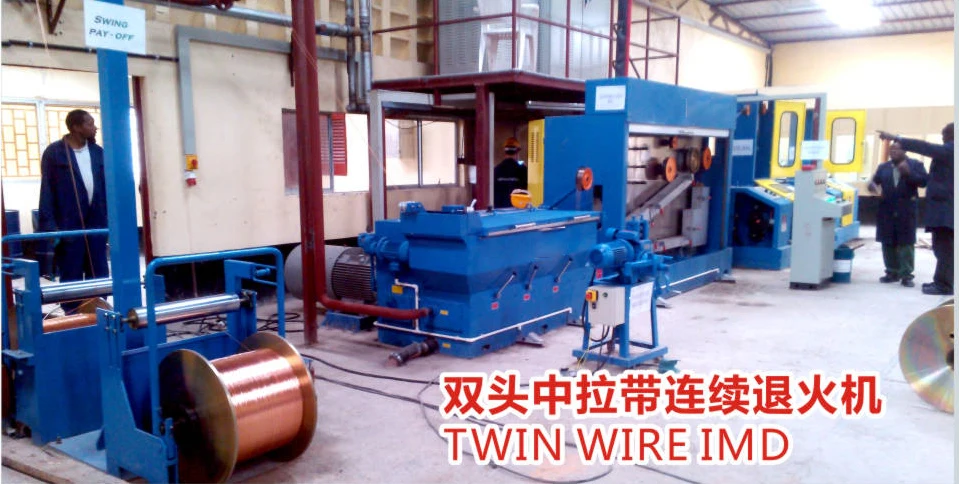

Intermediate Drawing Machine for copper and aluminum wire

Product Overview

Description

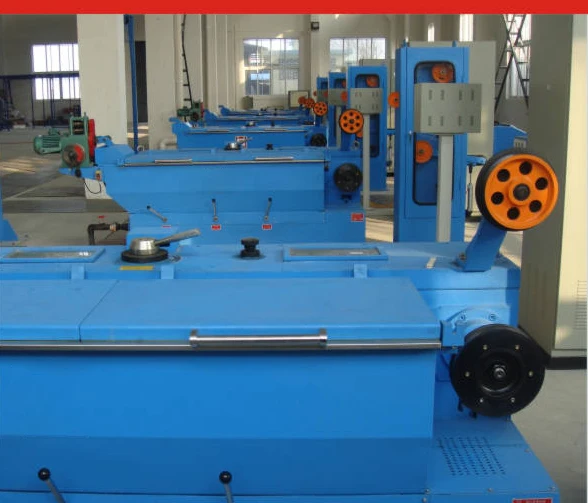

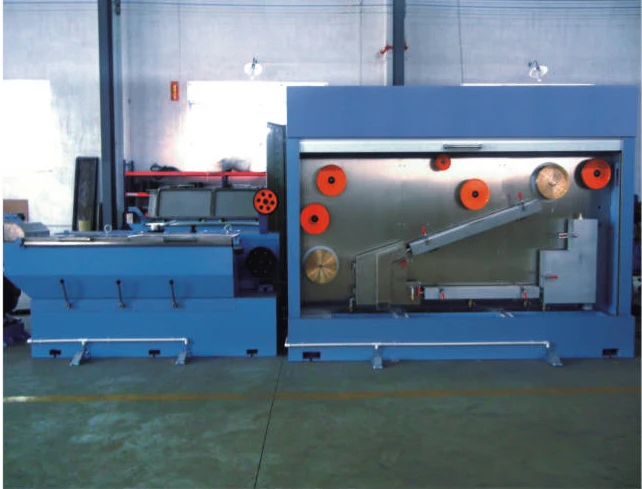

Intermediate Drawing Machine











Design:

• cone pulley type design

• force cooling/ lubrication to cycle gear oil of transmission

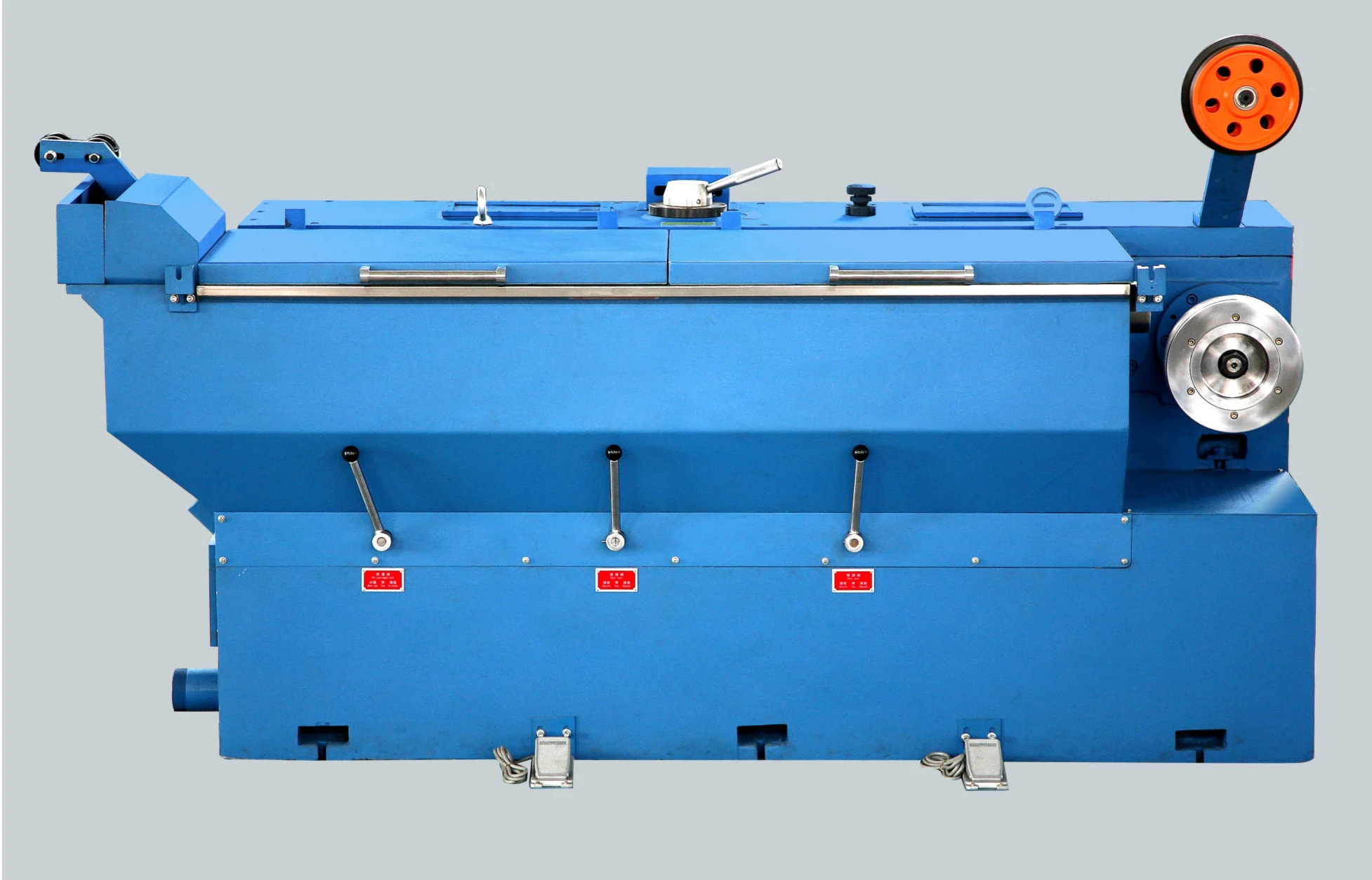

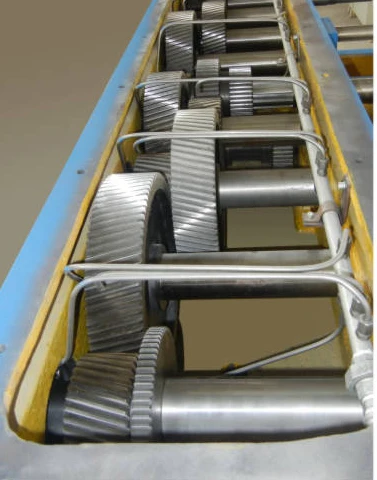

• helical precision gear made by 20CrMoTi material.

• fully submerged cooling/emulsion system for long service life

• mechanical seal design to safeguard separation of drawing emulsion and gear oil.





Productivity:

• touchscreen display and control, high automatic operation

• single or double wire path design to meet different production requirements



Efficiency:

• meets different finished product diameters

•force cooling/ lubrication system and sufficient protection technology for transmission to safeguard machine with long service life





Main technical data:

Type	ZL250-17	ZL250B-17	DZL250-17	DZL250B-17
Material	Cu	Al/Al-Alloys	Cu	Al/Al-Alloys
Max inlet Ø [mm]	3.5	4.2	3.0	4.2
Outlet Ø range [mm]	0.32-2.76	0.4-2.76	0.4-2.0	0.4-2.0
No. of wires	1	1	2	2
No. of drafts	9/17	9/17	9/17	9/17
Max. speed [m/sec]	30	30	30	30
Wire elongation per draft	18%-25%	13%-18%	18%-25%	13%-18%
