Product Overview

Description

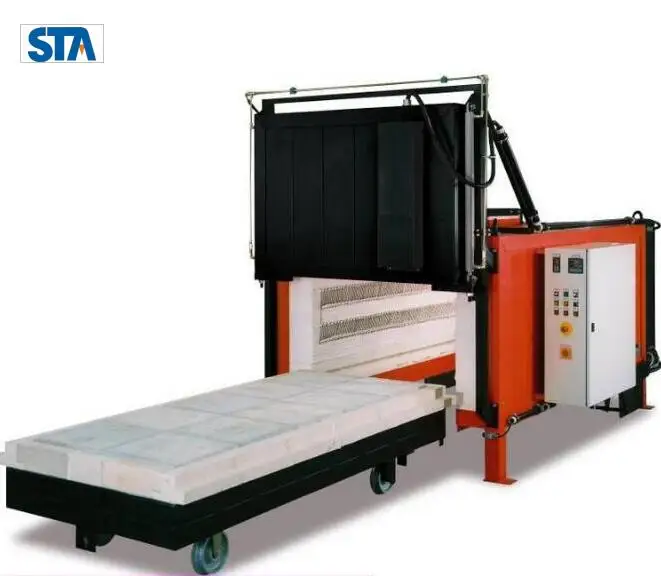

Bogie Hearth Furnace for tempering



STA Bogie hearth furnace offer a whole series of advantages in firing, sintering and tempering in production. The bogie can be loaded outside the furnace. If multiple bogies are used, one bogie can be loaded while the other is in use in the furnace. Useful accessories like multi-zone control to optimize the temperature uniformity, controlled cooling systems to shorten process times to the fully automatic system with motorized bogies and bogie exchange provide for the perfect adaptation of these furnaces to production process. A combi furnace version with debinding package for debinding and sintering in a single process is also possible.



Temperature 900 C, 1000 C, 1200 C, 1400 C, 1600 C, 1700 C, and 1800 deg C.



Dual shell housing with rear ventilation, provides for low shell temperatures

Swing door hinged on the right side

Heating from five sides (four sides and bogie) provides for an optimum temperature uniformity

Bogie heating receives power via blade contacts when driven in

Heating elements mounted on support tubes provide for free radiation and long service life

Bottom heating protected by SiC tiles on the bogie providing level stacking surface

Multi-layer insulation consisting of lightweight refractory bricks backed by microporus silica insulation

Bogie transfer system with parking rails to exchange bogies running on rails or to connect multiples furnaces

Motor-driven bogies and cross-traversal system



STA High-temperature bogie hearth furnace are supplied in customised configurations to match the systems precisely to the desired processes.

The bogie hearth can be removed completely from the furnace for convenient loading and unloading, and is mounted on heavy-duty castors for free movement in front of the furnace

Rugged bogie-hearth design, fully insulated with high quality fiber materials, labyrinth seal between hearth and furnace housing

Reinforced bogie hearth bottom for heavy loads

Double-walled furnace housing with forced cooling, hence very low outer-wall temperatures

Furnace insulation made of high-quality alumina fiber materials with low thermal mass, rapid heating and cooling possible; exhaust openings in furnace roof

Reinforced bottom for heavy batches

Heated by high-quality MoSi2 heating elements

The furnaces are heated by the side walls. Additional heating by the rear wall is available as optional extra.

Cutting-edge switching and control system, thyristor controlled heating elements, high-precision furnace regulation, wear-free, noiseless

Additional equipment:



Lifting door

Instead of hinged doors, furnaces can also be fitted with space-saving, vertical lifting doors. Electric or hydraulic drive units are available. The hot side of the insulation faces away from the operator

Rail-bound bogie hearth

Bogie hearth with steel wheels on rails, for ease of movement even with large batch weights

Transverse shunting device

Customised transverse shunting device in front of the furnace, with parking rails beside the furnace

Additional door on the rear furnace wall

for operation with two bogies

Start-up switch

The start-up switch ensures that heat-up is slow in the lower temperature range up to 250 °C, in the case of sensitive components that may not be heated up too fast.

Fully automatic furnace regulation

Exhaust flaps

Exhaust hoods

Air preheating for debinding processes

Customised furnace furniture.
