Made in China aluminum number plate production line
- Category: >>>
- Supplier: Zhangjiagang,Auto,Well,Co.,Ltd.
Share on:
Product Overview
Description
aluminum number plate production line
Product Description
Specification of aluminum number plate production line
HACCP/FDA/SGS/CE/BV Independent research and development capacity High speed,operated easily Warranty times: 12 months
aluminum number plate production line composed of the followings:
| 1.Auto Feerer (with an auto-lubricator) |
| 2.Electrical control panel |
| 3.Air output control equipmet |
| 4.45 ton pneumatic press |

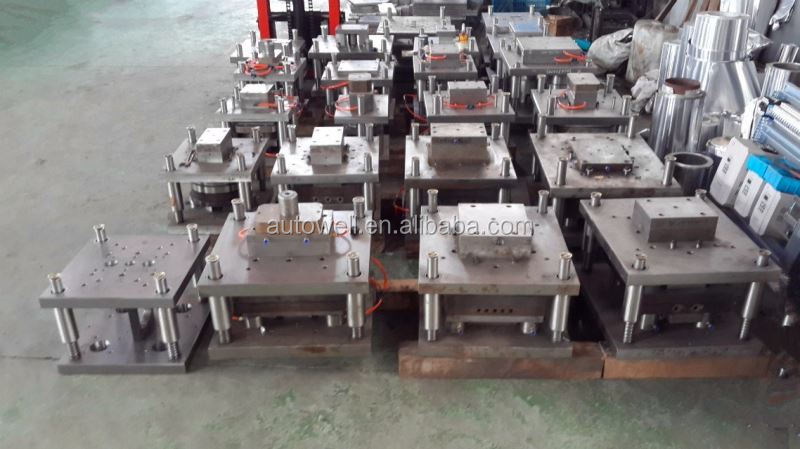

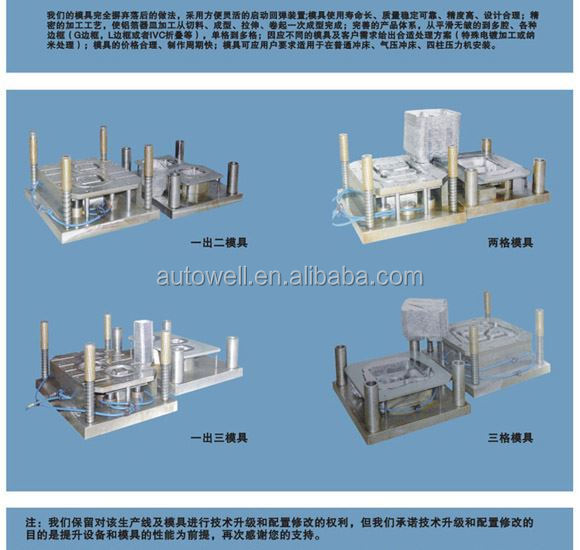

| 5.Mould |
| 6.Auto-stacker or conveyor (including scrap collector) |
| 7.Collection desk |
Description of aluminum number plate production line :
1) This machine adopts Siemens PLC as the controlling system, it is reliable. The Feeding length,producing speed and other parameter are easily set, it is integration of Gas & Electrical , centralized control , automated production.
2) Feeding , punching ,scrap collecting is running automatically.
3) The accurate press adopts steel plates joining body,variable frequency speed regulation,dry type friction clutch-on-off,rigid over-load protector to protect the press . In short, this is a high accuracy and reliability press.
4) Feeding is controlled by stepper syatem, the feeding length is accurate and can be adjusted from 20mm to 90mm.
5) Steel plate wielded machine body marked with high rigidity and less deformation
6) It adopts combined pneumatic friction clutch and barking device to ensure steady clutching, low noise level, and flexible action
7) Integrated lubrication system enables easy oil supply and smooth operation of the machine tool. The automatic lubricating system with fixed place, time and quantity is available to choose. 8) Photo-electric protection and automatic feeding device, driving output shaft and air cushion are available to choose
aluminum number plate production line --Aluminum Foil Raw Material
aluminum number plate production line --Aluminum Foil Feeding Machine
| XWSL-40 | XWSL-55 | XWSL-70 | XWSL-80 | |
| Max width of Roll | 350MM | 500MM | 650MM | 750MM |
| Max Unwind Roll Diameter | 600MM | 600MM | 600MM | 600MM |
| Feeding Speed | 0-35 | 0-35 | 0-35 | 0-35 |
| Feeding Length | 20-999 | 20-999 | 20-999 | 20-999 |
| Feeding Accuracy | ±0.3 | ±0.3 | ±0.3 | ±0.3 |
| Working Vollage | 380/220 | 380/220 | 380/220 | 380/220 |
| Total Power | 1 | 1 | 1.4 | 1.4 |
| Weight of Machine | 700 | 850 | 1000 | 1150 |
| Diemension | 2000*1150*900 | 2000*1300*900 | 2000*1450*900 | 2000*1550*900 |
aluminum number plate production line --High Accracy Press
| Model | JF21-25 | JF21-45 | JF21-63 | JF21-80 | JF21-110 |
| Nominal Pressure (KN) | 250 | 400 | 630 | 800 | 1100 |
| Slide Block Stroke(mm) | 80-160mm | 100-260mm | 120-260mm | 140-260mm | 150-260mm |
| Slide Strock Per Minutes(min) | 90-60 | 70-50 | 70-50 | 60-45 | 50-40 |
| Max Die Set Height(mm) | 250-300 | 270-400 | 310-450 | 325-450 | 345-500 |
| Die Set Height Adjustment(mm) | 50 | 60 | 70 | 80 | 90 |
| Slide Bottom Size(MM) | 330*250 | 410*340 | 480*400 | 560*460 | 630*520 |
| Stemhole Size(MM) | 60*60 | 60*60 | 60*65 | 60*75 | 60*85 |
| Bolster Surface Size(MM) | 700*320/800*480 | 810*440/990*750 | 870*520/1000*800 | 1000*600/1200*800 | 1100*680/1300*800 |
| Total Power(KW) | 3-4 | 5.5 | 5.5-7.5 | 7.5-11 | 11-15 |
| Weight | 2800-3100 | 3800-4500 | 5500-6300 | 8000-9000 | 11000-12000 |
Packaging & Shipping
aluminum number plate production line --PACKAGING
Packed with wooden box
aluminum number plate production line --SHIPPING
| Mode of transport | Advantage | Disadvantage | Advices |
| Express delivery(Door to Door) | Fast(3-6days) door to door, wide-area coverage | Volume&weight restricted | Good for small cargo |
| Sea Transport(Port to Port) | The cheapest volume unlimited | Long sailing time(15-30days),influenced by climate and port conditions | Bulk cargo,loose time |
| Air Transport(Airport to Airport) | Fast(4-5days) simple packaging | The most expensive,volume restricted | For Valuable cargo,Urgent Need |
| Railway Transport | Big volume | More expensive,tracking difficult,transit organization may cause delay | Preferred in Central Asia |
Our Services
aluminum number plate production line --Service and Warranty:
1. Warranty is 1 year since the machine is arrived in buyer’s place.
2. During the warranty time, if the wearing parts have been damaged by non-person or can not use, seller will send the spare parts to buyer for free. But buyer have to bear the transportation charge.
3. Technical support supplied by seller forever.
