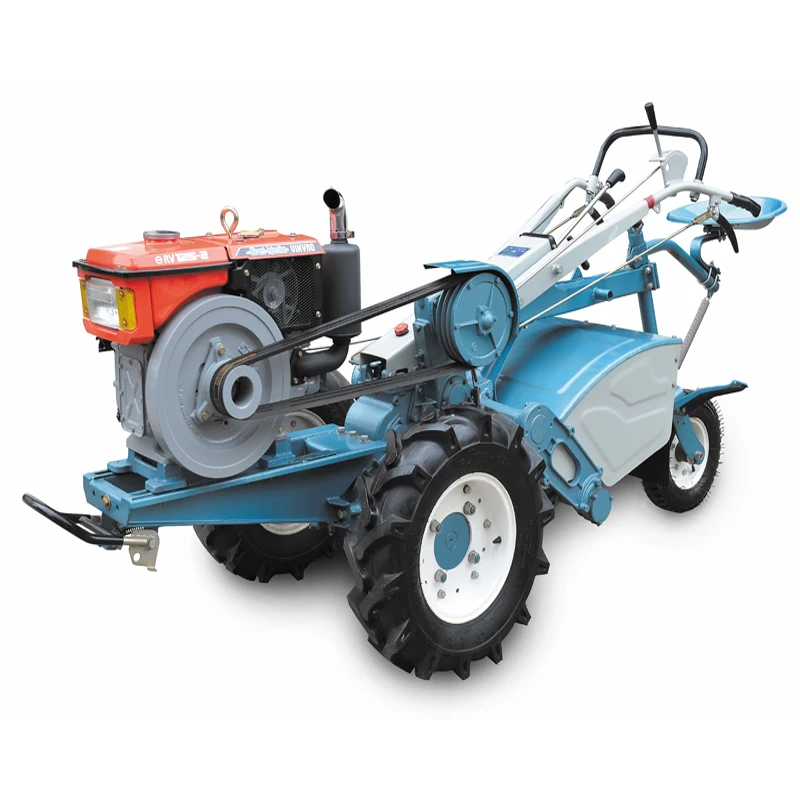

GN121 power tiller attachments

Product Overview

Description

MODEL GN-12

Overall dimensions:(L×W×H) 2950×980×1240mm

Wheel tread 570,630,690,750,810mm

Tyres 6.00-12

Ground clearance 210mm

Working weight (with rotary tiller) 480kg

Speed Forward 1.41, 2.51, 4.21, 5.22, 9.27, 15.56

(km/h) Reverse 1.12, 4.12

Turning speed Low:200, High:251

Rotary tiller Width 600mm

Number of blades 18pcs

Model S195N DIESEL ENGINE

Type Single cylinder,4-stroke,horixontal,water-cooled,diesel

Cooling mode Condenser (Radiator)

Rated power 8.82kw

Engine Rated speed 2000rpm

Fuel efficiency: ≤244.8gl/kw.hr

Net weight 150kg

Main farm implements 1)Anti-skid steel wheel;

2)Double-plough (optional)

3)Trailer(optional)

Packing Case dimensions 116×108×108cm

N.W/G.W.: 480/540KG

Conveyance: Qty/20' FCL.: 22pcs

Qty/40'(HQ) FCL.: 40pcs(packing mud wheel inside box) 48pcs[mud wheels outside box]

Trade Terms:

Terms of payment: T/T in advance (50% deposit,balance against bill of lading) or L/C at sight.

Delivery time: within 25 days after your deposit received

Warranty: 1 years for the main parts such as engine, frame, wheel, etc.

6 month for the easy damaged parts

Spare Parts available

samples available

Mini.Order: one 20' container(20pcs).



Contact: Allen Wang

Company: ZHEJIANG TING NENG SHENG MACHINE CO.,LTD.

Tel: 0086-579-87292678 FAX:0086-579-87292678

Skype: yongkangwkj

Website www.tnsmachine.cn
