Anti static polycarbonate sheet 100% material Makrolon Bayer

Product Overview

Description



Introduction:



Features:

1) Light transmission: up to 91%

2) Surface resistivity:10^{6 ~} 10⁸ Ω

3) Chemical resistant:Excellent.Surface can be cleared with alcohol.

4) Impact resistance: 80 times that of glass, 15 times that of acrylic sheet
5) Temperature resistance range: -40 ~ +120°C
6) Light weight: only 1/12 of the weight of glass of the same thickness
7) Ultraviolet resistance: with UV protective layer
8) Flame resistance: rated class UL94-V0
9) Sound and heat proof






Our company assure max 15 years quality warranty!



Specifications:

Width:	Standard 1220mm(48”),max 2100mm
Thickness:	From 0.125mm to 100mm
Length:	limitless
Color:	Clear	Green	Light-blue	Bronze	Blue	Opal
P.s. Custom made specification and color are welcomed, pls feel free to contact us whenever necessary.



Polycarbonate properties data:

Characteristics	Unit	Data
Specific Gravity	g/cm2	1.2
Light Transmission	%	91
Impact Strength	J/M	850
Flexural Strength	M/mm2	100
Tensile Strength	N/mm2	≥60
Modulus of Elasticity	Mpa	2400
Tensile Stress at Break	Mpa	>65
Elongation at Break	%	>100
Flame resistance	UL94 standard	HB
UV resistance	Micron	380
Specific Heat	Kj/Kg.K	1.17
Heat Conductivity	W/m.k	0.2
Heat Defiection Temperature	°C	137.3
Coefficlent of Thermal Expansion	mm/m.°C	0.067
Range of Temperature	°C	-40~+130
Surface resistivity	Ω	106 ~ 108



Applications:

1)  Electroplate mirror,graphic overlay,nameplate,LCD display screen,toy,helmet,luggage case,etc
2)  Electronic enclosure

7)  Dust-free workshop

8)  Machine shields/Machine guard

9)  Aerospace/Train/Auto parts

10) Electronic enclosure



Our Advantage:

1. 8 years plastic manufacturing and fabrication experience

2. Rapid delivery time.

3. Professional R & D and production teams

4. Advanced technology &equipment,to ensure highly quality product

5 .Strict quality Control System.

6. Located near Shanghai sea port, with very easy access.

7. ISO9001:2008,SGS,ROHS,UL,CNAS,BS6853:1999 certified.

8. Good reputation, establish long-term trade relationship with customers.

9. Exported to America / Canada / UK/ Germany/Middle East/etc.

10.Win-win situation



Products Show:



 Polycarbonate static dissipative film:





Ralated Products:

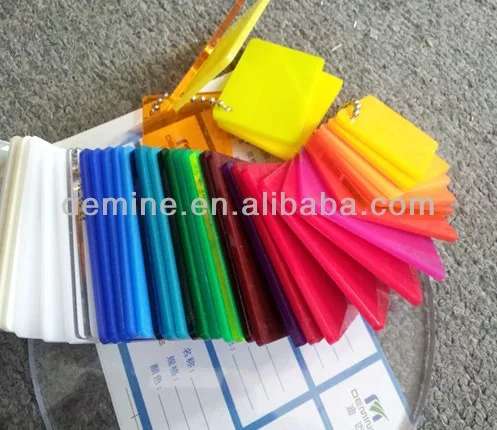

Various colors for your choice:







Application:



Membrance switches:



Name Plate:



Graphic dial:

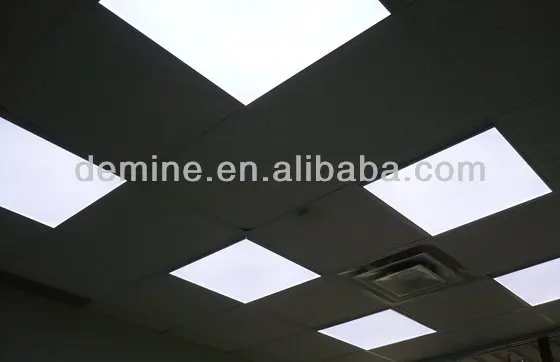

Troffer/Led light:





Our Philosophy:



Leading quality&Excellent service



Factory View:











 Our material:

100% virgin LEXAN/MAKROLON/PANLITE resin



Our Packing:

Loading & Shippment:



Certifications:
