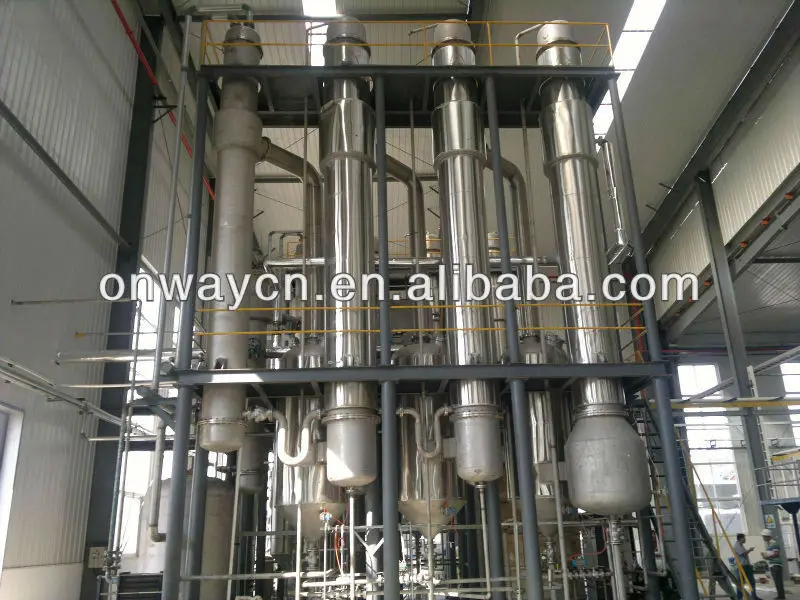

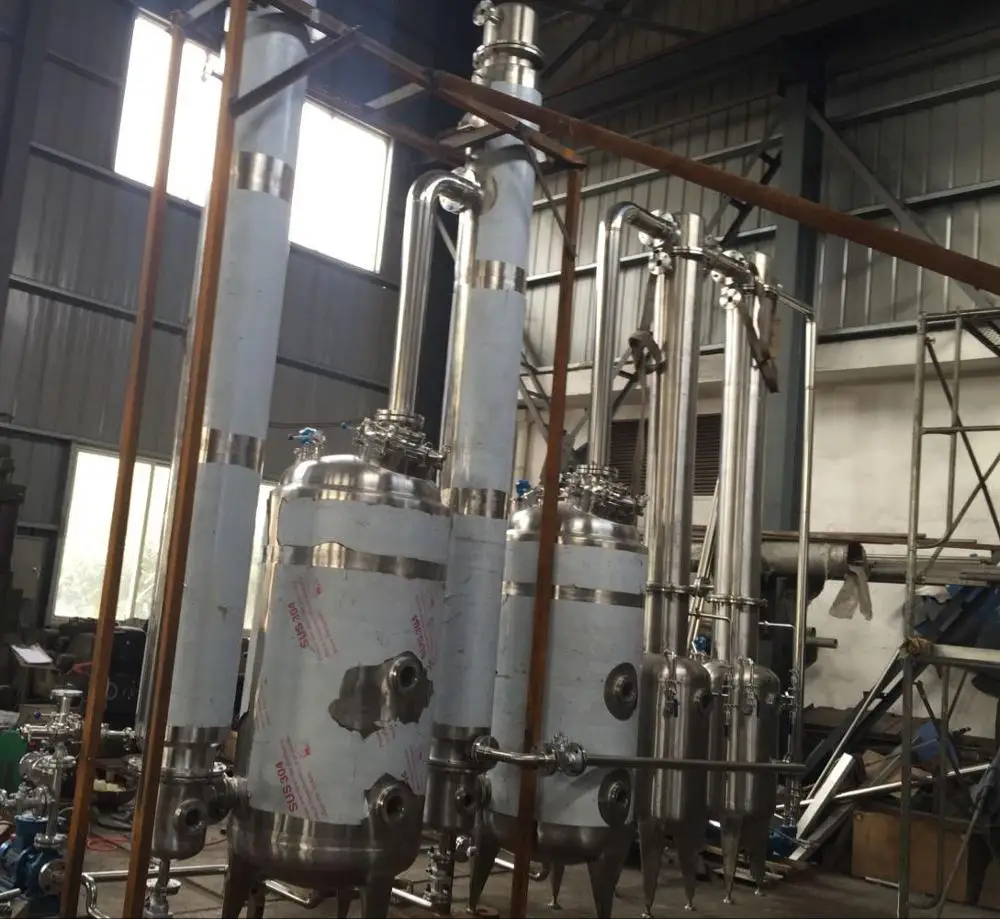

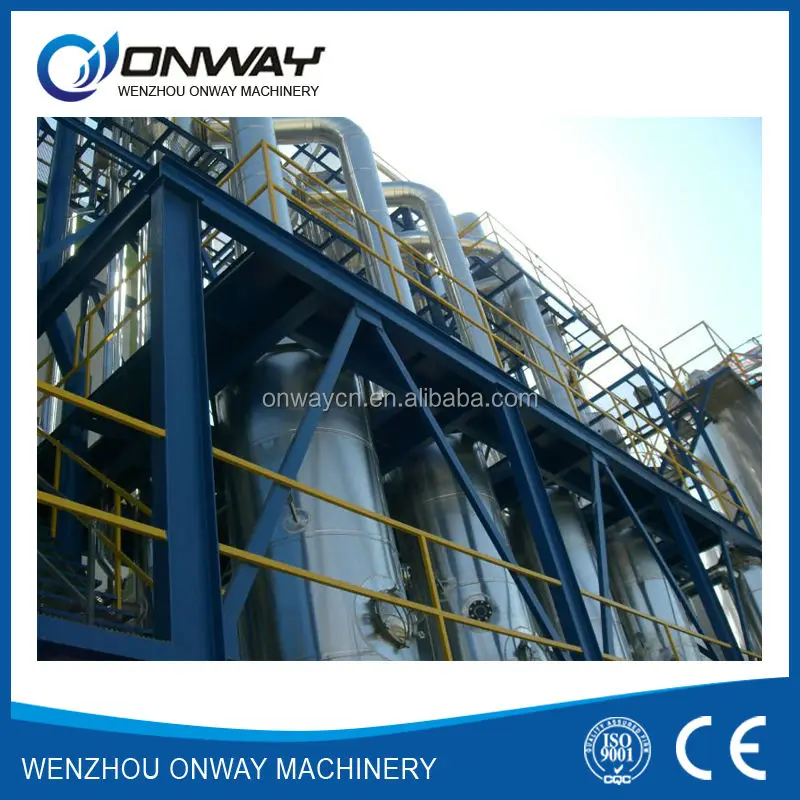

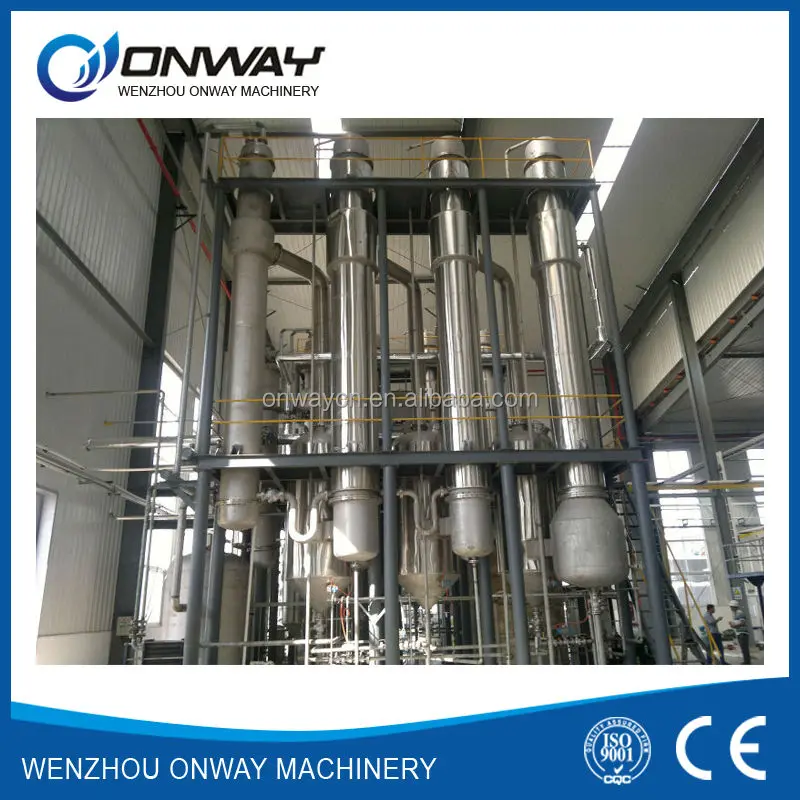

SHJO high efficient juice concentrator evaporator

Application

It is applicable for dairy products, pharmacy, glucose, starch, chemical industry, xylose, citric acid, ammonium sulfate, biological engineering, environmental engineering and waste liquid recovery and treatment etc.

Advantage :

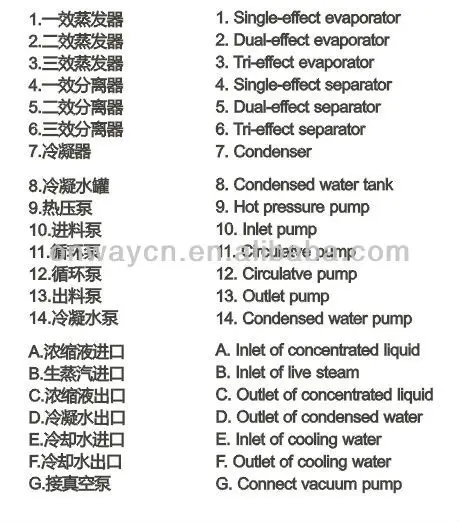

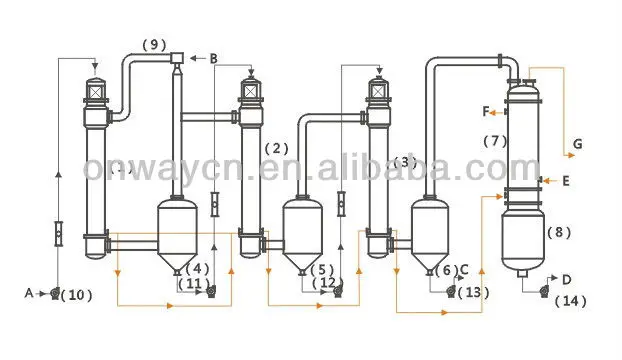

It contains of single-effect, dual-effect and triple-effect evaporators, single-effect, dual-effect and triple-effect separators, preheater, condenser and hot pressure pump.

(A) Low evaporation consumption, 1Kg steam can evaporate 3.5Kg water.

(B) Low evaporation temperature. Part of twice steam can be inhaled into single-effect heater through spray type hot pressure pump. The high quality evaporation can be fully used and the evaporation temperature is low.

(C) Large concentration ratio with downward film type evaporation, which can make material liquid with viscosity be so easy to flow and evaporate, Hard to agglomerate with short concentration time. The concentration ratio can reach 1:5.

(D) The equipment can realize automatic production, intellectual system, which is conformity with GMP standard.

The output/final product from this machine
