ROKTOOLS Stainless Steel Bridge Cam Welding Gauge For Angle of Preparation WG 208

Product Overview

Description

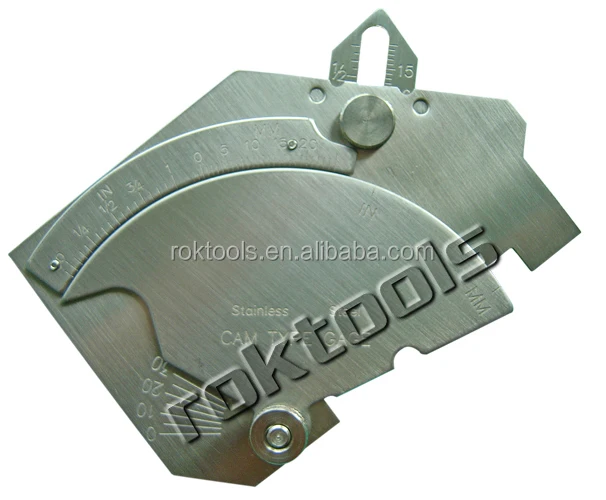

 Bridge Cam Welding Gauge  For Angle of Preparation WG-208 Stainless Steel

Also known as weld gauge, or weld gage.



Part No: WG-208

Manufacturer: Rok International Industry Co., Limited.



What is the Roktools application:

 Angle of preparation, 0º to 60º
Fillet weld throat size
Excess weld metal (capping size )

Fillet weld length
Depth of undercut
 Misalignment (high-low)

Depth of pitting



Weld Gauge or Bridge Cam Gauge is a unique, versatile instrument for the inspection of welded surfaces and joints.

It measures angle of preparation, 0 to 60 º, excess weld metal ( capping size), depth of undercut, depth of pitting, fillet weld throat size, fillet leg length, misalignment ( high-low), and linear measurements up to 60mm or 2 inches.

It measures in both inch or millimeters.

It is easy to use. It comprising of one rotating dial and one sliding pointer. Move the dial or pointer until it makes the appropriate contact and then read the result.



What is new :

High quality stainless steel with 1.4mm thickness.

Highly Ground surface.

High accuracy, can get the third part calibration



ROKTOOLS customers from:

Vessal factory

Power station

Oil pipe company.
