4 in 1 dvbs2 to dvbt transmodulator ,dvb s2 to dvb t modulator

Product Overview

Description



NDS3542 dvb-s2 to dvb-t modulator   --

4 * QPSK S/S2 to DVB-T transmodulator







Product Overview

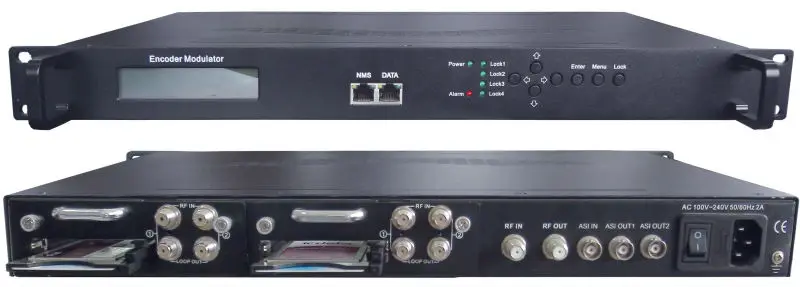

NDS3542 series products are DEXIN’s all-in-one devices which integrate Demodulation, trans-mux and modulation (DVB-C, DVB-T, ISDB-T or ATSC) to convert satellite signals into digital RF output. Its pluggable structure design greatly facilitates the change of modules (RF/HDMI/CVBS/SDI/YPbPr/…) as needed. The unit in this sheet is a 1-U case which supports 4 DVB-S/S2 RF inputs with 4 CAMs accompanied. The CAM requires NO unsightly external power cords, cables, or additional remote control device.

To meet customers’ various requirements, NDS3542 is also equipped with 1 ASI input, and output with 2 ASI ports and 1 UDP IP port.

The output modulated signals are to be received by TVs, STB and etc with corresponding standard.

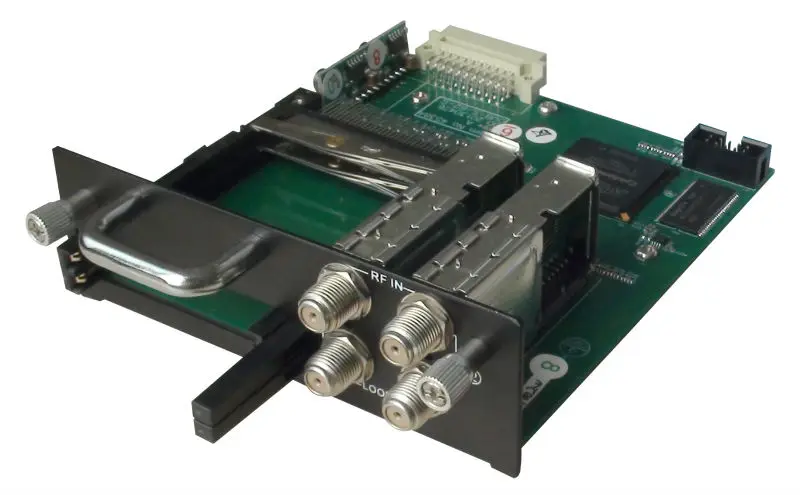

Pluggable Demodulating Module with 2*CAM accompanied

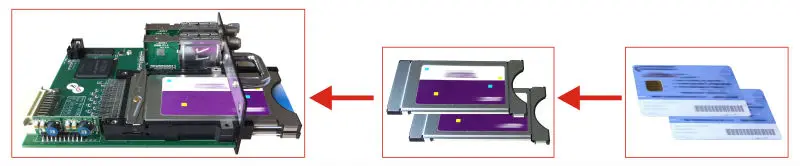

1*Module = 2*RF/Loop out + 2*CAM + 2*Smartcard











n  Demodulation + modulation + mixer modules in one box

n  2*2 QPSK S/S2 Tuner inputs

n  2*2 CAM with 2*2 CI-slot, one CAM can decrypt multiple programs

n  ASI in/out with re-mux

n  1 IP output

n  RF mixed in, RF mixed out (DVB-T)

n  LCN support (Logical Channel Number)

n  Excellent modulation quality: MER≥42dB

n  LCD display, Remote control and Firmware, web NMS management

n  Updates via web

n  Best quality and breakthrough price

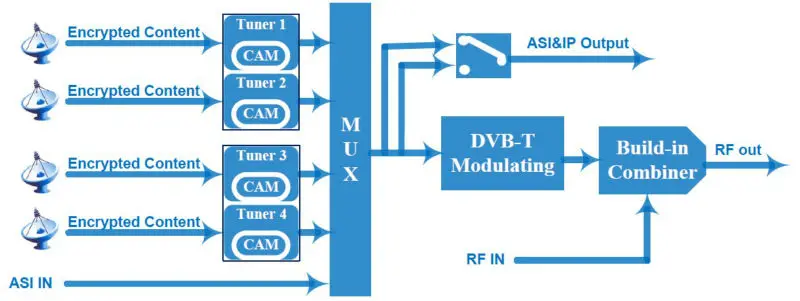

Principle Chart
