Aluminum Fine Wire Drawing Machine

Product Overview

Description

Aluminum Fine Wire Drawing Machine:



Main Technical Data of Machine:



Models:

Description	Specification
	BT22	BT24	BD22	B16	B18
Inlet Diameter(mm)	1.2	1.2	1.2	1.6	2.0
Outlet Diameter(mm)	0.10-0.32	0.08-0.32	0.10-0.60	0.20-0.60	0.35-0.80
Max. Speed(m/min)	2400	2400	2400	2400	2400
Main Motor Power(kw)	AC11	AC11	AC15	AC15	AC18.5
DC Current for Annealing	Max.240	Max.240
DC Volt for Annealing(V)	0-50	0-50
Spool Capacity with Annealing(Kg)	Max. 100	Max. 100



Line Speed:

Wire Dia.(mm)	Line Speed(m/min)		Elongation
	Hard Wire	Soft Wire
0.10	1500	1000	15-20%
0.15	2000	1300	15-20%
0.20	2000	1300	20-25%
0.32	1500	1000	20-25%

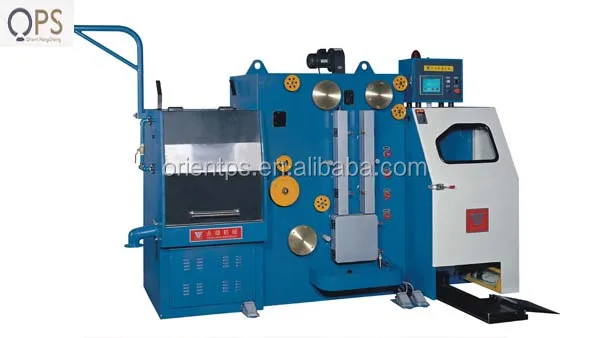

Main Picture of Fine Wire Drawing Machine:

Aluminum Fine Wire Drawing Machine
