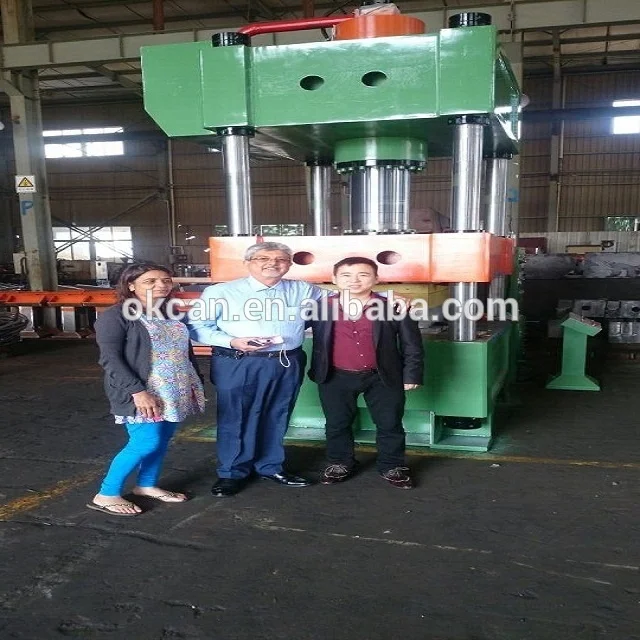

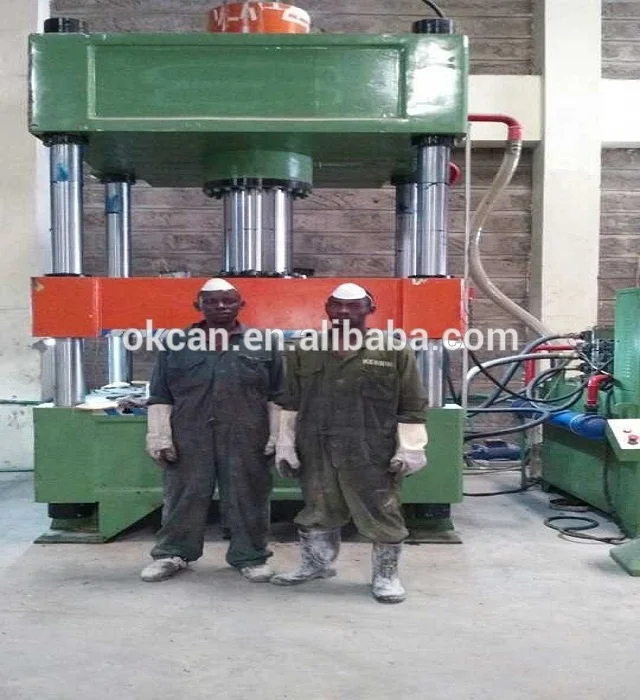

This series manhole cover press adopted four-column type construction, has the independent electrical and hydraulic power mechanism, hydraulic control part adopts advanced cartridge valve integrated system, long service life, simple structure, compact, reliable, convenient maintenance, high degree of generalization; Electrical control system with special pressure maintaining timing, automatic filling pressure, product count and temperature control device, adopts centralized control buttons, which can realize adjustment and hands cycle operation way; under ejection cylinder equipped with stroke protection switch, effectively prevent the mold from knocking bad.

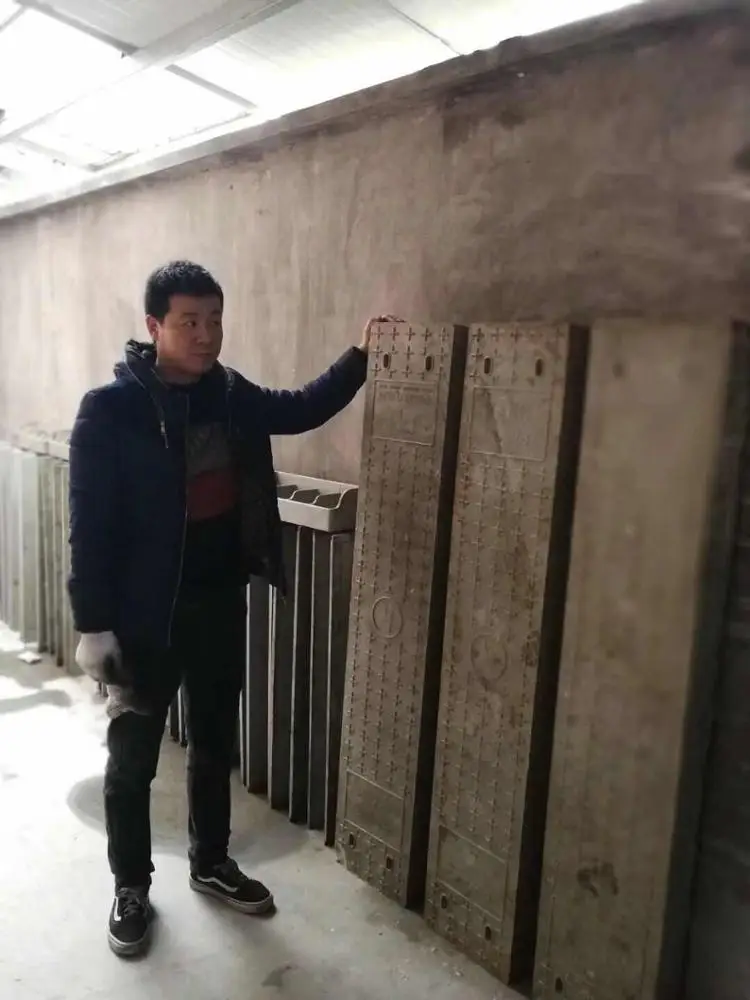

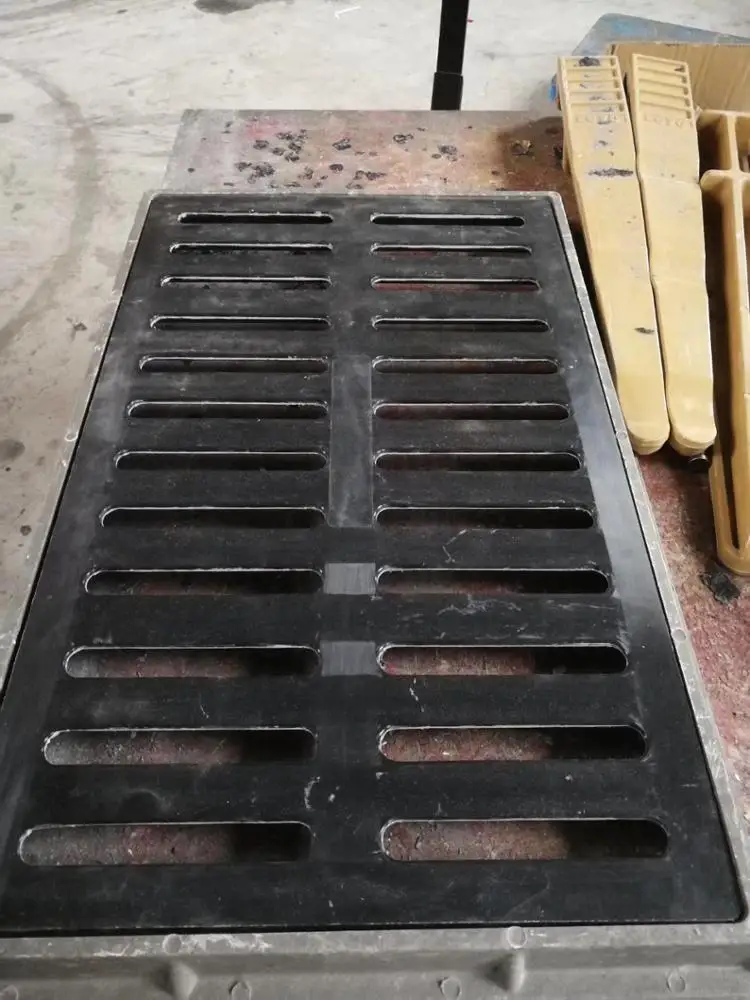

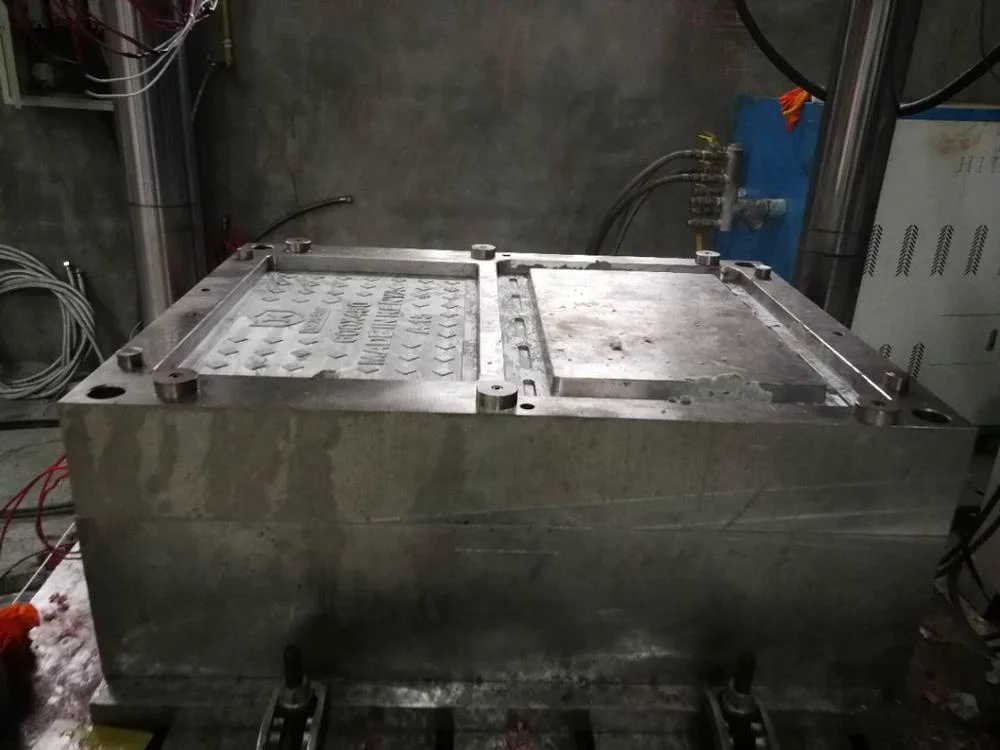

This manhole cover machine is mainly suitable for composite material manhole cover, glass fiber products, MMC, DMC material products and other plastic products.
Technical parameters:
Item
Unit
Pressure of main cylinder
KN
3150
5000
6300
Stroke of main cylinder
mm
800
800
900
Working table size
mm
1260*1160
1400*1400
1600*1400
Max daylight
mm
1100
1100
1500
Motor power
kw
18.5
22
30
Note:the prarameter can be designed according to your requirement
nominal pressure of main cylinder
3150KN
hydraulic working pressure
25Mpa
return force
300KN
main cylinder piston diameter
380mm
main cylinder piston rod diameter
340mm
ejection cylinder piston diameter
160mm
ejection cylinder piston rod diameter
125mm
slider stroke
700mm
max daylight
1050mm
main cylinder speed
down no-loading
100mm/s
pressing (low pressure)
12mm/s
pressing (high pressure)
12-5.9mm/s
return
65mm/s
ejection force
630KN
ejection stroke
200mm
ejection cylinder speed
ejection
17mm/s
return
34mm/s
working table size
left-right
1500mm
front-back
1300mm
workingtable high above the ground
900mm
machine height above ground
4270mm
total machine height
4270mm
main oil pump
63YCY14-1B
main motor power
15KW
total machine weight
13-13.2tons
