Обучающее сопло Venturi, обучающее средство для смешивания жидкости, 3/8 BSPT жидкое сопло для смешивания
- Category: Cleaning Equipment Parts >>>
- Supplier: Dongguan Mebon Spraying & Purification Technology Ltd.
Share on (1946837177):
Product Overview
Description
Product Description
* Nozzle Materials: Carbon fiber reinforced plastics or SS316.
* Nozzle Structure: one-piece construction without internal parts.
* Spray Patterns: Mixing liquid jet eductor.
* Pressure Range: 1 to 4 bar (20 to 127 L/min).
* Thread Size: 1/4", 3/8", 1/2", 3/4" BSPT.
Mixing liquid eductors are used to agitate or mix liquids stored in tanks, pits, or sumps.
Mixing Eductors use a unique venturi design which enables smaller pumps to circulate large volumes of tank solution.
Designed on the basis of the Bernoulli theory, fluid under pressure is pumped into the nozzle through its large flow opening.
Proformance data:
| Entrance diameter | Flow properties | Entrance pressure | |||||||
| 0.5BAR | 1BAR | 1.5BAR | 2BAR | 2.5BAR | 3BAR | 3.5BAR | 4BAR | ||
| 1/4" | Storage flow (L / min) "A" | 11.3 | 16 | 19.5 | 23 | 25 | 28 | 30 | 32 |
| 3/8" | 29 | 42 | 51 | 59 | 65 | 70 | 77 | 82 | |
| 1/2" | 36 | 53 | 62 | 72 | 83 | 88 | 97 | 103 | |
| 3/4" | 43 | 64 | 74 | 85 | 97 | 106 | 116 | 124 | |
| 1/4" | Supplementary volume (L / min) "B" | 42 | 59 | 72 | 84 | 93 | 102 | 110 | 118 |
| 3/8" | 116 | 168 | 204 | 236 | 260 | 280 | 308 | 328 | |
| 1/2" | 131 | 212 | 251 | 288 | 324 | 352 | 386 | 421 | |
| 3/4" | 172 | 256 | 298 | 340 | 388 | 424 | 464 | 496 | |
| 1/4" | Cyclic Total (L / min) "A" + "B" | 53.3 | 75 | 91.5 | 107 | 118 | 130 | 140 | 150 |
| 3/8" | 145 | 210 | 255 | 295 | 325 | 350 | 385 | 410 | |
| 1/2" | 180 | 265 | 313 | 360 | 405 | 440 | 482 | 515 | |
| 3/4" | 215 | 320 | 370 | 425 | 485 | 530 | 580 | 620 | |
| 1/4" | Effective range (m) | 0.91 | 1.5 | 2.1 | 2.6 | 3 | 3.7 | 4.3 | 5.2 |
| 3/8" | 1.2 | 1.8 | 2.4 | 3 | 3.7 | 4.3 | 4.9 | 6.7 | |
| 1/2" | 1.3 | 2.1 | 3 | 3.6 | 4.5 | 5.2 | 6.4 | 8.6 | |

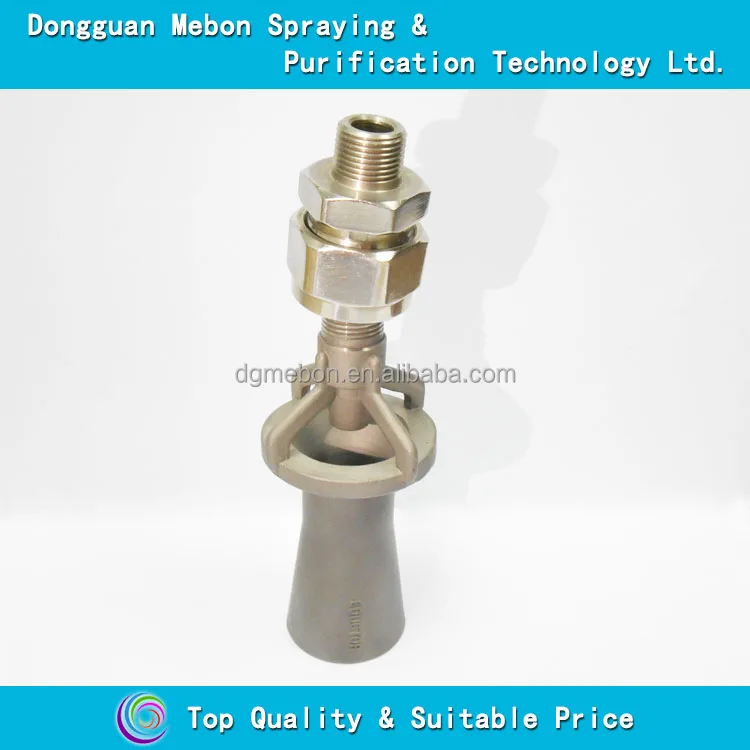

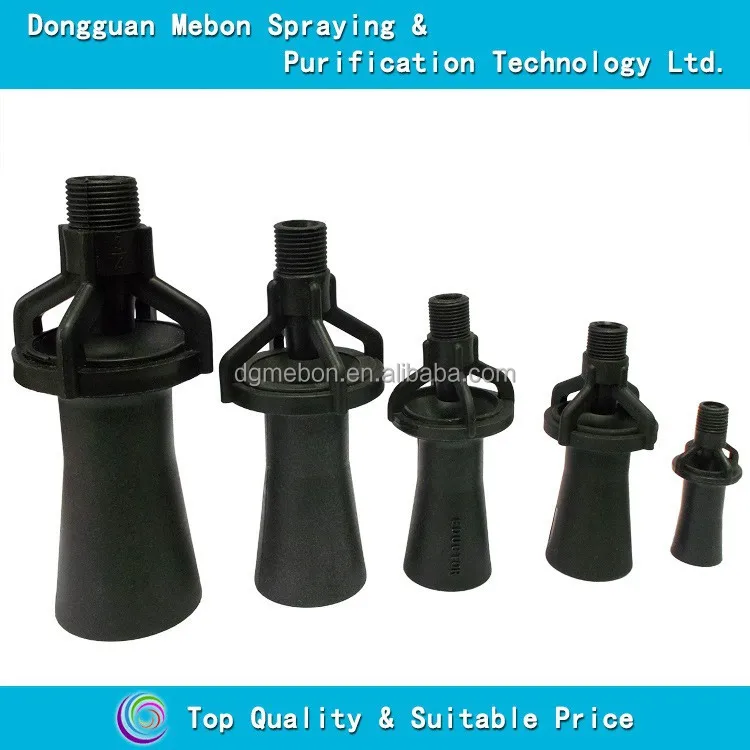

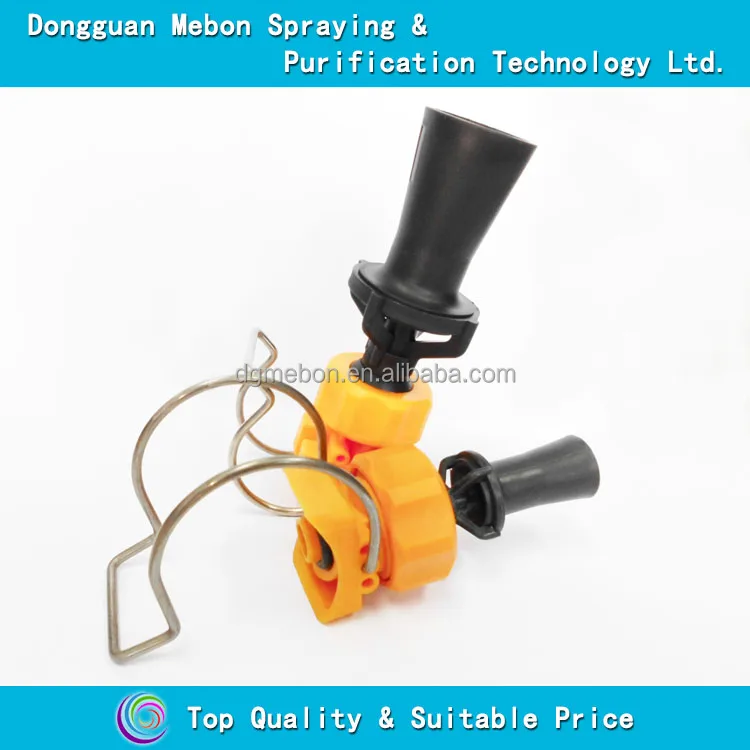

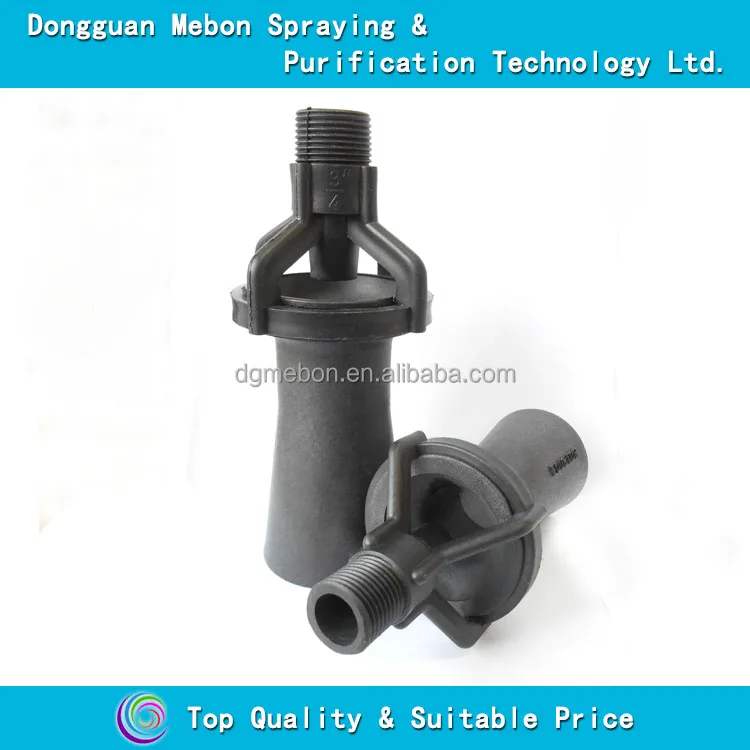

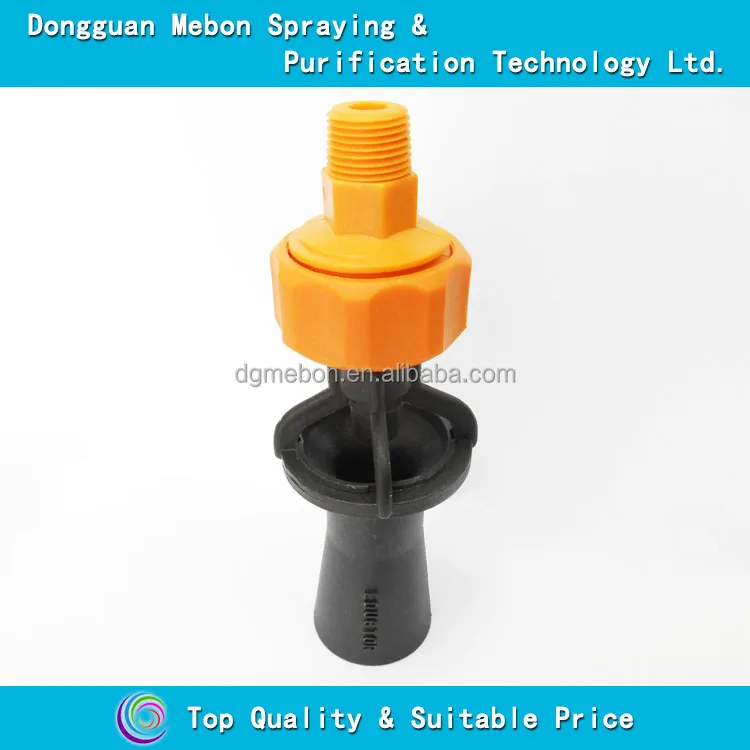

Product Show
