12V 24V 48V SYSTEM WIND TURBINE BRAKE FOR PROTECTING WIND GENERATOR

Product Overview

Description

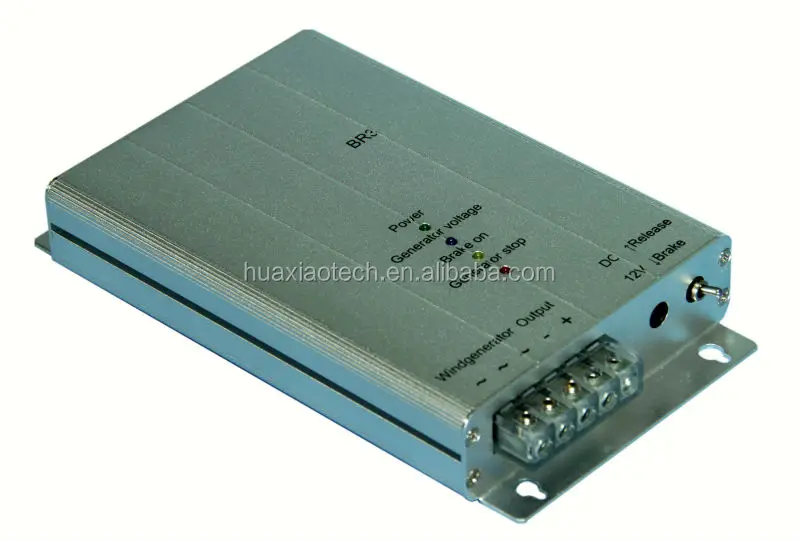

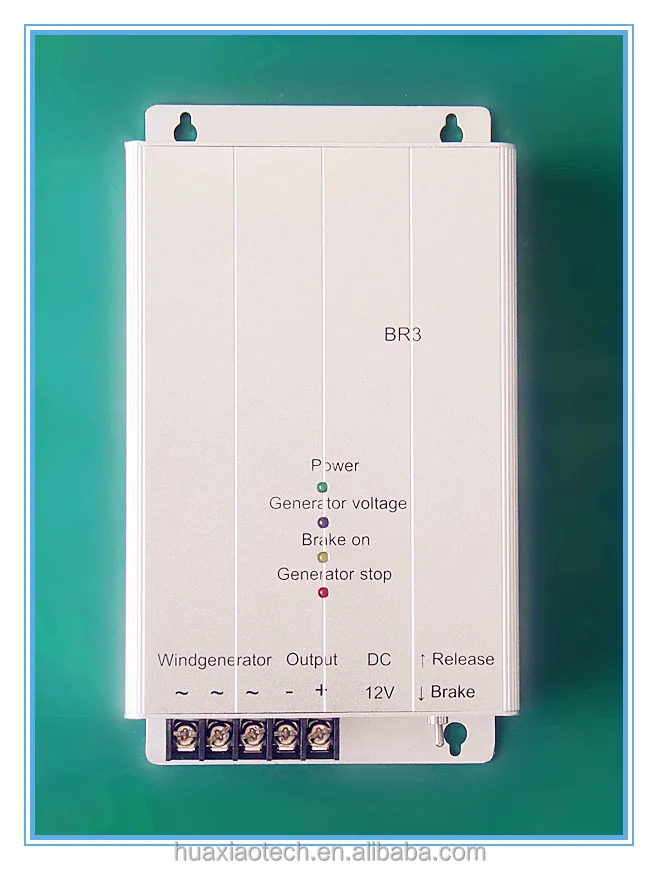

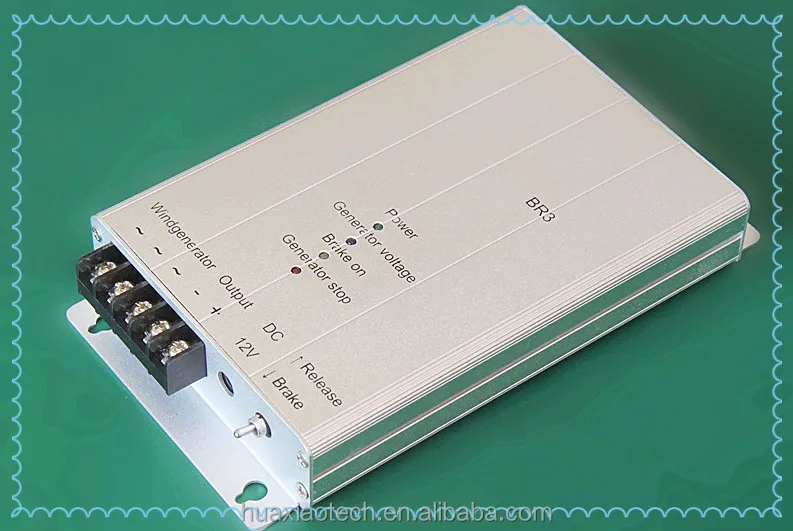

The braker BR3 is used for the small grid-connected power generation system. This braker is used for the wind turbine generator. When the Voltage or the Current is much higher than the rated Voltage or rated Current. It will brake the wind generator to reduce the input power to protect the whole system. It inverts the alternating current (AC) to direct current (DC) through connected with the grid inverter and wind turbine. When the wind is too strong, BR3 will make the wind generator slow down gradually and apply to release. It is applicable to 12v, 24v, 48v system.



1. It can converts the alternating current (AC)to direct current (DC).
    The input current is three-phase alternating current which is from the wind turbine.
    The output current from the brake is direct current.



2. It's used for braking the wind turbine generator.
When the wind is too strong, the brake moudel will make the wind turbine generator slow down gradually and apply to release. In order to avoid the wind turbine generator over speed and over power. Then Increase the service life of the wind turbine generator and the whole generator system.



Main function:

Automatic wind turbine brake, generator unloading

Manual wind turbine brake

Rectifier





Main parameter:

BRAKE MOUDLE PARAMETER
Input voltage	0-150V AC
Maximum input current	18A
Output voltage	0-110V DC
Maximum output current	12A
