Product Overview
Description

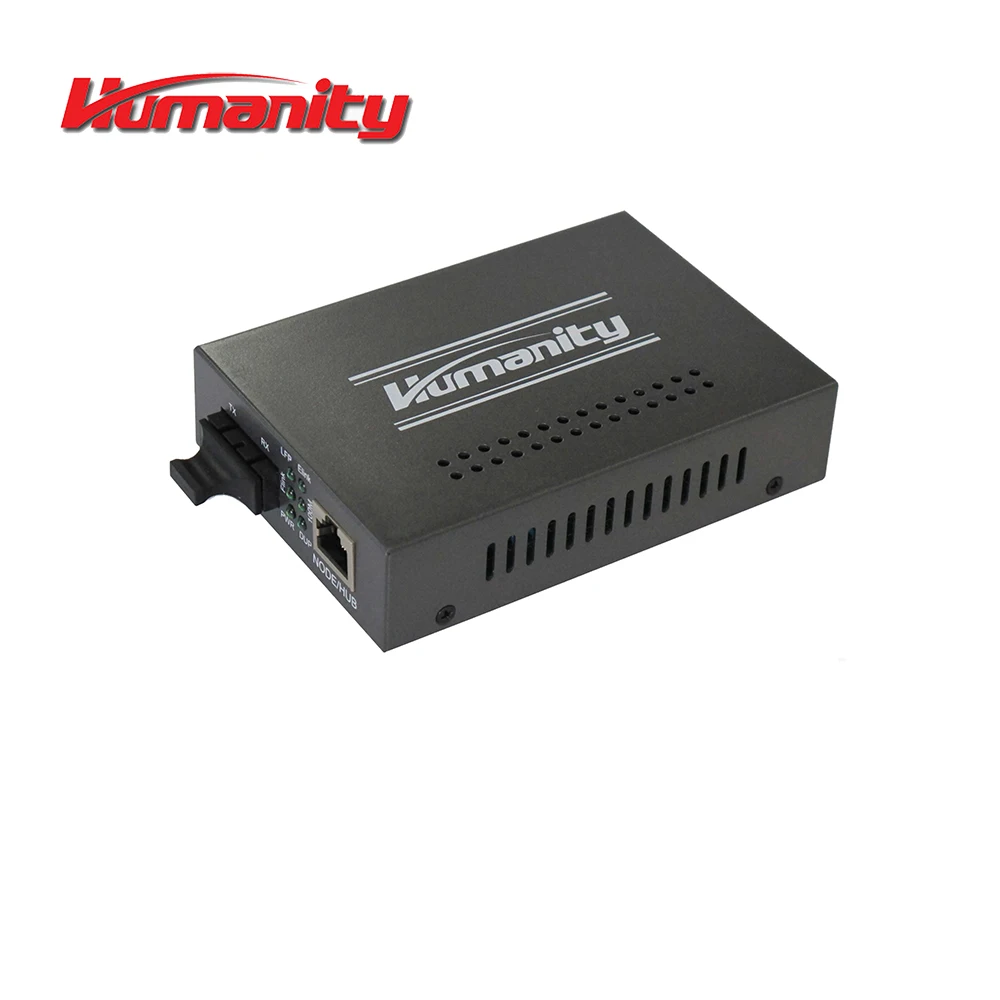

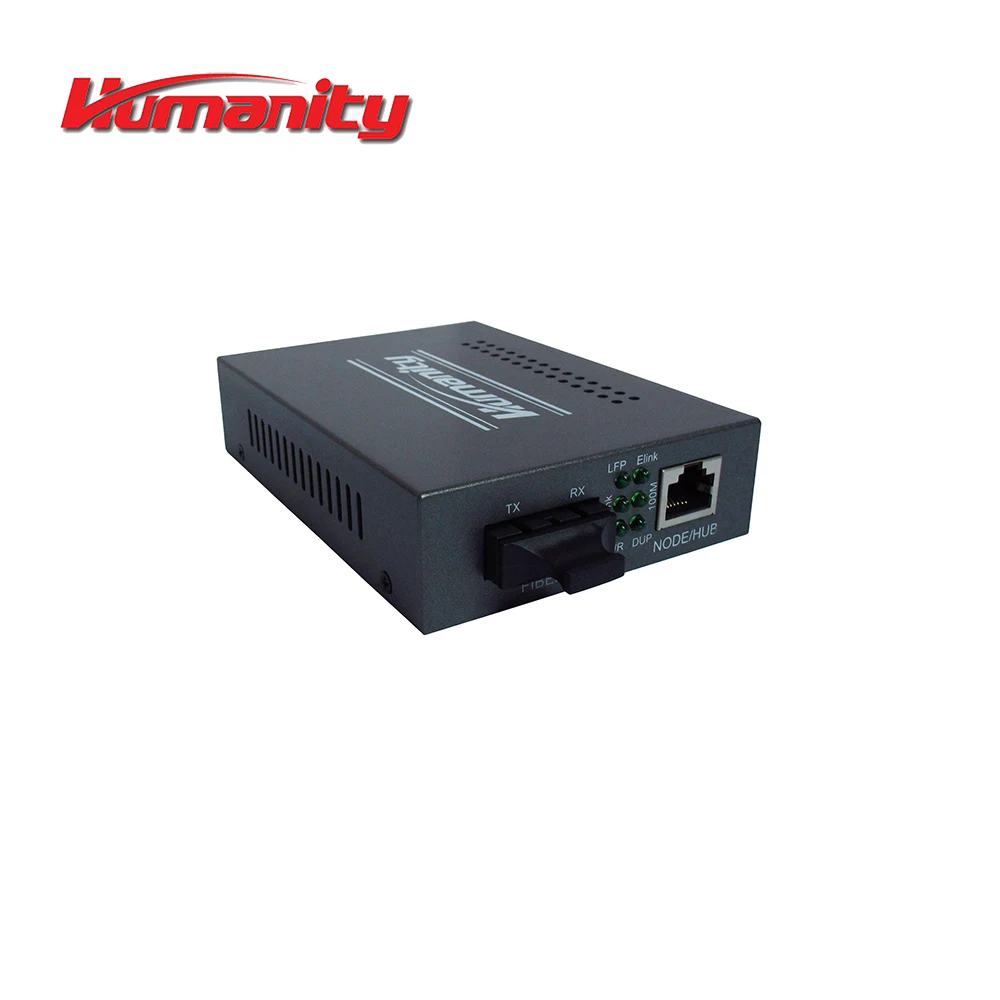

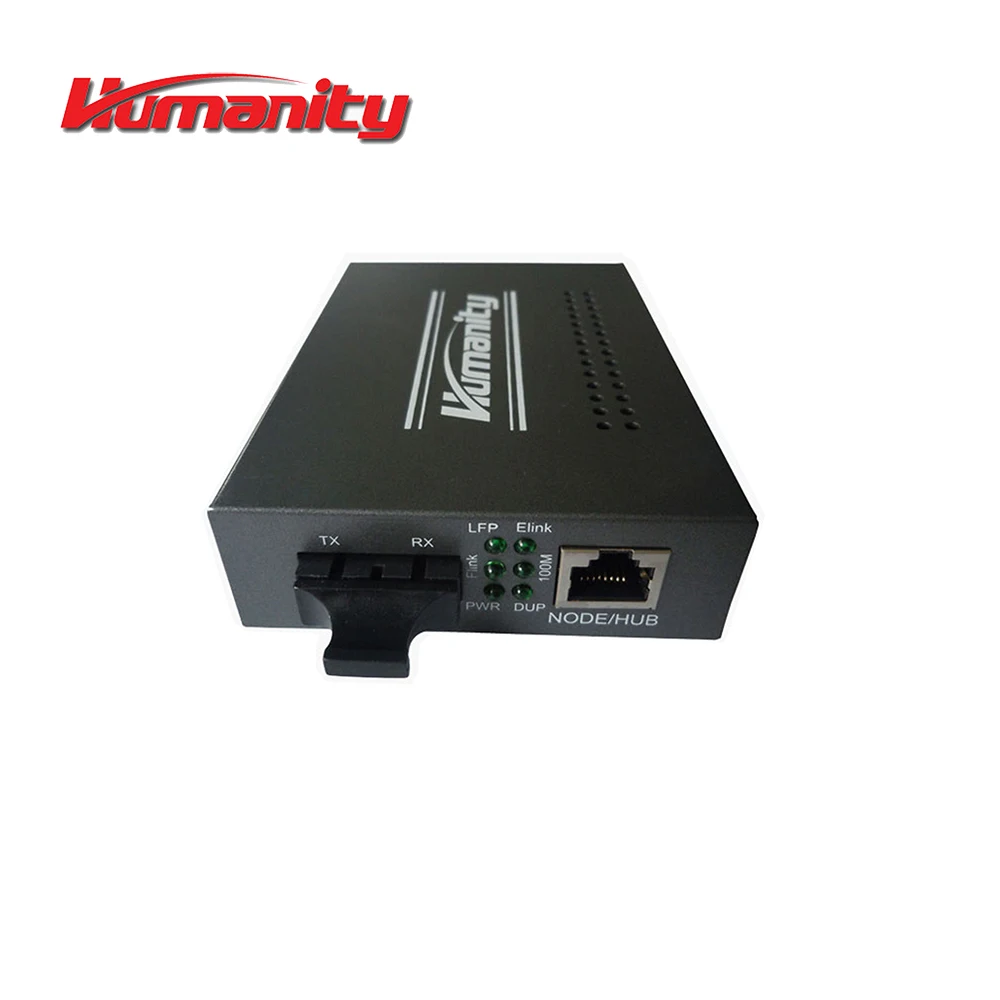

Humanity 10/100M Ethernet Fiber Optic to Coaxial Converter
Humanity 10/100M Fiber Optic to Coaxial Converter is a perfect device for Ethernet electrical and optical conversion. It is widely used in the data communication between Ethernet and fiber.
Main Features
- Be able to configure link-loss function
- Comply with IEEE 802.3µ 100BASE-FX/TX, IEEE802.3 10BASE-T standard
- Comply with IEEE 802.1Q VLAN TAG, Spanning Tree
- Support 10/100M, full/half duplex
- Auto adapt MDI/MDIX
- The optical circuit maximum able to transmit 120km
- Support 1600Bytes jumbo frame
Technical Parameters
Multi-mode 2km or multi-mode 5km | |||||
Optical fiber available | 62.5/125,50/125,100/140µm | ||||
Transmitting power consumption | >-18dBm | ||||
Receiving sensitivity | <-31dBm | ||||
Transmission distance | 0~2km or 0~5km | ||||
Optical interface | SC,ST or FC | ||||
wavelength | 850nm/1310nm/1300nm | ||||
Single Mode | |||||
Optical fiber available | 9/125,8.3/125,8.7/125 or 10/125µm | ||||
Transmission distance | 20km | 40km | 60km | ||
Transmission power consumption | -15~ -8dBm | -11~ -6dBm | -5~ 0dBm | ||
Receiving sensitivity | < -32dBm | < -34dBm | < -36dBm | ||
Optical interface | SC,ST or FC | ||||
Wavelength | 1310nm | ||||
Transmission distance | 80km | 120km | |||
Transmission power consumption | -8~ -3dBm | -3~ 5dBm | |||
Receiving sensitivity | < -36dBm | < -39dBm | |||
Optical interface | SC,ST or FC | ||||
wavelength | 1550nm | ||||
Working temperature | 0~+70°C (commercial level) -20~+85°C (industrial level) -40~+85°C (extend industrial level) | ||||
Storage temperature | -40~+85°C | ||||
Relative humidity | 50%~80% non-condensing | ||||
dimension | 13.5×8.5×2.6 mm (internal power supply) | ||||
Power | 48VDC or 220VAC optional | ||||

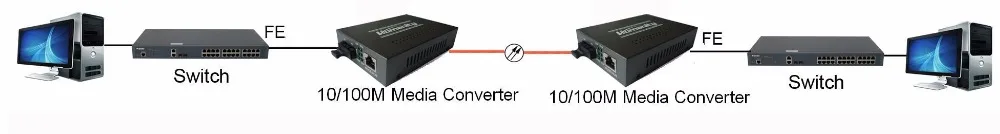

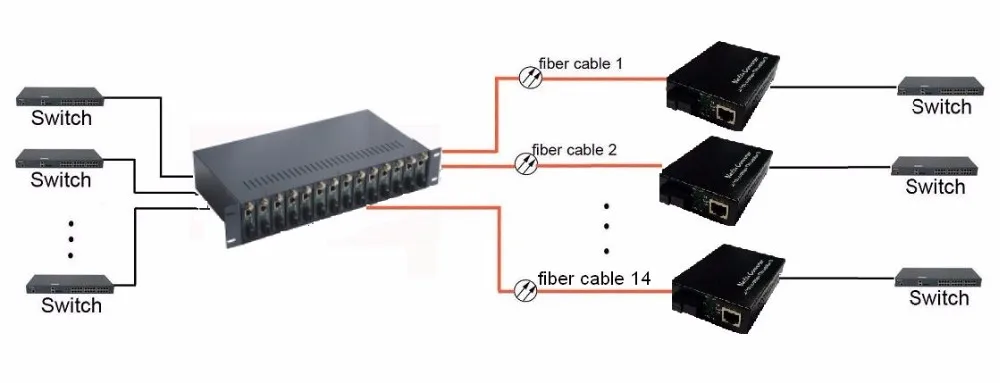

Application Diagram
