Product Overview

Description

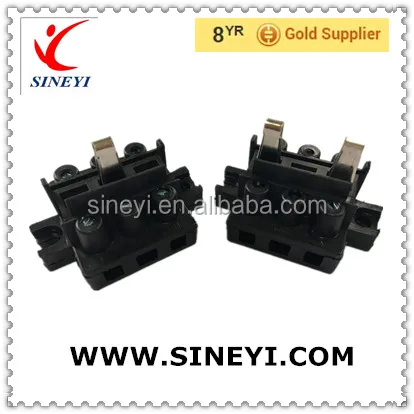

Street light connector TUV Circuit breaker Male and Female connector





Material:Nylon 66,UL 94V2, Natural

Housing:94V-2 Level 94V-2 Grade

Insert: Brass, Nickel plated

Screw: M3*6 Yellow chromated

Earth screw:M3*14 Yellow chromated

Voltage/Ampere(IEC)

              Terminal Strip:     400V/15A

              Fused Carrier:     250V/6.3A

Voltage/Ampere(UL)

             Terminal Strip:     200V/15A

              Fused Carrier:     200V/10A

Temperature
              Working Temperature:-40°C to 100°C

              140   °C

Wire:14AWG

Packaging:



540-1GWP            100*10 per/ctn

540-2GWP              70*10   per/ctn

540-3GWP             50*10    per/ctn

540-4GWP             40*10     per/ctn

540-5GWP             40*10     per/ctn



Terminal strip with fuse-carrier

Dovetail for different terminal combinations

For 50*20 mm fuse

Earth-screw option

IP20 finger protection

Anti-rotation spigot as option

1,2,3,4and 5 poles available

Color-housing in grey, fuse carrier in black
