Paper Insulating Machine

Product Overview

Description

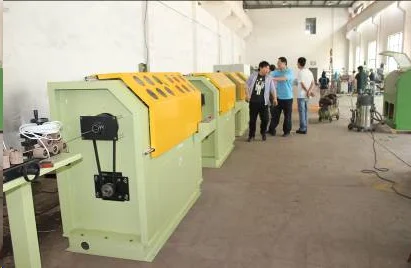

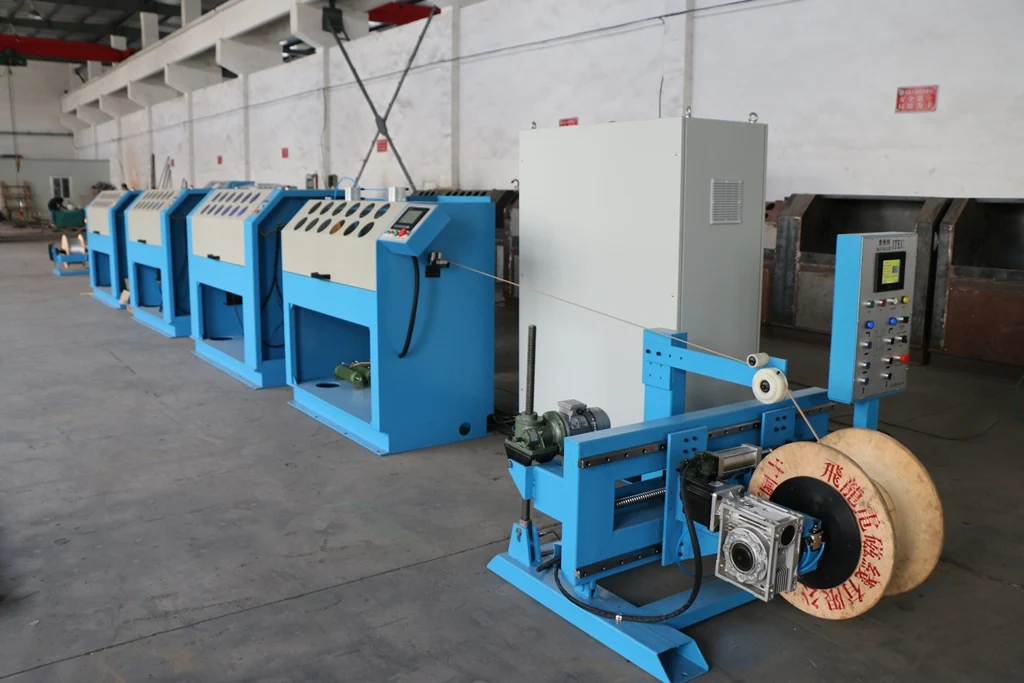

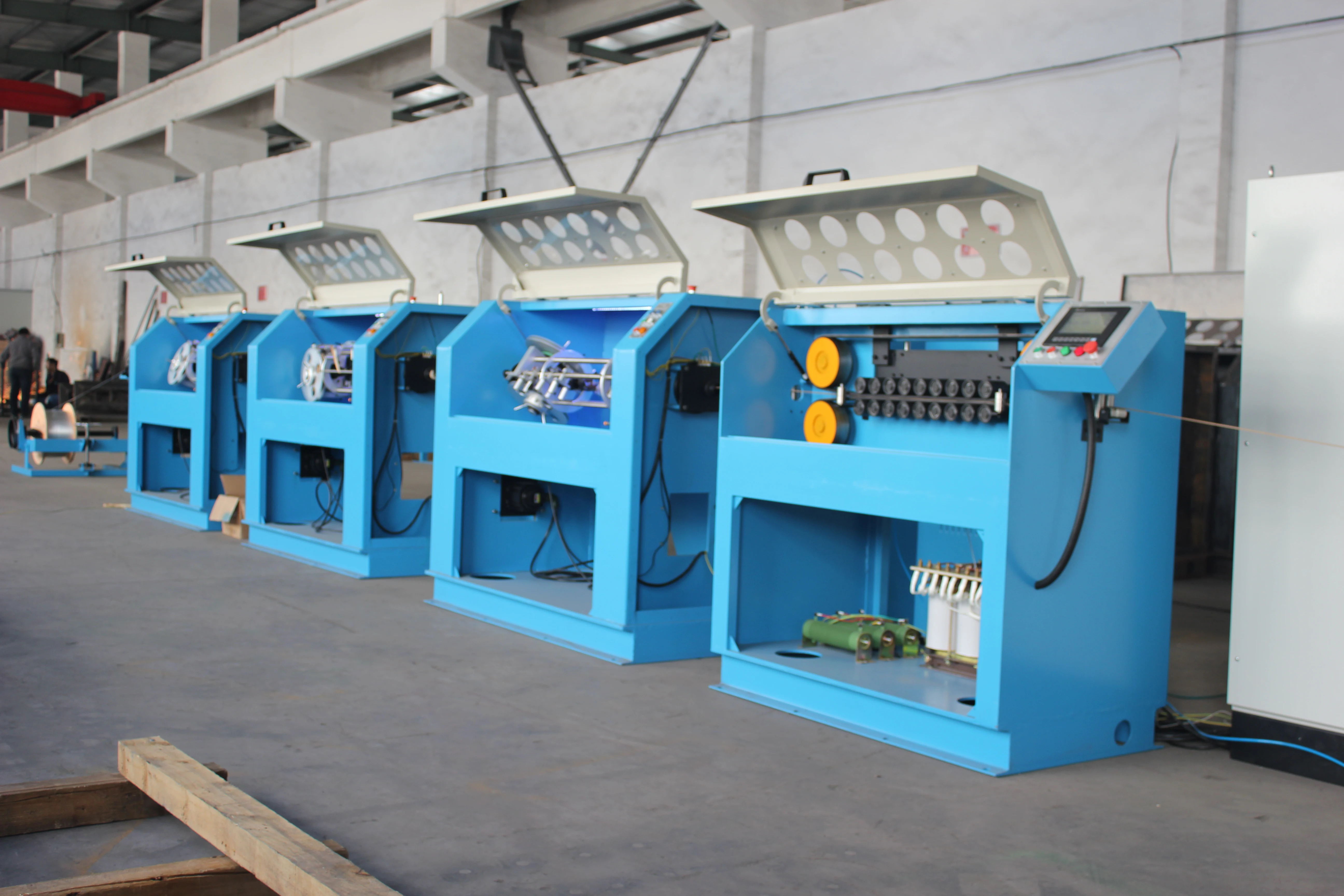

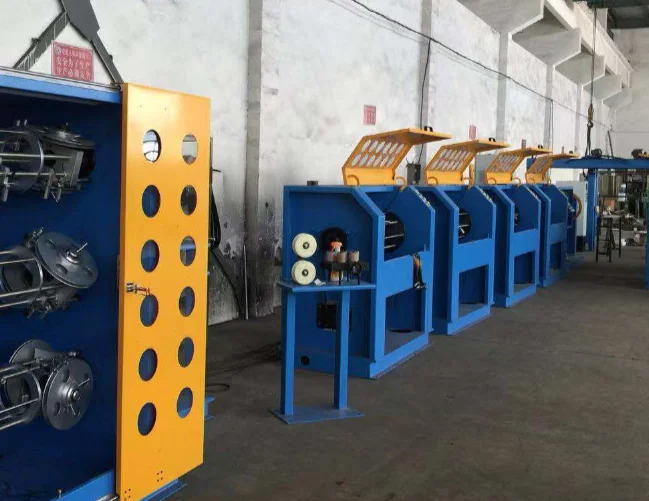

Horizontal Taping Machine-Single Conductor

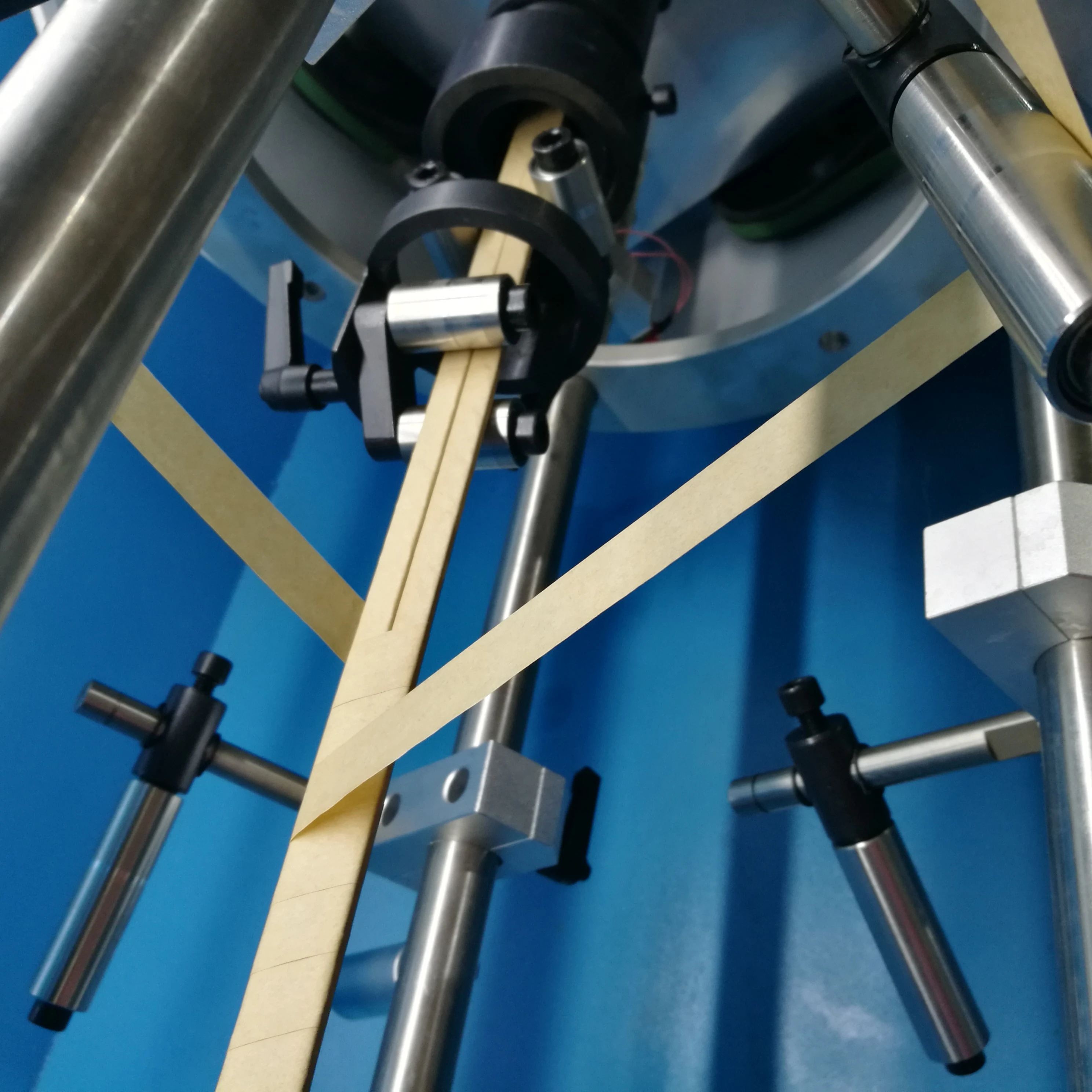

Horizontal taping machine is used to make insulating conductors. This machine is suitable for tapes made of different materials, such as paper, polyester, NOMEX and mica. With years of experience on horizontal taping machine design and manufacturing, we developed the latest tapping machine with characters of high quality and high rotating speed up to 1000 rpm.



Main technical data:

Conductor area: 5 mm²—120mm²(or customized)

Covering layer: 2 or 4 times of layers

Rotating speed: max. 1000 rpm

Line speed: max. 30 m/min.

Pitch accuracy: ±0.05 mm

Taping pitch: 4~40 mm, step less adjustable



Special Characteristics:

-Servo drive for the taping head

-Rigid and modular structure design to eliminate vibration interaction

-Taping pitch and speed easy adjusted by touch screen

-PLC control and touch screen operation



We are looking forward to have opportunity to cooperate with you!
