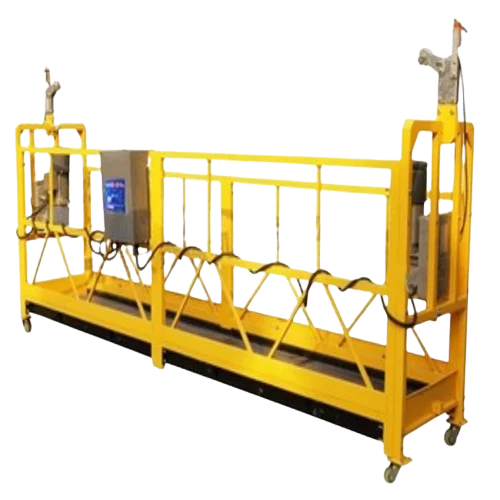

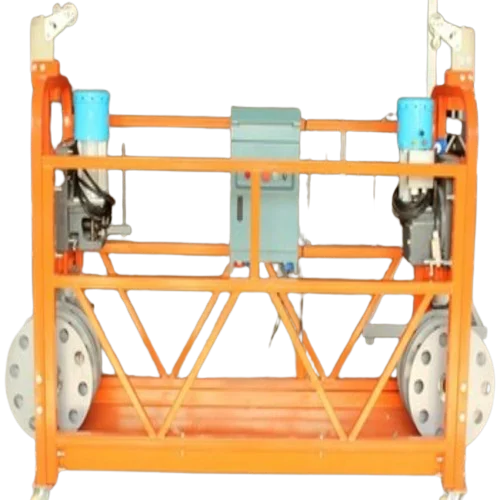

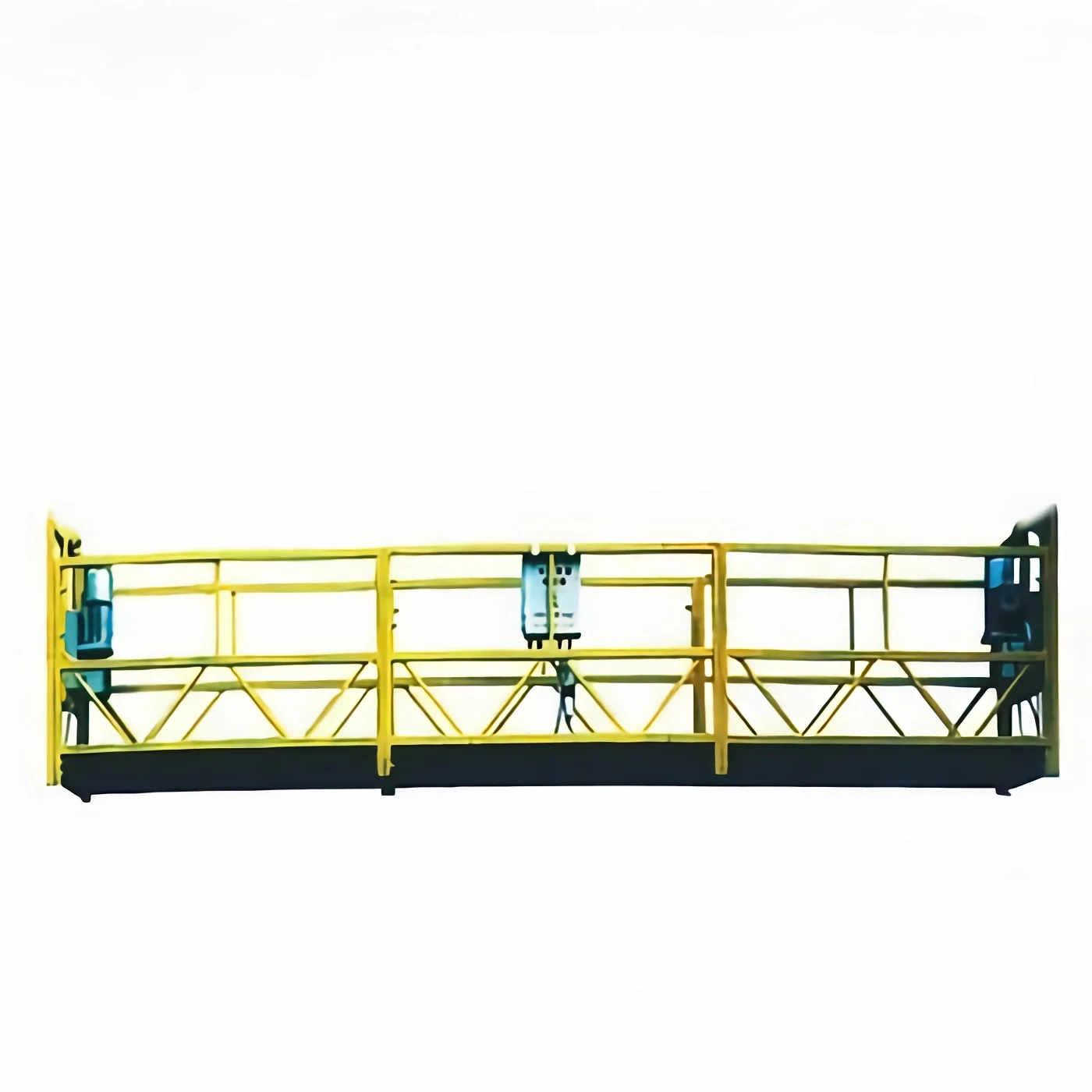

high rise working platform with the rated load of 800kg
- Category: >>>
- Supplier: Wuxi Watsond Machinery Technology Co. Ltd.Wuxi Ltd.
Share on (1949032228):
Product Overview
Description
Product Parameters
| ZLP630 ZLP800 Suspended Platform Parameter | ||||||
| Description | ||||||
| Model | ZLP630 | ZLP800 | ||||
| Rated load | 630 Kg | 800 Kg | ||||
| Lifting speed | 9.3+0.5 m/min | 8.0+0.5 m/min | ||||
| Lifting Height | 100 m | 100 m | ||||
| Working Platform | Working Cage | 1 Sets | Dimension LXWXH(m) | 6m(2+2+2)×0.69×1.42m | 7.5m(2+2+2+1.5)×0.69×1.45m | |
| Material | Q235 Steel or Aluminum Alloy | Q235 Steel or Aluminum Alloy | ||||
| Surface | Painting or HDG | Painting or HDG | ||||
| Bottom Wheels | 4 pcs | 4 pcs | ||||
| Wall Roller | 2 pcs | 2 pcs | ||||
| Hoist | 2 Sets | Model | LTD6.3 | LTD8.0 | ||
| Lifting Speed | 9.3±0.5 m/min | 9.3±0.5 m/min | ||||
| Pulling power | 6.3KN | 8.0KN | ||||
| Quantity | 2 sets | 2 sets | ||||
| Electric Motor | Power | 1.5 kw*2 | 1.8 kw*2 | |||
| Voltage | 380v/50Hz or 220V/60HZ | 380V/50Hzor220V/60HZ | ||||
| Rotational speed | 1420 rpm | 1420 rpm | ||||
| Braking Torque | 15N.m | 15N.m | ||||
| Safety Lock | 2 Sets | Model | LSG20 | LSG30 | ||
| Quantity | 2 sets | 2 sets | ||||
| Locking Rope Angle | 3°~8° | 3°~8° | ||||
| Allow impulsive force | 20 KN | 20 KN | ||||
| Steel Wire Diameter | 8.3 mm | 8.6 mm | ||||
| Electric Cabinet | 1 Sets | Component Brand | CHNT | CHNT | ||
| Surface | Galvanized | Galvanized | ||||

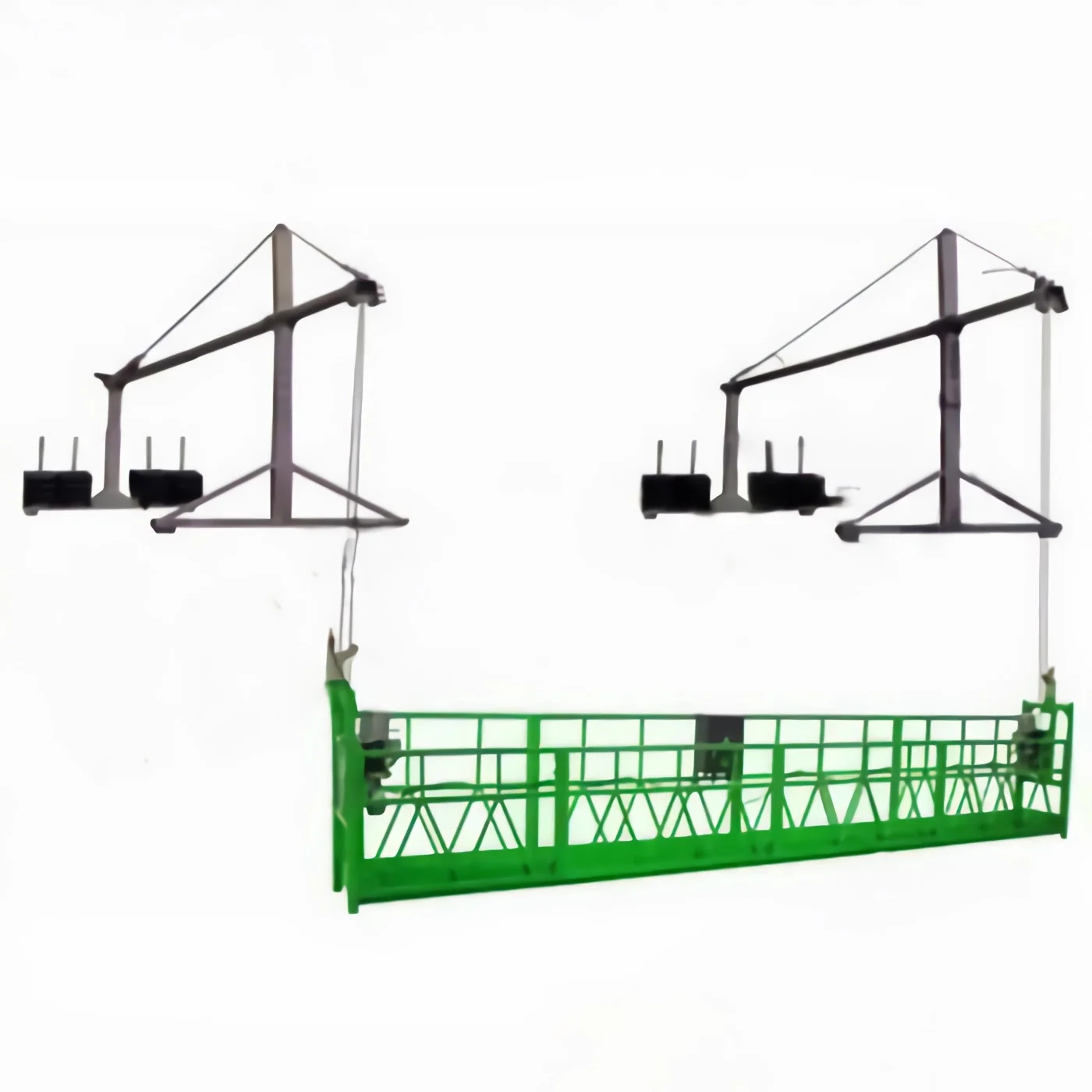

| Suspension Mechanism | 2 Sets | Front beam overhanging | 1.3~1.6 m | 1.3~1.6 m | ||
| Beam adjustable height | 1.06~1.66 m | 1.06~1.66 m | ||||
| Surface | Painting or HDG | Painting or HDG | ||||
| Electric Cable | l pcs-100 m | 3x2.0+2x1.0YC-5 | 3x2.5+2x1.5YC-5 | |||
| Steel Wire Rope | 4x31SW+FC | D-8.3 m | D-8.6 mm | |||
| 100 m/ pcs 4 pcs | 100 m/ pcs4 pcs | |||||
| Safety Rope | 1 pcs(Forced Nylon) | 100 m | 100 m | |||
| Heavy Hammer | 2 pcs | 4 pcs | 4 pcs | |||
| Travel Limit Disc | 2 pcs | 2 pes | 2 pes | |||
| Load Quantity of 20" Container | 13 sets | 13 sets | ||||
Certifications
Company Profile
China Watsond Technology Group Co. LTD is a professional manufacturer of BMU, Suspended platform and aerial work equipment, integrating design, manufacturing,construction, installation and after-sales. We have R &D center, manufacturing center and testing center. Through long-term unremitting efforts, Watsond brand has won wide praise both at home and abroad. At present, our products have been exported to more than 10 countries around the world. Our goal is to use our expertise and experience to serve our clients so that they can do their jobs in a safe, efficient and beneficial way
Product Description
1.Electricmagnetic brake incorporated in the Hoist.
2.Two Anti-tilt Safety Lock used on the safety steel ropes.
3. Overload Sensor incorporated in the LTD hoists (optional).
4.With Centrifugal Speed Limiter in the motor.
5.Two Upper Limit Switches.(included)
6. No power descent in case ofpower failure.
7.Electric Cabinet with IP54 Protection.
8. Emergency descent at controlled speed in case ofpower failure by operating primary
9.Two Travel Limit Disc to halt the ascent at pre-determined height.
10.Emergency Stop.
11.With Handle Switch.
Product Description
1.Electricmagnetic brake incorporated in the Hoist.
2.Two Anti-tilt Safety Lock used on the safety steel ropes.
3. Overload Sensor incorporated in the LTD hoists (optional).
4.With Centrifugal Speed Limiter in the motor.
5.Two Upper Limit Switches.(included)
6. No power descent in case ofpower failure.
7.Electric Cabinet with IP54 Protection.
8. Emergency descent at controlled speed in case ofpower failure by operating primary
9.Two Travel Limit Disc to halt the ascent at pre-determined height.
10.Emergency Stop.
11.With Handle Switch.
