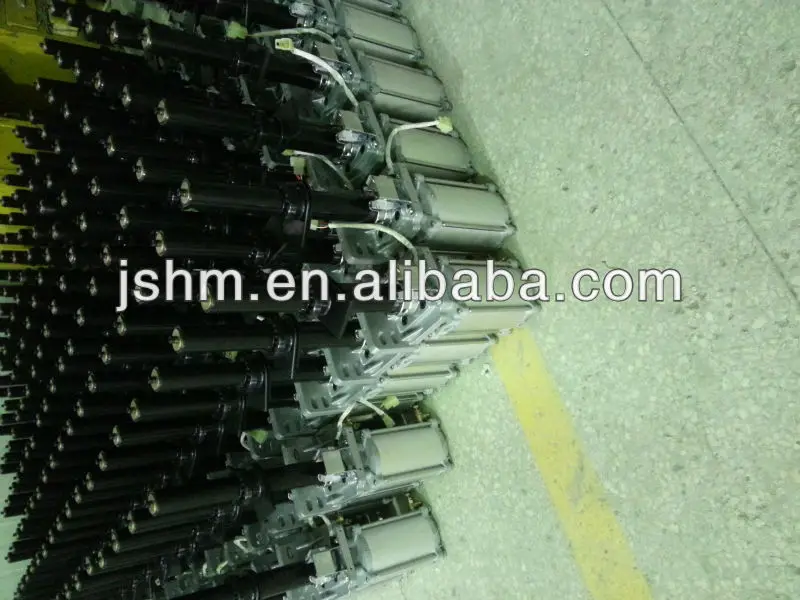

1.MBZ100 Pneumatic Bus Door Pump for Coach/Tourist Bus
2.12V or 24V
3.Driver Seat at right or left
4.Open frontward or backward







MBZ100 Pneumatic Bus Door Pump for Coach/Tourist Bus Consists of:

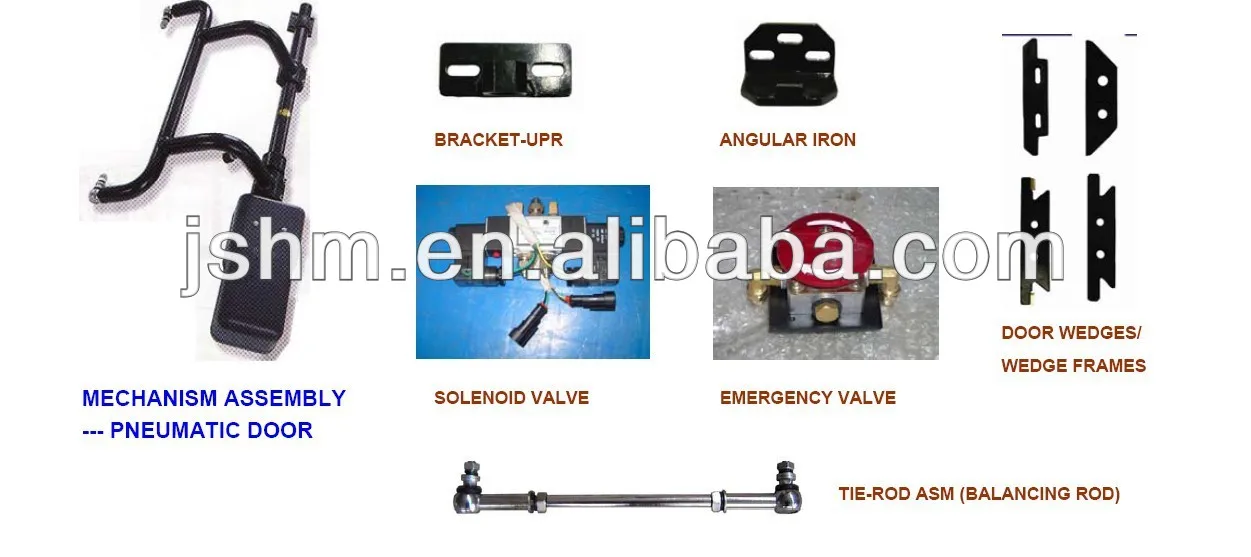

1. Arm asm(including arms, door pillar asm, upr-bracket, tie rod, angular connective irons, door/frame wedges etc.)

2. Pneumatic door mechansim and relevant control units(e.g. emergency valve, solenoid valve, switch)



Technical Data & Specifications



Control voltage	12V,24V
Working air pressure	0.4—0.8Mpa
Swing direction	Left/Right
Max. swing angle	140°
Max. lift height	20mm(at swing angle 140°)
Load capacity	No less than 1000N(at min. load door weight)
Endurance	1000000 times





MBZ100 Pneumatic Bus Door Pump for Coach/Tourist Bus Consists of  two parts- the lower part is a cylinder with cushioning; the upper part is a set of screwing mechanism.

The lower part:in the cylinder the up&down movement of piston realizes close&open operations of door, using the air pressure to drive the screw shaft to lift and drop through the piston movement.

The upper part has three components:

Support:it funcions as 1.the connector between the upper screw mechanism and lower cylinder;2.guiding to the screw shaft working with the spline;3.the bracket of the outer sleeve;4.the primary bearing of the total door weight(thus should be strong enough).

Screw shaft(drive shaft):the priciple part to convert up&down movement to rotating action.

Sleeve asm:rotates along the screw grooves on the screw shaft, driving the arms to swing together.
