1,2379 стальной плоский стержень для инструментов, производство и заводская цена

Product Overview

Description

After several years of development, Sichuan Liaofu Special Steel Industry Co., Ltd mainly produce die steel, high alloy steel smelting, refining, forging, machining, heat treatment of high-quality goods, and formed complete production management system, our company is a private enterprise, the hometown of abrasive tool steel production in China - hubei, the transportation is convenient, the factory has international advanced production equipment, product quality testing equipment.
Company's major equipment: there are 3 tons, 4 tons of electric furnace smelting equipment, 0.5 tons, 1 tons, 3 tons, 5 tons of electroslag furnace, including 3 tons, 5 tons of electroslag furnace and has the function of large steel ingot smelting, steel processing equipment are: active, auxiliary equipment of producer gas generator, continuous heating furnace, annealing furnace, the electric car type annealing furnace.All-hydraulic electric grinding wheel peeling machine, electric band saw, gantry sawing machine, etc.The detection equipment has the chemical analysis, the physical examination, the mechanical performance detection advanced instrument.

AISI D2 /JIS SKD11 din 1.2379 cold-work alloy tool steel

Standards:ASTM,JIS,GB,EN(DIN,BS,NF) Or Per as clients’ requires.

Product Basic Information:



Material		AISI D2
Chemical Composition		Mechanical Properties(In Quenched & Tempered State)
C	1.40-1.60	Tensile strength(MPA)	-
Si	<0.60	Yield strength (MPA)	-
Mn	<0.60	Elongation(δ5/%)	--
Cr	11.00-13.00	Reduction in Area (ψ/%)	-
Mo	0.70-1.20	Impact  (J)	-
P	≤0.030	Brinell  Hardness  (HBW)	<255 cooling with OIL temperature 790+_15c
S	≤0..030
Cu	-
Ni	-





2.Product Application Areas:

Our products have been used in all kinds of areas, such as aviation,aerospace,navigation,nuclear energy,chemical industry,

electronic information,achine manufacture, petrochemical, automotive,instrument and meter, Communication ,transportation, and medical instruments, etc.



3.Similar steel grade & equivalent steel materials:

USA	Japanese	Gemany	British	France	heat treatment	Chinese
ASTM&AISI&SAE	JIS	EN DIN	EN BS	EN NF	ISO	GB
AISI D2	SKD11	X153CrMoV12 1.2379			------	Cr12Mo1v1



Carbon tool steel can be obtained with high hardness and wear resistance. can be used for making tools with high hardness, flexibility, Wear-resisting performance  .such as  punch, blade.

Product Sales Information:

Material	tool steel d2
Size	Diameter:20mm-1000mm Length:500mm-6000mm
Origin place	Made In China
Delivery Condition	Hot rolled,cold drawn,forged
Surface require	Black,grinding,bright,polish
Heat treatment	Quenched,Tempered,annealed
Packing	seaworthy packing ,wooden case ,carton,woven bag or at client's requires
Delivery time	In 10-50 days
Trade Term	EXW,FOB,CIF
Payments	T/T or L/C at sight
Port	China main Port,such as shanghai,Dalian,Shenzhen port.
MOQ	1 Ton

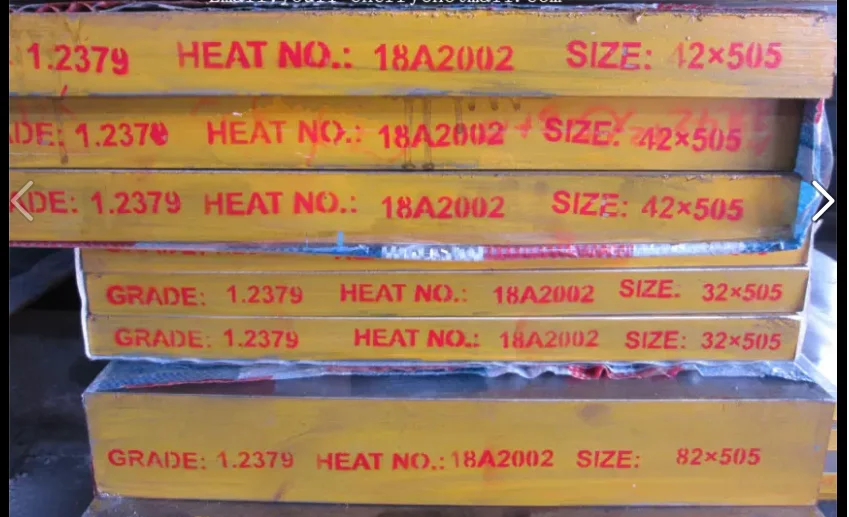

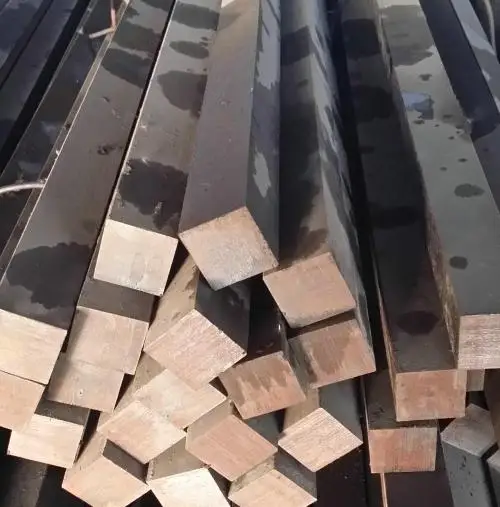

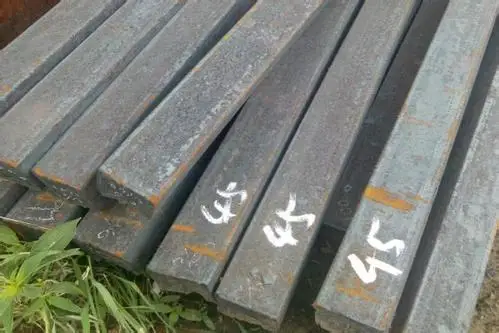

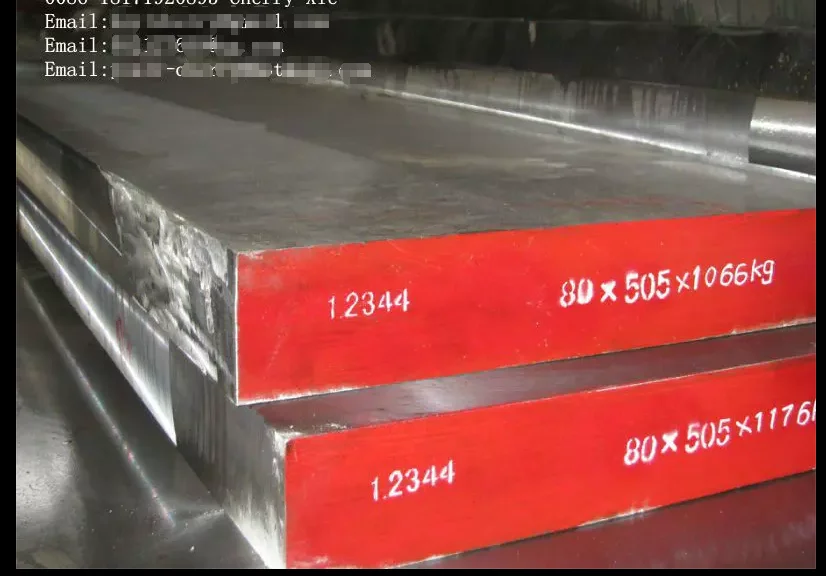

we have sold A2 1.2379 86CRMOV7 1.2344 flat bar and forged round bar to germany,singapore,pakistan and so on,u can find some pictures below

D2 turned surface bar











Product Sales Information:

Material	tool steel D2
Size	Diameter:20mm-1000mm Length:500mm-6000mm
Origin place	Made In China
Delivery Condition	Hot rolled,cold drawn,forged
Surface require	Black,grinding,bright,polish
Heat treatment	Quenched,Tempered,annealed
Packing	seaworthy packing ,wooden case ,carton,woven bag or at client's requires
Delivery time	In 10-50 days
Trade Term	EXW,FOB,CIF
Payments	T/T or L/C at sight
Port	China main Port,such as shanghai,Dalian,Shenzhen port.
MOQ	1 Ton





Company Main Products:



Alloy Steel	5140,5115,5120,5130,5145,4118,4130,4135,6150,5115,4142,4130,4118,6150,4140,4720,4320 ,E9310,8620,4340
Tool Steel	H13,1.2344,SKD61,D2,SKD11,1.2379,1.2510,01,SKS3,95MnWCr5,D3,SKD1,1.2419, SKS31,H21,SKD5,1.2581,P20,35CrMo7,1.2738,1.2316,M2,T7,Cr06,SUJ2
Bearing Steel	GCr15,52100,SUJ1,SUJ2,100Cr6,1.2067,55C,8620,4320,9310,440C,M50,8620h
Spring Steel	9260,SUP6,SUP7,1.7108,54SiCr6,1.7102,5155,SUP9,1.7176,5160,1.7177,6150, SUP10,51CrV4,1.8159,SUP10,
Stainless Steel	317,sus321,1.405,304,SUS304,1.4301,410,SUS410,1.4006,420,1.4021,1.4028, 434,1.4113,316L,SUS316L,1.4435,630,1.4542,431,1.4057,201,202,301,304,305.316



 Factory Manufacture Process:



1.Forged Ingot



 2.Material Taking Machine



 4.in stock
