Full automatic two color EVA injection molding machine

Product Overview

Description

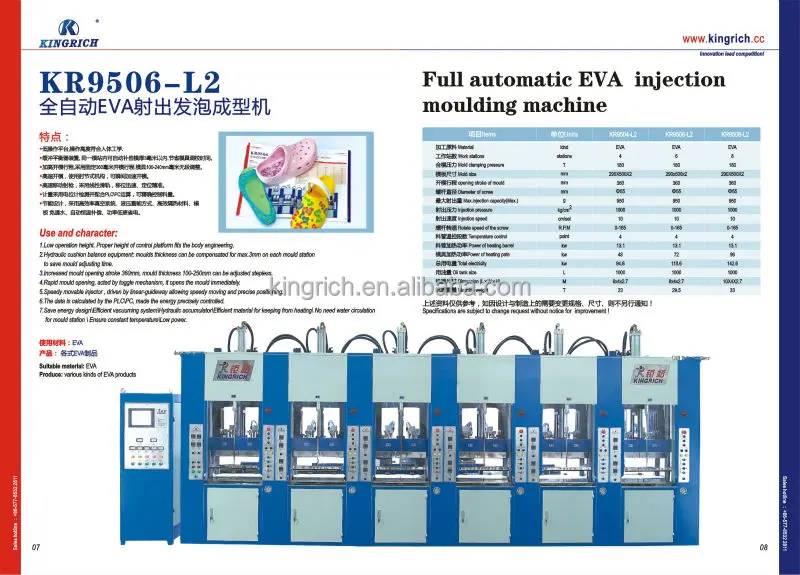

EVA injection moulding machine

No: KR9504-L2  KR9506-L2  KR9508-L2  KR9510-L2

Suit for the material: EVA

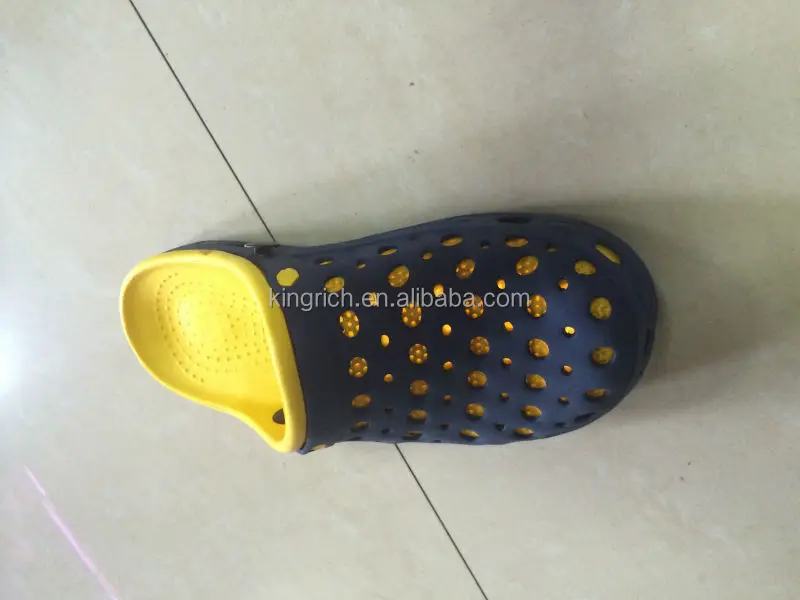

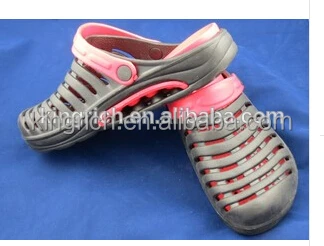

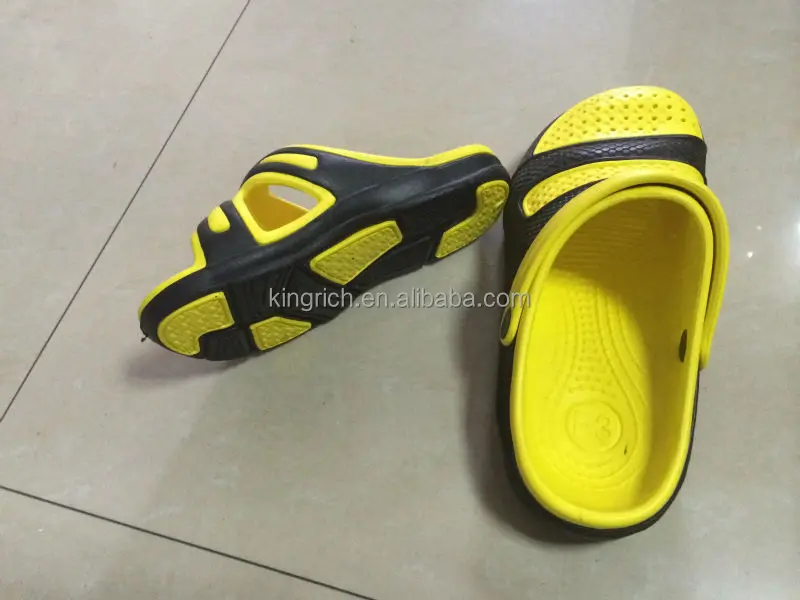

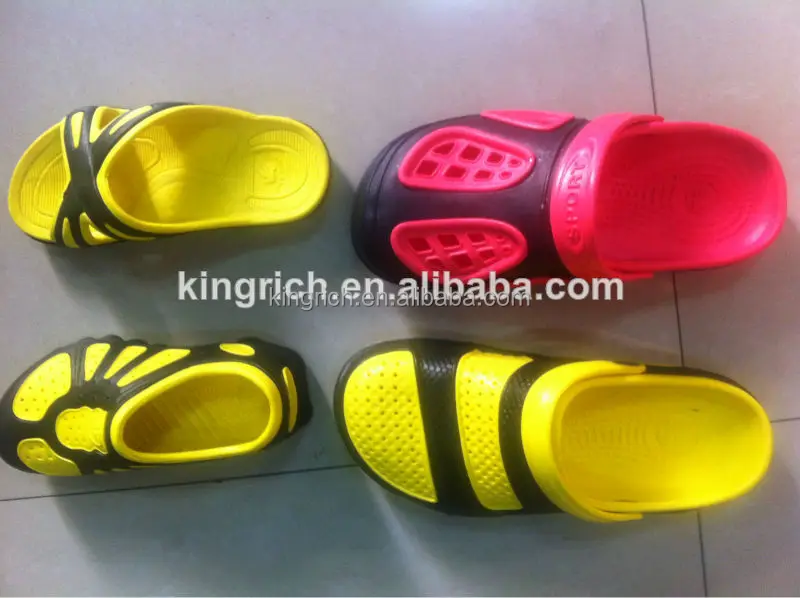

Use for: various kinds of EVA products

Items	Units	KR9504-L2	KR9506-L2	KR9508-L2
Material	kind	EVA	EVA	EVA
Work stations	stations	4	6	8
Mold clamping pressure	T	180	180	180
Mold size	mm	290*500*2	290*500*2	290*500*2
Opening stroke of mould	mm	360	360	360
Diameter of screw	mm	60	55	55
Max.injection capacity(Max.)	g	950	900	900
Injection pressure	kg/cm2	1000	1000	1000
Injection Speed	cm/sel	10	10	10
Rotate speed of the screw	R.P.M	0-165	0-165	0-165
Temperature Control	point	4	4	4
Power of heating Barrel	kw	13.1	13.1	13.1
Power of heating plate	kw	48	72	96
Total electricity	kw	94.6	118.6	142.6
Oil tank size	L	1000	1000	1000
Dimension(L×W×H)	M	6*4*2.7	8*4*2.7	10*4*2.7
Machine weight	T	23	29.5	33



Use and character:

1. Low operation height. Proper height of control platform fits the body engineering.

2. Hydraulic cushion balance equipment:moulds thickness can be compensated for max.3mm on each mould station to save mould adjusting time.

3. Increased mould opening stroke 360 mm,mould thickness 100-250mm can be adjusted step less.

4. Rapid mould opening,acted by toggle mechanism,it opens the mould immediately.

5. Speedy movable injector,driven by linear-guideway allowing speedy moving and precise positioning.

6. The data is calculated by the PLC\\PC, made the energy precisely controlled.

7. Save energy design\\Efficient vacuuming system\\Hydraulic accumulator\\Efficient material for keeping from heating\\No need water circulation for mould station\\Ensure constant temperature\\Low power.



 Machine quality report:
