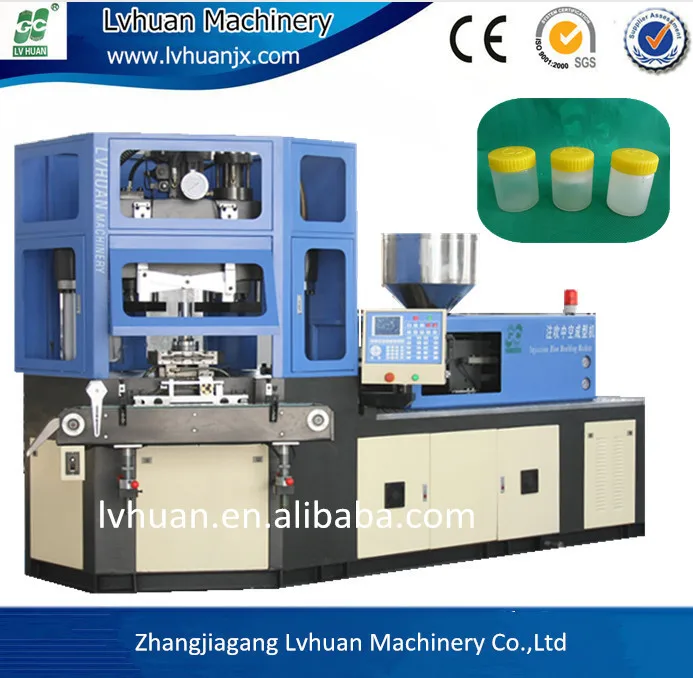

China cheap hdpe pp bottle injection blowing machine with 2 sets of MTC

Product Overview

Description

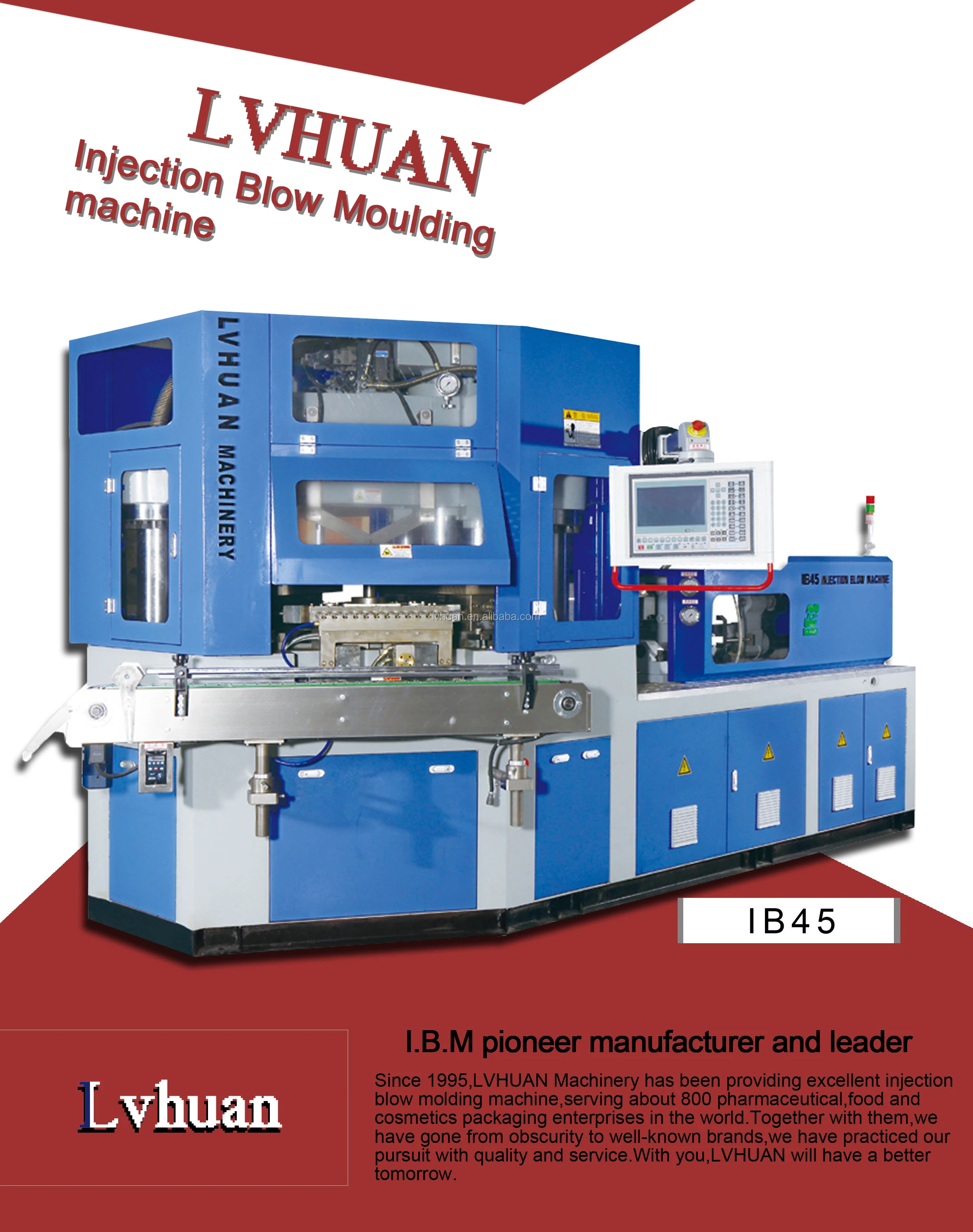

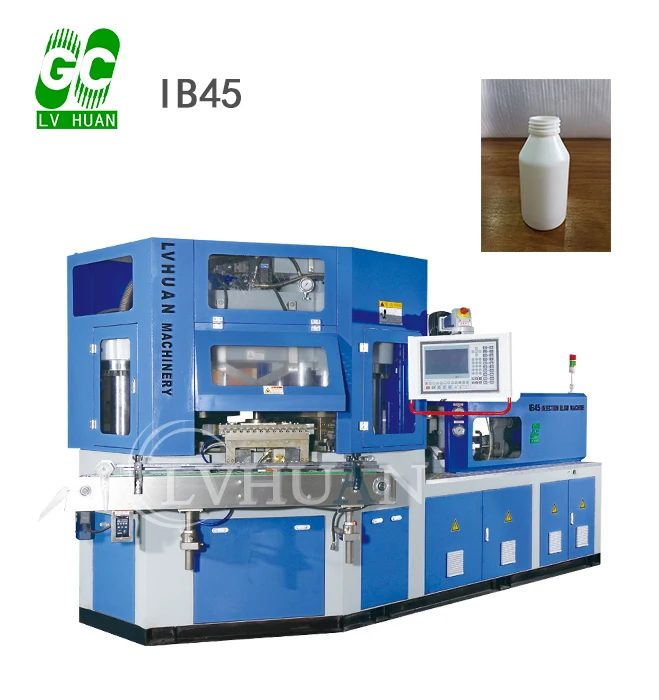

tie-bar high speed 10 seconds 14 pcs IB45 injection blow molding machines

We not only provide precise energy-saving equipment to meet your needs, but also pay more attention to your bottle design, application and future replaceable performance, so that you can manage machine and mould easily, which will help you make continuous progress in the field of packaging application...
Our excellent design ability, for your special bottle shape design, multi-purpose plastic container design to provide thoughtful service.




Product introduction
More than a mold cavity, fast The molding.No burrs and waste,Fully automatic production line.
Precision of the threaded neck collar,Excellent machine performance,Tight suture,The qualification
rate of close to perfect.Pharmaceutical packaging food packaging containers The best partner!

Brand:LVHUAN	Model:IB45	Material:Stainless steel	Place of Origin:Zhangjiagang
Name:Injection blow molding machines

Product characteristics

1). It produces more finished bottles per cycle per hour without deflashing and trimming.
2). It has been designed to make plastic bottle containers with exacting weight,size,volume tolerance and quality.
3). The weight of the product can be pre-set. Excellent mechanical strength, impact -resisting and non-cracking.
4). There is no joint seam at the bottom, and the bottle strength is improved accordingly.
5). The joint seam on the bottle body is smooth.



Product parameters

No.	Item	Data	No.	ltem	Data
1	Dia. Of Screw	45mm	13	Main motor power	22kw
2	Screw L/D	22	14	Pressure of hydraulic system	16.0mpa
3	Max. theoretical capacity	270Cm3	15	Wastage of compressed air	>0.5 M3/min
4	Heating power of cylinder	10.0kw	16	Working Pressure of compressed air	1 Mpa
5	clamping force 0f injection mould	450kn	17	Wastage of cooling water	4 M3/h
6	Clamping force 0f blow	70kn	18	The scope of formability product	0.005-0.8 L
7	Opening stroke of mould	120mm	19	High of formability product	≤200 mm
8	ejector stroke	200mm	20	Dia. of formability product	≤100 mm
9	Rotation table lifting height	60mm	21	Idle time	5s
10	Max Mould size L *W	580x390	22	Outline size L* W* H	3750×1300×2300
11	Min. mould thickness	240mm	23	Machine weigh	6.0T
12	Mould heating power	4kw


About US

Over the past 20 years, LVHUAN has always been the benevolent choice of bottle making equipment for medical packaging. We have been making continuous efforts, from obscurity to familiarity; from single product injection blowing equipment to the whole series of injection blowing machines,injection stretch blow moulding machine, extrusion blow moulding machine etc.,we are working tirelessly for high-quality container packaging. Hope that on the way to the future, you can witness our efforts and walk hand in hand.

illustrate in detail

Operation platform
1. Fully automatic operation save time and effort
Electric cabinet
2. Excellent electrical system which guarantees the reliable operation of the equipment

High-Speed tie bar patent
3. Leading high speed rod structure Faster production cycle
The fuselage
4. Up to the standard of medical stainless steel exquisite cover design
5. Excellent injection molding system and temperature protection
