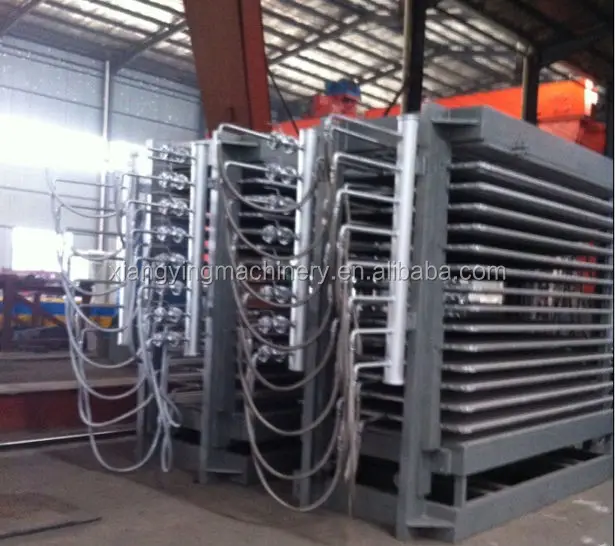

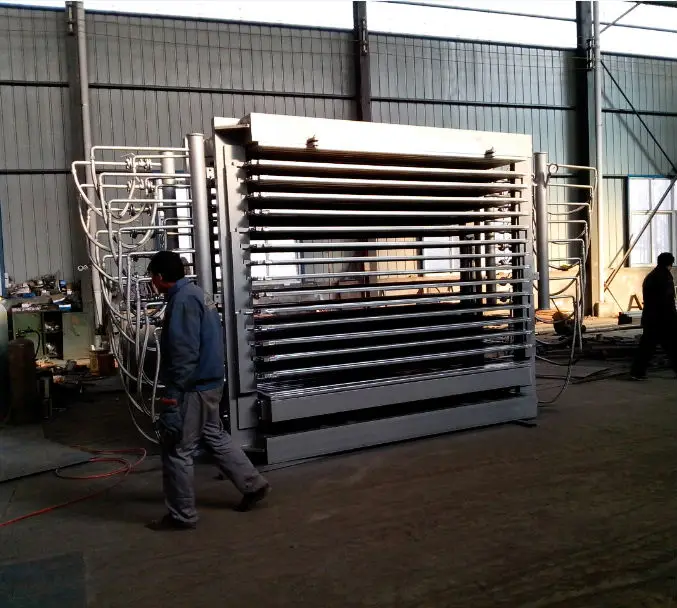

Plywood Hot Press

Product Overview

Description

 Main Technical Data of Plywood Hot Press



1) Parameter of Plywood

Width	2440mm
Length	1220mm
Thickness	2~40mm



2) Rate of Production

Aout	700 sheets/ day (20 hours, 16 mm base)
Remark	Rate of production depends on board, resin, paper, temperature, pressure etc.



3) Electric Power

Power	380v/ 50Hz, Three phases, AC
Total Power	15+7.5 kw



4) Heating (prepared by the buyer)

Medium	Thermal Oil
Capacity of Boiler	25*104 Kcal/h



5) Net Weight: Approx 30 ton





Equipments of Plywood Hot Press and Details



Total Pressure	5000 kn
Board Size	2440*1220 mm
Feeding Direction	From Length Side
Up Heating Platen Size	1370*2700*42 mm
Daylight Opening	70 mm
Main Oil Cylinder	Φ 360 mm * 2pcs
Main Oil Cylinder Working Stroke	1050 mm
Closing Time With Loading	≤ 25 s
Thickness of Frame Steel Platen	40 mm
Structure	Frame, Structure, Welded
Main Motor Power	22.5 kw
Weight	Approx 35 ton
