high quality high speed wire drawing die polishing machine(factory ISO CE)

Product Overview

Description

wire drawing die polishing machine



feature

1.Wire drawing machine
2. Have factory
3. Confirm to all test certifications
4. Energy-efficient & low pollution
5. Good after-sales services
6.We can also design machine with your reference .





Function

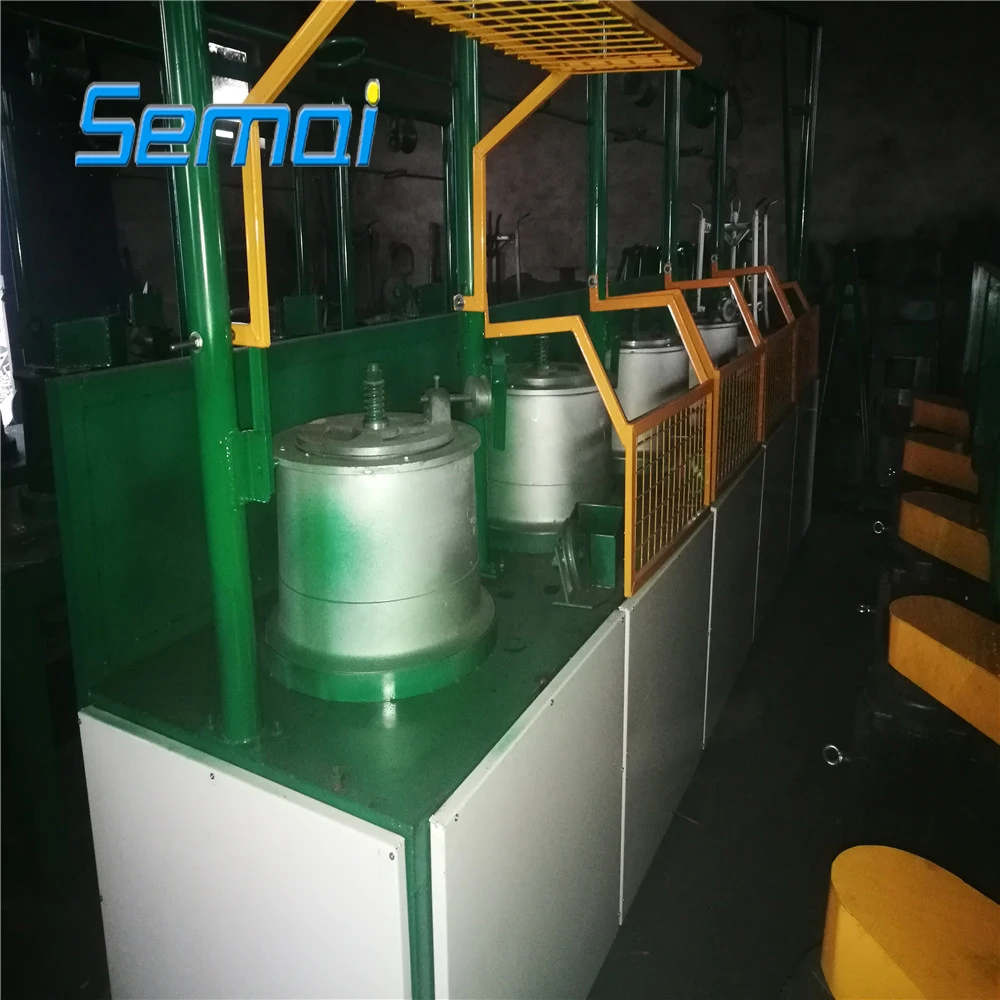

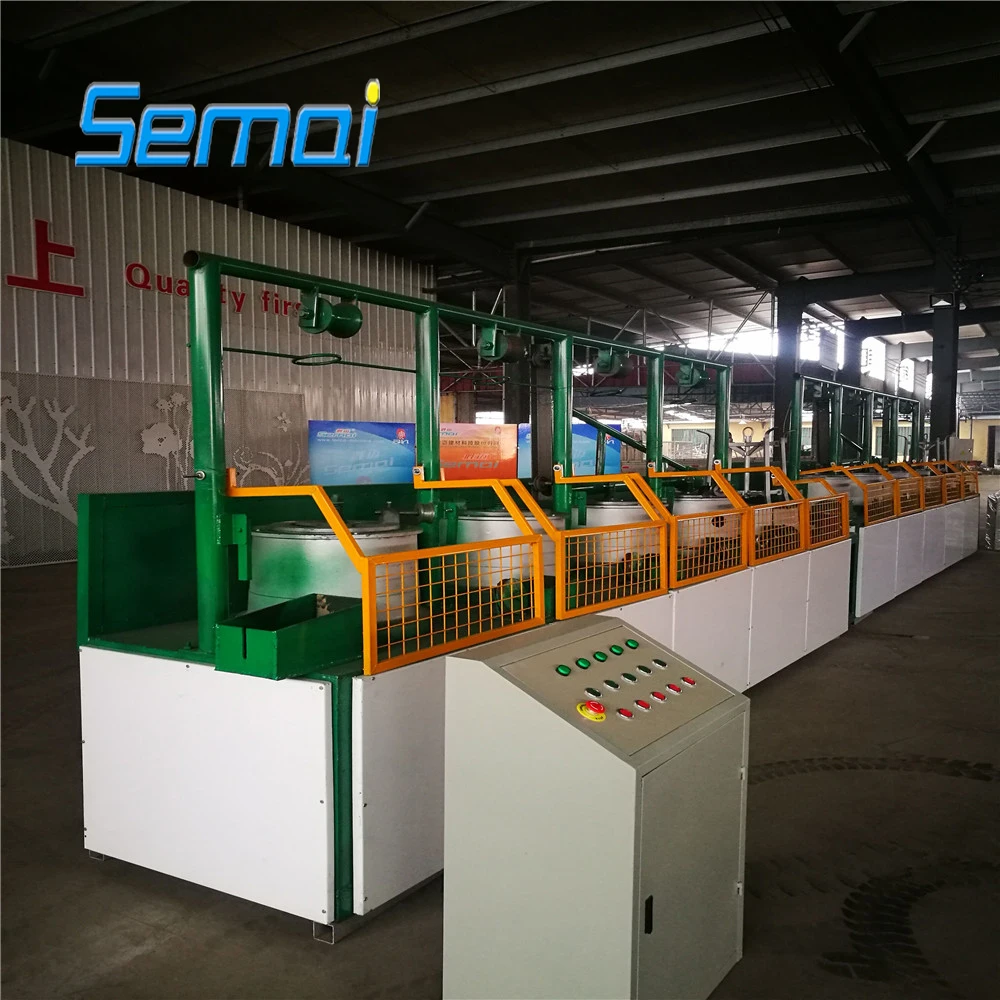

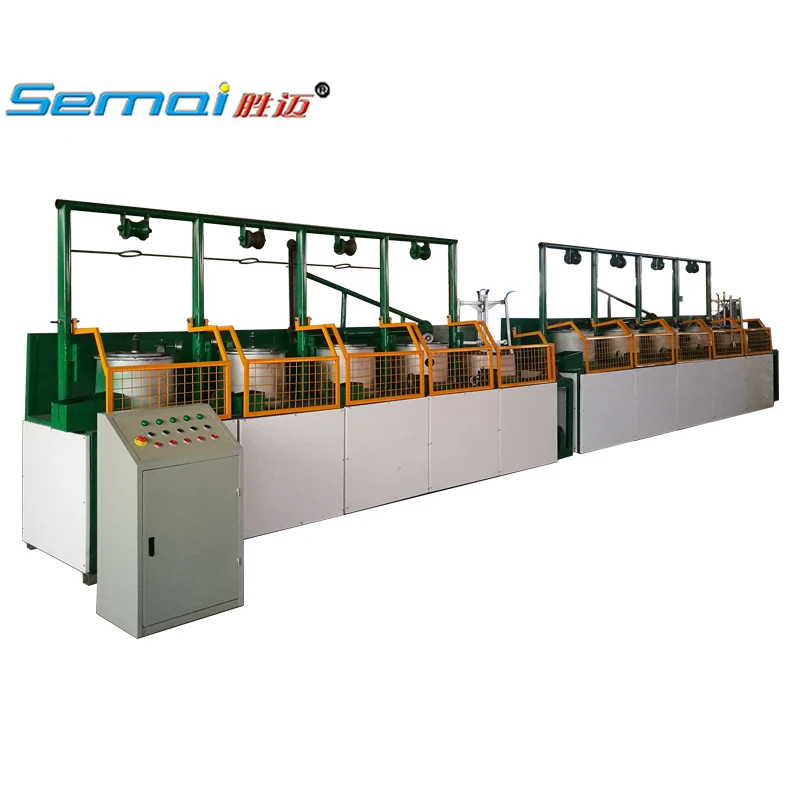

This steel wire drawing machine is used to draw iron, copper, aluminium wires, mainly for mesh weaving, construction, galvanization, or supply for the wire drawin of water tank.

This steel wire drawing machine includes 2 drum-uint,3 drum-uint, 4drum-unit, 5drum-unit.

steel wire drawing machines can be ordered according to the need of our customers.



specification



Items	Unit	LZ9-12/1200	LZ10/800	LZ9/700	LZ10/560	LZ10/400
Reel diameter	mm	900	800	700	560	400
Draw passage	time	9-12	10	9	10	10
Incoming dia	mm	Φ14-8	Φ10-8	Φ8-6.5	Φ6.5-5.5	Φ14-8
Outgoing dia	mm	Φ5-3	Φ4-3	Φ3-2.5	Φ2-1.8	Φ1-0.8
Wire darwing line	m/min	300	360	480	720	840
Incoming strength	Mpa	≤1300	≤1300	≤1300	≤1300	≤1300
Total compressibility	%	87.24-85.94	84-85.94	85.94-85.21	90.53-89.29	87.24-84
Average compressibility	%	20.48-19.58	18.42-19.58	19.58-19.13	21.00-20.02	18.61-16.74
Single motor power	Kw	110-90	90-55	75-55	37-22	15-7.5





usage

Suitable for drawing a variety of fine metal wire especially suitable for drawing low-carbon steel wire, galvanized wire, tire steel wire, stainless steel wire, hose steel wire, spring steel wire, welding wire as well as aluminum pole, copper wire etc.



company profile

Anping County Shengmai Metal Wire Mesh Manufacture CO.,LTD  is engaged in the production and development of Hot dipped Galvanized Temporary Fencing , Movable Fence, Barbed wires and filter cylinder. We are located in the famous Wire Mesh Land of China-Anping, Hebei Province, China. we have developed into a famous enterprise in wire mesh business.Following ISO9001 standards strictly and paying attention to prestige and contracts, we have won markets and got customers' good reputations.



Contact us,you will find a good supplier!
