2. Specification
| Panel Specification---- From samsung lcd monitor | |
| Model Number | WW-WN-7008 |
| Panel Size | 70inch |
| Display area | 1549.44*871.56mm |
| Brand | From Samsung/Lg/Auo A grade new panel |
| Resolution | 1920*1080 |
| Display Color | 16.7M |
| Pixel Pitch | 0.4835(H)*0.4835(V)mm |
| Brightness | 360cd/m*2 |
| Back Light | LED |
| Aspect ratio | 16:09 |
| Response time | 6.5MS |
| Contrast | 4000:1 |
| View angle | 178°/178°(H/V) |
| Life time | >60,000 hours |
| Video Specification | |
| Resolution | Max 1080P HD |
| Video Format | RM/RMVB, MKV, TS, FLV, AVI, VOB, MOV, WMV, MP4 etc |
| Audio Format | MP3, WMA, APE, Flac etc |
| Picture Format | JPG, BMP, GIF etc |
| Input Function | |

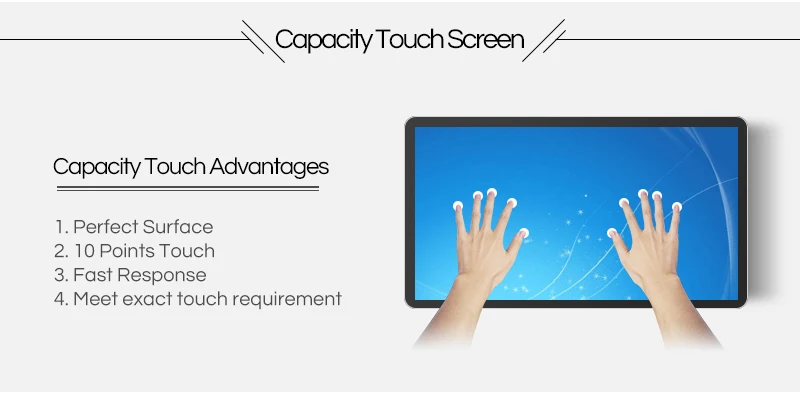

| Multi touch(Infrared/Resistance/Capacitive) | Support |
| Remote control | Support |
| USB Mouse/Keyboard | Support |
| Output Function | |
| Horizontal/Vertical Showing Mode | Support |
| 1080P HD Dot to Dot oIutput | Support |
| LVDS/HDMI/VGA/AV | Support |
| Advantages | |
| Time Switch | Turn on/off automatically |
| Rolled Text | Showing on the bottom of the panel |
| Calendar | Support |
| Weather | Support |
| Logo | Support |
| Splicing Screen | Support Video/photos/rolled text/weather/Calendar/logo showing in the same screen at the same time |
| Android Board Specification | |
| Processer | Cortex-A8 1.5GHZ |
| Mainboard | Allwinner A20 |
| RAM | 1GB |
| Flash Memory | 4GB |

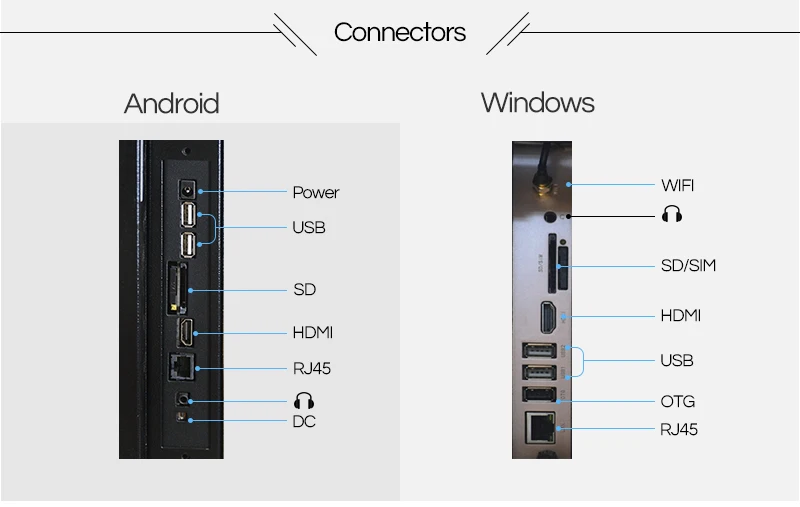

| HDMI | 1 |
| USB | 1 |
| Network | Ethernet RJ45, 10M/100M |
| Audio | built-in HD audio 8(Realtek ALC888) audio system |
| Operating System | Android 4.2 System |
| WiFi model | Support 802.11N Home using Version |
| OSD Language | |
| Menu Language | Chinese, English, Spanish, Russian, German, French, Arabic, etc. |
| Environment | |
| Working Temperature | 0°C to 40°C |
| Storage Temperature | -20°C to 60°C |
| Working Humidity | 20%-80% |
| Storage humidity | 5%~95% |
| Power | |
| Power Supply | DC +12V |
| Maximum power consumption | <=4.5W |
| Standby power consumption | <=1W |

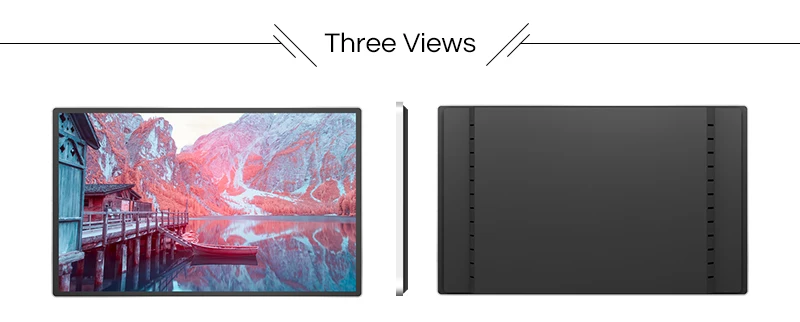

| Appearance | |
| Dimension | 1710(H)mm*1062(W)mm*60(D)mm |
| NetWeight | 110kgs/pcs |
| Color | White, Black, Silver, Golden, Customize based on Pantone number |
| Material | Cold Rolled Steel, Aluminum, Stainless Steel |
| Installation | mounted on the wall |
| Certificcates | CE/FCC/ROHS/C-TICK/BV/SASO |
| Accessories | CD, Screws, Keys, Power Cable, Warranty Card, User Manual |
| Package | |
| Package Step | Foam+Carton box+Wooden box |
| Package Dimension | 190*90*125cm/pcs/wooden box |
| Gross Weight | 150kgs/pcs/wooden box |
3. Packaging Method & Certificates

4. Applications

5. Payment terms and shipping time
| Shipping Method | |
| By Express(DHL/UPS/FEDEX) | 3~5days, door to door |
| By Air | 5~7days, to the Airport Only |
| By Sea | 5~30days, to the Seaport Only, depend to the Country |
| EXW Factory | All cost bared by client |
| FOB Shenzhen | Arrange the goods to the ship, after that all cost bared by client |
| Delievery Time | |
| Regular Sample | 7~15days once receive deposit |
| Customize Sample | 30~35days once receive deposit |
| Quantity Order | 15~20days once receive deposit |
| Payment Term | |
| Western Union | 30% in advance with order, 70% before shipment |
| T/T | 30% in advance with order, 70% before shipment |
| L/C | 30% in advance with order, 70% before shipment |
| Warranty Time: ONE year since Client Receive the Good | |
| Under Warranty | Seller will Bare the problems if cause by unartificial |
| Out of Warranty | Buyer will Bare the problems, Seller will support help if needed |
