15mm motor pm stepper gear stepper motor 12v

Product Overview

Description

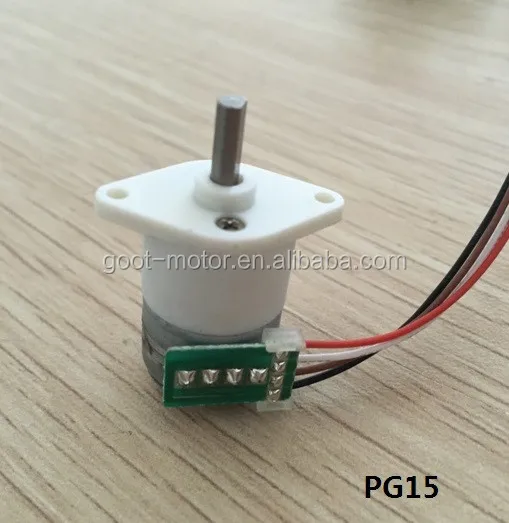

15mm motor pm stepper gear stepper motor 12v



1. Motor diameter: 15mm;

2. Voltage: 5V, 12V(could be customized);

3. Step Angle: 18 degree;

4. Reduction Ratio: 1/20, 1/50, 1/100, 1/210, 1/298, 1/380, 1/1000

4. No. of Phase: 2 Phase(Bipolar 4 Wires),

5. Motor can be customized;

6. ISO9001-2008 Certified; RoHs meeted.





Manufacturers of Permanent magnet(PM) Stepper Motor & PM Synchronous Motor:









1. PM Series:

Diameter	8mm	10mm	15mm	20mm	25mm	35mm	42mm	55mm
Model No.	PM8S-020	PM10S-020	PM15S-020	PM20S(L)-020	PM25S(L)-048(024)	PM35S(L)-048(024)	PM42S(L)-048	PM55L-048









2. PG Series: PM Stepper Motor with gearbox(with different gear ratio) & BYJ Series

Diameter	10mm	15mm	20mm	24mm	25mm	28mm	35mm	42mm
Model No.	PG10S-020	PG15S-020	20BYJ46	24BYJ48	PG25S-048	28BYJ48	35BYJ46; PG35L-048	PG42L-048





3. PL Series: PM Linear stepper motor(with lead screw):



Diameter	8mm	10mm	25mm
Model No.	PL8S-020	PL10S-020	PL25S-048(024)







Application :

HVAC/R Valve Actuation

Office Automation Printers, Copiers, Data storage

Medical Applications Pill dispensing Analysers

Telecommunication Antennae positioning Switching lines

Other Industries & Applications Robotics



Highlights :

Excellent open loop control - No encoders necessary

Digitally controlled - Easy to use with a micro processor

Cost effective - compact design, lower integration cost

Maintenance free - motor is brushless

Winding possibilities – Bipolar







Specification



Model No.	Voltage(V DC)	No. of Phase	Step Angle(Deg.)	Gear Ratio	Winding Resistance(Ω)	Max. Pull-in Rate(PPS)	Pull-in Torque (g.cm)	Figure
PG15S-020-01/20	5	2	18/20	1:20	30	800	60 (at 350PPS)	1
PG15S-020-01/50	5	2	18/50	1:50	30	800	270(at 350PPS)	1
PG15S-020-90/50	5	2	18/50	1:50	30	800	300(at 500PPS)	2
PG15S-020-134/100	12	2	18/100	1:100	60	1100	500(at 350PPS)	3
PG15S-020-122/210	5	2	18/210	1:210	10	1100	1200(at 500PPS)	4
PG15S-020-90/298	5	2	18/298	1:298	30	800	1000(at 300PPS)	1
PG15S-020-111/380	5	2	18/380	1:380	10	1100	2500	4
PG15S-020-134/1000	12	2	18/1000	1:1000	60	1100	3000	3

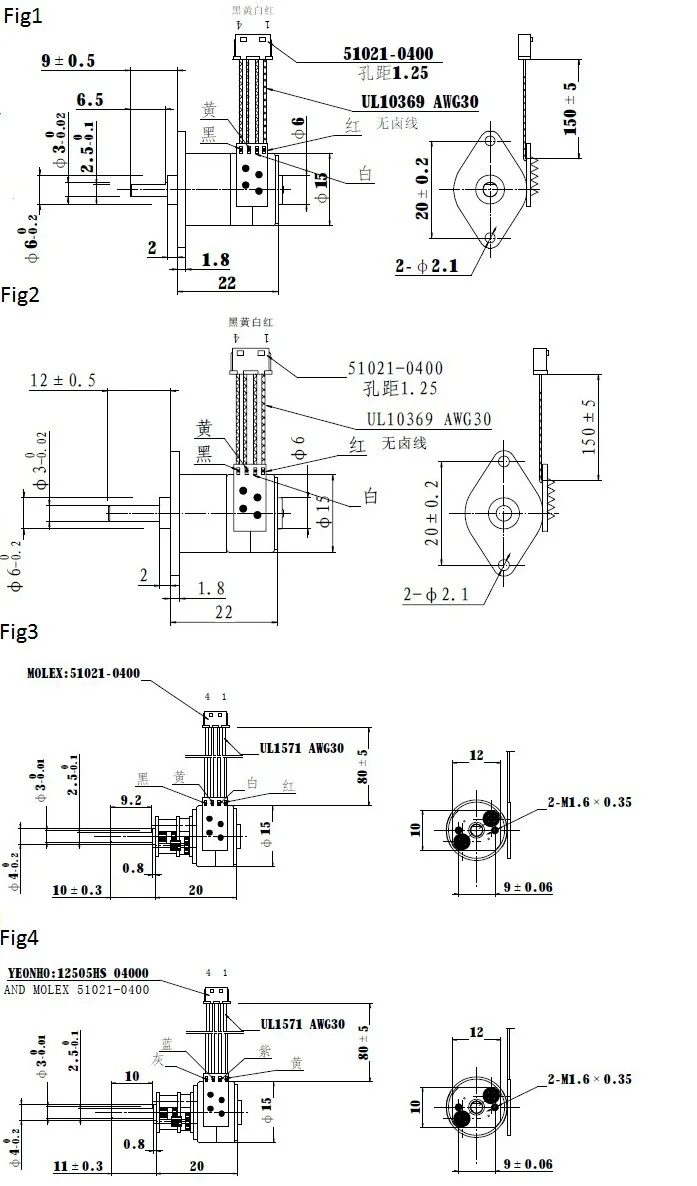

Dimension:

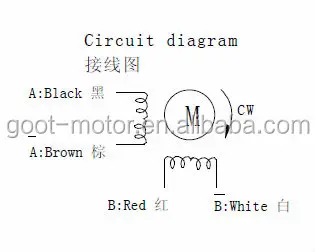

Wire Diagram





Customization On Call

Coil Modifications - Resistance and Inductance.

Magnets - to yield higher linear force or reduced detent levels.

Higher Strength Plastics for higher impact forces.

Reduced or increased Detent Force to suit the application.

Screw  - metric or imperial tips, length.

Special Flanges, Connectors, End of motion detection sensors.

Wire Harness - connectors, pins, lead length, shrink tubing.
