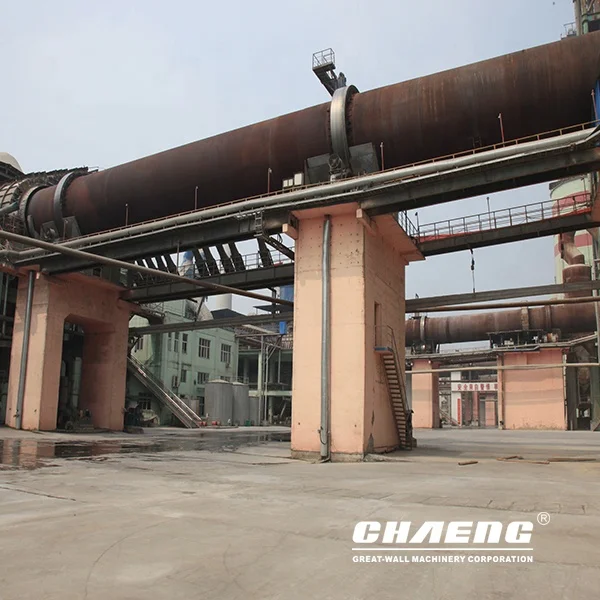

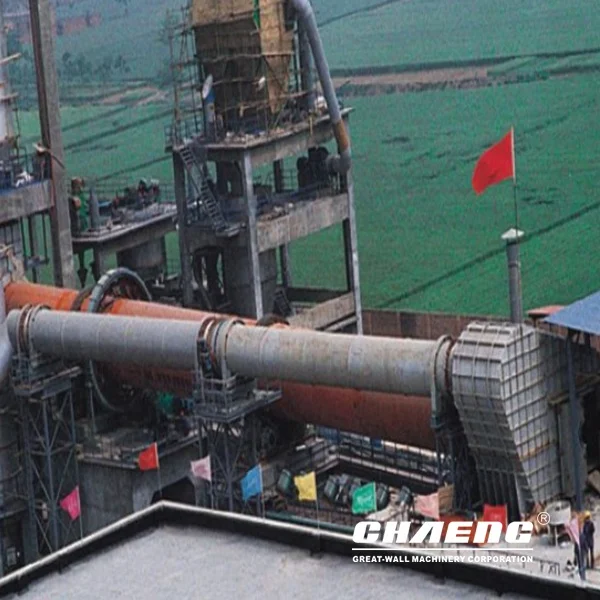

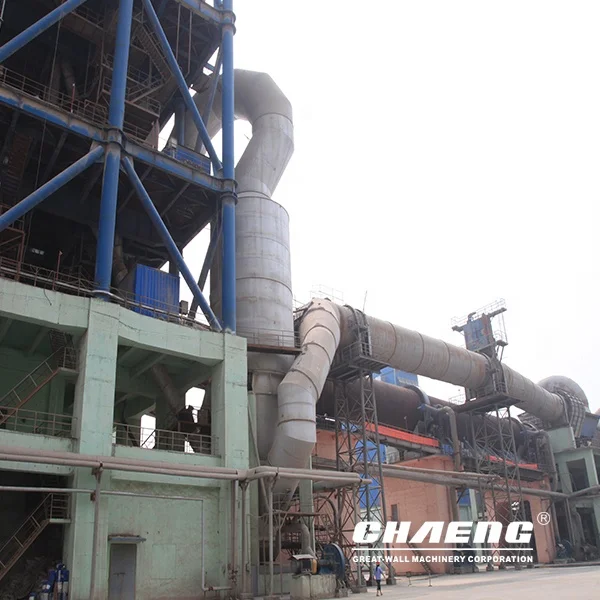

Cement clinker rotary kiln production capacity and process for cement plant

Rotary kiln is used for making of cement clinker and there are dry and wet methods to make cement. metallurgy chemical kiln is used for magnetic roasting of iron ore and oxidizing roasting of chrome and nickel in the steel factory; baking high-alumina mine in the refractory material factory.

CHAENG cement rotary kiln can meet 300-3000 t/d cement production line construction requirements, with simple operation, high production production, smooth operation.

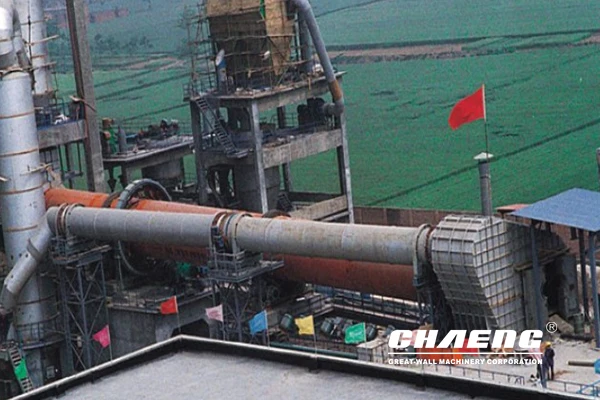

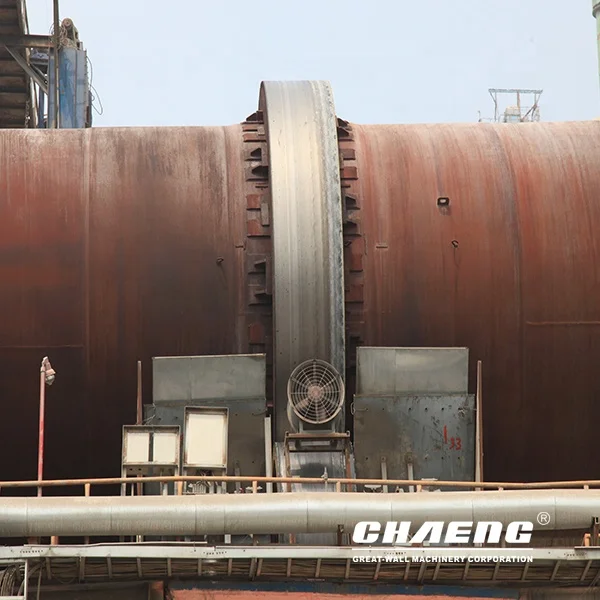

In appearance, the kiln body is inclined to a certain level. The whole kiln body is supported by supporting roller and equipped with thrust roller to prevent it from moving up and down. In addition to the main drive, the transmission system is also provided with an auxiliary driving device which can still rotate the kiln body and prevent the bending of the kiln body when the in the main power supply is off. The material is fed into the upper end of the air cylinder. As the cement kiln rotates, the materials gradually move towards the lower end, and they may go a certain amount of stirring and mixing. Hot gas goes through the rotary kiln, in the same direction with the processed materials, but usually in the opposite direction. The hot gas may be generated in an external furnace, or may be generated by flames inside the kiln. They are repetitively scattered in the air so that they are in full contact with the hot air, the materials are dried gradually)

The kiln head and kiln end adopts advanced sealing technology to ensure the reliability of the seal.

CHAENG new dry cement rotary kiln is currently the most reasonable investment in a rotary kiln equipment. Compared with the traditional wet rotary kiln, it is the best for cost saving and pollution reduction in cement production industry in the world.

1.Cement rotary kiln can be used in 300-3000 t/d cement plant

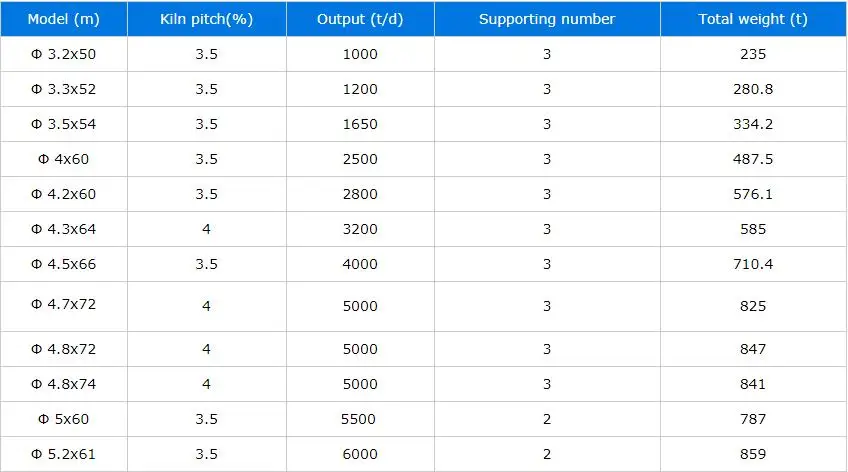

CHAENG cement rotary kiln has φ3.2 × 48m to φ4.8 × 74m and other specifications, cement rotary kiln can meet the customer's different production configuration.

2.Advanced technology, easy maintenance

Through the technology innovation, rotary kiln calcination system uses the world's most advanced hydraulic wheel device to solve the problems that traditional rotary kiln equipment temperature is not easy to control, product quality is not stable, as well as the problems of environmental pollution and low heat problems. It has good finished product quality, and high yield.

3.Environmental protection, applied in different industries

4.CHAENG provides a full set of cement equipment parts, CHAENG also provides a variety of cement rotary kiln spare parts.

Xinxiang Great Wall Machinery Corporation, located at National Sustainable Development Experiment Area, Mengzhuang Town, Huixian City, Henan Province, China, was initially built in 1958 and restructured into limited liability Company from township collective enterprise in 2002.

The company now has over 500 sets of various machining equipments. The main equipments include Φ10m Russian Double Column Heavy Vertical lathe and Φ10m gear hobbing machine produced in Russia, T6920 boring and milling machine produced in Czech, WIISTNC120 × 3000 type upper roller numerically controlled universal lapping machine, Φ6 .3m × 20m cylinder lathe, the largest and the most advanced 6m × 6m× 16.5m cylinder integral electric heating automatic-controlled annealing furnace in China machinery industry, five 150t automatic submerged arc welding production lines, about 50sets of 150t, 100t and 75t,etc overhead travelling cranes and 2 sets of 30t alkaline arc furnace. The specifications of the equipments are complete with advanced technology, and the company has formed powerful whole set processing capacity with annual processing capacity of 80000t.

The main products are:

GRM series raw material vertical mill, cement mill that can cater to below 10000t/d cement production line, and the series slag vertical mills with annual production capacity of 0.3 million ton, 0.6 million ton and 1.0 million ton.

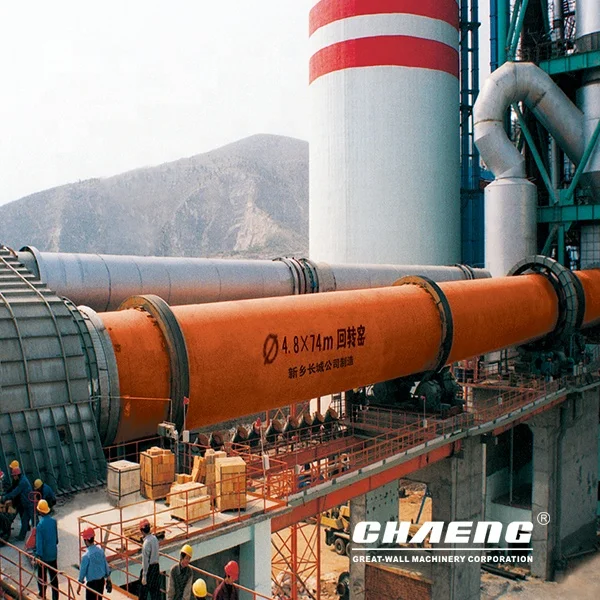

Φ4.8m×74m,Φ4.5m×66m,Φ4.3m×66m,Φ4.2m×60m series of NSP rotary kiln

Φ4.2m×13m cement grinding mill and other ball mills

Rod mill and trellis pattern overflow mill for coal chemical industry and alumina industry; and the relevant supporting equipments for cement production lines.

Great Wall Company would like to join hands with our old and new customers and friends from home and abroad, carry out good faith cooperation and create brilliant together. We welcome friends from all circles to visit for investigation and guidance.

Pre-sales Service:

The wide product range enables us to provide our customers with stand-alone machines or complete processing plants. Based on our customers’ request and budget, our experts make efficient, reliable solutions. Following customers’ order we produce strictly, what’s more, before placing the order every customer has the chance to visit XinXiang Great Wall (Chaeng) working machines or complete plant in the site.

To ease the trip for every visitor to China, in particular the first-time visitor, we provide FOR FREE all relevant visitor-friendly services including invitation letter preparation, hotel reservation, airport pick-up, incity transportation, and sightseeing guide, etc.

After-sales Service:

Experienced technicians guidance is available on the phone, and on the internet. One or more engineers will be dispatched to the quarry site to help install the customers’ plants. Necessary training about machine daily maintenance to local workers is provided also.

After-Sales department is made of well-trained employees and installation engineers, the installation engineers are special and professional members of XinXiang Great Wall (Chaeng), they are now strategically located home and abroad, working for our customers.
