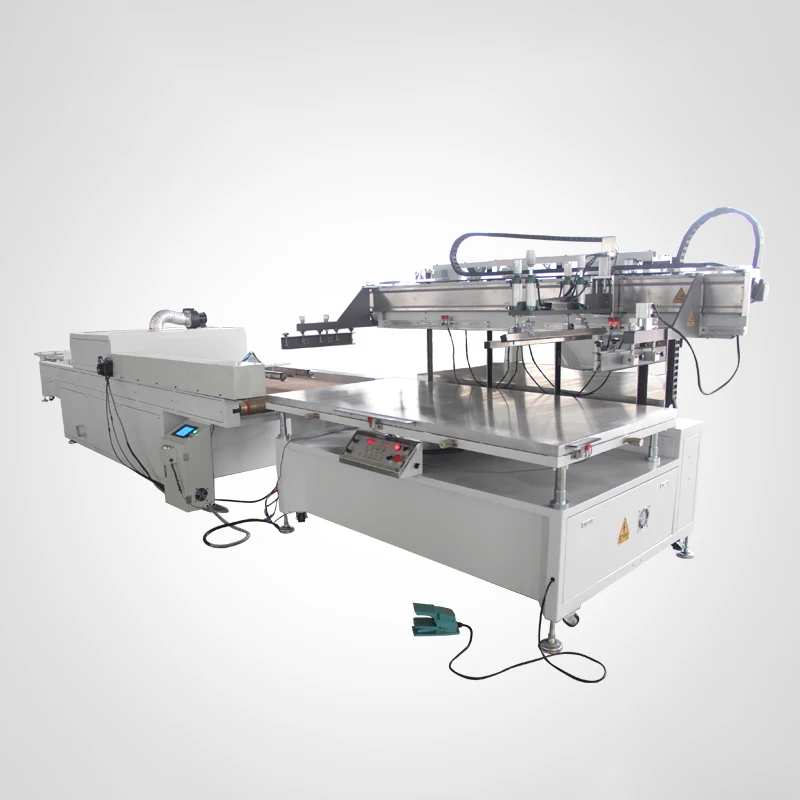

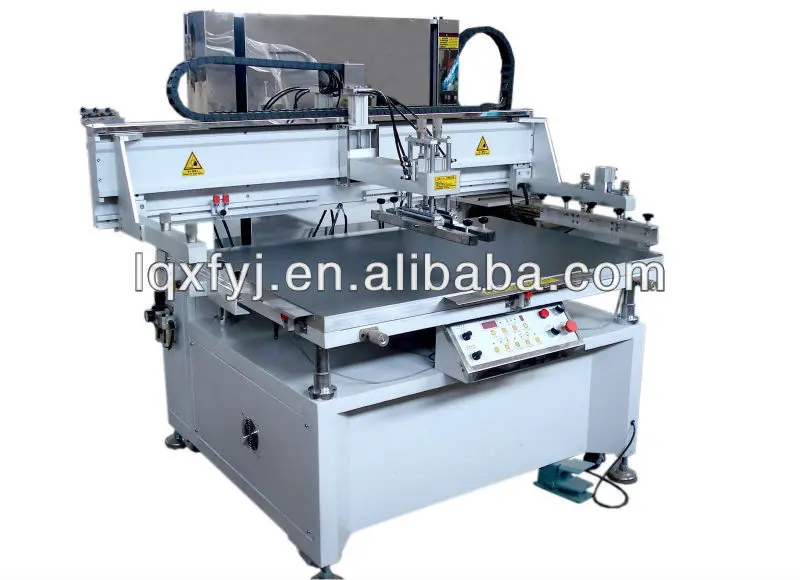

Vertical semi auto flat bed serigraph printing machine for sale

Product Overview

Description



Manufacturer of vertical flat silk serigraph printing machine for sale





1. Scope of application:



1)This silk serigraph printing machine series are widely used in the electronics, advertising, package printing, sports equipment, toys, stationary gifts, metal processing industries.



2)silk serigraph printing machine suitable for printing on all kinds of flat materials, print on metal, glass, wood, paper, plastics, membranes switch, PCB, PET heating transfer film,tempered glass,auto windshield,light guide plate,DC card,nameplate ,also printing on bags,non-woven fabrics, ceramic decals, glazing plate glass, label and panel , refrigerator and air-conditioner decals,plastic sheet, and other products with the material of  PVC, which have high requirement in overprinting.



2. Feature:



1).The silk serigraph printing machine platform is adjustable and moveable, which make it convenient to take the material.



2).vertical structure, printing plate moves up and down vertically, printing stroke is driven by imported electrical components.



3).The silk serigraph printing machine adopts Japanese Mitsubishi PLC control circuit, printing and plate moving up &down are driven by independent Current Source.



4).silk screen printing machine blade moving up and down is pneumatic controlled, printing stroke is controlled by photoelectric eyes, with independent adjustment.



5).Procedures set three-mode, manual / semi-automatic /automatic settings, the time interval during printing is digital controlled.



6).Independent designed machine head moves up and down, which makes it easy to unload and clean the printing plate, scraper / ink reclaiming blade.



7).Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.



3. Product details:





Product Name Semi auto flat silk screen printing machine Model XF-80120 Condition New Automatic Grade Semi Automatic Color & Page Single Color Voltage 380V Gross Power 4.15 KW Dimensions(L*W*H) 1860*1400*1900mm Weight 580kg Warranty one year Printing area 1200*800mm Maximal frame 950*1630mm Printing thickness 30mm Flat Size 1300*900mm Printing frequency 1150Hr Overprint accuracy 0.01mm Flat precision +-0.05mm Printing pressure 0.6-0.8kg/square cm Payment & shipping terms Minimum Order Quantity: 1 Set/Sets Port: Qingdao Packaging Details: wooden case,Dimension 2060*1600*2100mm,Weight:600kg,it is suitble by sea. Delivery Time: one week Payment Terms: L/C,T/T, Supply Ability: 100 Set/Sets per Month  After-sale service: 1) According to the requests of the consumers,install & debug product. 2) According to the requests of the consumers, the use and other aspects of technical guidance. 3) To ensure the supply of repair parts. 4) Responsible for the repair service. 5) On the product of "Three Guarantees".

Technical parameters Model XF-4060 XF-5070 XF-6090 XF-80120  XF-70140 XF-10200 Max Printing area(mm) 400*600 500*700 600*900 800*1200  700*1400  1000*2000 Printing table size(mm) 500*700 600*800 700*1000 900*1300  800*1500  1100*2100 Max frame(mm) 650*930 700*1100 850*1300 950*1630  900*1600  1350*2430 Flat precision(mm) ±0.05 ±0.05 ±0.05 ±0.01 ±0.01 ±0.01 Printing thickness (mm) 30 30 30 30  30  30 Over print accuracy (mm) 0.01 0.01 0.01 0.01  0.01  0.01 Printing pressure  kg/cm2 0.6-0.8 0.6-0.8 0.6-0.8 0.6-0.8  0.6-0.8  0.6-0.8 Printing frequency /Hr 1150 1050 950 850  850  700 Voltage/power V/kw 380/2.1 380/2.45 380/2.45 380/4.15  380/4.15  380/5.6 Equipment weight kg 380 450 500 580  630  750 Overall dimensions (L*W*H)(mm) 1130*1050*1620 1280*1100*1620 1500*1160*1620 1860*1400*1900  2060*1300*1900  2600*1500*1680

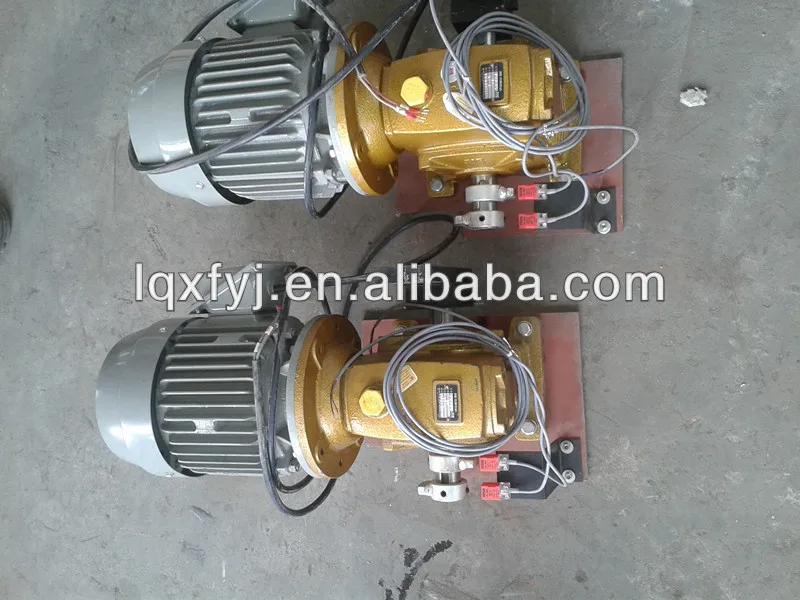

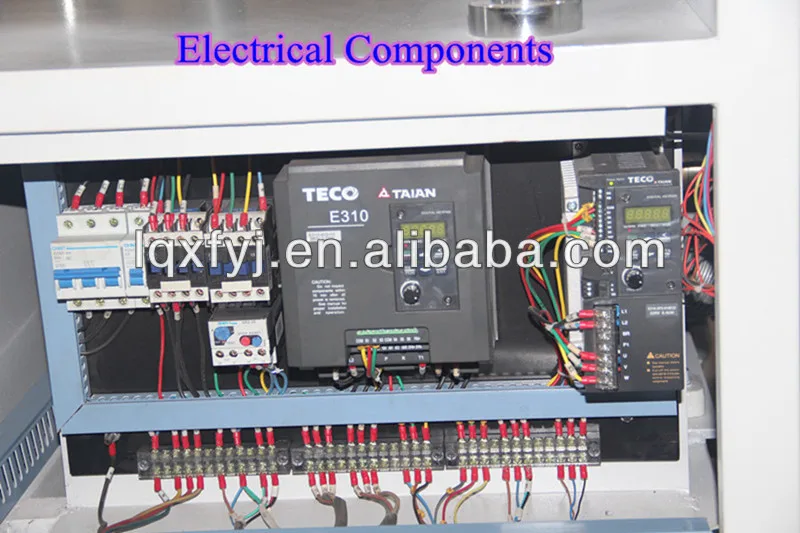

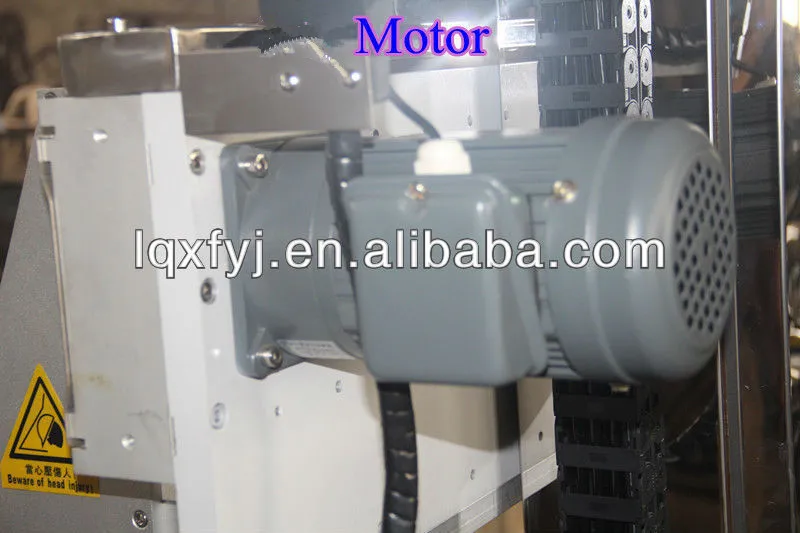

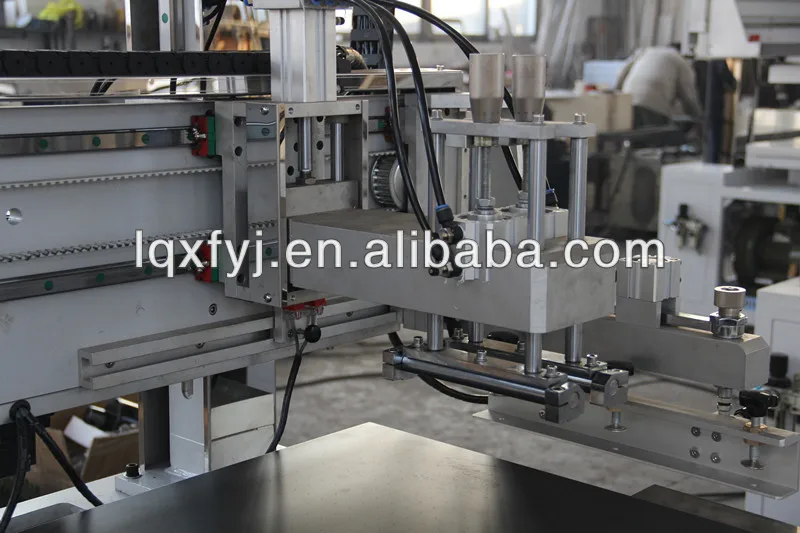

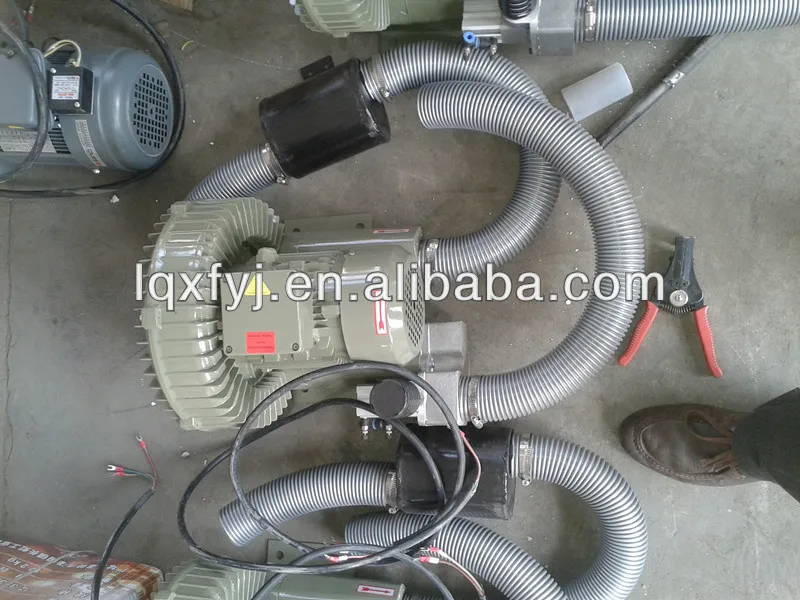

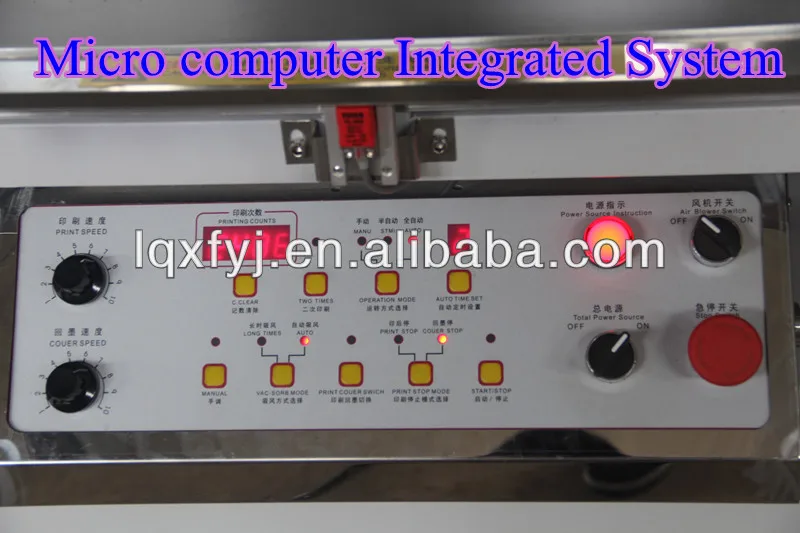

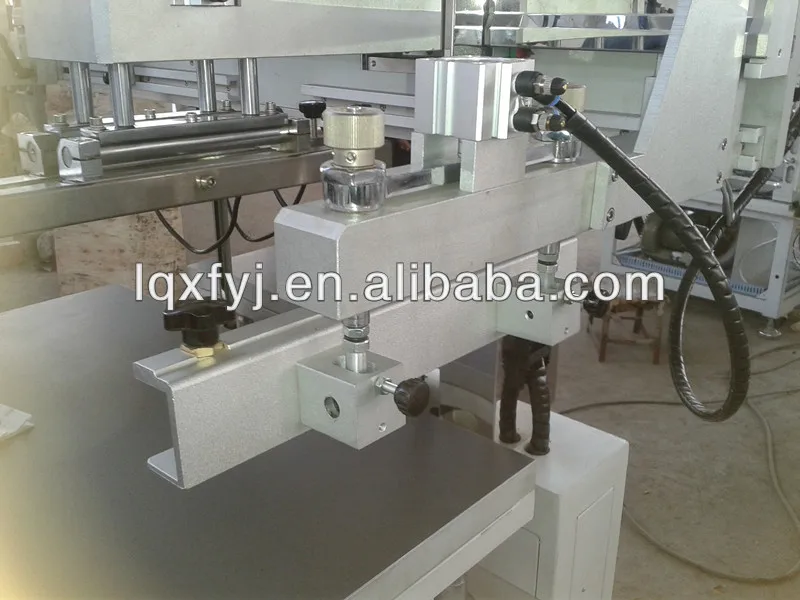

  4. Product & some of componets picture:

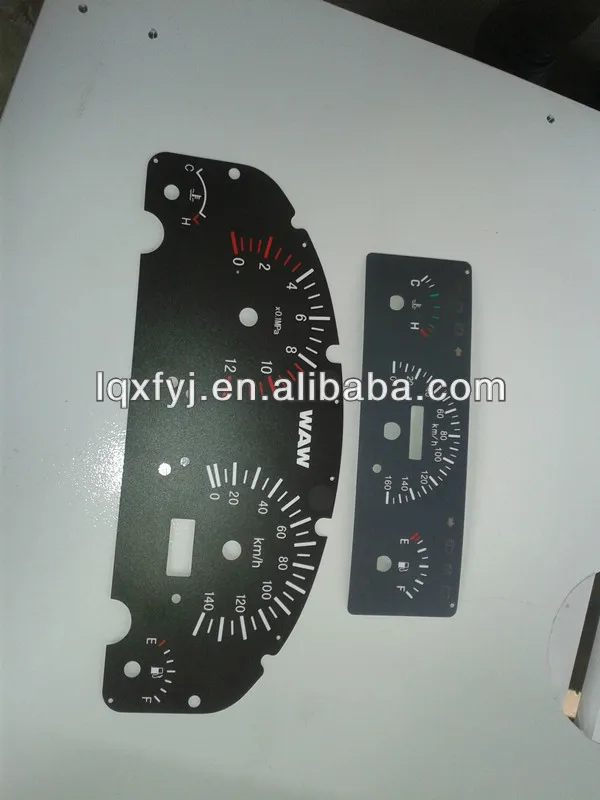

5. silk screen printing machine printing sample:
