Description

Poloso RFNT3 Laptop Battery Tester ,Charge, discharge and test Functions fit for most of laptop batteries!!!

Function:

*Charge: Active, pre-charge, constant current and constant voltage are the stages of charging mode. The initial charging mode depends on the battery voltage, so active and pre-charge don't happen to every batteries.

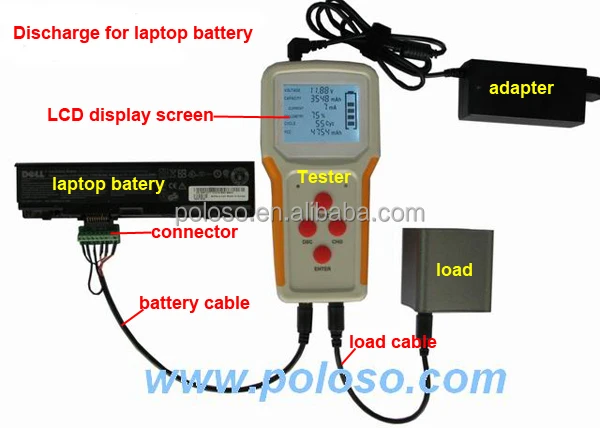

*Discharge: Constant current discharge for double loads.

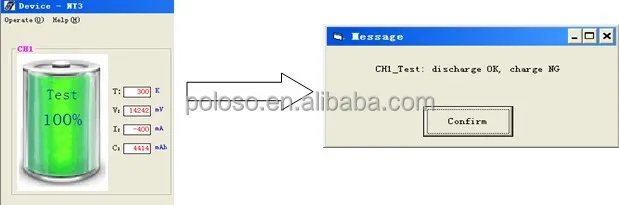

*Test: Testing time is 30 seconds and the purpose is to check both the charging and discharging performances

.

*Capacity Correction: The battery capacity value in the battery management chip will different from the actual capacity after a battery goes through many recycling cycles. It will affect the use of the battery when the difference reaches a certain degree. Capacity correction is to deep discharge a battery and then fully charge, which will correct the capacity value in the battery management chip.

*50% Capacity: CD50%: charge firstly, and then discharge to 50% capacity DC50%: discharge firstly, and then charge to 50% capacity

*Online Functions: Tester can be connected with master machine via a USB port. Users can monitor, control and set parameters via Battery Manager software in the master machine.

*Monitoring: Battery information can be monitored via three windows.

*Control: Battery Manager can control slave machine completely. Right-click menu on the battery bar includes the related commands.

*Parameters: Users can set working parameters via set parameter window in Battery Manager.



Features:

*With one channel, supporting one intelligent battery

*Supporting charge, discharge, test, capacity correction, charge / discharge 50% capacity

 *LCD for displaying battery information *LED for indicating working status

*With charge-key, discharge-key, backlight-key and function-key

*Pre-charge, fast charge and constant voltage charge for charging stages and the variation range of the values of the constant current and the constant voltage is less than 1%

*Constant current for discharging *With a USB port for connecting with computers, master machine can monitoring and control slave machine



Parameters:

Model	RFNT3
Usage	Test, charge, discharger laptop battery
Color	White

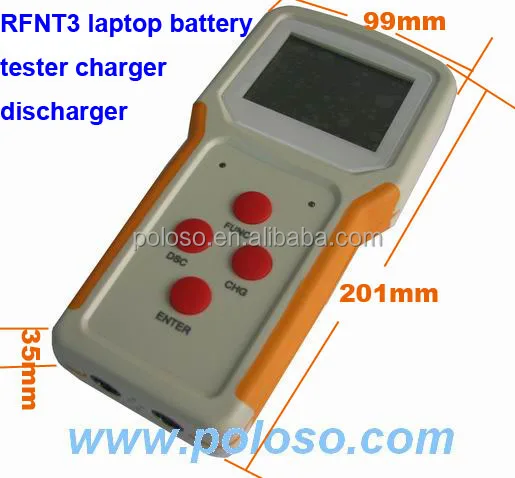

Dimensions	201 x 99 x 35 mm
Weight	333g
Input	AC 100 ~ 240 V
Output	DC 19V 4.74A
Working temperature	0~50°C 20%-90% RH
Storage temperature	-20°C~60°C 10%-95% RH
Protection	low power consumption in standby modes, over-temperature protection, overload protection,
Charging mode	Constant current + constant voltage
Maximum charging current of each channel:	2.5A
Maximum charging time	8 hours
Display mode	Segment LCD with white backlight + LED in red and green
Warranty	One Year!

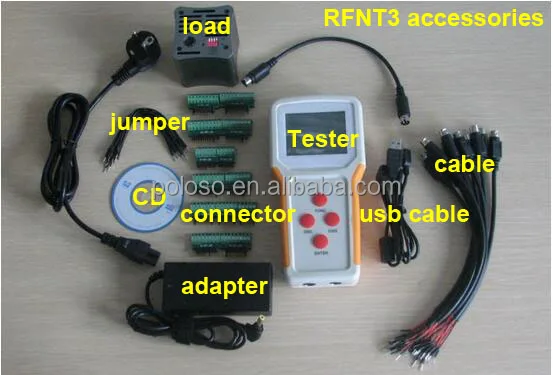

Accessories:

1 x Tester

1 x Load

1 x Adapter

1 x USB Cable

1 x CD

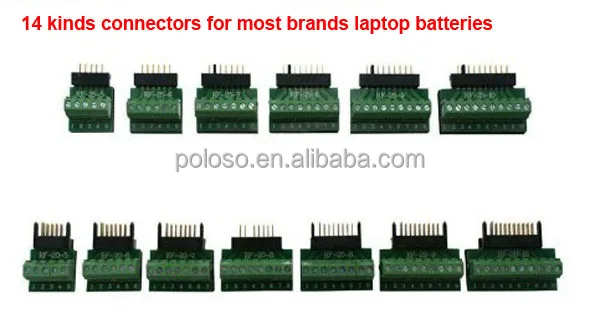

14 x Connectors

10 x cable

10 x Jumper Wire
