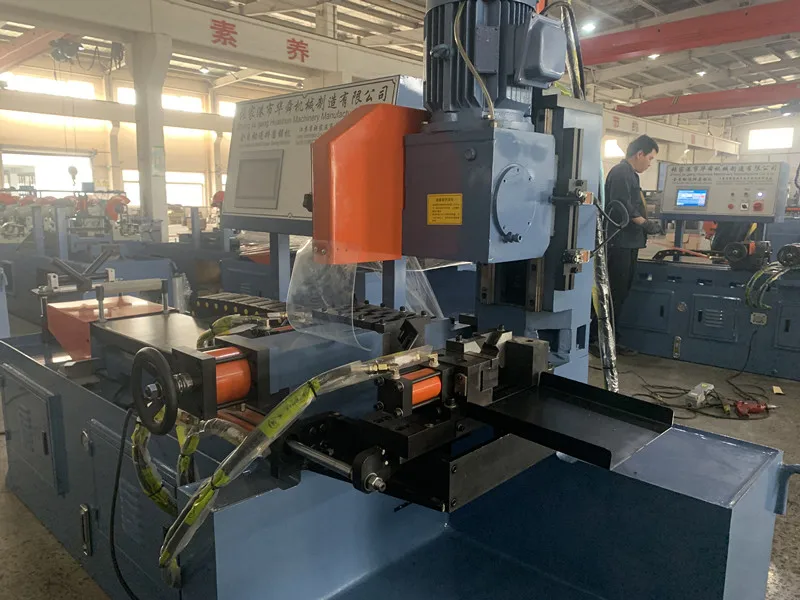

Hot sale pipe hole cutting machine
- Category: Other Metal Cutting Machinery >>>
- Supplier: Zhangjiagang Huashun Machinery Manufacturing Co. Ltd.
Share on (1952506746):
Product Overview
Description
Science & Technology & Service -- Achieve Huashun
Huashun keeps on improving products and successfully develops complete series of pipe processing machines, ranging from micro-computer controlled SB & DB pipe bending machine, GY rolling machine, MC cutting machine, TM pipe-end forming machine, MC metal circular saw machine, EF chamfering machine, CH ARC strike machine, SX riveting machine and some other automatic machines.
Final Products

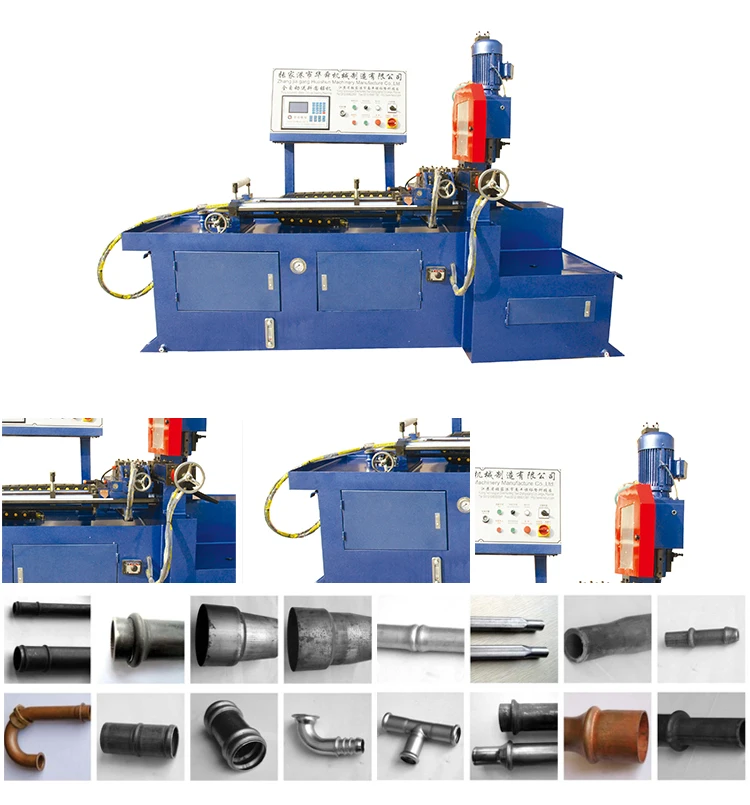

Pipe Cutting Machine Sample
Main Products

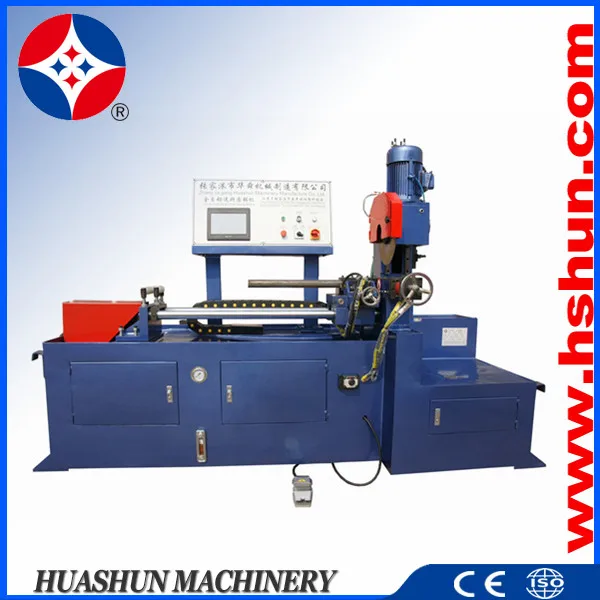

HS-MC-400NC Automatic Pipe Cutting Machine.
* Automatic Hydraulic Feeding,Automatic Hydraulic Clamping and Automatic Hydraulic Cutting
* Hydraulic driven saw head for cutting motion.
* Hydraulic Feeding Transmission.
* Human Interface offers easy access to auto and manual operating modes.
* Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum...

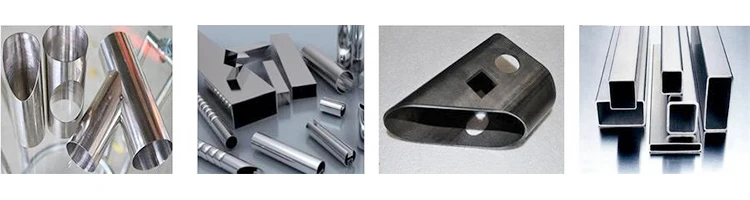

* Cutting Shape Available: Round,Square,Rectangle,Solid bar,other profiles...
* Small Noisy
* Clamping, saw blade advancing,backward, clamp releasing are all hydraulic driven.
* Good cutting quality for tube internal and external without burs.
* Water cooling and lubricate system prolongs the life of machine and saw blade.
* Good mechanical parts ensure machine runs in high stability.
* CE, ISO9001 Certification
* Hydraulic driven saw head for cutting motion.
* Hydraulic Feeding Transmission.
* Human Interface offers easy access to auto and manual operating modes.
* Material Available: Carbon Steel,Stainless Steel,Copper,Aluminum...
* Cutting Shape Available: Round,Square,Rectangle,Solid bar,other profiles...
* Small Noisy
* Clamping, saw blade advancing,backward, clamp releasing are all hydraulic driven.
* Good cutting quality for tube internal and external without burs.
* Water cooling and lubricate system prolongs the life of machine and saw blade.
* Good mechanical parts ensure machine runs in high stability.
* CE, ISO9001 Certification
Machine Details

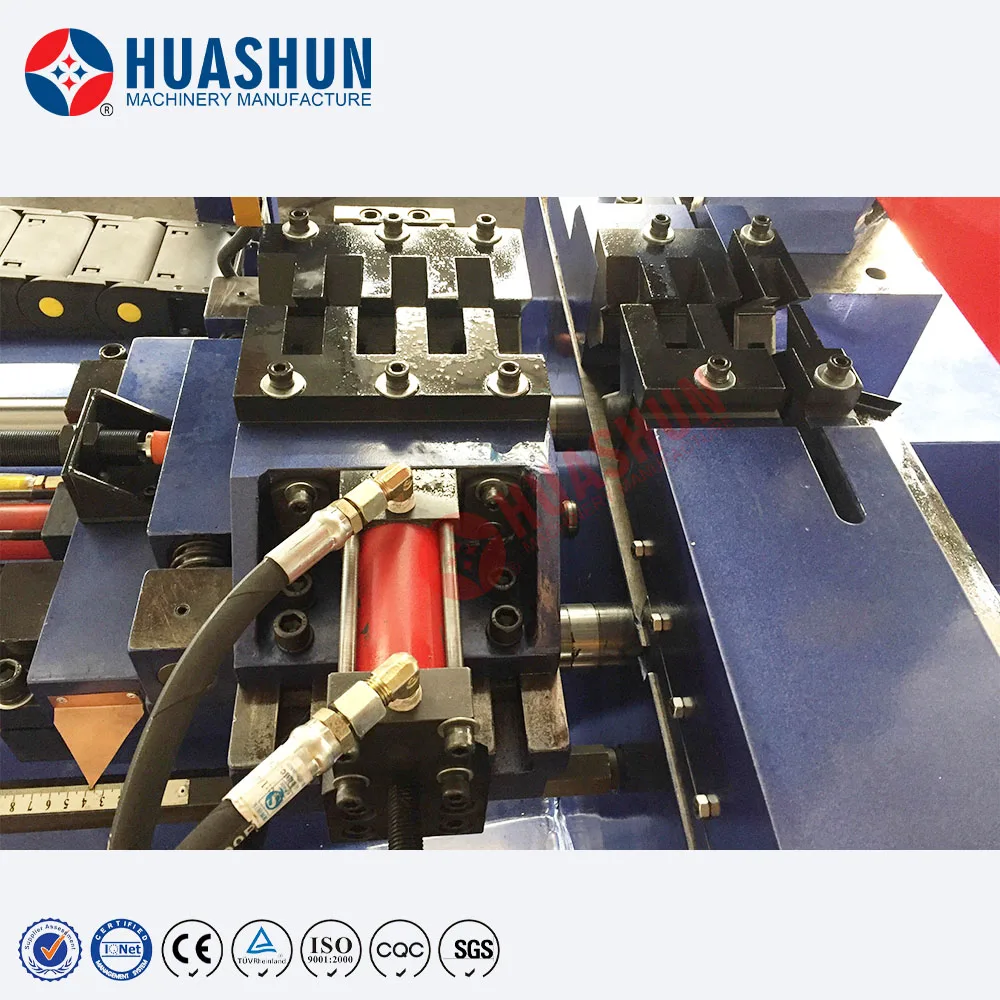

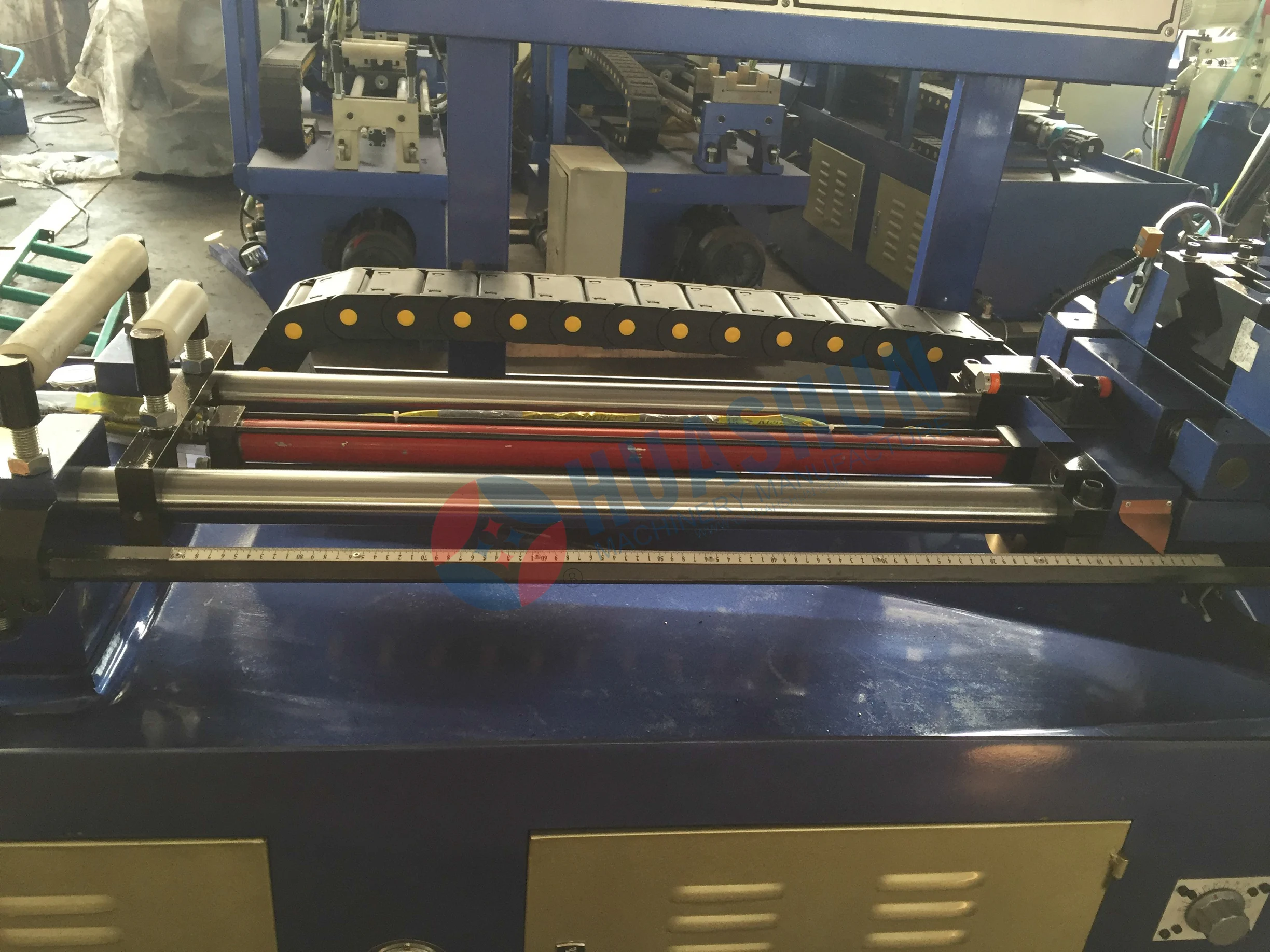

Machine details.
The automatic pipe cutting machine can automatically clamp the material, feed the knife, feed the material, set the size, stop at a fixed number and measure the work. The main circuit of the machine uses PLC programmable logic controller to work. Automatic feeding, clamping and cutting system, feeding accurate and fast.
Want to know more details about our machine, inquiry us now!
Product Paramenters
Model | MC-400NC |
Cutting Capacity | 120mm |
120*120mm | |
120*90mm | |
120*90mm | |
25mm*9pieces | |
Cutting Head Motor Power | 4.5/5.5 KW |
Hydraulic Pump Motor Power | 4 KW |
Cooling Pump | 90 W |
Feeding Accuracy | +/- 0.15mm |
Feeding Length | 6-700mm/one time |
Saw Blade Size | 275/300/315/350/400 |
Machine Dimension | 2800*1100*2000 |
Machine Weight | 1680KGS |
Recommend Products
Pipe Cutting Machine.
Pipe Cutting Machine MC-275AC
Pipe Cutting Machine MC-275F
Pipe Cutting Machine MC-315AC
Pipe Cutting Machine MC-315F
Pipe Cutting Machine MC-315Y
Pipe Cutting Machine MC-325A
Pipe Cutting Machine MC-355V
Pipe Cutting Machine MC-400NC
Pipe Cutting Machine MC-425CNC
Pipe Cutting Machine MC-275F
Pipe Cutting Machine MC-315AC
Pipe Cutting Machine MC-315F
Pipe Cutting Machine MC-315Y
Pipe Cutting Machine MC-325A
Pipe Cutting Machine MC-355V
Pipe Cutting Machine MC-400NC
Pipe Cutting Machine MC-425CNC
If you want to know more model types machine, inquiry us now!
Why Choose Us
Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Huashun Machinery started factory in 2000 from producing pipe bending machine, and then expands the whole line of pipe equipments. Lead the manufacturing of pipe equipments after 19 years' of development.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
The predecessor of Huashun Machinery was established in 2000. Since 2005, it has cooperated with Taiwan's famous pipe bending machine manufacturers to introduce Taiwan's advanced engineering technology. In 2007, it officially upgraded to Zhangjiagang Huashun Machinery Manufacturing Co., Ltd.
Factory.
It is located in Zhangjiagang City, along the Economic circle of Yangtse River Delta, Located on the National Road,enjoying the highly developed economic expansion and convenient transportation access.
Our team.
Our factory is combined with manufacture, sales, service, and supply of Pipe equipments, We are devoted to providing a one-stop sales model to customer; We give more important care on our customer's satisfaction. So far, over 108 countries and regions have enjoyed our products and service. Our success has been mainly achieved by following the corporate philosophy of being firmly committed to "Integrity is the base, Customer is the first".
Certificates.
Certificates.
FAQ
Q:Are you manufacturer or trading company?
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
Q: What is the certificates available?
A: CE & ISO9001
Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
A:Yes,we are a manufacture since 2000.We are focusing on metal pipe/tube processing machinery.
Q: Where is your factory located? How can I visit there?
A: Our factory is located in Suzhou city (near to Wuxi).You can fly to Shanghai or Wuxi airport & train station.
Q: What is the certificates available?
A: CE & ISO9001
Q: How is the training and after sales service?
A: Customer is welcome to visit our factory for pre-shipment, and we wil provide trainning service FOC, or we can send our
professional engineer to be abroad in customer's plant, and customer will pay for the air tickets, accommodation, meals and etc.
