NEW home security system for smart home system automation,alarm security system

Product Overview

Description

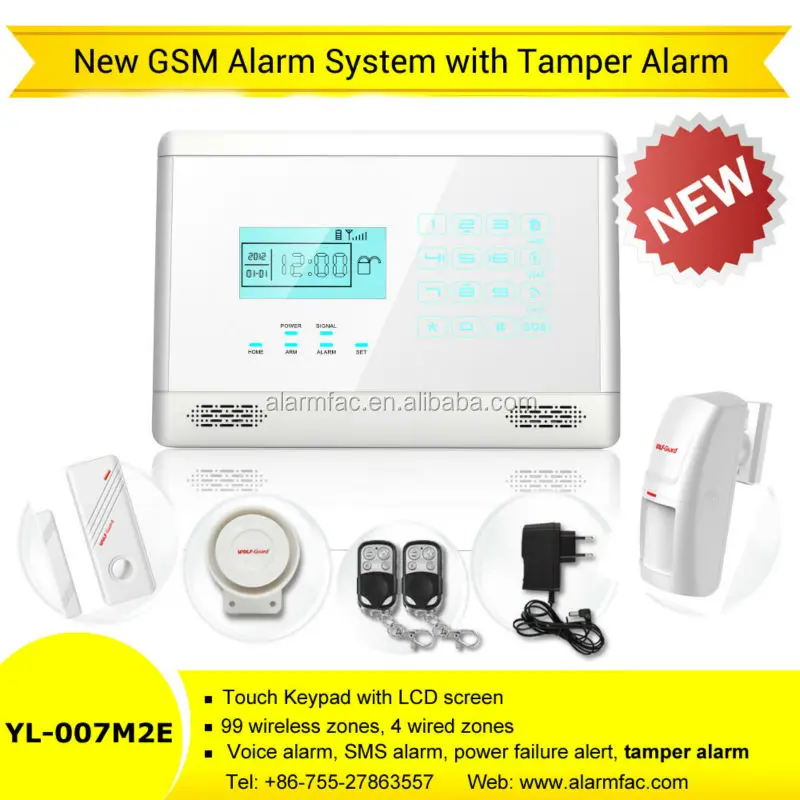

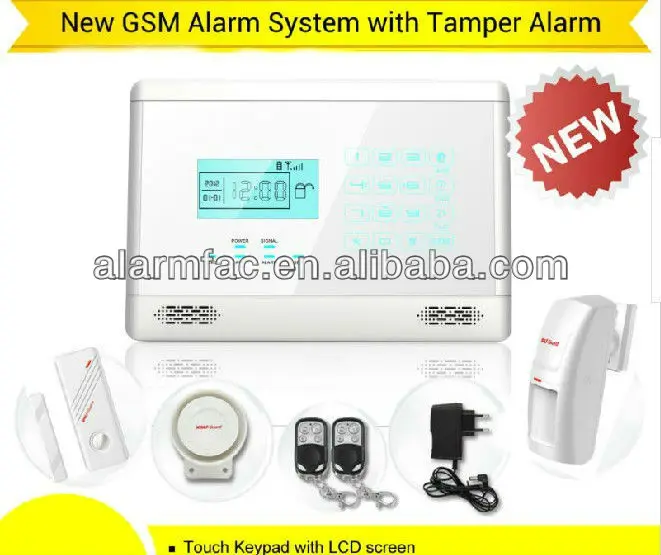

YL-007M2E---our new GSM alarm system,with LCD Screen ,touch keypad, you can finish installation within 15 minutes . It can work with our Powerful Solar siren (JD-06)  Features ---one programmable 12V relay output and tamper alarm function .



NEW home security system for smart home system automation,alarm security system



 1. Details as below:



· 4 wired and 99 wireless defense zones;
· LCD screen with time clock display;
· Voice prompt for all operations;
· 3 groups of timely arm and disarm;
· Can store 6 phone numbers: when alarming, system will make alarm call to these numbers automatically;
· Can store 3 SMS numbers: when alarming, system will send alarming SMS automatically;
· One programmable 12V relay output;
· Tamper alarm function: there is a button at the back side of the panel; it will make alarm once the button is loosen;
· 10-second automatic message recording;
· Built-in artificial intelligent digital voice announcer;



· Built-in artificial intelligent English message, can in Italian ,Spanish , French, Portuguese etc.
· Can send SMS to arm/disarm/check alarm record;
· Can set arm and alarm delay time;
 · Users can make calls by using keypad on main unit, just like a telephone;

 · One-key-control function: Out Arm, Home Arm, Remote Arm; SOS, fire, gas, door, hall, window, balcony, and boundary places alarm;
· Real-time, delay, 24 hours, bypass defense zones programming function;
 · SMS alarm for power failure or recovery;
· Built-in NI-HM rechargeable battery.









NEW home security system for smart home system automation,alarm security system

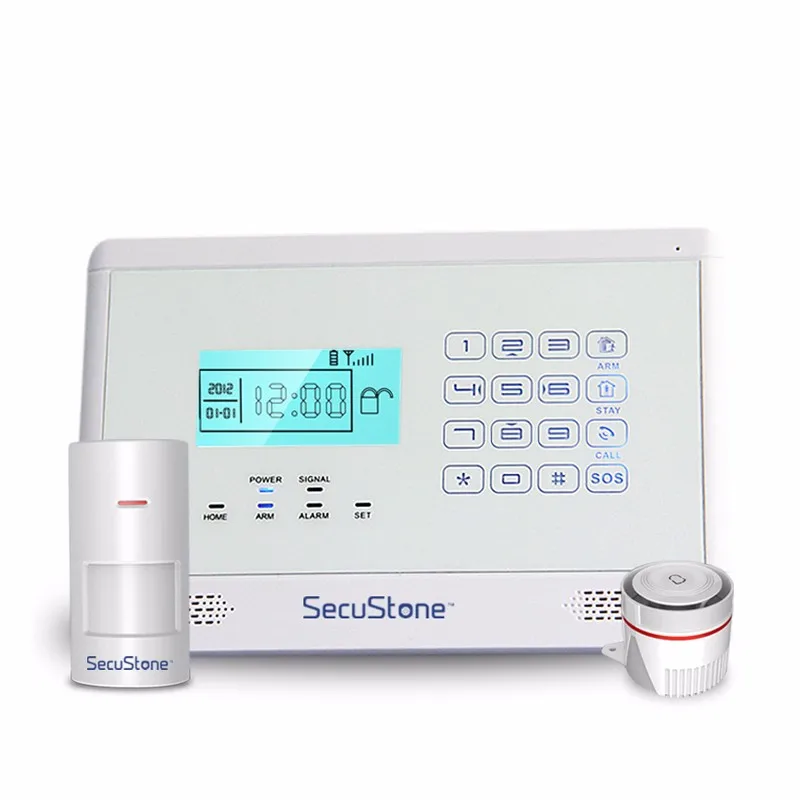

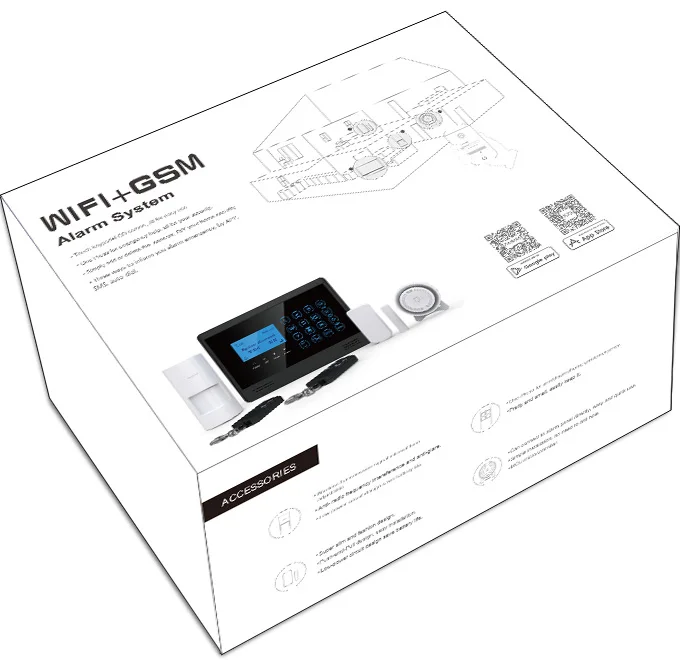

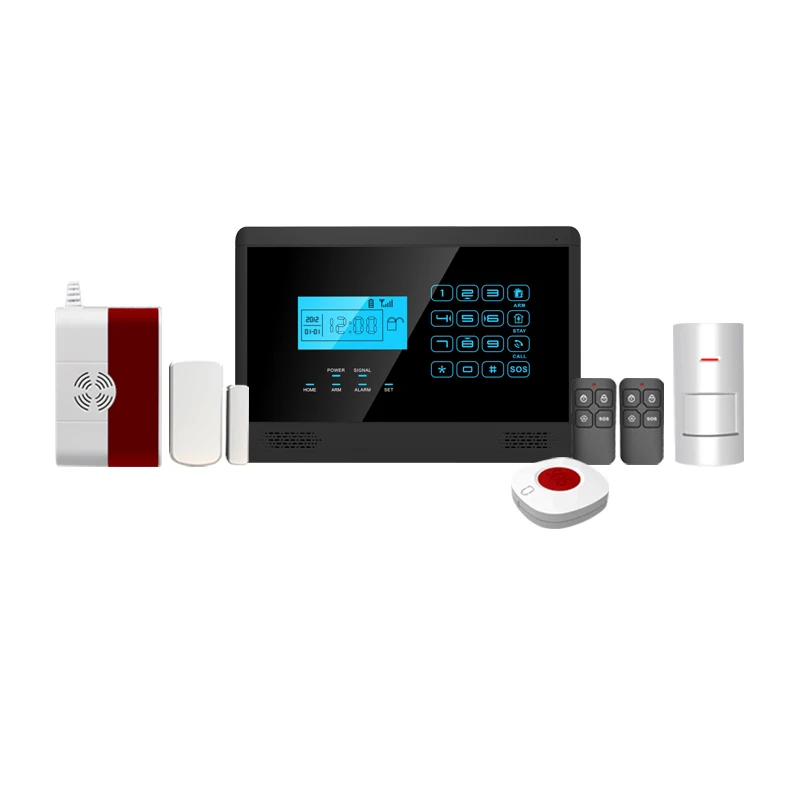

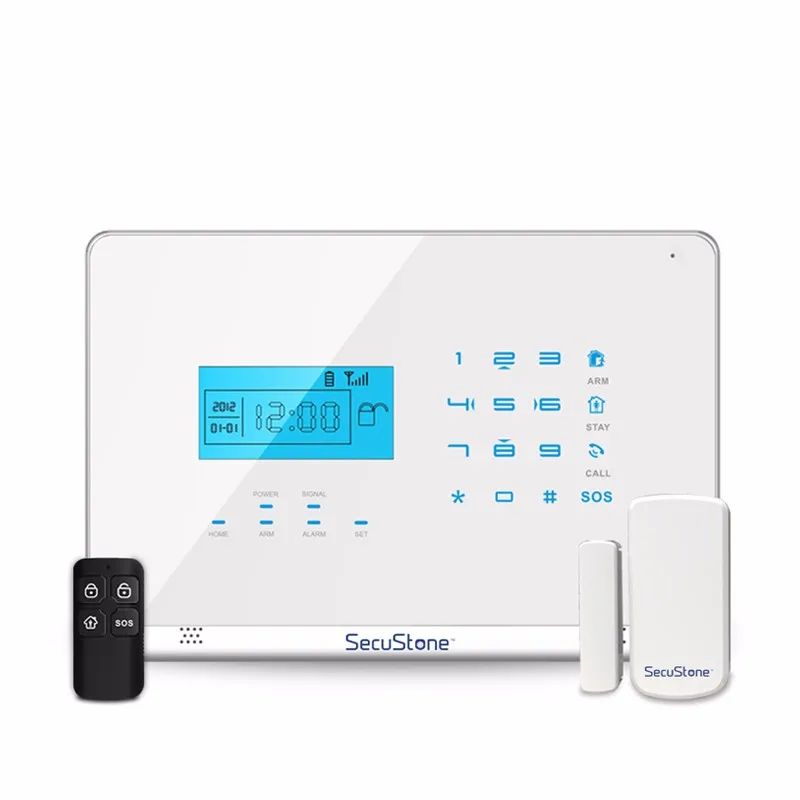

2. Pictures details :









NEW home security system for smart home system automation,alarm security system



3.Main attribute

delivery port	Shenzhen
certificate	CE/Rohs/FCC/CCC/ISO9001
Warranty period	2 years
OEM/ODM	offer
volumetric weight	1.5kg
Time of establishment	1998
wireless frequency	315mHz/433mHz
color	silver and white
horn level	120dB
Technology	Infrared



NEW home security system for smart home system automation,alarm security system



4. Technical specifications:

Input Voltage:	DC12V/1A
Standby Current:	<55mA
Alarming Current:	<450mA
Wireless Frequency	315MHz, 2262/4.7MΩ
GSM Frequency	850/900/ 1800/ 1900MHz
Back-up Battery	NI-HI AAA*6  DC7.2V
Siren Volume	120dB



NEW home security system for smart home system automation,alarm security system



5. Main kits :

Main panel,                  x 1pc

Wireless PIR detector, x 1 pc

Wireless door sensor,  x 1pc

Siren,                            x 1pc

Remote controllers,     x 2pcs

Power supply,              x 1pc

Manual                        x 1pc



*************************************************************************



********************************************************************************************************************************

******************************************************************************************************************************

******************************************************************************************************************************









6. For occasions:

House,   convenience store,    car,     hospital    school,   library,   bank,   financial office,  office, let, community,  factory floor,  storehouse of factory,  parking lot ,etc.
